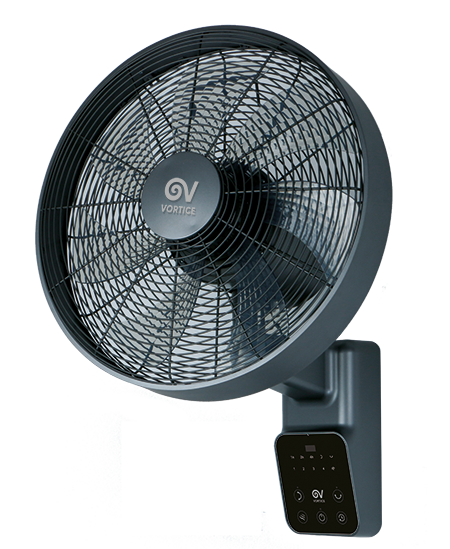

Description
• Grey painted metal grille.
• Motor housing, cover integrating the control panel and central frame placed between the front and rear grilles in grey painted plastic (ABS).
• Touch control panel with blue LED lights to display the show enabled functions.
• Remote control, which replicates the functions that can be set from the on-board control panel.
• Axial impeller directly coupled to a 5-speed DC (brushless) motor, designed to guarantee safe and reliable operation.
• Automatic horizontal oscillation (60° rotation) and automatic vertical oscillation (30° up/down inclination). Possibility of activating both oscillation modes simultaneously.
• Timer for automatic switch-off, settable up to a maximum of 4 hours.
• Metal bracket with 4 screws and plugs for wall installation.
• Power supply with Italian plug and 150 cm long cable.
• Motor housing, cover integrating the control panel and central frame placed between the front and rear grilles in grey painted plastic (ABS).
• Touch control panel with blue LED lights to display the show enabled functions.
• Remote control, which replicates the functions that can be set from the on-board control panel.
• Axial impeller directly coupled to a 5-speed DC (brushless) motor, designed to guarantee safe and reliable operation.
• Automatic horizontal oscillation (60° rotation) and automatic vertical oscillation (30° up/down inclination). Possibility of activating both oscillation modes simultaneously.
• Timer for automatic switch-off, settable up to a maximum of 4 hours.
• Metal bracket with 4 screws and plugs for wall installation.
• Power supply with Italian plug and 150 cm long cable.
Certifications
-
Download
CE
-
CB TEST CERTIFICATE
Technical Data Sheet
-
Frequency (Hz)50-60
-
Insulation classII°
-
IPX0
-
Max absorbed current (A)0,2
-
Max absorbed power (W)45
-
Voltage (V)220-240
-
Weight (Kg)3,9
-
Max airflow (m³/h)3885
-
Max airflow (m³/min)64,75
-
Max flow speed (m/s)3.64
-
Power in stand-by mode (W)0,48
-
Seasonal electric consumption (kWh/y)14,44
-
Service value (m³/min)/W1,49
-
Sound power at Min speed LWA [dB(A)]71,33
* Technical datas above refer to the product powered at 50 Hz.
For values for 60 Hz power supply, please contact the VORTICE Presales Service at prevendita@vortice-italy.com.
-
Size A (mm)581
-
Size B (mm)380
-
Size C (mm)405,5
-
Size D (mm)238
-
Size E (mm)120
