Code 61731

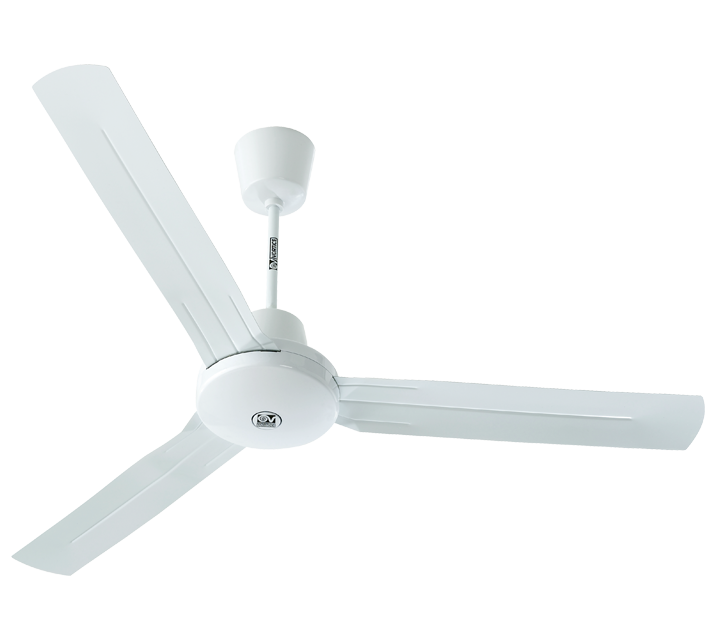

NORDIK INTERNATIONAL PLUS 160/60

Ceiling fans

Description
Certifications
Technical Data Sheet
Accessories

Description

• Nominal diameter of blades 1600 mm
• Top and bottom motor covers moulded from heat-resistant and UV-resistant thermoplastic resin (ABS), colour white
• Wiring connections at end of ceiling rod concealed by domes moulded from impact- and UV-resistant PP, colour white.
• Single phase start capacitor motor with external rotor, and shaft turning in ball bearings.
• Maximum air flow: 14,000 m3/h.
• 3 sheet steel blades powder coated with scratch-resistant polyester, colour white.
• Steel ceiling rod with polyester powder coated finish, colour white, length 375 mm.
• Bag of accessories containing nuts and bolts required for assembly of blades, ceiling hook and rubber anti-vibration washer.
• Factory-prepared to accept Light Kit (optional), suitable for lamp rated 150W max with
E27 screw fitting, or equivalent energy-saving lamp with E27 screw fitting.
• Speed selectable by way of control units (optional)

Read full descriptionClose description

Certifications

CE
Download
EAC
CB TEST CERTIFICATE

Fan diameter

160
Frequency (Hz)

50
Insulation class

I°
Max absorbed current (A)

0,33
Max absorbed power (W)

70
Voltage (V)

220-240
Weight (Kg)

6,90

giri_minuto

201
Max airflow (m³/h)

14000
Max airflow (m³/min)

233,33
Max flow speed (m/s)

1,34
RPM

201
Service value (m³/min)/W

3,333
Sound power Lw [dB(A)]

55,6

Size A (mm)

Ø 1524
Size B (mm)

Ø 230
Size C (mm)

495

Interested?

If you are interested in this product, contact us or locate your nearest Vortice dealer.

Documentation

You can see all the documentation relating to this product: price list, information booklet and wiring diagram.

Accessories

Discover accessories related to the product

SCNR5 UNIFICATA NK SOFFITTO

• 5-position speed controller for ceiling-mounted fans without light.

Go to data sheet

SCNRL5 UNIFICATA NK SOFFITTO

• 5-position speed controller for ceiling-mounted fans with light.

Go to data sheet

ASTA NK I 200 BIANCA

• NK I 200 White Rod to enable installation at desired height.

Go to data sheet

ASTA NK I 250 BIANCA

• NK I 250 White Rod to enable installation at desired height.

Go to data sheet

ASTA NK I 350 BIANCA

• NK 350 I White Rod to enable installation at desired height.

Go to data sheet

ASTA NK I 500 BIANCA

• NK I 500 White Rod enable installation at desired height.

Go to data sheet

ASTA NK I 750 BIANCA

• NK I 750 White Rod to enable installation at desired height.

Go to data sheet

ASTA NK I 1000 BIANCA

• NK I 1000 White Rod to enable installation at desired height.

Go to data sheet

TELENORDIK 5T

• Infrared remote control suitable for ceiling fans with or without light.
• 5 selectable speeds, as well as fan and light on/off switch.
• “Timer” button to set f...

Go to data sheet

PLUS LIGHT KIT (KIT LUCE)

• Light kit for all Nordik International Plus models.
• Lamp: max 150 W.

Go to data sheet

KIT SCB (TRASF.E.C.)

• Built-in controller adaptor.

Go to data sheet

KIT SCB5 (TRASF.5 V.)

• Built-in controller adaptor.
• 5 speeds.

Go to data sheet

C 2.5 (COMANDO EL. 2.5 A)

• Electronic speed controller.
• Maximum load 2.5 A.

Go to data sheet

SC 503 B

Flush mounted speed controller.

• colour: White.
• New flush or wall mounted speed controllers for the entire range of Vortice ceiling fans.
• Thanks to t...

Go to data sheet

SC 503 N

Flush mounted speed controller.

• Colour: anthracite grey.
• New flush or wall mounted speed controllers for the entire range of Vortice ceiling fans.
• T...

Go to data sheet

SC EXT B

Wall mounted speed controller.

• colour: White.
• consists of the same unit as in the flush mounted version with the addition of a casing to be fitted to the ...

Go to data sheet
