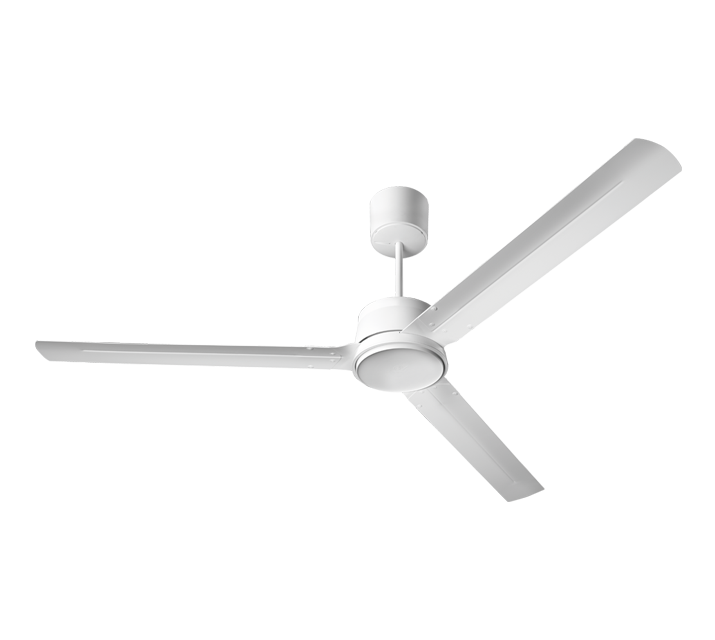

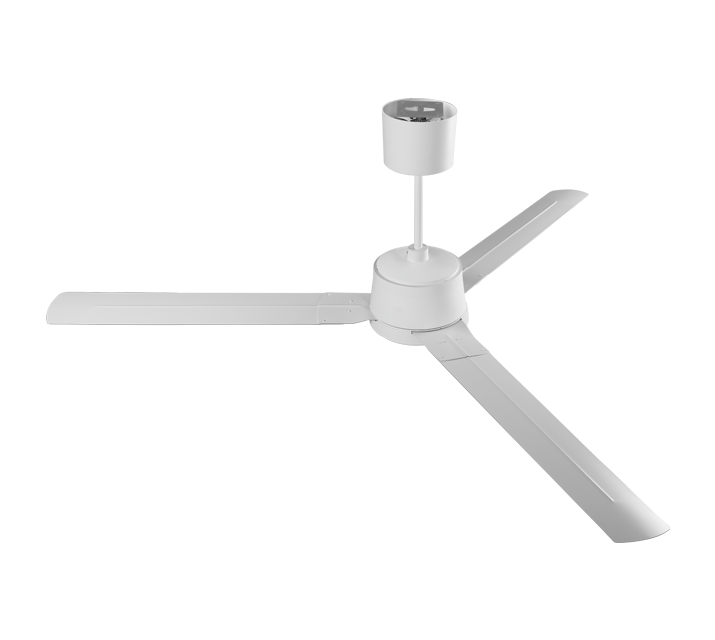

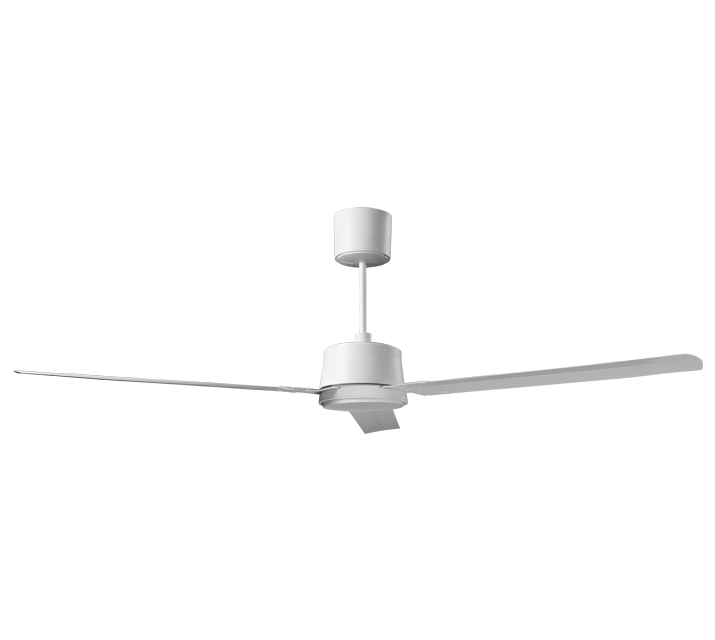

Description

• Nominal diameter of blades 2000 mm.

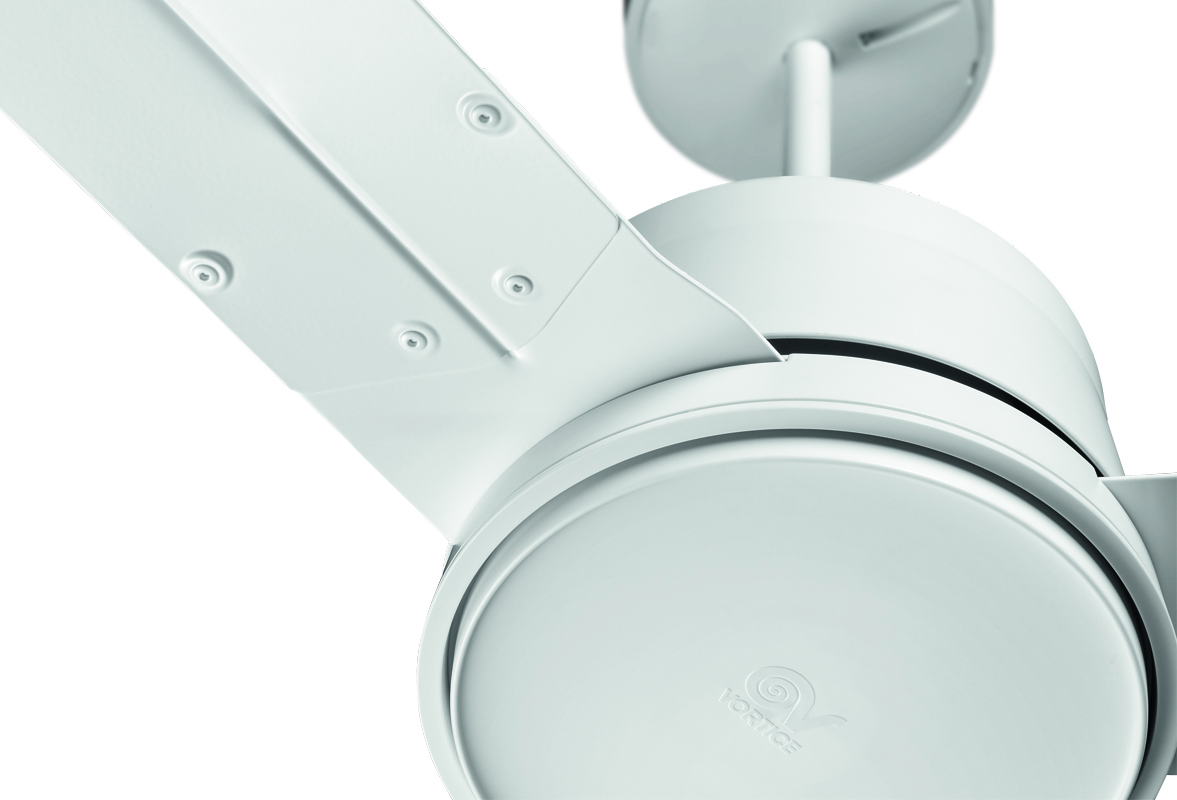

• Cups and motor covers molded in heat-resistant polymer (ASA), matt white (RAL9016).

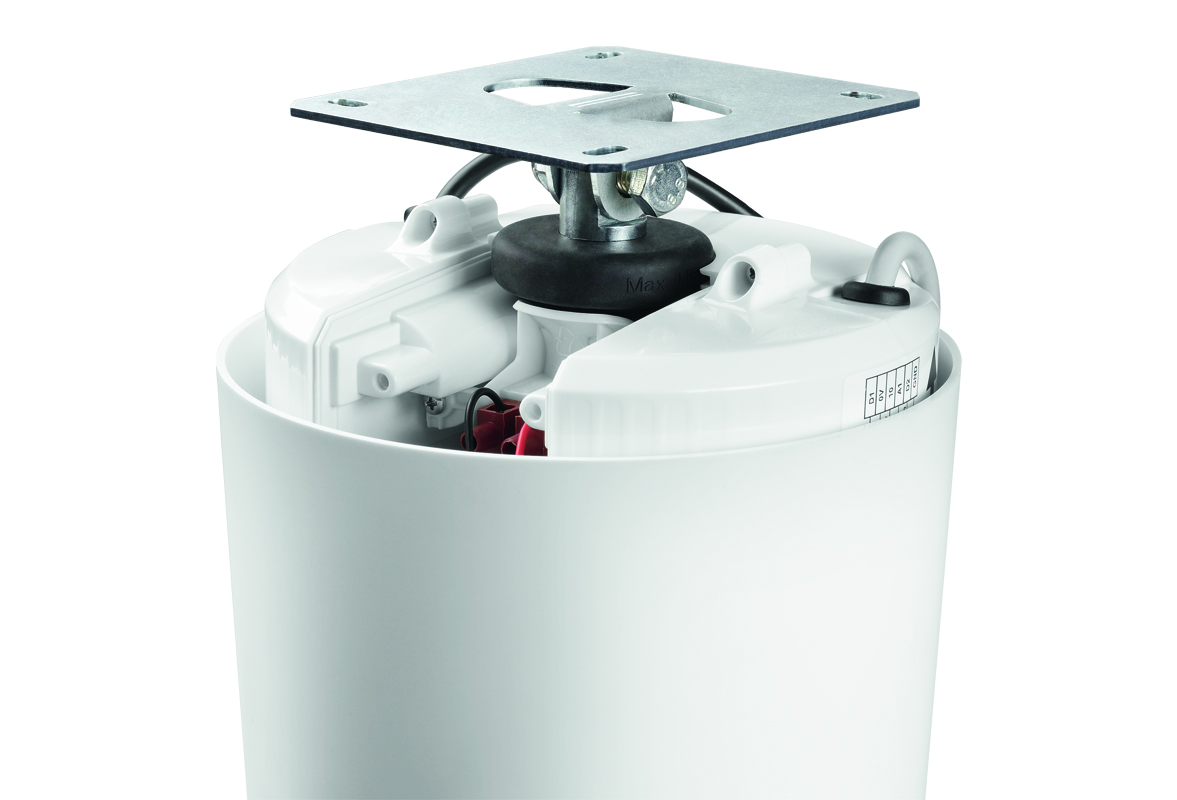

• EC (brushless) motor with shaft turning in ball bearings, reversible function, able to grant high performance throughout the operating range. Integrated motor driver.

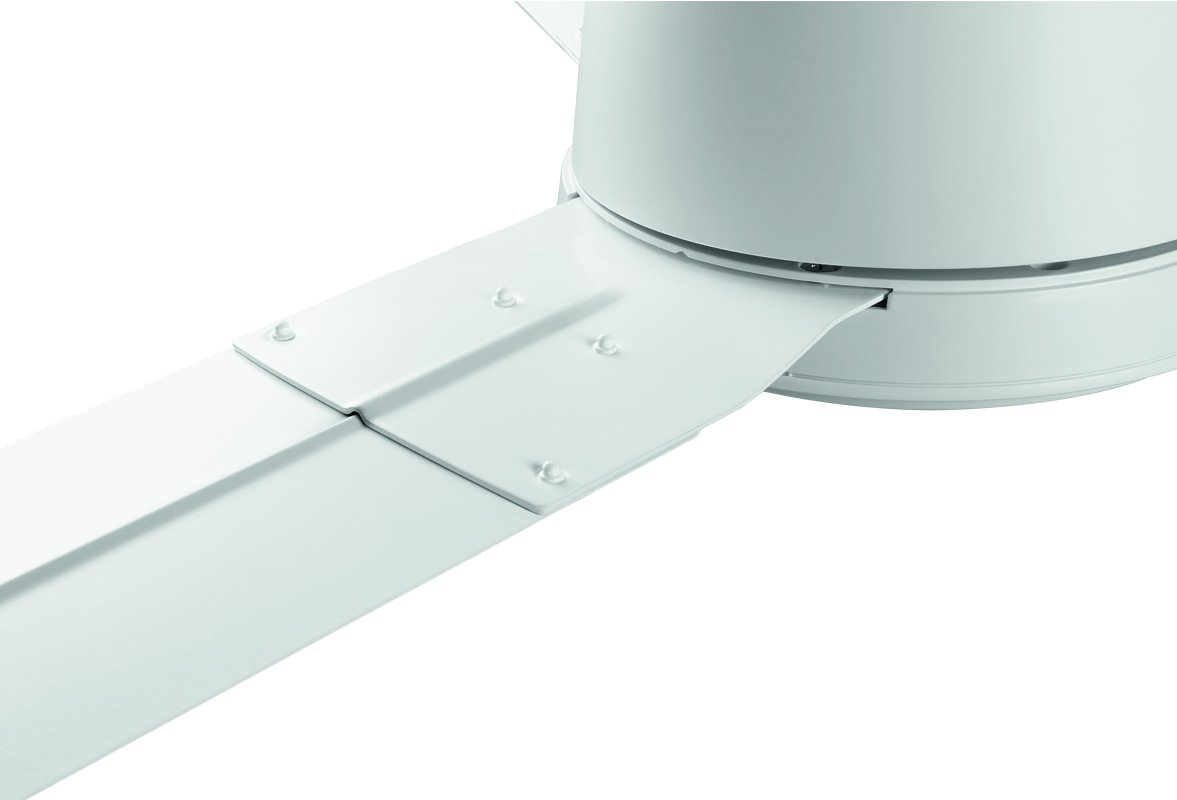

• 3 powder coated sheet steel blades, matt white (RAL9016).
• Powder coated steel ceiling rod, matt white (RAL9016).
• Accessories bag containing fixing bolts for blades, ceiling hook and rubber anti-vibration washer.
• Possibility of speed regulation by potentiometer or IR remote control (optional).
Read full descriptionClose description

Certifications

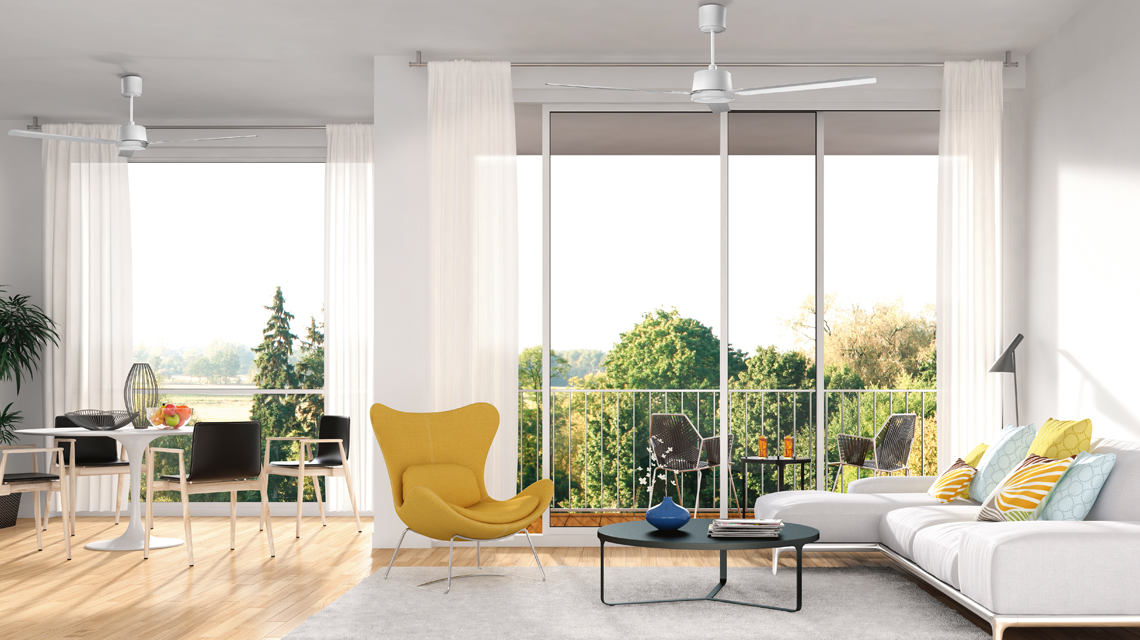

nordik_eco_ambiente01

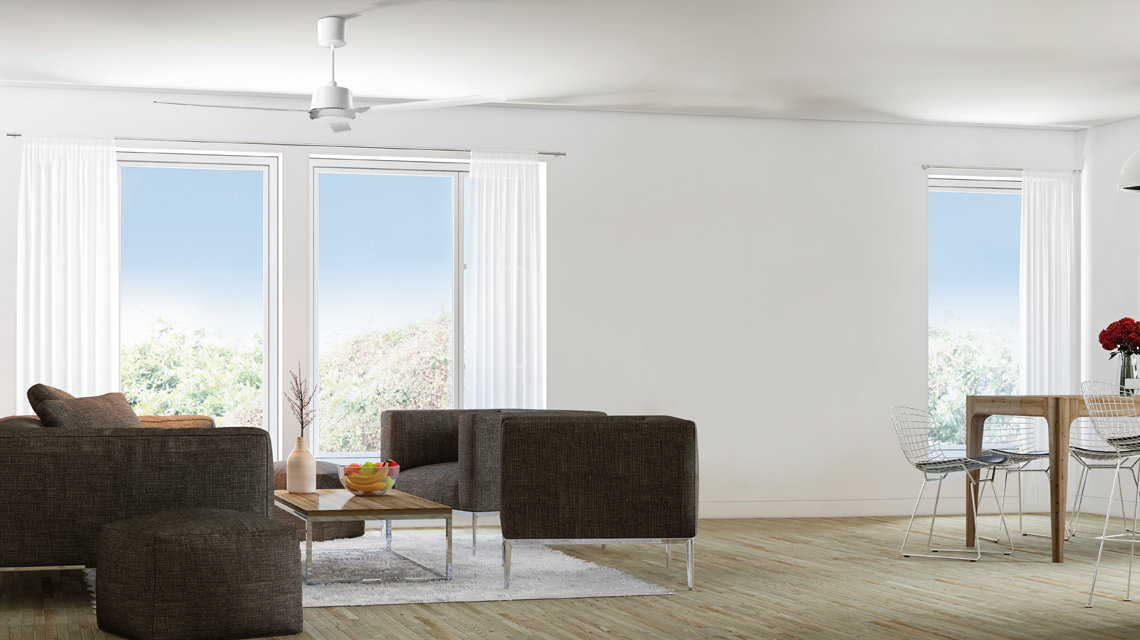

nordik_eco_ambiente02

Technical Data Sheet

  • Fan diameter
    2000
  • Frequency (Hz)
    50/60*
  • Insulation class
  • Max absorbed current (A)
    0,37
  • Max absorbed power (W)
    40
  • Max ambient temperature for continuous operation (°C)
    45
  • Voltage (V)
    220-240
  • Weight (Kg)
    10
  • Max airflow (m³/h)
    22500
  • Max airflow (m³/min)
    375,00
  • Max flow speed (m/s)
    1,38
  • RPM
    200
  • Service value (m³/min)/W
    9,375
  • Sound power Lw [dB(A)]
    57,8


* Technical datas above refer to the product powered at 50 Hz.
For values for 60 Hz power supply, please contact the VORTICE Presales Service at prevendita@vortice-italy.com.

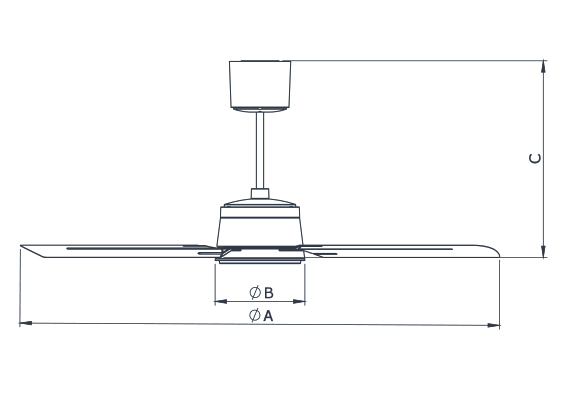

  • Size A (mm)
    ø 2000
  • Size B (mm)
    ø 237
  • Size C (mm)
    535
quota

Accessories

Discover accessories related to the product

NKE ROD 160
NKE ROD 160
NKE ROD 290
NKE ROD 290
NKE ROD 665
NKE ROD 665
NKE ROD 915
NKE ROD 915

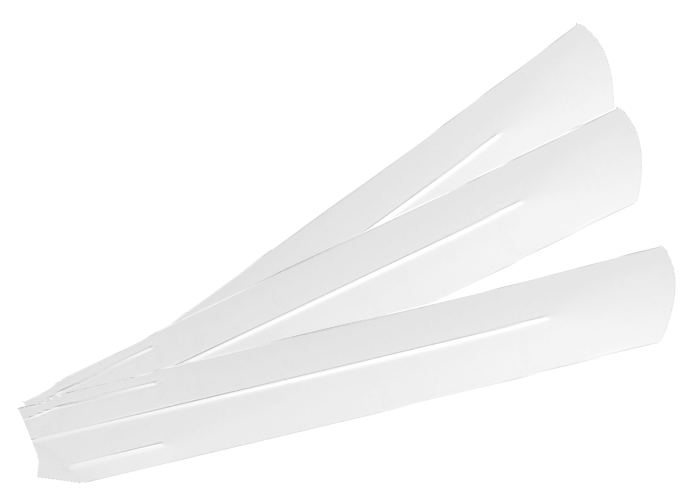

NKE BLK 2000
