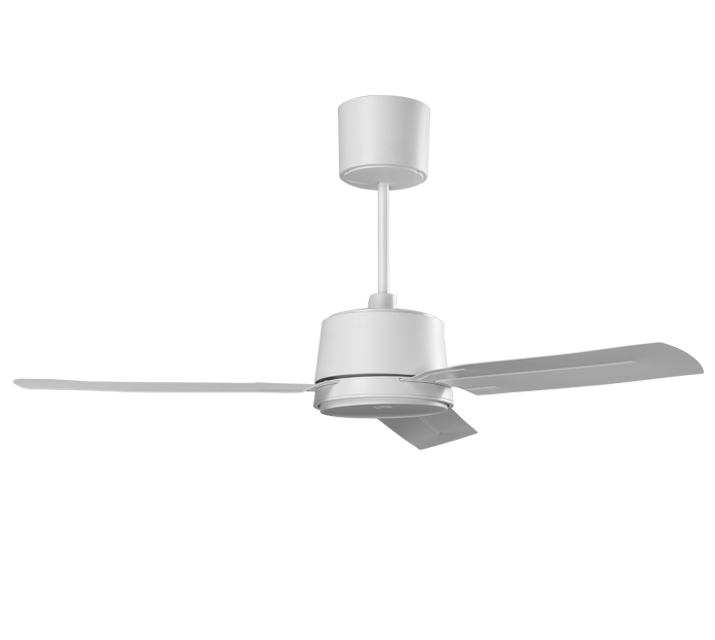

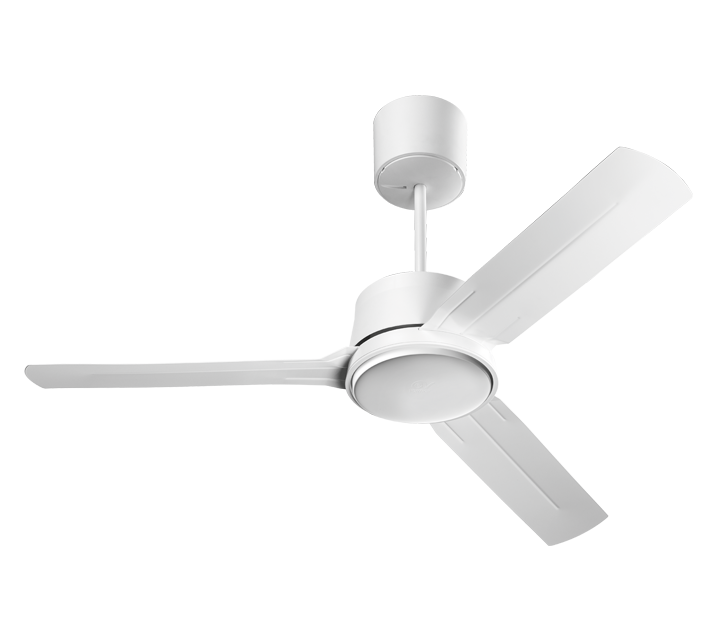

Description

• Nominal diameter of blades 1200 mm.

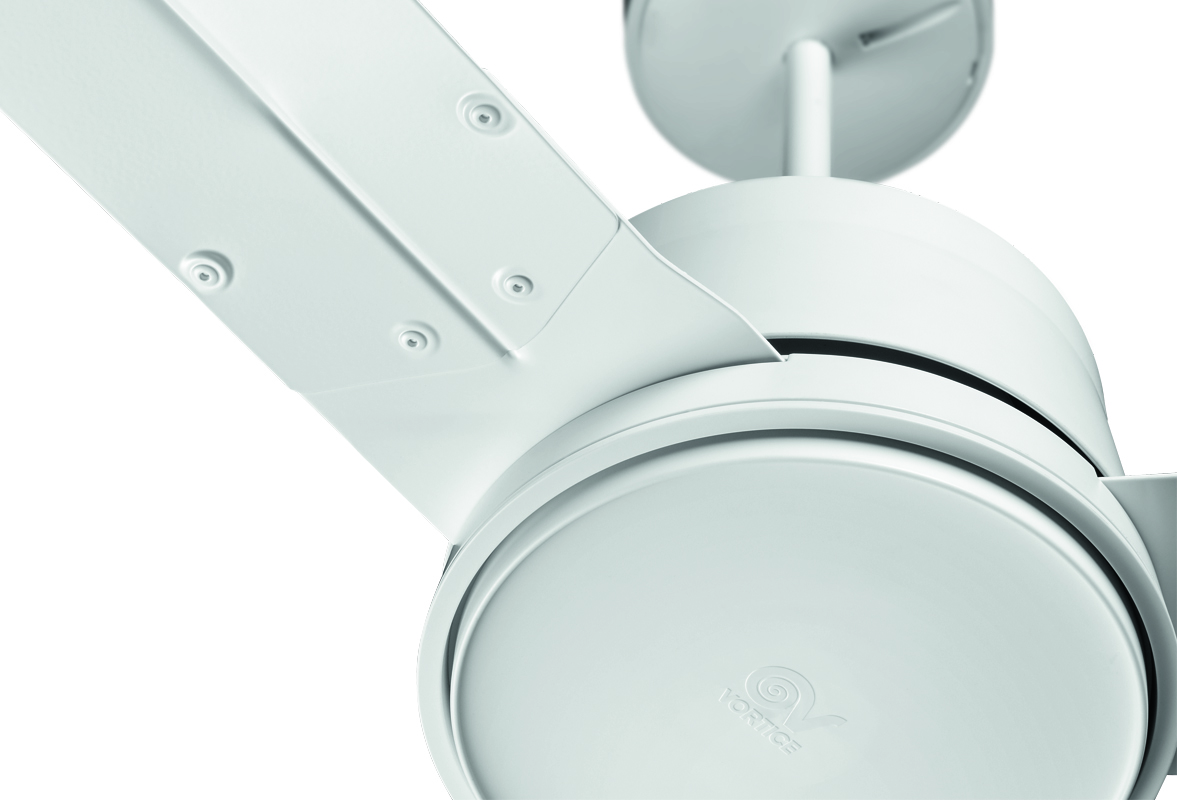

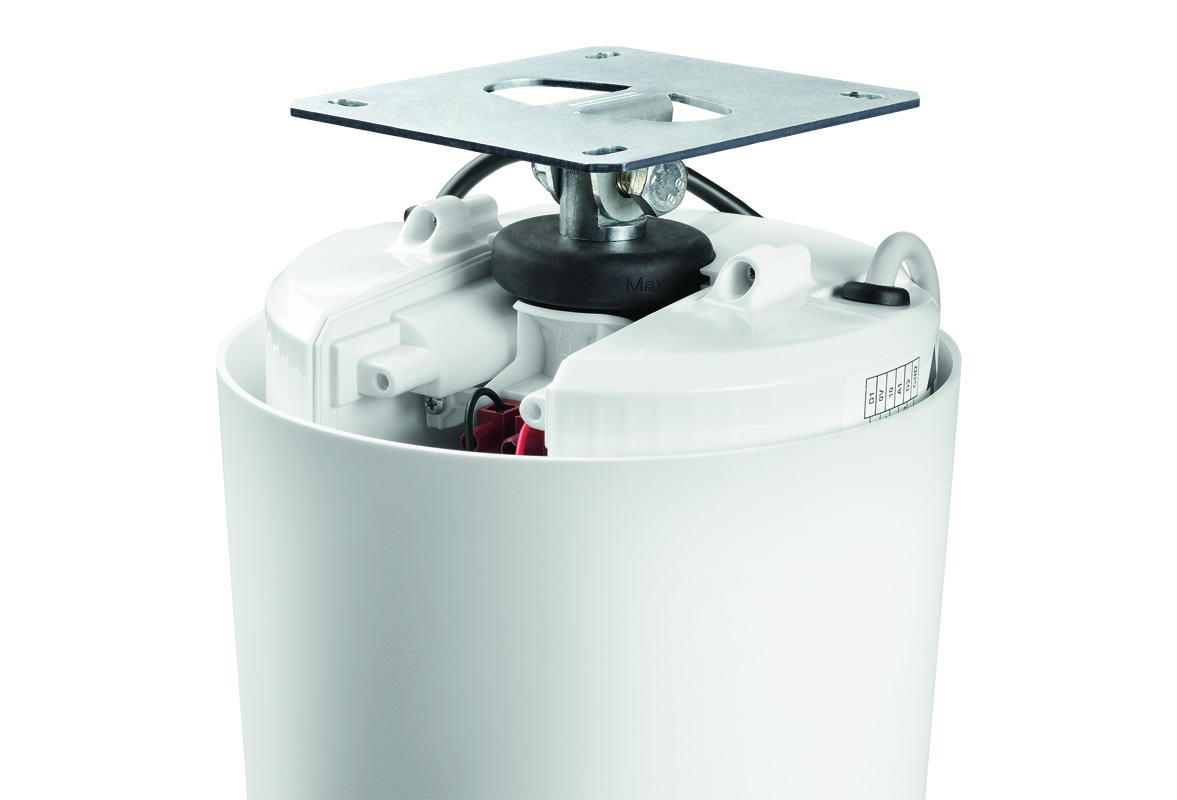

• Cups and motor covers molded in heat-resistant polymer (ASA), matt white (RAL9016).
• EC (brushless) motor with shaft turning in ball bearings, reversible function, able to grant high performance throughout the operating range. Integrated motor driver.

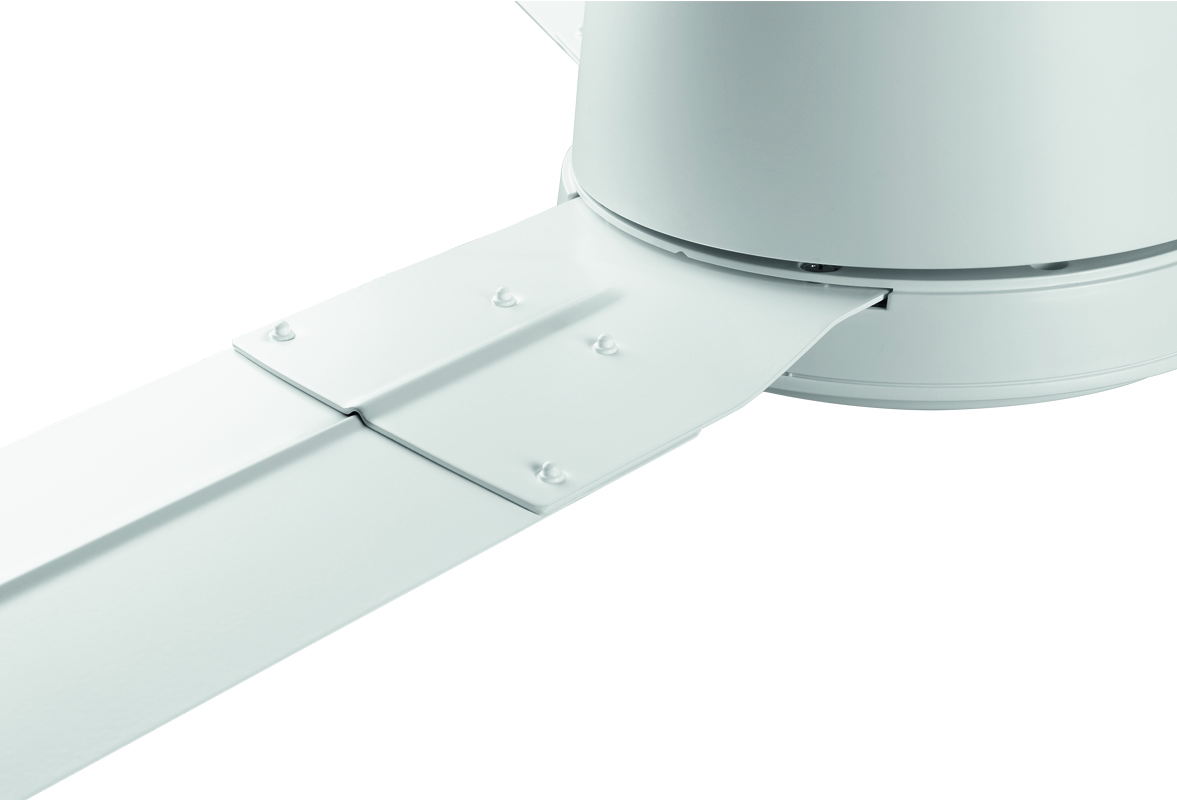

• 3 powder coated sheet steel blades, matt white (RAL9016).

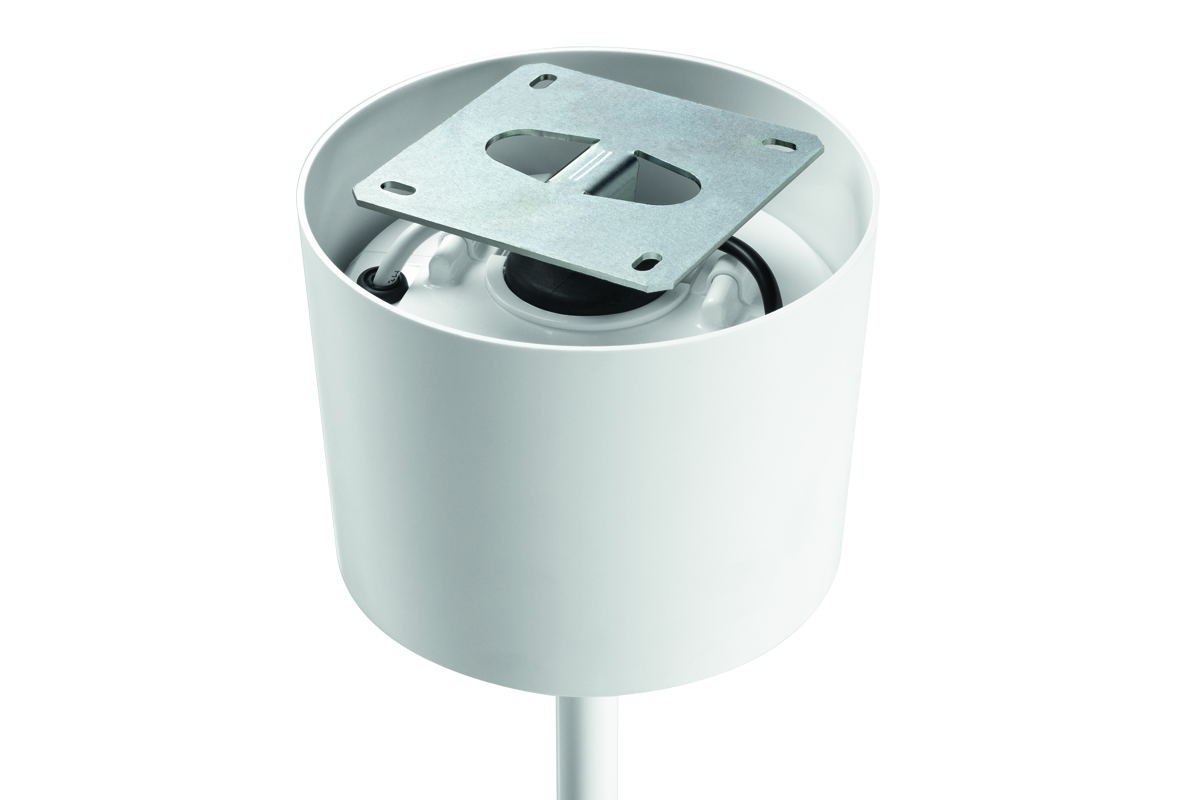

• Powder coated steel ceiling rod, matt white (RAL9016).
• Accessories bag containing fixing bolts for blades, ceiling hook and rubber anti-vibration washer.
• Possibility of speed regulation by potentiometer or IR remote control (optional).
Read full descriptionClose description

Certifications

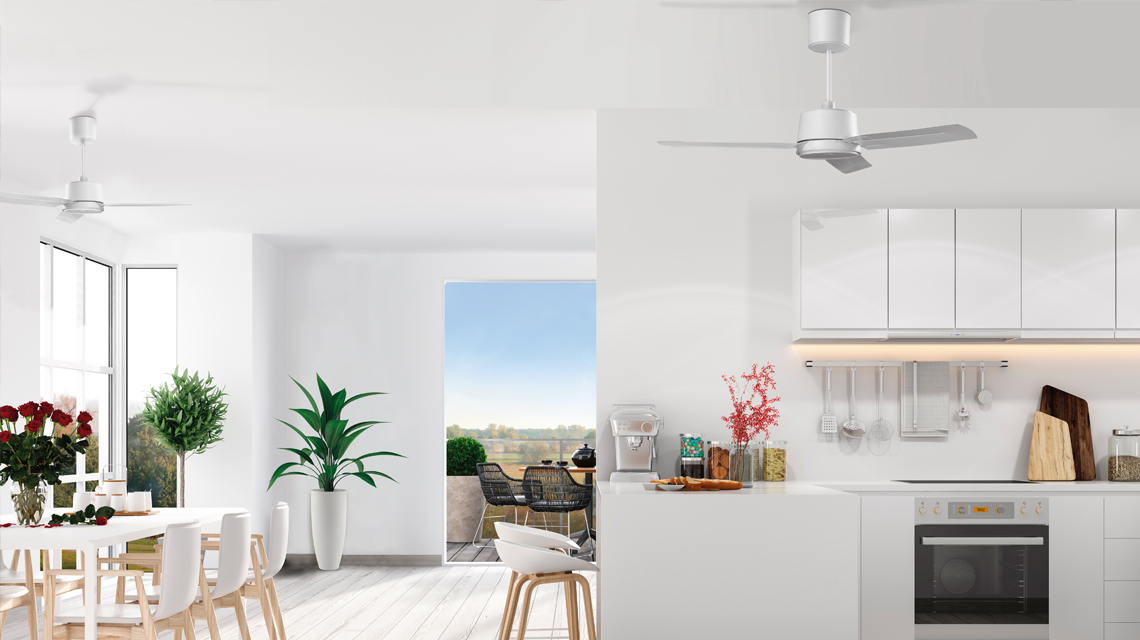

nordik_eco_ambiente01
nordik_eco_ambiente02

Technical Data Sheet

  • Fan diameter
    1218
  • Frequency (Hz)
    50/60*
  • Insulation class
  • Max absorbed current (A)
    0,29
  • Max absorbed power (W)
    30
  • Max ambient temperature for continuous operation (°C)
    45
  • Voltage (V)
    220-240
  • Weight (Kg)
    7,8
  • Max airflow (m³/h)
    14100
  • Max airflow (m³/min)
    235
  • Max flow speed (m/s)
    2,41
  • RPM
    235
  • Service value (m³/min)/W
    7,833
  • Sound power Lw [dB(A)]
    52,1


* Technical datas above refer to the product powered at 50 Hz.
For values for 60 Hz power supply, please contact the VORTICE Presales Service at prevendita@vortice-italy.com.

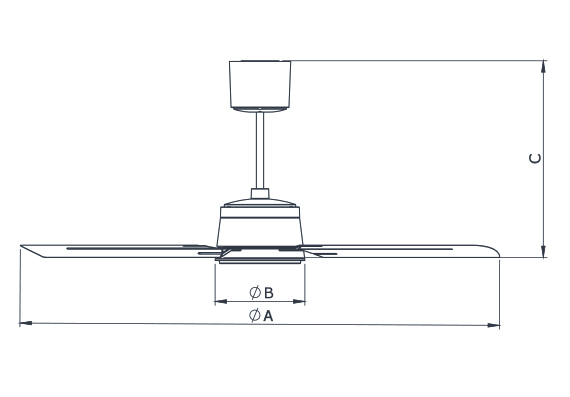

  • Size A (mm)
    ø 1218
  • Size B (mm)
    ø 237
  • Size C (mm)
    535
quota

Accessories

Discover accessories related to the product

NKE ROD 160
NKE ROD 160
NKE ROD 290
NKE ROD 290
NKE ROD 665
NKE ROD 665
NKE ROD 915
NKE ROD 915
NKE BLK 1200
NKE BLK 1200
TELENORDIK ECO
TELENORDIK ECO
VORT DELTA T WIFI
VORT DELTA T WIFI
Multiple speed controller with LCD display and membrane keyboard, designed to be combined with NORDIK ECO ceiling fans. The appliance is able to control the operation of one or mor...
MD-WIFI
MD-WIFI
Additional Wi-Fi module able to put in communication NORDIK ECO ceiling fan with VORT DELTA T WIFI control unit (code 21175).
