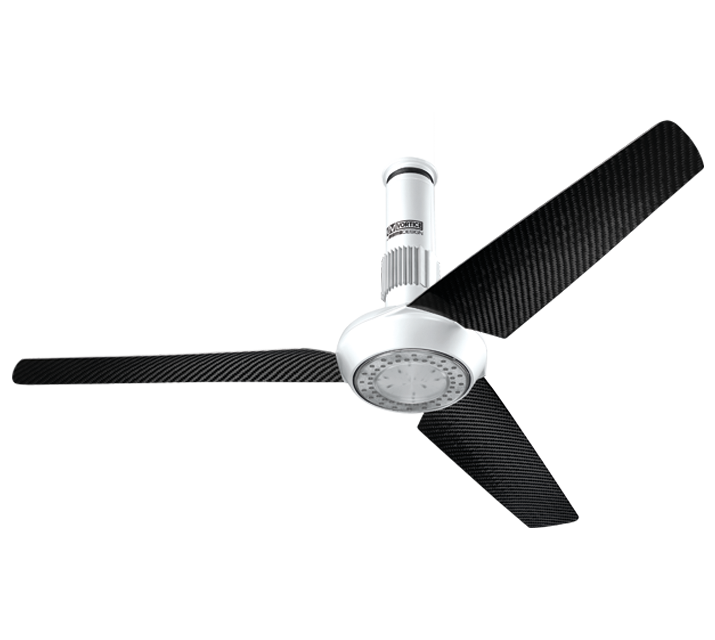

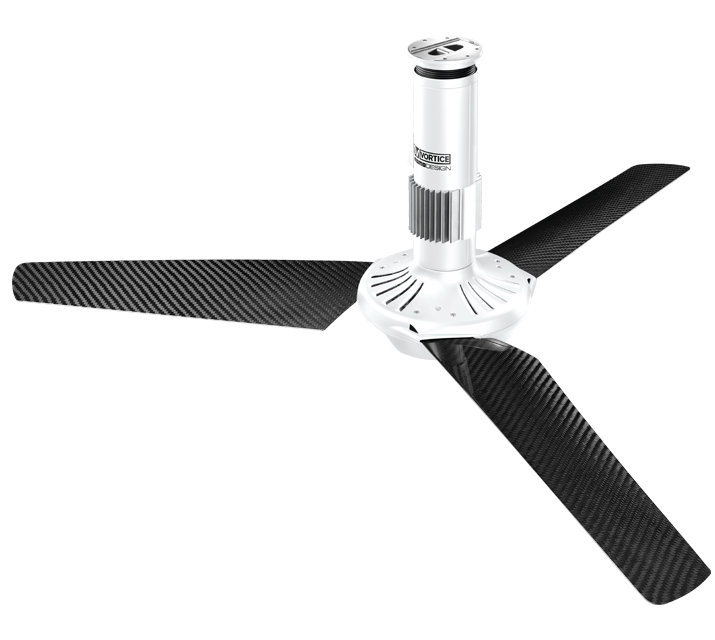

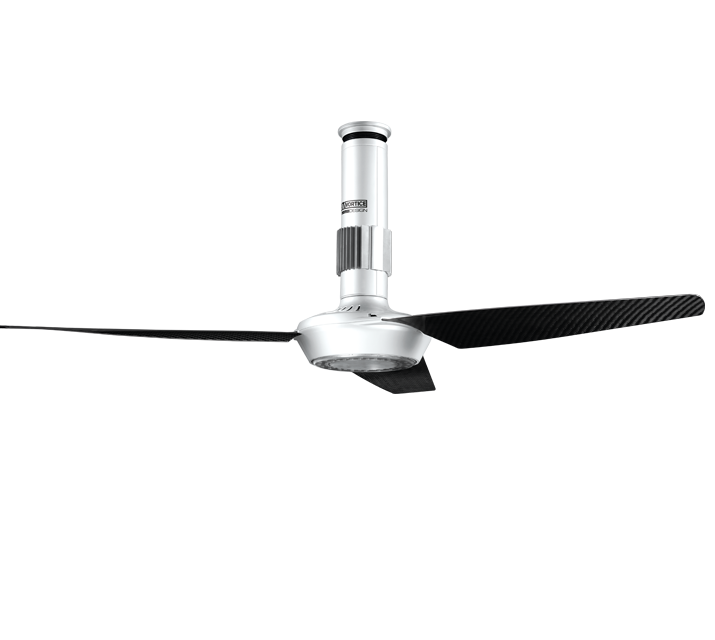

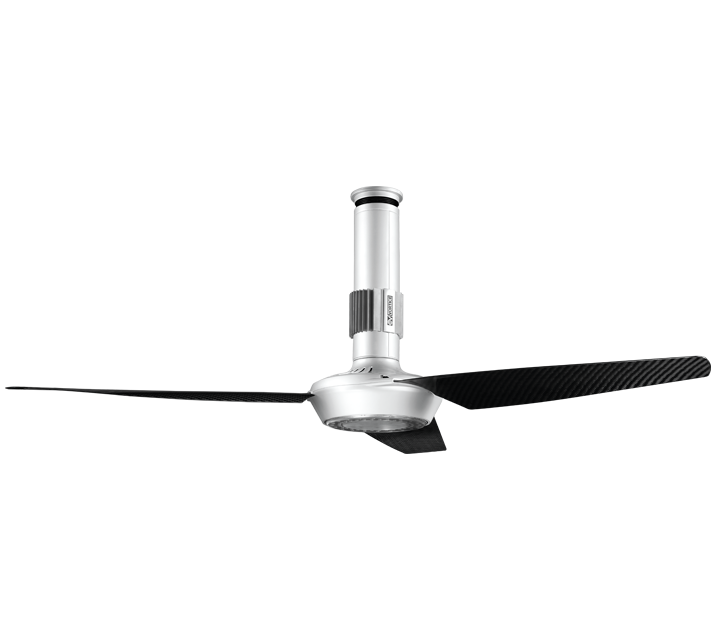

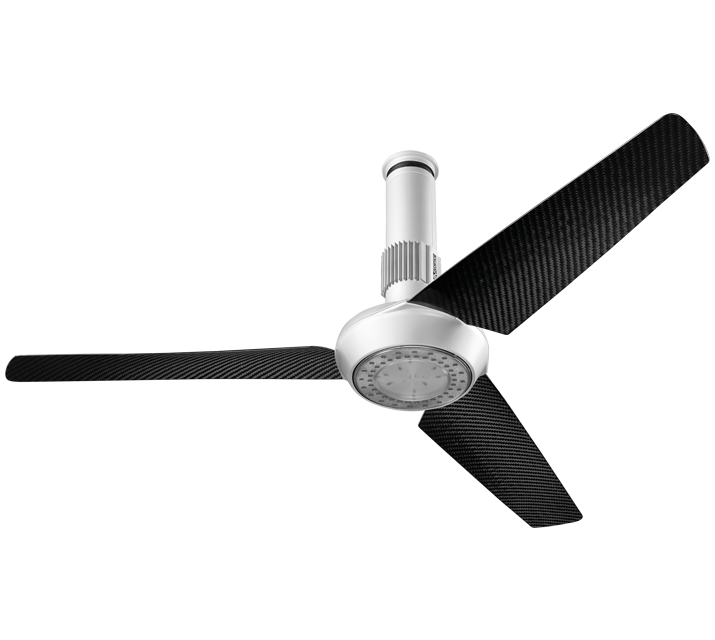

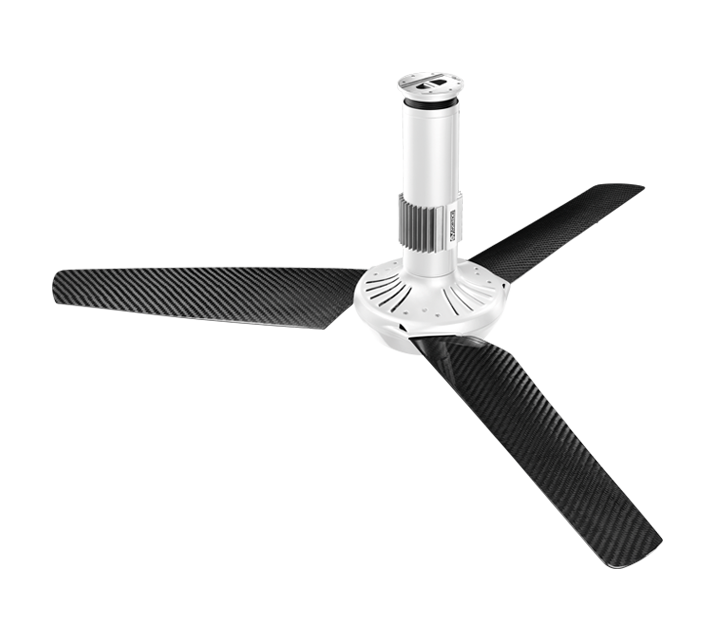

Description

• Nominal diameter of blades: 1600 mm
• Cups, motor cover and ceiling rod casing made of matt white thermoplastic resin (Polycarbonate).
• Ball bearings external rotor motor. Reversible rotation.
• 3 carbon fiber made blades, airfoil shaped.
• Rod made of electrogalvanized steel, length 290 mm.
• Lighting system based on LED technology (color temperature 3.500 °K), 3 different lighting modes available:
o home: this option activates 60 LED placed on the central area of the ceiling light. The entire underneath area is covered by a diffused and uniform light (maximum surface 30 m2).
o work (“dark light”): the option activates 50 LED placed on the outer ring of the ceiling light. A small area is illuminated avoiding risks of glare.
o mixed: all 110 LED are activated; the entire area is illuminated.
The light intensity can be adjusted to achieve the required intensity illumination.
• Remote control (RF technology); supplied with the product, allows to:
o Switch ON/OFF the product;
o Set the rotation speed (5 speeds available);
o Set the rotation sense (cw or ccw);
o Switch ON/OFF the light and set 3 alternative lighting modes;
o Adjust the light intensity (5 levels available);
o Set the delayed shutdown of the ceiling fan (timer).
• Safety cable to prevent any risk of fall in case of improper installation.
Read full descriptionClose description

Certifications

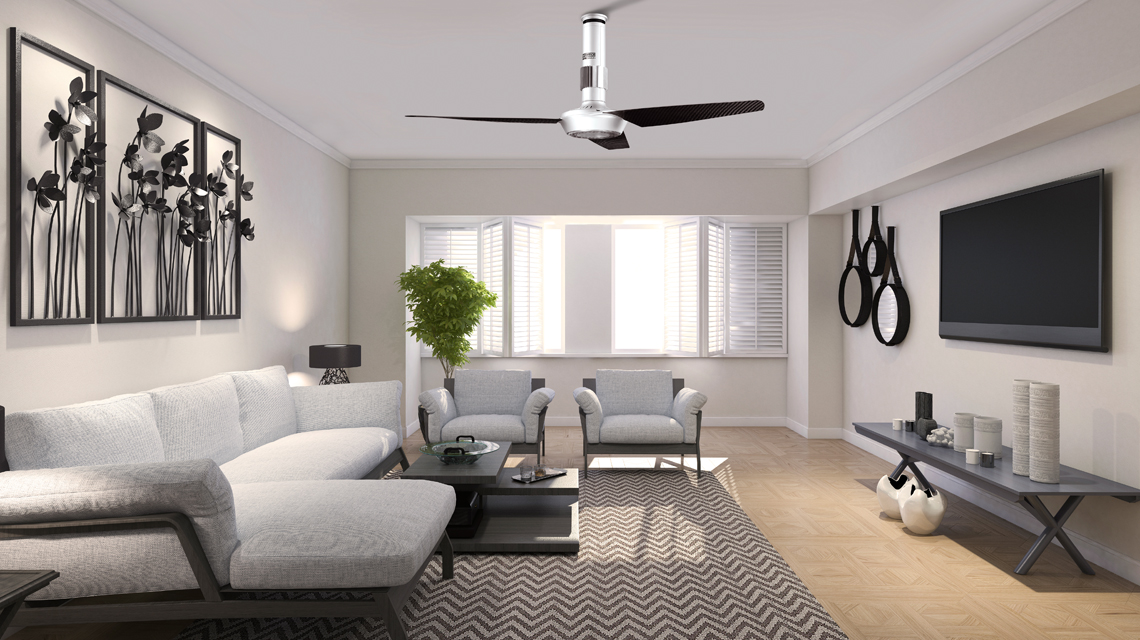

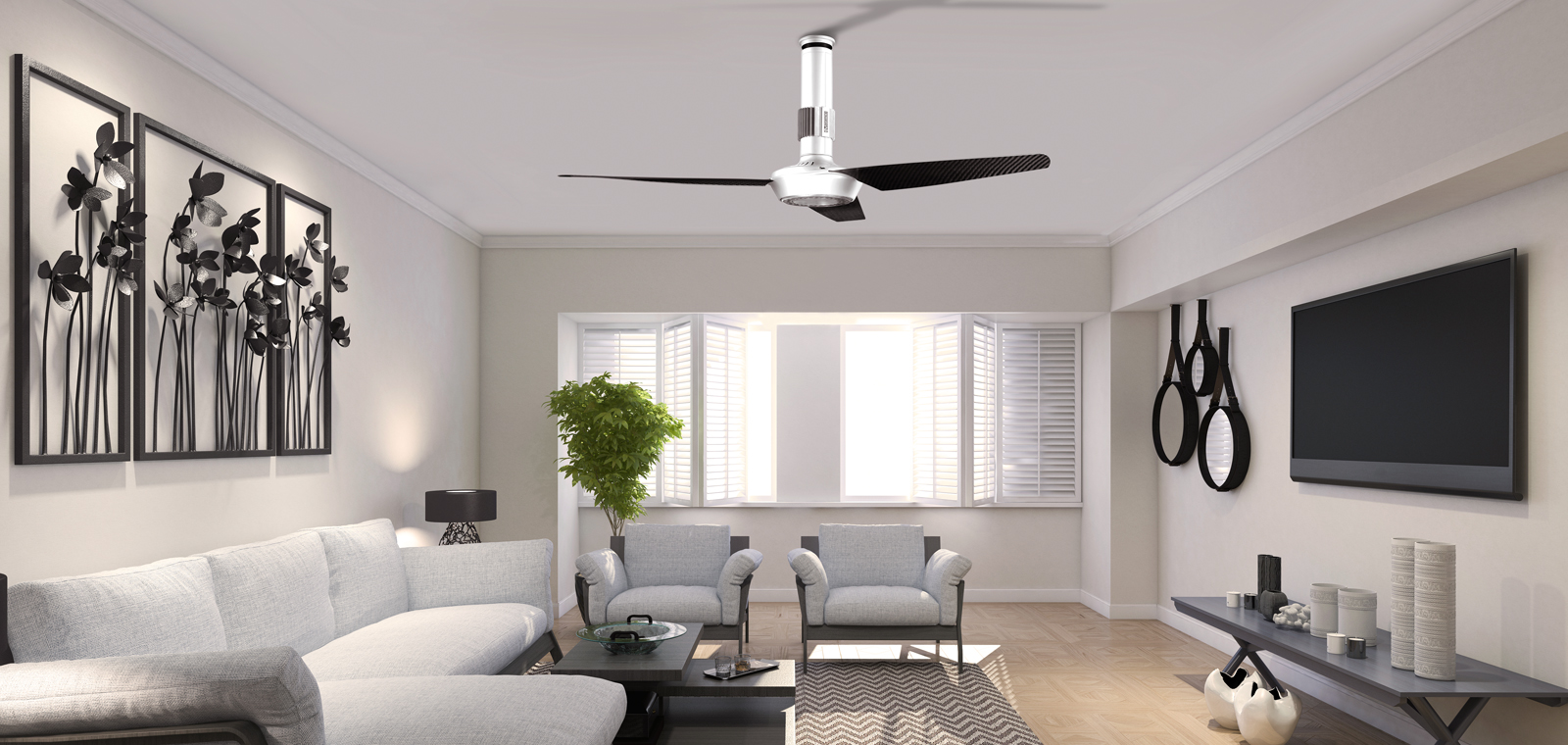

nordik_air_design_ambiente01
nordik_air_design_ambiente01

Technical Data Sheet

  • Fan diameter
    1600
  • Frequency (Hz)
    50/60*
  • Insulation class
  • Max absorbed current (A)
    0,54
  • Max absorbed power (W)
    115
  • Voltage (V)
    220-240
  • Weight (Kg)
    10
  • Max airflow (m³/h)
    15500
  • Max airflow (m³/min)
    258,33
  • Max flow speed (m/s)
    1,49
  • RPM
    162
  • Service value (m³/min)/W
    2,246
  • Sound power Lw [dB(A)]
    48,7


* Technical datas above refer to the product powered at 50 Hz.
For values for 60 Hz power supply, please contact the VORTICE Presales Service at prevendita@vortice-italy.com.

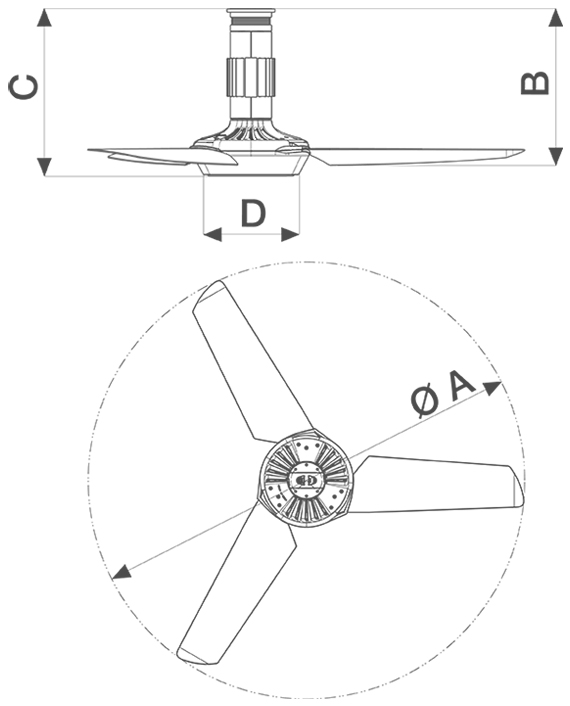

  • Size A (mm)
    ø 1600
  • Size B (mm)
    520
  • Size C (mm)
    545
  • Size D (mm)
    ø 300
