Code 15264

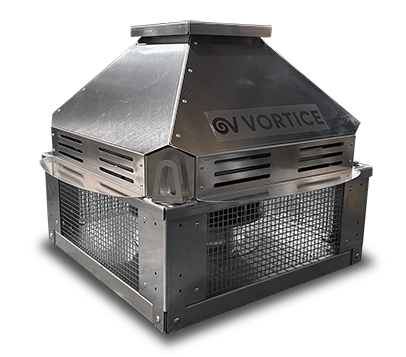

HEATMASTER F400 450 T4 1,1KW

Accessorio_1

Description

Read full descriptionClose description

Technical Data Sheet

  • Absorbed current at 230 V (A)
    4,33
  • Absorbed current at 400 V (A)
    2,49
  • Frequency (Hz)
    50
  • IP
    55
  • Max absorbed power (W)
    1100
  • Max temperature of exhaust air (continuous operation)
    120
  • Motor class
    F
  • Voltage (V)
    230/400
  • Weight (Kg)
    85
  • Max airflow (m³/h)
    7870
  • RPM
    1450

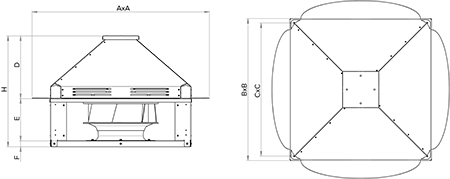

  • Size A (mm)
    1193
  • Size B (mm)
    954
  • Size C (mm)
    895
  • Size D (mm)
    420
  • Size E (mm)
    284
  • Size F (mm)
    40
  • Size H (mm)
    755
Accessorio_2
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.
