Code 11954

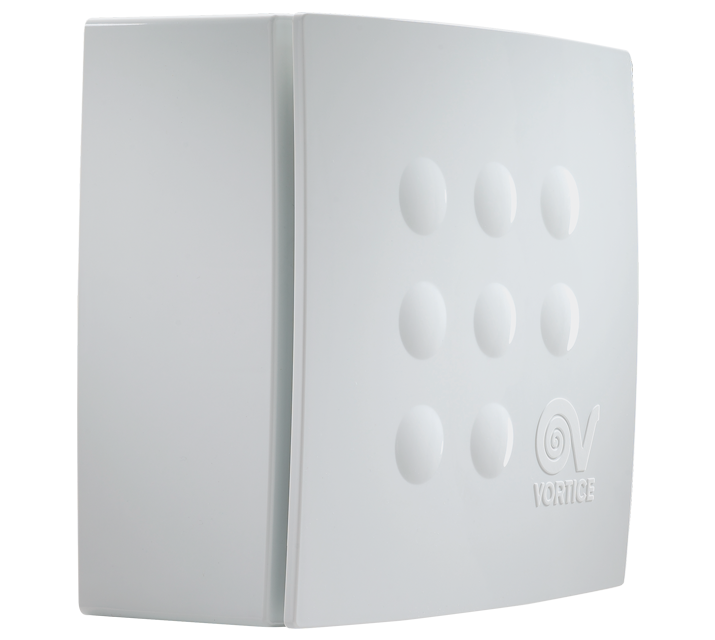

SUPER T

Centrifugal duct fans

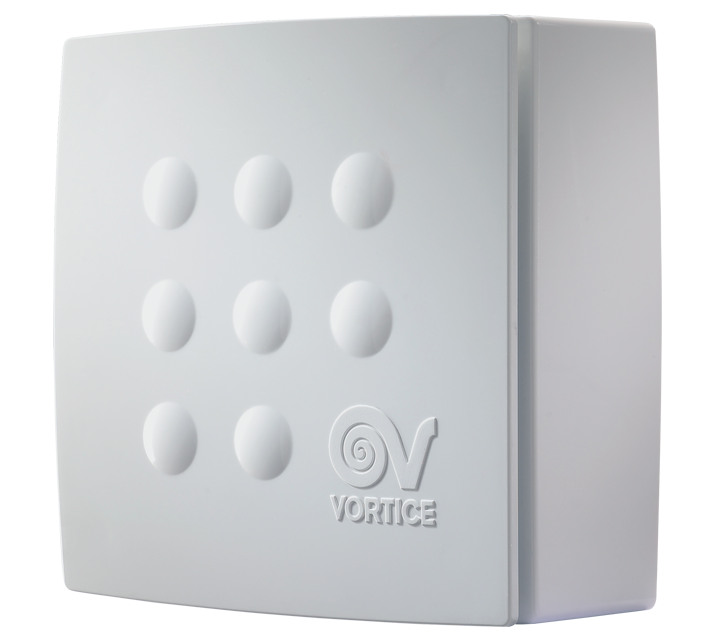

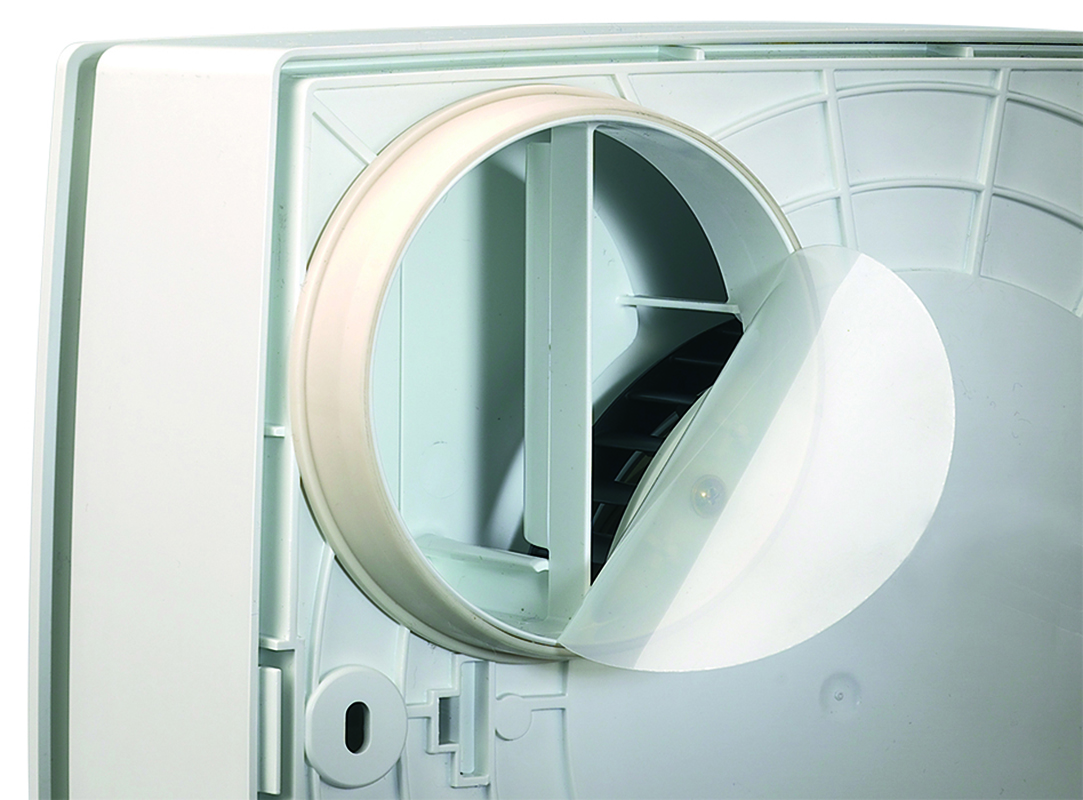

vort_quadro_01
vort_quadro_02
vort_quadro_03

Description

• Material: white ABS plastic
• 3 speed fan through TRIO-S controller (code 12871), consisting of:
• capacitor start induction motor equipped with thermal overload cutout and self-lubricating bushings,
• forward centrifugal impeller.
• Nominal diameter 100 mm.
• Equipped with electronic timer designed to shut off the motor automatically after a set interval, selectable during installation in the range 3’-20’ (default setting 3’).
Read full descriptionClose description

Certifications

  • EAC EAC
  • CB TEST CERTIFICATE CB TEST CERTIFICATE
vort_quadro_ambiente01
vort_quadro_ambiente01
vort_quadro_ambiente02
vort_quadro_ambiente03

Technical Data Sheet

  • Frequency (Hz)
    50
  • Insulation class
    II°
  • IP
    X4
  • Max absorbed current at Max speed (A)
    0,5
  • Max absorbed current at Min speed (A)
    0,36
  • Max absorbed power at Max speed (W)
    105
  • Max ambient temperature for continuous operation (°C)
    50
  • Nominal diameter (mm)
    100
  • Ø Discharge hole (mm)
    97
  • Power absorbed at 1st speed (W)
    50
  • Voltage (V)
    220-240
  • Weight (Kg)
    3,77
  • Airflow at 1st speed (l/s)
    38
  • Airflow at 1st speed (m³/h)
    140
  • Max airflow at Max speed (l/s)
    77
  • Max airflow at Max speed (m³/h)
    280
  • Max pressure at Max speed (mmH20)
    50
  • Max pressure at Max speed (Pa)
    490
  • Max RPM
    2200
  • Min RPM
    1400
  • Pressure at 1st speed (mmH20)
    23
  • Pressure at 1st speed (Pa)
    226
  • Sound pressure at 3 m - min speed Lp [dB (A)] 3m - min speed
    41,9
  • Sound pressure at 3m at Max speed Lp [dB (A)]
    48,6
  • Sound pressure in free air conditions [dB(A)] 3m
    41,9
  • Supplier's name or trade mark
    Vortice
  • Declared type
    UVNR-U
  • Type of drive
    a velocità multiple: VM
  • Type of heat recovery system HRS
    nessuno
  • AEC annual electric energy consuption (kWh of primary energy/y)
    NA
  • Thermal efficiency of heat recovery (%)
    NA
  • Nominal NRVU airflow (m3/s)
    0,05556
  • Effective electic power input [kW]
    0,090
  • Face velocity at nominal flowrate (m/s)
    7,528
  • Nominal external pressure (Pa)
    200
  • Internal pressure drop of ventilation components (Pa)
    245
  • Internal pressure drop of non-ventilation components (Pa)
    0
  • Fan static efficiency according to Regulation (EU) No 327/2011 (%)
    27,5
  • Declared maximum internal leakage rate of the ventilation unit casing (%)
    NA
  • Declared maximum external leakage rate of the ventilation unit casing (%)
    NA
  • Filter energy performance or classification
    NA
  • Description of visual filter warning
    NA
  • Casing sound power level (LWA) [dB(A)]
    69

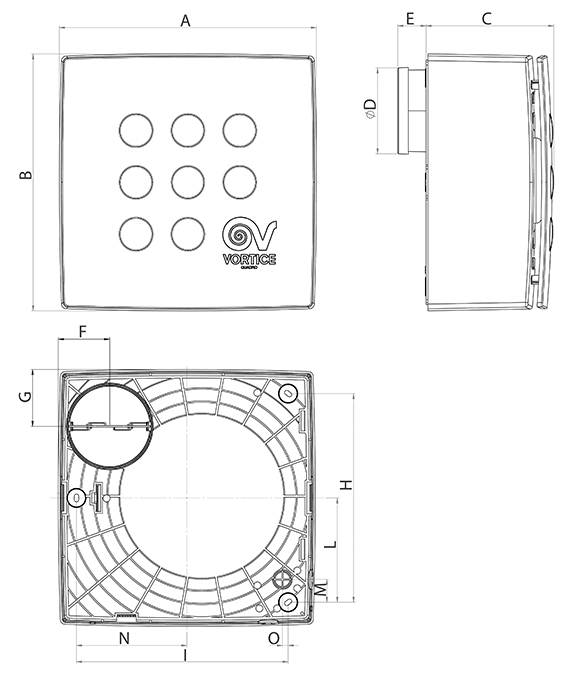

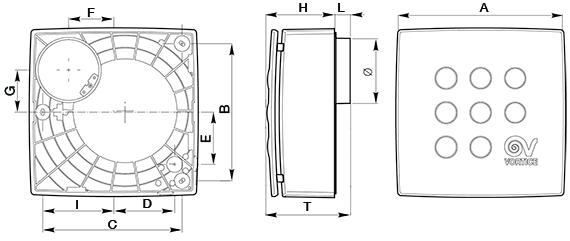

  • Size A (mm)
    290
  • Size B (mm)
    290
  • Size C (mm)
    144
  • Size D (mm)
    ø 97
  • Size E (mm)
    31
  • Size F (mm)
    58
  • Size G (mm)
    64
  • Size H (mm)
    236
  • Size I (mm)
    239
  • Size L (mm)
    118
  • Size M (mm)
    26
  • Size N (mm)
    125
  • Size O (mm)
    6,5
quota

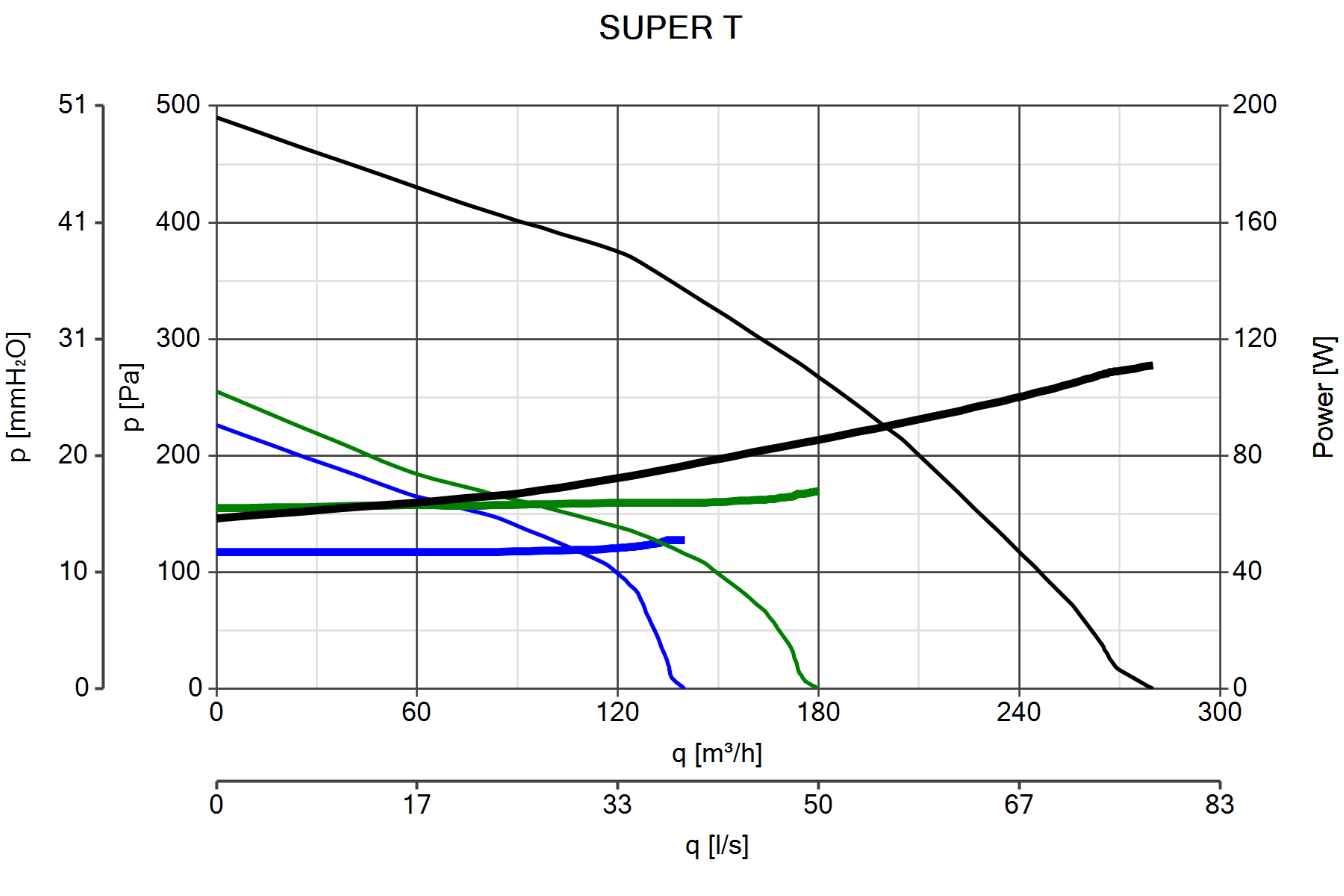

Curva_JPG_11954-Curve_per_Catalogo
