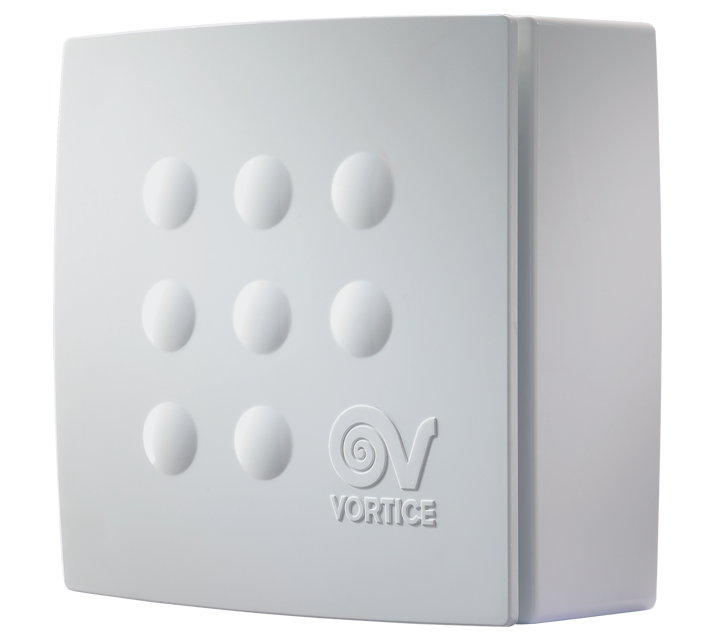

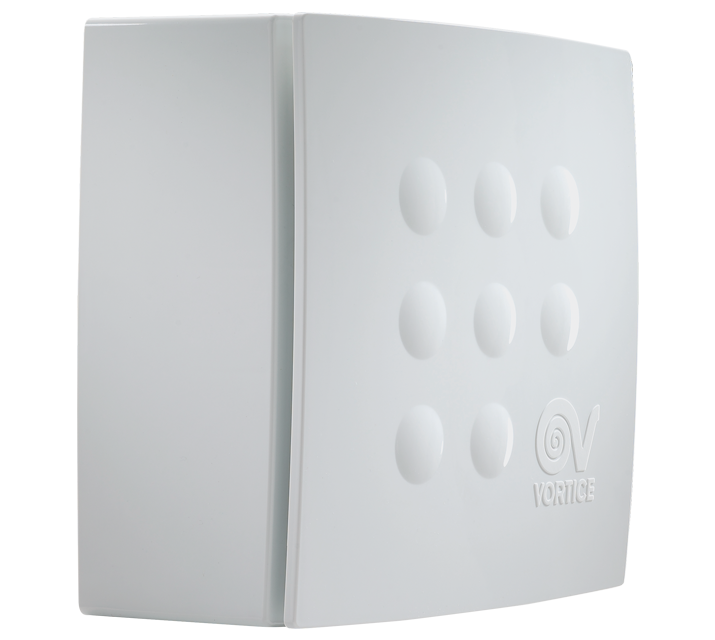

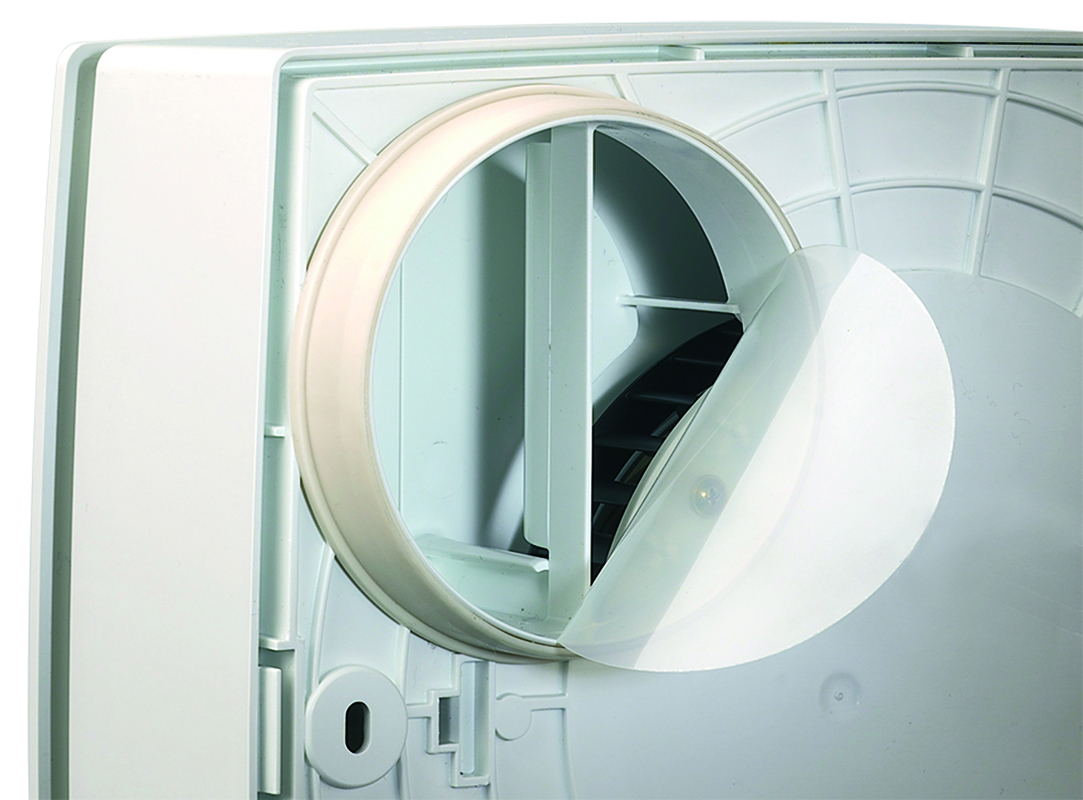

Description

• Material: white ABS plastic
• Capacitor start 2-speed induction motor coupled to a forward bladed centrifugal impeller. Equipped with thermal overload cutout and self-lubricating bushings.
• Nominal diameter 100 mm.
• Electronic pcb with humidistat function piloted by RH% sensor (4 preset thresholds: 60%, 70%, 80%, 90%, selectable during installation), designed to switch on the fan automatically. The pcb incorporates an electronic timer that shuts off the motor automatically when relative humidity returns below the threshold value. The timer setting is selectable during installation in the range 3’-20’ (default setting 3’).
• IMQ SAFETY and IMQ PERFORMANCE certifications.
Read full descriptionClose description

Certifications


Technical Data Sheet

  • Frequency (Hz)
    50
  • Insulation class
    II°
  • IP
    X4
  • Max absorbed current at Max speed (A)
    0,13
  • Max absorbed current at Min speed (A)
    0,10
  • Max absorbed power at Max speed (W)
    28
  • Max ambient temperature for continuous operation (°C)
    50
  • Nominal diameter (mm)
    100
  • Ø Discharge hole (mm)
    92,5/97
  • Power absorbed at 1st speed (W)
    20
  • Voltage (V)
    220-240
  • Weight (Kg)
    1,82
  • Airflow at 1st speed (l/s)
    18
  • Airflow at 1st speed (m³/h)
    65
  • Max airflow at Max speed (l/s)
    25
  • Max airflow at Max speed (m³/h)
    90
  • Max pressure at Max speed (mmH20)
    22
  • Max pressure at Max speed (Pa)
    216
  • Max RPM
    1600
  • Min RPM
    1180
  • Pressure at 1st speed (mmH20)
    16
  • Pressure at 1st speed (Pa)
    157
  • Sound pressure at 3 m - min speed Lp [dB (A)] 3m - min speed
    32,3
  • Sound pressure at 3m at Max speed Lp [dB (A)]
    39,2
  • Supplier's name or trade mark
    Vortice
  • Specific Energy Consumption (SEC) class in temperate climate zone
    NA
  • Specific Energy Consumption (SEC) class in temperate climate zone [kWh/m2y]
    0,0
  • Specific Energy Consumption class SEC in cold climate zone [kWh/m2y]
    -13,3
  • Specific Energy Consumption class SEC in warm climate zone [kWh/m2y]
    7,7
  • Declared type
    UVR-U: unidirezionale
  • Type of drive
    NA
  • Type of heat recovery system HRS
    assente
  • Thermal efficiency of heat recovery at reference airflow [%]
    NA
  • Max airflow [m3/h]
    92
  • Fan drive electric power input, including any motor control equipment, at maximum flow rate [W]
    28,1
  • Sound power LWA [dB(A)]
    60
  • Reference airflow [m3/s]
    0,0179
  • Reference ? pressure [Pa]
    96
  • SPI [W/(m3/h)]
    0,40683
  • Control factor CTRL
    1
  • Control type
    manuale
  • Max internal leakage rate [%]
    NA
  • Max external leakage rate [%]
    NA
  • Mixing rate
    NA
  • Position and description of visual filter warning
    NA
  • Airflow sensitivity to pressure variations at + 20 Pa and – 20 Pa
    NA
  • Indoor/outdoor air tightness [m3/h]
    NA
  • Annual electricity consumption (AEC) [kWh electricity/y]
    561
  • AHS temperate annual energy saved [kWh primary energy/y]
    1397
  • AHS cold annual energy saved [kWh primary energy/y]
    2732
  • AHS warm annual energy saved [kWh primary energy/y]
    632
  • Size A (mm)
    239
  • Size B (mm)
    195
  • Size C (mm)
    197
  • Size D (mm)
    85
  • Size E (mm)
    74
  • Size F (mm)
    64
  • Size G (mm)
    60
  • Size H (mm)
    97
  • Size I (mm)
    100
  • Size L (mm)
    20
  • Size T (mm)
    117
