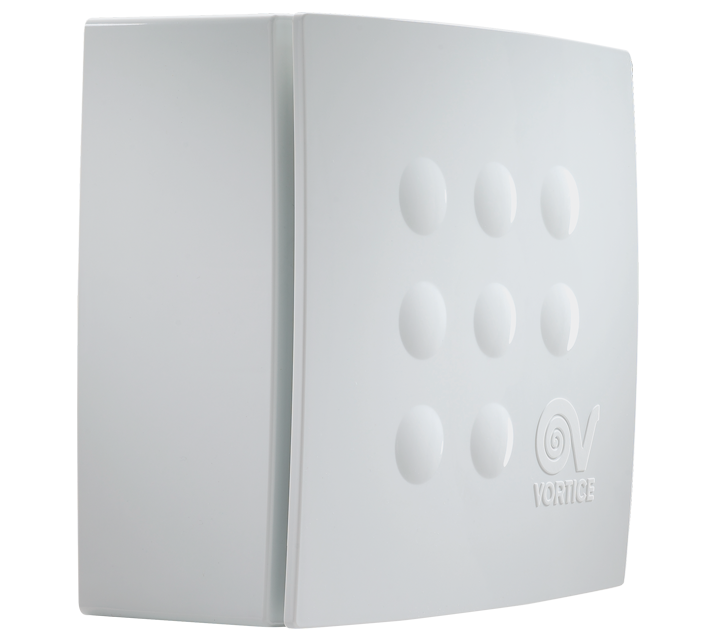

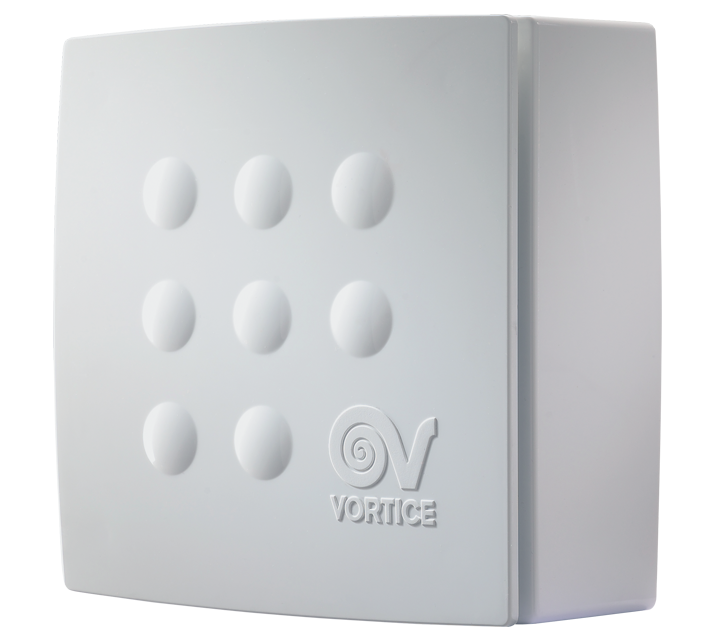

Description

• Material: white ABS plastic

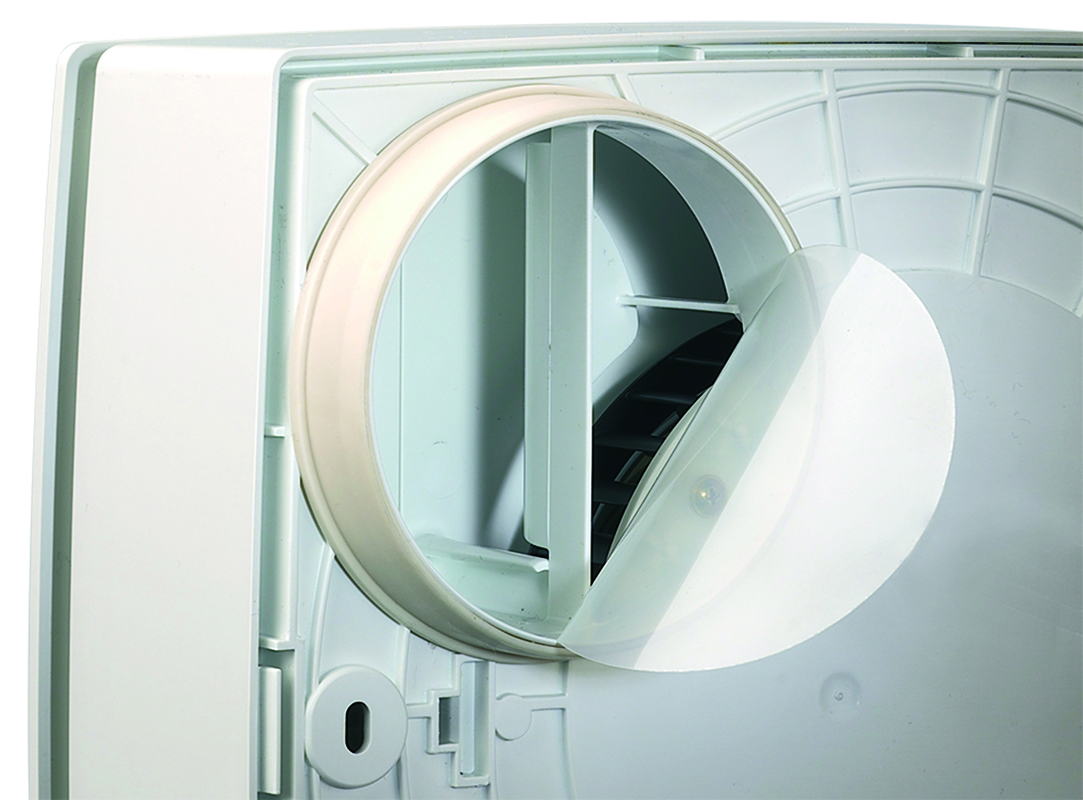

• Capacitor start 2-speed induction motor coupled to a forward bladed centrifugal impeller. Equipped with thermal overload cutout and self-lubricating bushings.
• Nominal diameter 100 mm.
• Minimum air flow 65 m3/h
Maximum air flow: 90 m3/h
• Equipped with electronic timer designed to shut off the motor automatically after a set interval, selectable during installation in the range 3’-20’ (default setting 3’).
• IMQ SAFETY and IMQ PERFORMANCE certifications.
Read full descriptionClose description

Certifications


Technical Data Sheet

  • Frequency (Hz)
    50
  • Insulation class
    II°
  • IP
    X4
  • Max absorbed current at Max speed (A)
    0,13
  • Max absorbed current at Min speed (A)
    0,10
  • Max absorbed power at Max speed (W)
    28
  • Max ambient temperature for continuous operation (°C)
    50
  • Nominal diameter (mm)
    100
  • Ø Discharge hole (mm)
    92,5/97
  • Power absorbed at 1st speed (W)
    20
  • Voltage (V)
    220-240
  • Weight (Kg)
    1,82
  • Airflow at 1st speed (l/s)
    18
  • Airflow at 1st speed (m³/h)
    65
  • Max airflow at Max speed (l/s)
    25
  • Max airflow at Max speed (m³/h)
    90
  • Max pressure at Max speed (mmH20)
    22
  • Max pressure at Max speed (Pa)
    216
  • Max RPM
    1600
  • Min RPM
    1180
  • Pressure at 1st speed (mmH20)
    16
  • Pressure at 1st speed (Pa)
    157
  • Sound pressure at 3 m - min speed Lp [dB (A)] 3m - min speed
    32,3
  • Sound pressure at 3m at Max speed Lp [dB (A)]
    39,2
  • Sound pressure in free air conditions [dB(A)] 3m
    32,3
  • Supplier's name or trade mark
    Vortice
  • Specific Energy Consumption (SEC) class in temperate climate zone
    NA
  • Specific Energy Consumption (SEC) class in temperate climate zone [kWh/m2y]
    0,0
  • Specific Energy Consumption class SEC in cold climate zone [kWh/m2y]
    -13,3
  • Specific Energy Consumption class SEC in warm climate zone [kWh/m2y]
    7,7
  • Declared type
    UVR-U: unidirezionale
  • Type of drive
    NA
  • Type of heat recovery system HRS
    assente
  • Thermal efficiency of heat recovery at reference airflow [%]
    NA
  • Max airflow [m3/h]
    92
  • Fan drive electric power input, including any motor control equipment, at maximum flow rate [W]
    28,1
  • Sound power LWA [dB(A)]
    60
  • Reference airflow [m3/s]
    0,0179
  • Reference ? pressure [Pa]
    96
  • SPI [W/(m3/h)]
    0,40683
  • Control factor CTRL
    1
  • Control type
    manuale
  • Max internal leakage rate [%]
    NA
  • Max external leakage rate [%]
    NA
  • Mixing rate
    NA
  • Position and description of visual filter warning
    NA
  • Airflow sensitivity to pressure variations at + 20 Pa and – 20 Pa
    NA
  • Indoor/outdoor air tightness [m3/h]
    NA
  • Annual electricity consumption (AEC) [kWh electricity/y]
    561
  • AHS temperate annual energy saved [kWh primary energy/y]
    1397
  • AHS cold annual energy saved [kWh primary energy/y]
    2732
  • AHS warm annual energy saved [kWh primary energy/y]
    632

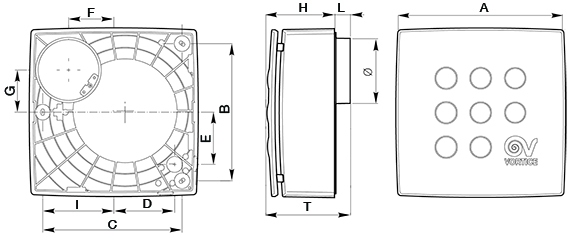

  • Size A (mm)
    239
  • Size B (mm)
    195
  • Size C (mm)
    197
  • Size D (mm)
    85
  • Size E (mm)
    74
  • Size F (mm)
    64
  • Size G (mm)
    60
  • Size H (mm)
    97
  • Size I (mm)
    100
  • Size L (mm)
    20
  • Size T (mm)
    117
