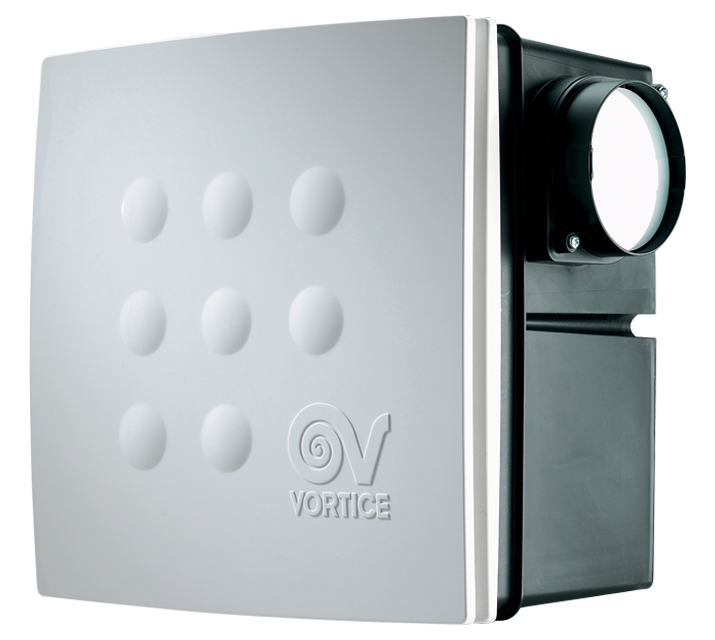

Description

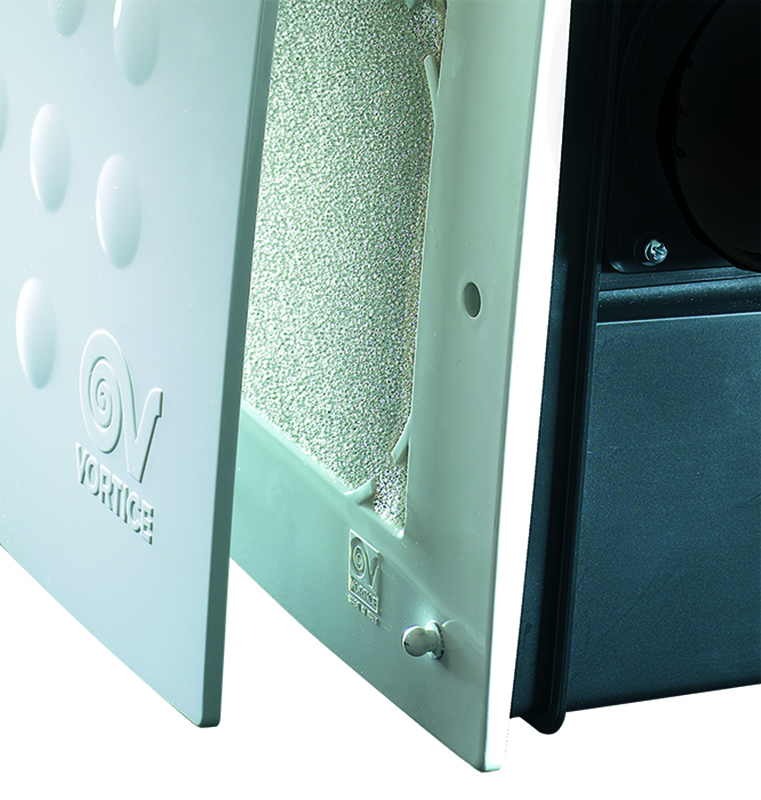

• Material used for parts not recessed into wall: white ABS plastic.
• Material used for parts recessed into wall: talc-filled black plastic (PP) giving added strength.
• Nominal diameter 100 mm.
• 2-speed EC (electronically controlled) brushless motor with shaft mounted on ball bearings and thermal overload cutout incorporated into pcb.
• Minimum air flow 75 m3/h
Maximum air flow 100 m3/h
• Vortice speed controller
Read full descriptionClose description

Certifications

  • CE CE
  • EAC EAC
vort_quadro_i_ambiente01

Technical Data Sheet

  • Frequency (Hz)
    50
  • Insulation class
    II°
  • IP
    X4
  • Max absorbed current at Max speed (A)
    0,12
  • Max absorbed current at Min speed (A)
    0,08
  • Max absorbed power at Max speed (W)
    15
  • Max ambient temperature for continuous operation (°C)
    50
  • Ø Discharge hole (mm)
    73,5
  • Power absorbed at 1st speed (W)
    8
  • Voltage (V)
    220-240
  • Weight (Kg)
    1,91
  • Airflow at 1st speed (l/s)
    21
  • Airflow at 1st speed (m³/h)
    75
  • Max airflow at Max speed (l/s)
    28
  • Max airflow at Max speed (m³/h)
    100
  • Max pressure at Max speed (mmH20)
    18
  • Max pressure at Max speed (Pa)
    177
  • Max RPM
    1430
  • Min RPM
    1090
  • Pressure at 1st speed (mmH20)
    9
  • Pressure at 1st speed (Pa)
    88
  • Sound pressure at 3 m - min speed Lp [dB (A)] 3m - min speed
    31,8
  • Sound pressure at 3m at Max speed Lp [dB (A)]
    38,4
  • Sound pressure level at 3 m at Max speed on extraction side [dB(A)]
    37,8
  • Sound pressure level at 3 m at Min speed on extraction side [dB(A)]
    29,9
  • Size A (mm)
    258
  • Size C (mm)
    34
  • Size D (mm)
    92
  • Size E (mm)
    90
  • Size F (mm)
    64
  • Size G (mm)
    60
  • Size H (mm)
    118
  • Size L (mm)
    26
quota

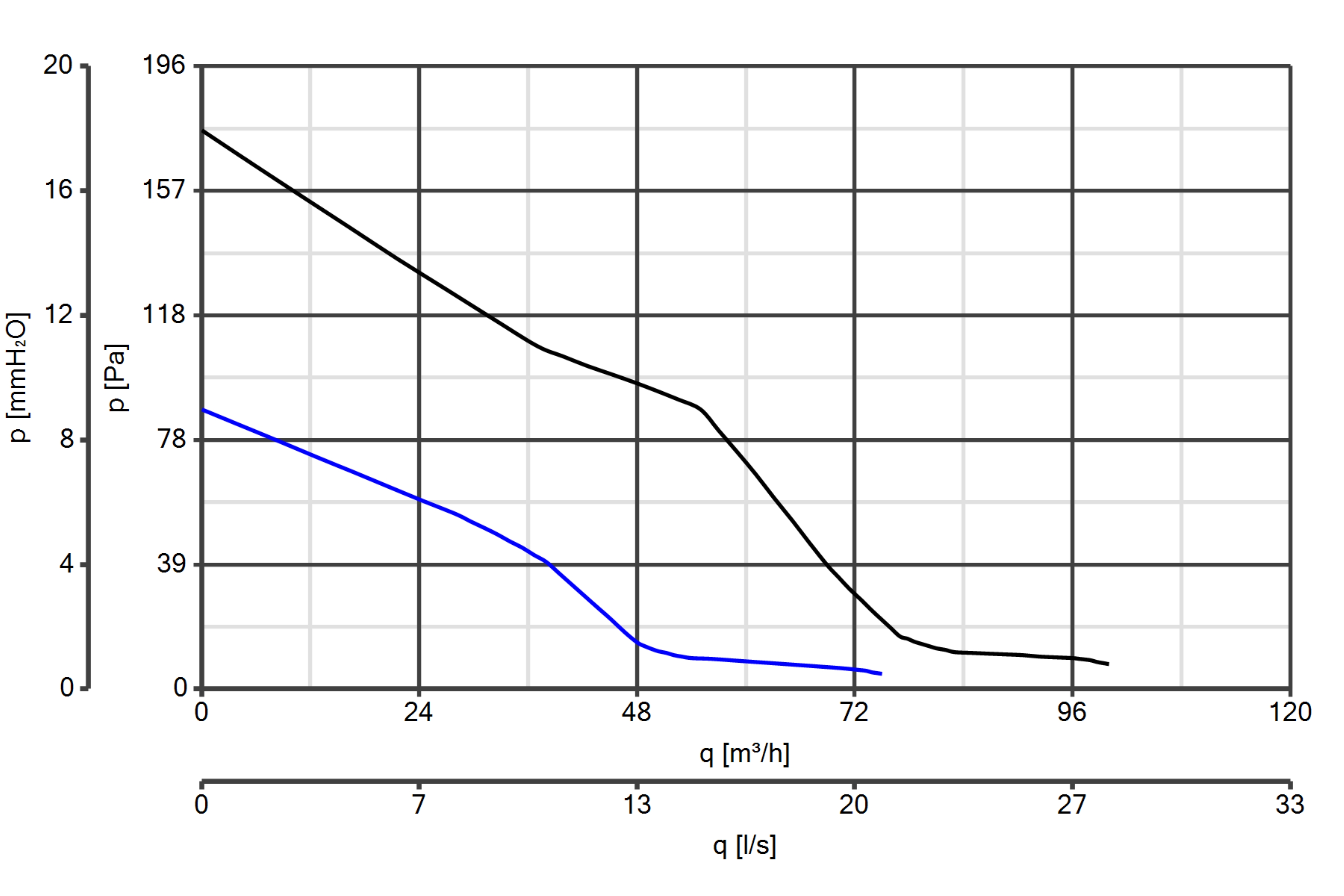

Curva_JPG_12045-Curve_per_Catalogo

Accessories

Discover accessories related to the product

DEVIATORE DI FLUSSO M 10/4
DEVIATORE DI FLUSSO M 10/4
• For fitting to the delivery side of extractor fans to direct the air flow in any required direction within 360°.
KIT SOFFITTO MICRO
KIT SOFFITTO MICRO
Kit for ceiling mounting of Quadro built-in models.
