Description

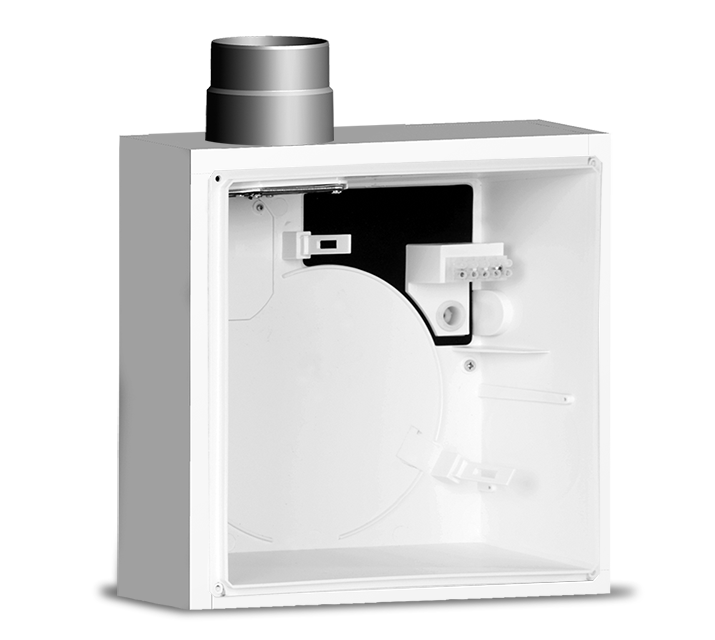

• Refractory fireproof K90 casing for recessed installation and top side discharge.
• Stainless steel spigot, integrating the K90 fireproof valve, TUM certified according to DIN 18017-3.
• Backdraught shutter compliant with DIN 18017-3, as certified by TUV German Institute.
• Spigot nominal diameter: 80 mm.
• Square frame to prevent entry of dirt and plaster.
Read full descriptionClose description

Certifications

  • DIBt DIBt
qe_b_i_k90_s_ambiente01
qe_b_i_k90_s_ambiente02

Technical Data Sheet

  • Nominal diameter (mm)
    80
  • Weight (Kg)
    2,99

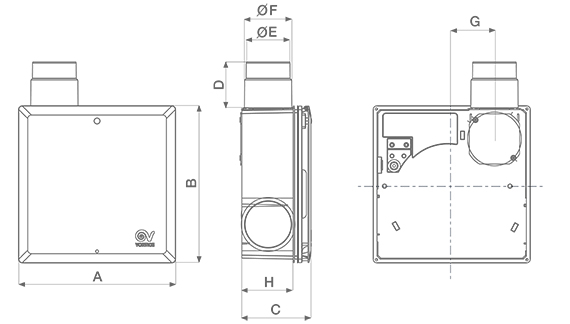

  • Size A (mm)
    285
  • Size B (mm)
    285
  • Size C (mm)
    131,5
  • Size D (mm)
    60
  • Size E (mm)
    Ø 73
  • Size F (mm)
    Ø 79
  • Size G (mm)
    71,5
  • Size H (mm)
    106
quota
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.

Accessories

Discover accessories related to the product

QE-FBA
QE-FBA
Adapter for recessed boxes installation.
QE-CFR
QE-CFR
Buckle frame.
QE-SPF
QE-SPF
Wall spacing frame.
SAWG
SAWG
White plastic grill for door air inlet.
SABG
SABG
Brown plastic grill for door air inlet.
AVR 100
AVR 100
Fire damper for duct installation, diam. 100 mm.
AVR 125
AVR 125
Fire damper for duct installation, diam. 125 mm.
AVR 140
AVR 140
Fire damper for duct installation, diam. 140 mm.
AVR 160
AVR 160
Fire damper for duct installation, diam. 160 mm.
AVR 180
AVR 180
Fire damper for duct installation, diam. 180 mm.
AVR 200
AVR 200
Fire damper for duct installation, diam. 200 mm.
MDV 100
MDV 100
Manually adjustable valve for air return, diam. 100 mm.
ADV 100
ADV 100
Automatic valve (thermostat) for return air, diam. 100 mm
MSDV 100
MSDV 100
Soundproof, manually adjustable valve for air return, diam. 100 mm.
ASDV 100
ASDV 100
Soundproof automatic valve (thermostat) for return air, diam. 100 mm.
3SS-D
3SS-D
3 speed switch/selector compatible with Standard DIN box.
2SS-I
2SS-I
2 speed switch and selector compatible with Standard 503 box.
3SS-I
3SS-I
3 speed switch/selector compatible with Standard 503 box.
CEILING KIT QUADRO EVO
CEILING KIT QUADRO EVO
