Description

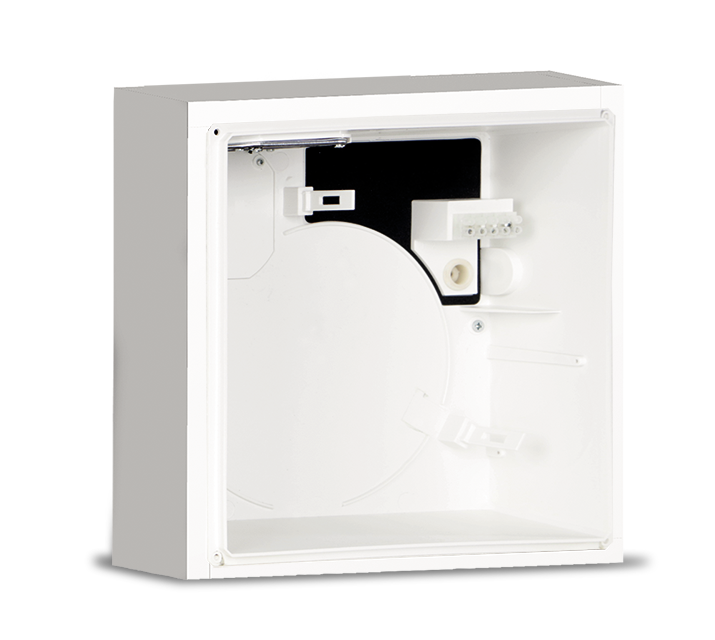

• Refractory fireproof K90 casing for recessed installation and rear discharge.
• Stainless steel spigot, integrating the K90 fireproof valve, TUM certified according to DIN 18017-3.
• Backdraught shutter compliant with DIN 18017-3, as certified by TUV German Institute.
• Spigot nominal diameter: 80 mm.
• Square frame to prevent entry of dirt and plaster.
Read full descriptionClose description

Certifications


Technical Data Sheet

  • Nominal Diameter (mm)
    80
  • Weight (Kg)
    2,99

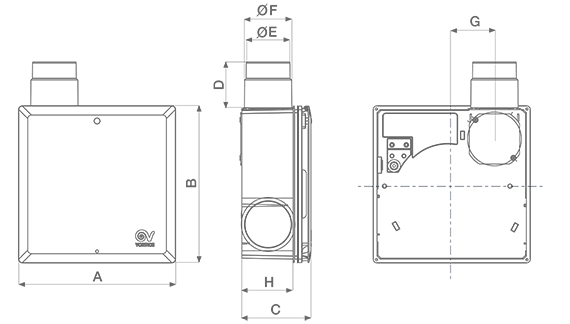

  • Size A (mm)
    285
  • Size B (mm)
    285
  • Size C (mm)
    131,5
  • Size D (mm)
    60
  • Size E (mm)
    Ø 73
  • Size F (mm)
    Ø 79
  • Size H (mm)
    106
  • Size K (mm)
    71,5
  • Size L (mm)
    76
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.

Accessories

Discover accessories related to the product

SABG
SABG
Brown plastic grill for door air inlet.
QE-SPF
QE-SPF
Wall spacing frame.
QE-FBA
QE-FBA
Adapter for recessed boxes installation.
QE-CFR
QE-CFR
Buckle frame.
