Description

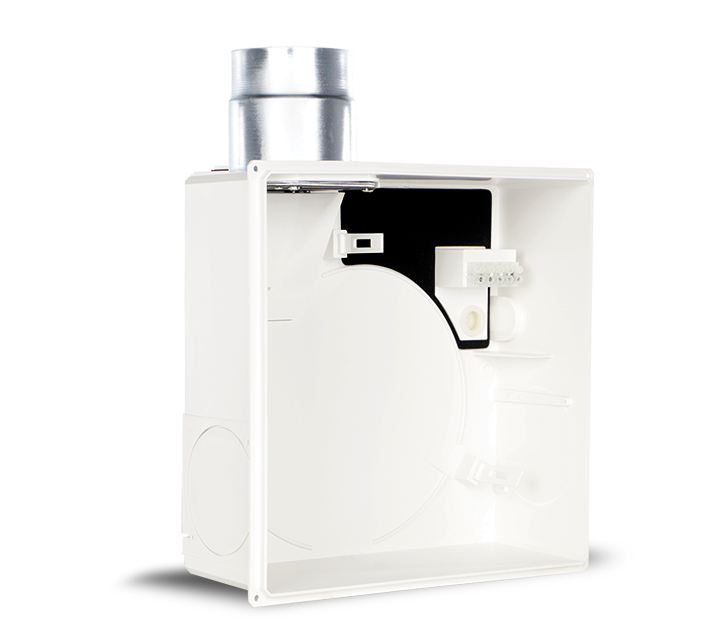

• Basic encasement for recessed installation, made of ABS plastic.
• Stainless steel spigot, integrating the K90 fireproof valve, TUM certified according to DIN 18017-3.
• Backdraught shutter compliant with DIN 18017-3, as certified by TUV German Institute.
• Spigot nominal diameter: 80 mm.
• Square frame to prevent entry of dirt and plaster.
• Connection port to connect a spigot (QE-AD cod. 21118, available as accessory) able to extract air from a second room.
• Possibility of drywall installation.
Read full descriptionClose description

Certifications

qe_b_i_vk90_ambiente01
qe_b_i_vk90_ambiente02

Technical Data Sheet

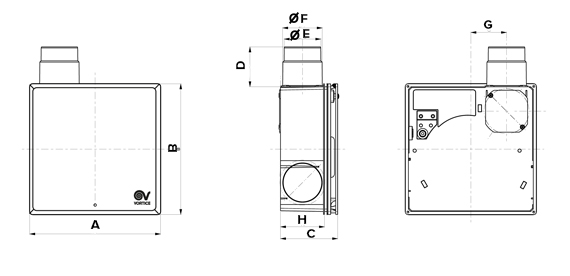

  • Nominal diameter (mm)
    80
  • Weight (Kg)
    0,62

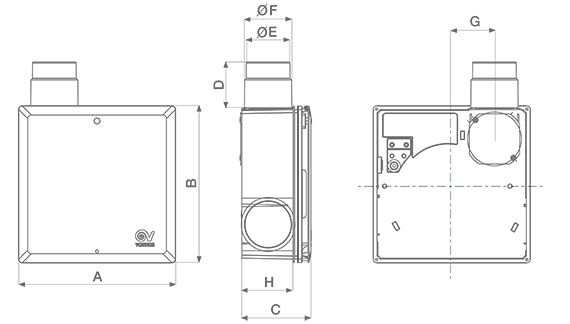

  • Size A (mm)
    277
  • Size B (mm)
    277
  • Size C (mm)
    135
  • Size D (mm)
    80
  • Size E (mm)
    73
  • Size F (mm)
    79
  • Size G (mm)
    71,5
  • Size H (mm)
    94
quota
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.

Accessories

Discover accessories related to the product

QE-MH
QE-MH

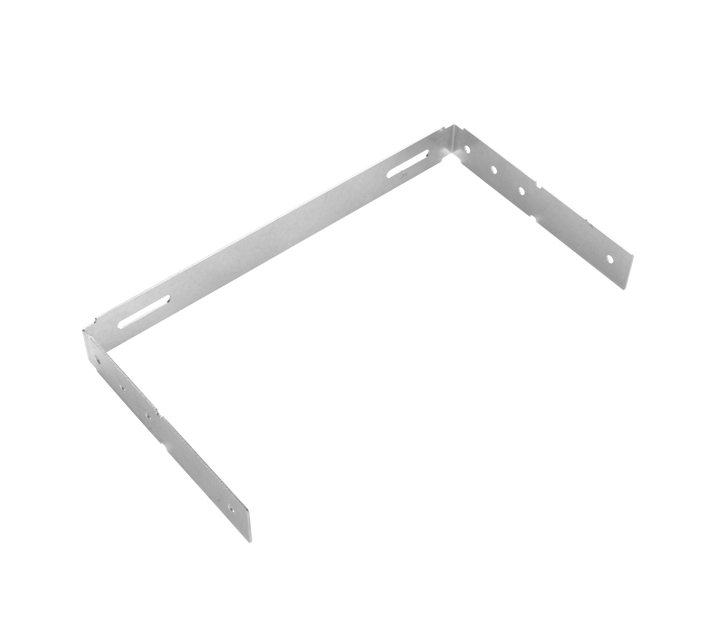

Recessed installation kit for plasterboard walls.
QE-TEK
QE-TEK

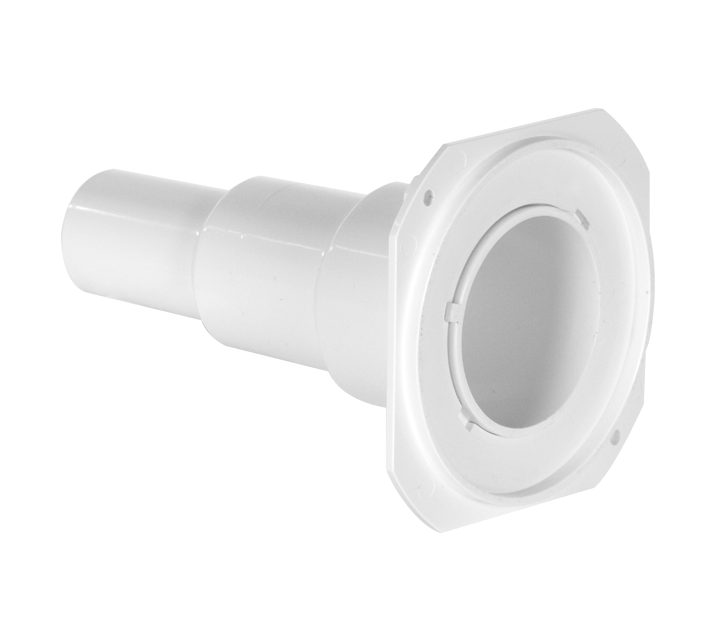

Bathroom secondary extraction kit.
QE-UMB
QE-UMB

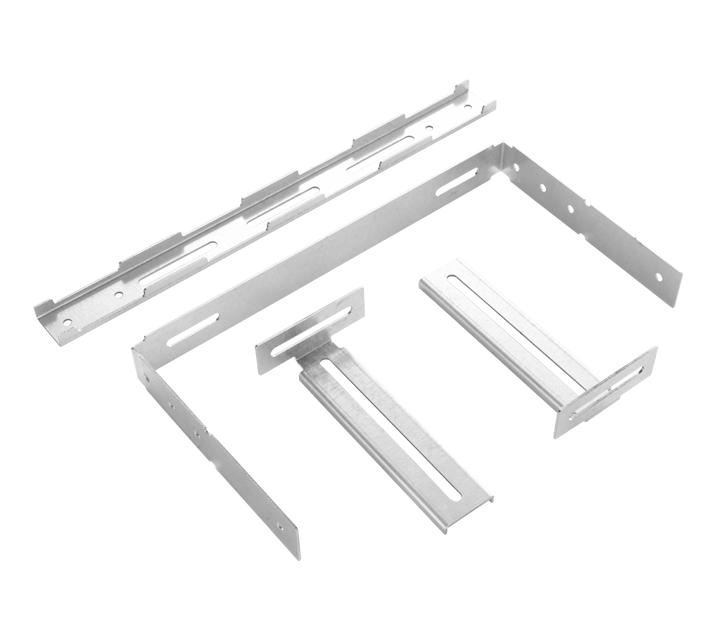

Universal bracket for recessed installation in walls, exhaust ducts and false ceilings.
QE-SRK
QE-SRK
Second room extraction kit.
QE-FBA
QE-FBA
Adapter for recessed boxes installation.
QE-AD
QE-AD

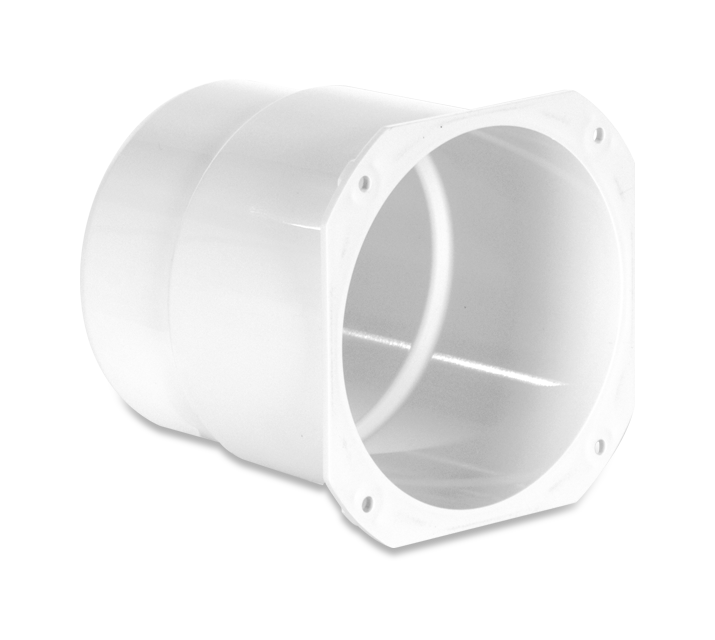

Connection spigot for air extraction from a second room.
