Description
• Material: UV resistant plastic (prevents ageing caused by exposure to sunlight).
• Nominal diameter 150 mm.
• Motor protected against thermal overload, with shaft turning in self-lubricating bushings, coupled to screw type thermoplastic impeller with wing profile blades.
• Maximum air flow: 335 m3/h.
• Equipped with electronic timer designed to shut off the motor automatically after a set interval, selectable during installation in the range 3’-20’ (default setting 3’).
• Non-return damper fitted to outlet port.
• Vortice speed controller.
• Nominal diameter 150 mm.
• Motor protected against thermal overload, with shaft turning in self-lubricating bushings, coupled to screw type thermoplastic impeller with wing profile blades.
• Maximum air flow: 335 m3/h.
• Equipped with electronic timer designed to shut off the motor automatically after a set interval, selectable during installation in the range 3’-20’ (default setting 3’).
• Non-return damper fitted to outlet port.
• Vortice speed controller.
Technical Data Sheet
-
Frequency (Hz)50
-
Insulation classII°
-
IPX4
-
Max absorbed current (A)0,15
-
Max absorbed power (W)28
-
Max ambient temperature for continuous operation (°C)50
-
Nominal diameter (mm)160
-
Ø Discharge hole (mm)156
-
Voltage (V)220-240
-
Weight (Kg)0,97
-
Max airflow (l/s)93
-
Max airflow (m³/h)335
-
Max pressure (mmH2O)6
-
Max pressure (Pa)59
-
RPM2100
-
Sound pressure Lp [dB (A)] at 3 m40,1
-

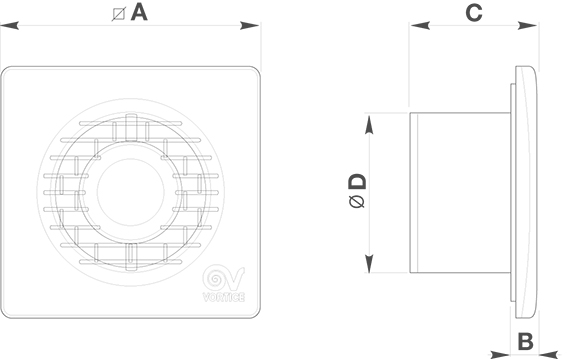

Size A (mm)214
-
Size B (mm)17
-
Size C (mm)96
-
Size D (mm)156
