MEX 100/4" LL 1S T

Description

• Housings made of shockproof and UV resistant white ABS.
• Nominal diameter 100 mm.
• AC motor equipped with long-life ball-bearings, mixed-flow impellers made of PP resistant to aggressive substances.
• Maximum air flow 90 m3/h.
• Timer allowing delayed switch-off function; switch-off delay can be set at installation in a range between 3’ and 20’.
• Integrated butterfly back-draught shutter designed to prevent unwanted air inflows when the appliance is switched-off.
• Protection rating IP45, suitable for installation in Zone 1 of bathrooms, as defined by international standard IEC 60364-7.

Read full descriptionClose description

Certifications

CE
Download
CCC
EAC
UKCA
CB TEST CERTIFICATE

Technical Data Sheet

Frequency (Hz)

50
Insulation class

II°
IP

45
Max absorbed current at Max speed (A)

0,052
Max absorbed power at Max speed (W)

9
Max ambient temperature for continuous operation (°C)

50
Nominal diameter (mm)

100
Voltage (V)

220-240

Weight (Kg)

0,6
Max airflow at Max speed (l/s)

25
Max airflow at Max speed (m³/h)

90
Max pressure at Max speed (mmH20)

4
Max pressure at Max speed (Pa)

39,23
Max RPM

2175
Sound power at Min speed LWA [dB(A)]

47,4
Sound pressure at 3m at Max speed calculated in free field Lp [dB(A)]

26,9

Supplier's name or trade mark

Vortice
Specific Energy Consumption (SEC) class in temperate climate zone

NA
Specific Energy Consumption (SEC) class in temperate climate zone [kWh/m2y]

-9,9
Specific Energy Consumption class SEC in cold climate zone [kWh/m2y]

-23,2
Specific Energy Consumption class SEC in warm climate zone [kWh/m2y]

-2,2
Declared type

UVR-U: unidirezionale
Type of drive

NA
Type of heat recovery system HRS

assente
Thermal efficiency of heat recovery at reference airflow [%]

NA
Max airflow [m3/h]

87
Fan drive electric power input, including any motor control equipment, at maximum flow rate [W]

8,0
Sound power LWA [dB(A)]

47
Reference airflow [m3/s]

0,0169
Reference ? pressure [Pa]

21
SPI [W/(m3/h)]

0,11823
Control factor CTRL

1
Control type

manuale
Max internal leakage rate [%]

NA
Max external leakage rate [%]

NA
Mixing rate

NA
Position and description of visual filter warning

NA
Airflow sensitivity to pressure variations at + 20 Pa and – 20 Pa

NA
Indoor/outdoor air tightness [m3/h]

NA
Annual electricity consumption (AEC) [kWh electricity/y]

163
AHS temperate annual energy saved [kWh primary energy/y]

1397
AHS cold annual energy saved [kWh primary energy/y]

2732
AHS warm annual energy saved [kWh primary energy/y]

632

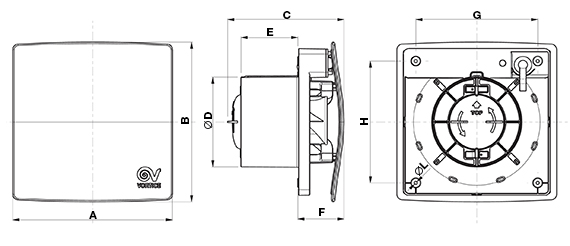

Size A (mm)

173
Size B (mm)

173
Size C (mm)

126
Size D (mm)

Ø 98
Size E (mm)

61,5
Size F (mm)

50
Size G (mm)

132
Size H (mm)

132
Size L (mm)

Ø 3,5
