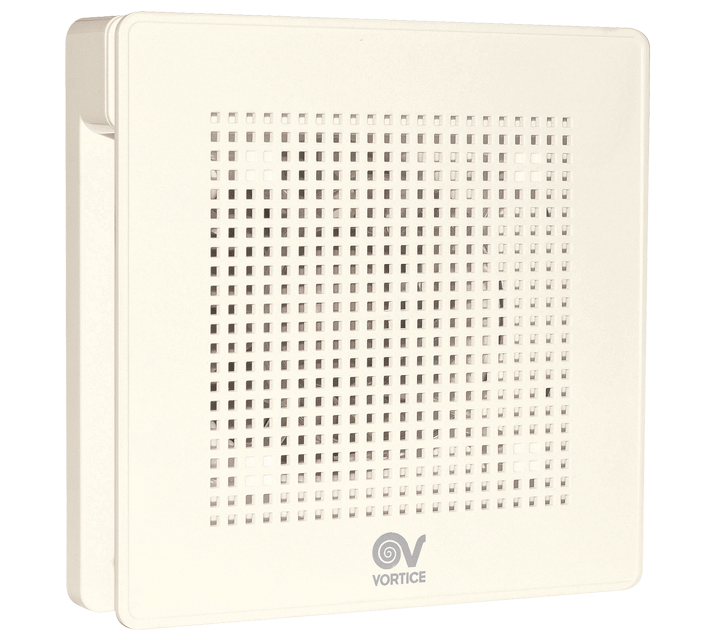

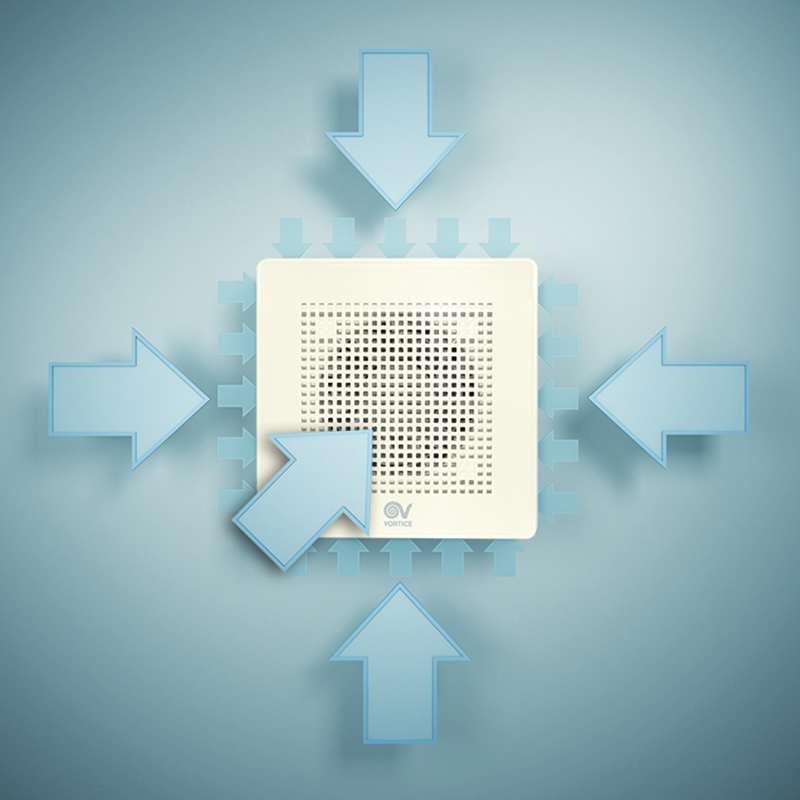

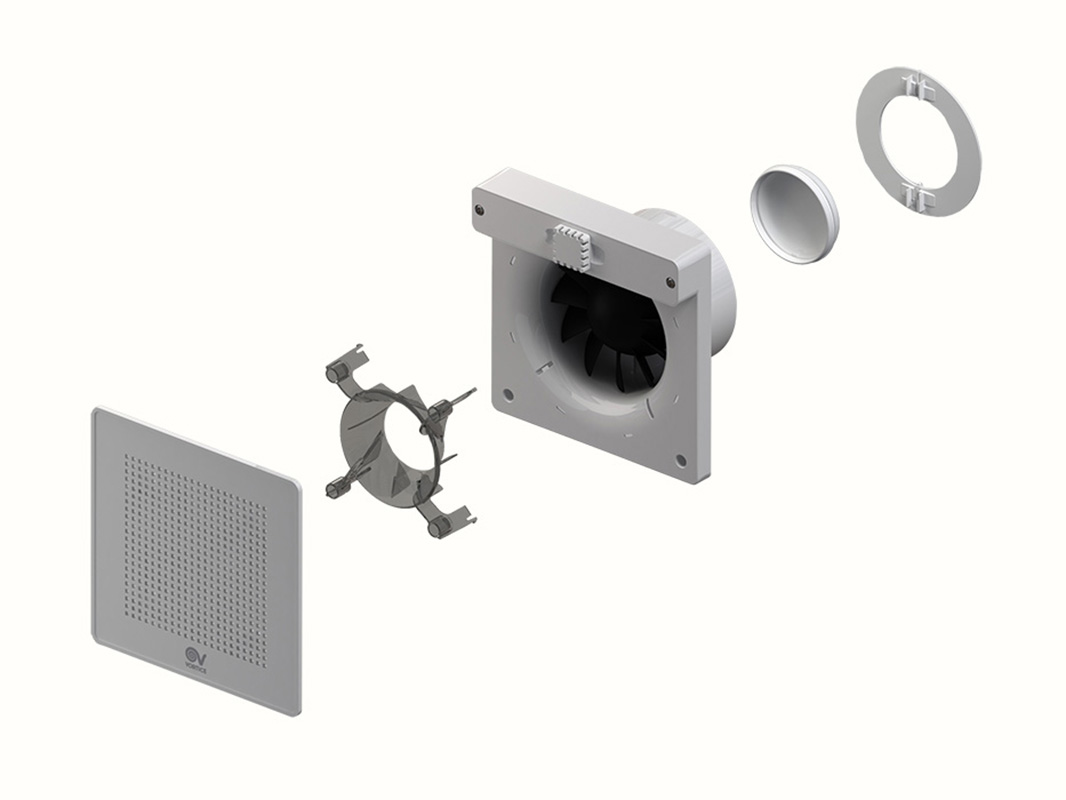

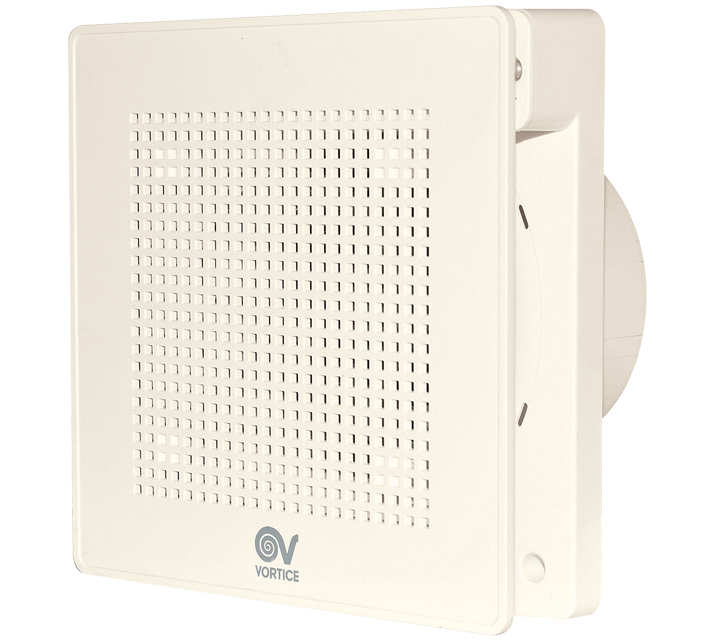

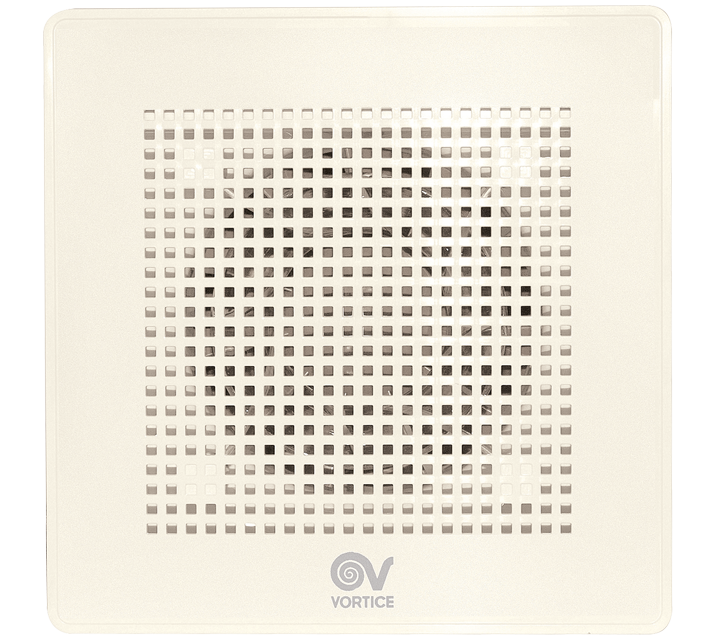

Description
• Material: UV resistant plastic (prevents ageing caused by exposure to sunlight).
• Nominal diameter: 120 mm

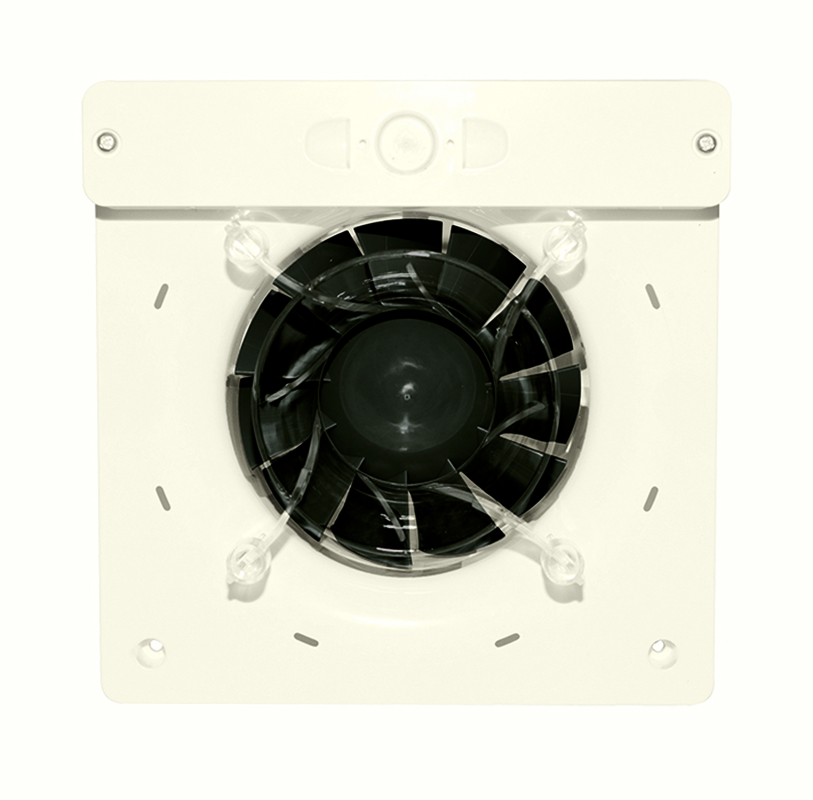

• EC motor protected against thermal overload, with shaft turning in ball bearings; 2 operating speeds controlled electronically from pcb.
• Maximum air flow 130 m3/h

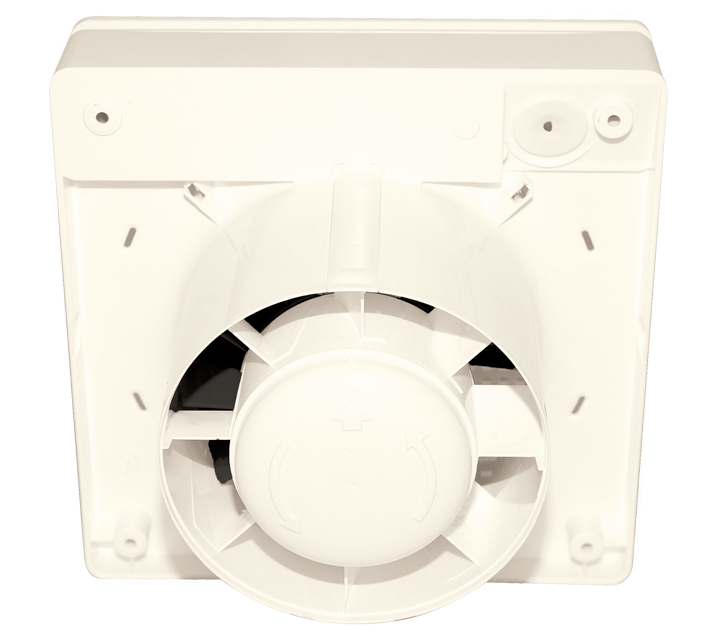

• Equipped with non-return damper preventing unwanted backdraught when the fan is off.
• Fixed timer: the product works for 6 minutes at maximum speed, then automatically return to minimum.
• Nominal diameter: 120 mm
• EC motor protected against thermal overload, with shaft turning in ball bearings; 2 operating speeds controlled electronically from pcb.
• Maximum air flow 130 m3/h
• Equipped with non-return damper preventing unwanted backdraught when the fan is off.
• Fixed timer: the product works for 6 minutes at maximum speed, then automatically return to minimum.
Certifications
-
Download
CE
-
EAC
-
CB TEST CERTIFICATE
Technical Data Sheet
-
Frequency (Hz)50
-
Insulation classII°
-
IP45
-
Max absorbed current at Max speed (A)0,068
-
Max absorbed current at Min speed (A)0,040
-
Max absorbed power at Max speed (W)7,0
-
Max ambient temperature for continuous operation (°C)50
-
Nominal diameter (mm)120
-
Power absorbed at 1st speed (W)3,3
-
Voltage (V)230
-
Weight (Kg)0,8
-
Airflow at 1st speed (l/s)36,1
-
Airflow at 1st speed (m³/h)130
-
Max airflow at Max speed (l/s)50
-
Max airflow at Max speed (m³/h)180
-
Max pressure at Max speed (mmH20)5,8
-
Max pressure at Max speed (Pa)56,9
-
Max RPM2150
-
Min RPM1680
-
Pressure at 1st speed (mmH20)3,6
-
Pressure at 1st speed (Pa)35,3
-
Sound power at Min speed LWA [dB(A)]46,7
-
Sound power at Min speed LWA [dB(A)]53,8
-
Sound pressure at 3m at Max speed calculated in free field Lp [dB(A)]33,3
-
Sound pressure at 3m at Min speed calculated in free field Lp [dB(A)]26,2
-
Supplier's name or trade markVortice
-
Specific Energy Consumption (SEC) class in temperate climate zoneNA
-
Specific Energy Consumption (SEC) class in temperate climate zone [kWh/m2y]-12,3
-
Specific Energy Consumption class SEC in cold climate zone [kWh/m2y]-25,6
-
Specific Energy Consumption class SEC in warm climate zone [kWh/m2y]-4,6
-
Declared typeUVR-U: unidirezionale
-
Type of driveNA
-
Type of heat recovery system HRSassente
-
Thermal efficiency of heat recovery at reference airflow [%]NA
-
Max airflow [m3/h]175
-
Fan drive electric power input, including any motor control equipment, at maximum flow rate [W]6,6
-
Sound power LWA [dB(A)]54
-
Reference airflow [m3/s]0,0340
-
Reference ? pressure [Pa]20
-
SPI [W/(m3/h)]0,04980
-
Control factor CTRL1
-
Control typemanuale
-
Max internal leakage rate [%]NA
-
Max external leakage rate [%]NA
-
Mixing rateNA
-
Position and description of visual filter warningNA
-
Airflow sensitivity to pressure variations at + 20 Pa and – 20 PaNA
-
Indoor/outdoor air tightness [m3/h]NA
-
Annual electricity consumption (AEC) [kWh electricity/y]69
-
AHS temperate annual energy saved [kWh primary energy/y]1397
-
AHS cold annual energy saved [kWh primary energy/y]2732
-
AHS warm annual energy saved [kWh primary energy/y]632
-

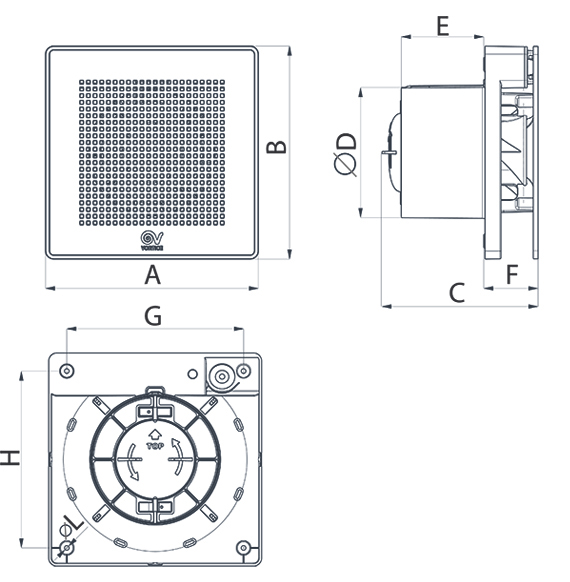

Size A (mm)179
-
Size B (mm)179
-
Size C (mm)138
-
Size D (mm)ø 118
-
Size E (mm)81
-
Size F (mm)42,5
-
Size G (mm)152
-
Size H (mm)152
-
Size L (mm)ø 3.5
