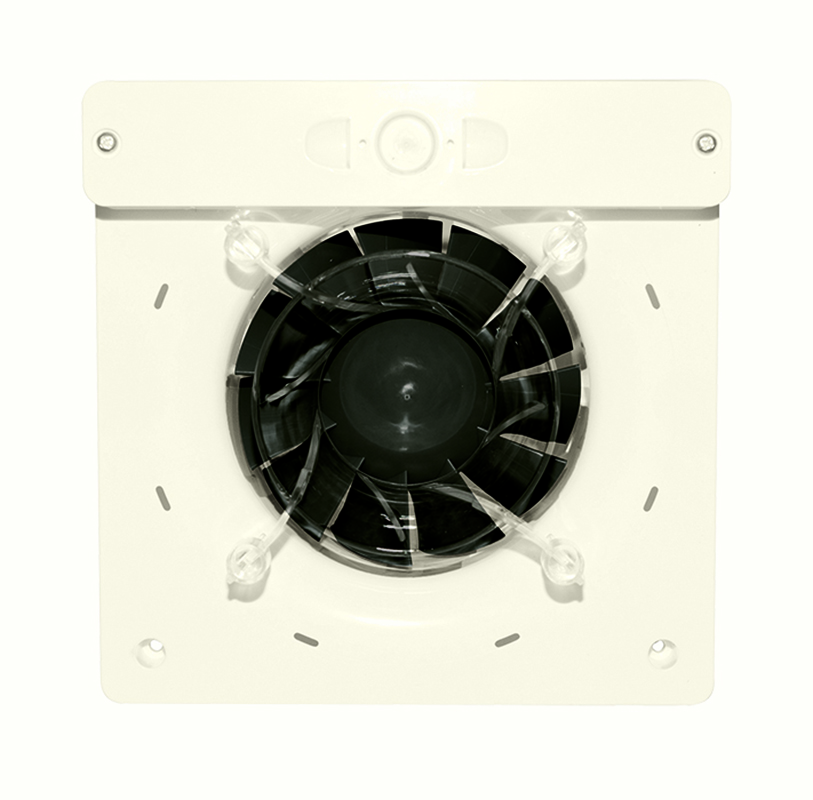

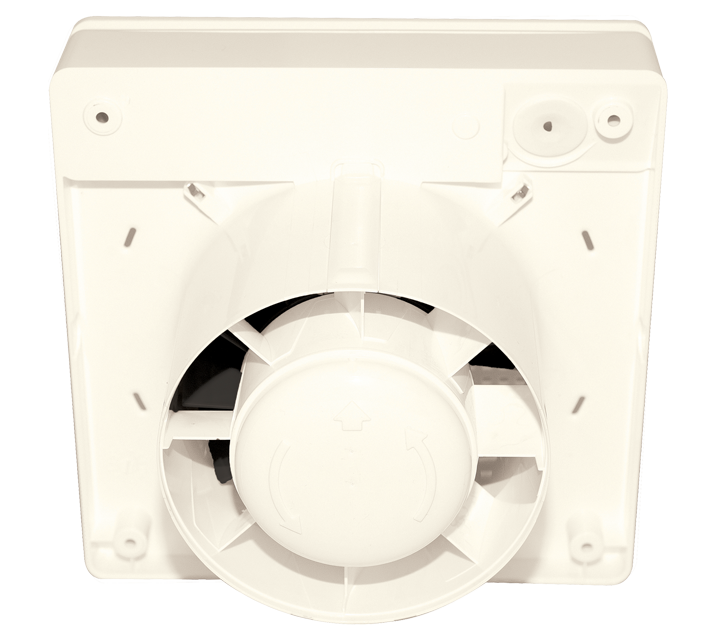

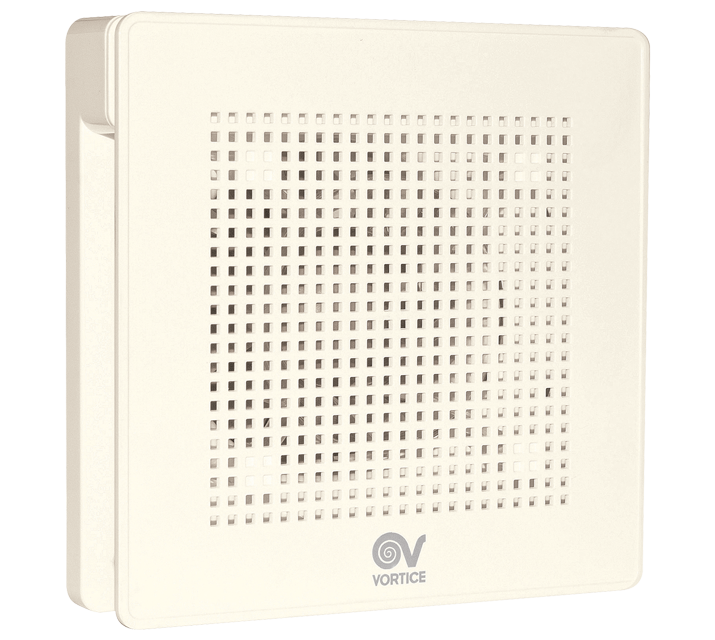

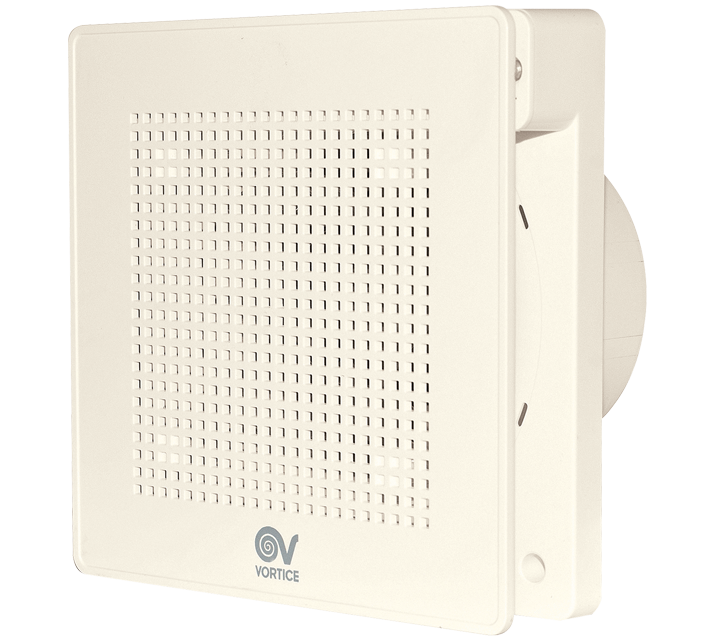

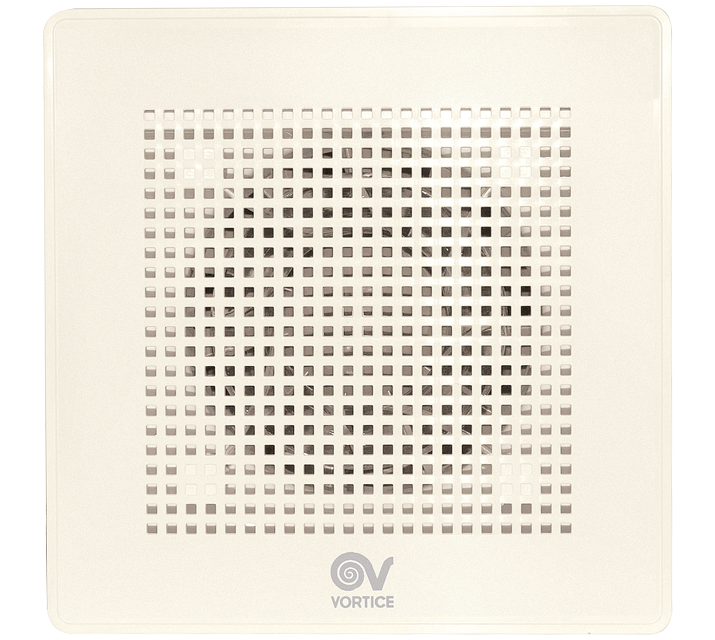

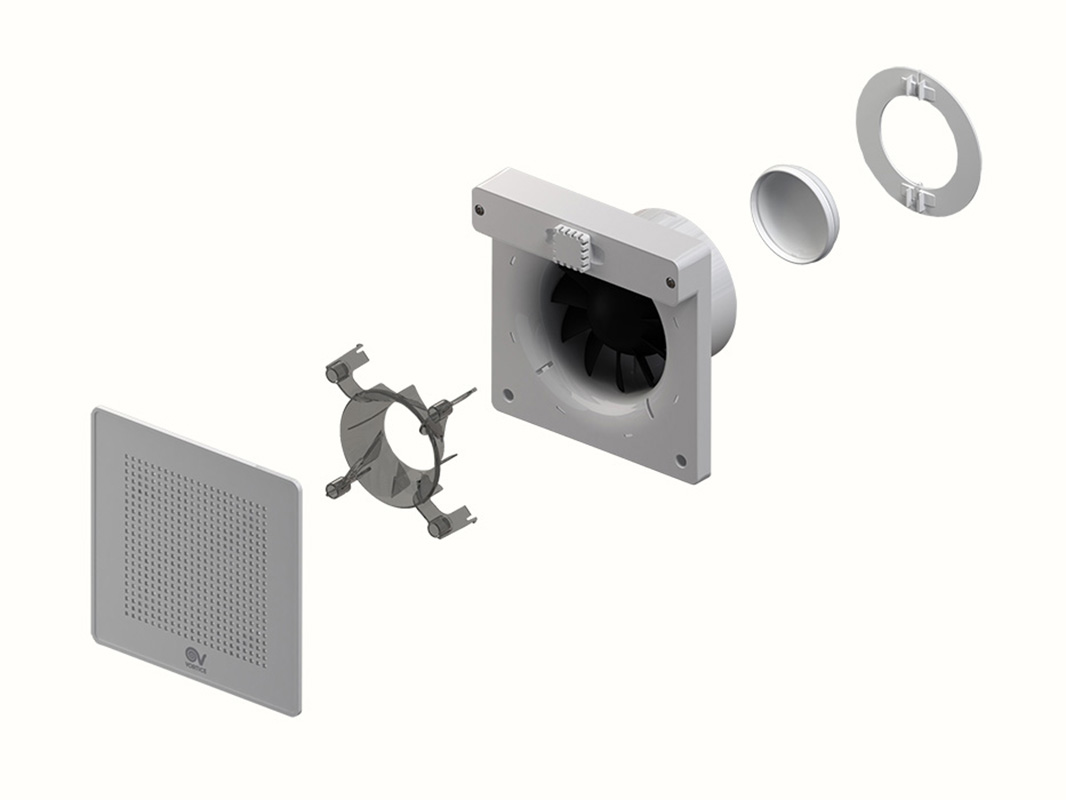

Description

• Material: UV resistant plastic (prevents ageing caused by exposure to sunlight).
• Nominal diameter: 100 mm
• EC motor protected against thermal overload, with shaft turning in ball bearings; 2 operating speeds controlled electronically from pcb.
• Maximum air flow 65 m3/h
• Equipped with non-return damper preventing unwanted backdraught when the fan is off.
• Fixed timer: the product works for 6 minutes at maximum speed, then automatically return to minimum.
• IMQ safety certification.
Read full descriptionClose description

Certifications


Technical Data Sheet

  • Frequency (Hz)
    50
  • Insulation class
    II°
  • IP
    45
  • Max absorbed current at Max speed (A)
    0,041
  • Max absorbed current at Min speed (A)
    0,030
  • Max absorbed power at Max speed (W)
    3,6
  • Max ambient temperature for continuous operation (°C)
    50
  • Nominal diameter (mm)
    100
  • Power absorbed at 1st speed (W)
    2,1
  • Voltage (V)
    230
  • Weight (Kg)
    0,64
  • Airflow at 1st speed (l/s)
    18,1
  • Airflow at 1st speed (m³/h)
    65
  • Max airflow at Max speed (l/s)
    26,4
  • Max airflow at Max speed (m³/h)
    95
  • Max pressure at Max speed (mmH20)
    5,1
  • Max pressure at Max speed (Pa)
    50
  • Max RPM
    2280
  • Min RPM
    1680
  • Pressure at 1st speed (mmH20)
    2,7
  • Pressure at 1st speed (Pa)
    26,5
  • Sound power at Min speed LWA [dB(A)]
    41,5
  • Sound power at Min speed LWA [dB(A)]
    48,3
  • Sound pressure at 3m at Max speed calculated in free field Lp [dB(A)]
    27,8
  • Sound pressure at 3m at Min speed calculated in free field Lp [dB(A)]
    21,0
  • Supplier's name or trade mark
    Vortice
  • Specific Energy Consumption (SEC) class in temperate climate zone
    NA
  • Specific Energy Consumption (SEC) class in temperate climate zone [kWh/m2y]
    -12,1
  • Specific Energy Consumption class SEC in cold climate zone [kWh/m2y]
    -25,5
  • Specific Energy Consumption class SEC in warm climate zone [kWh/m2y]
    -4,5
  • Declared type
    UVR-U: unidirezionale
  • Type of drive
    NA
  • Type of heat recovery system HRS
    assente
  • Thermal efficiency of heat recovery at reference airflow [%]
    NA
  • Max airflow [m3/h]
    89
  • Fan drive electric power input, including any motor control equipment, at maximum flow rate [W]
    3,5
  • Sound power LWA [dB(A)]
    48
  • Reference airflow [m3/s]
    0,0173
  • Reference ? pressure [Pa]
    21
  • SPI [W/(m3/h)]
    0,05297
  • Control factor CTRL
    1
  • Control type
    manuale
  • Max internal leakage rate [%]
    NA
  • Max external leakage rate [%]
    NA
  • Mixing rate
    NA
  • Position and description of visual filter warning
    NA
  • Airflow sensitivity to pressure variations at + 20 Pa and – 20 Pa
    NA
  • Indoor/outdoor air tightness [m3/h]
    NA
  • Annual electricity consumption (AEC) [kWh electricity/y]
    73
  • AHS temperate annual energy saved [kWh primary energy/y]
    1397
  • AHS cold annual energy saved [kWh primary energy/y]
    2732
  • AHS warm annual energy saved [kWh primary energy/y]
    632

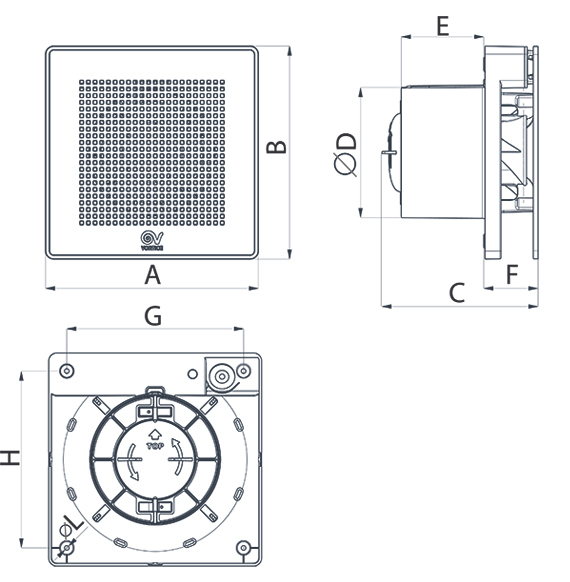

  • Size A (mm)
    159
  • Size B (mm)
    159
  • Size C (mm)
    132
  • Size D (mm)
    ø 98
  • Size E (mm)
    77,5
  • Size F (mm)
    40,5
  • Size G (mm)
    132
  • Size H (mm)
    132
  • Size L (mm)
    ø 3.5
