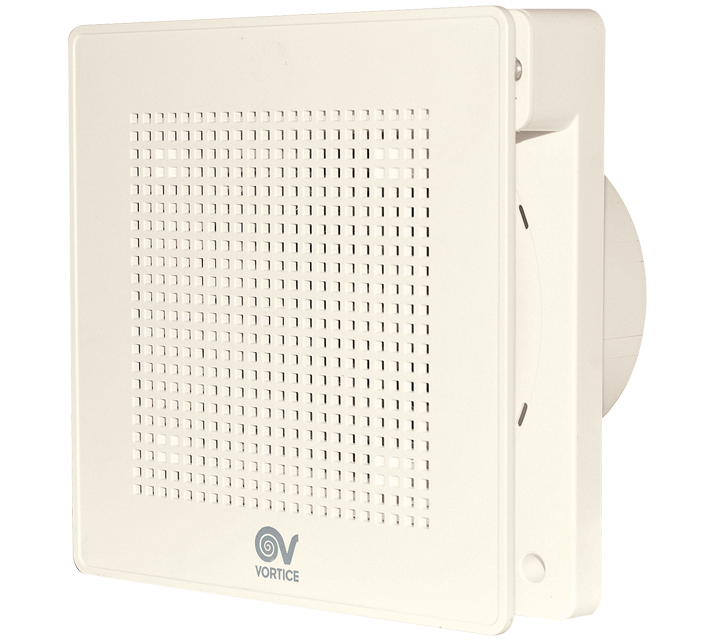

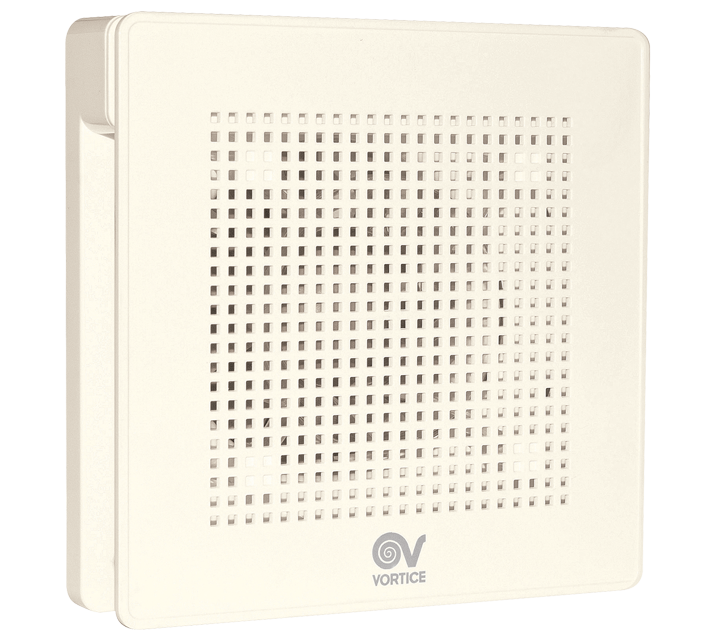

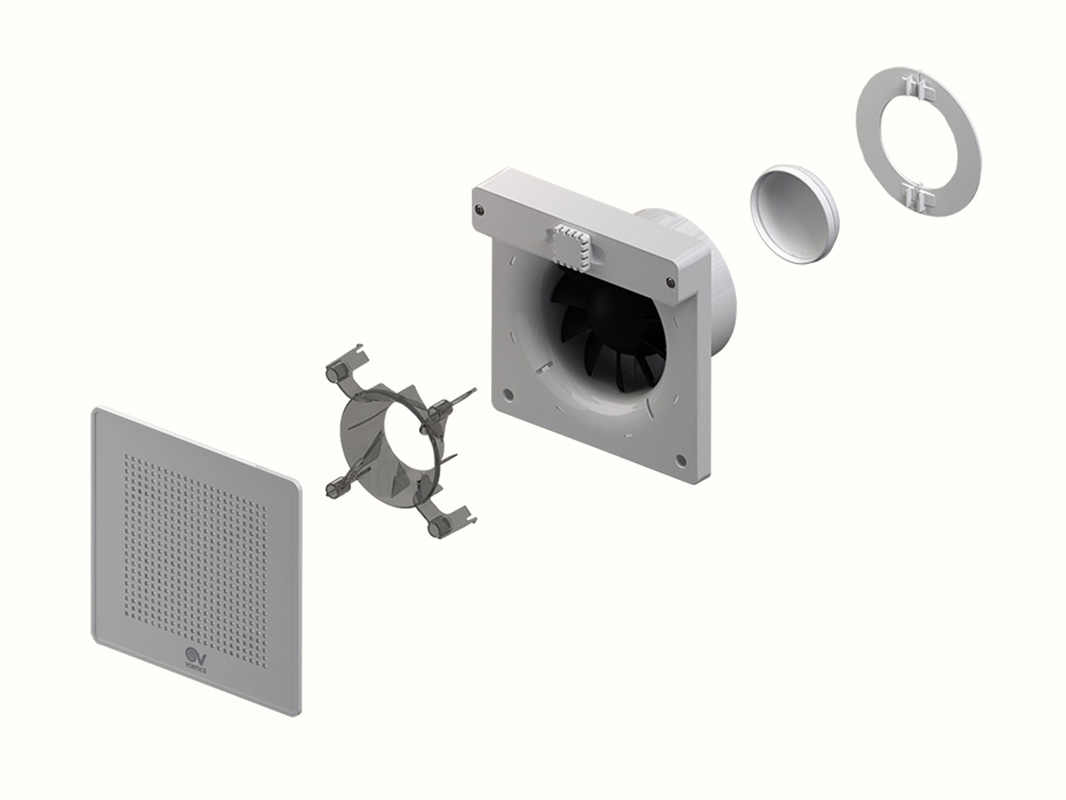

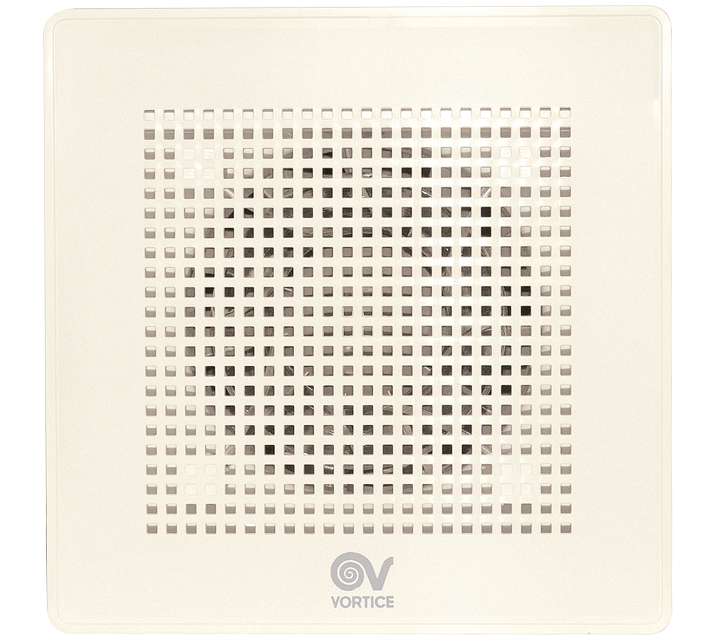

Description

• Material: UV resistant white plastic (prevents ageing caused by exposure to sunlight).
• Nominal diameter 100 mm.

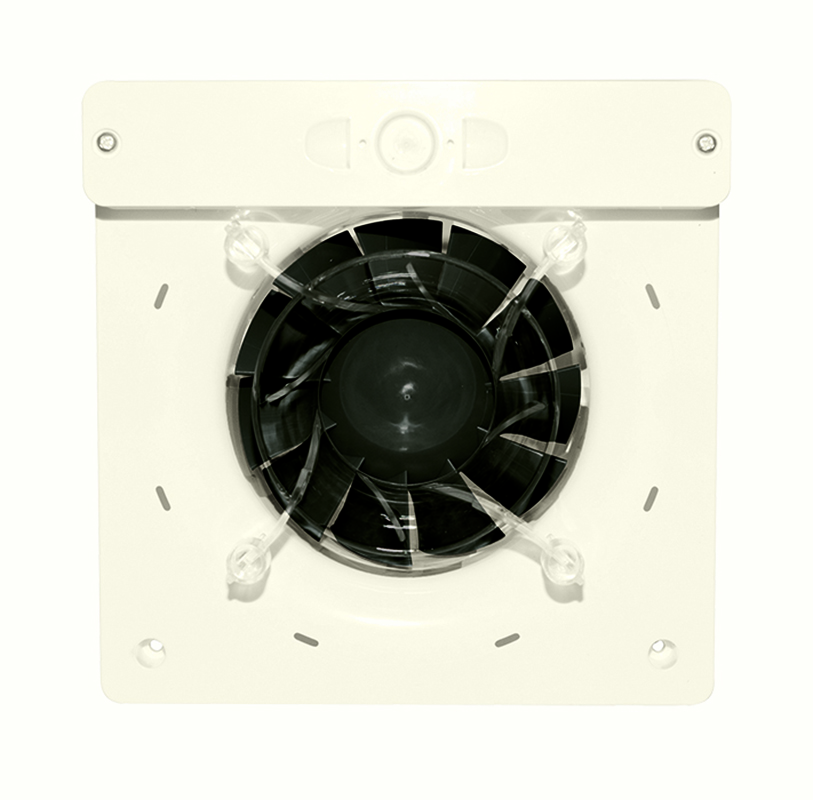

• Motor protected against thermal overload, with shaft turning in ball bearings; 2 operating speeds controlled electronically from pcb.
• Air flow between 65 m3/h and 95 m3/h.
• Version with advanced timer and humidity sensor: the appliance is equipped with a pcb that includes a humidity sensor capable of activating the system automatically when ambient relative humidity values exceed a given threshold, which can be set by the installer at four values: 60%, 70%, 80%, 90% RH (70% is the factory setting); the pcb also allows delayed switch-on and/or switch-off at the minimum or maximum speed.

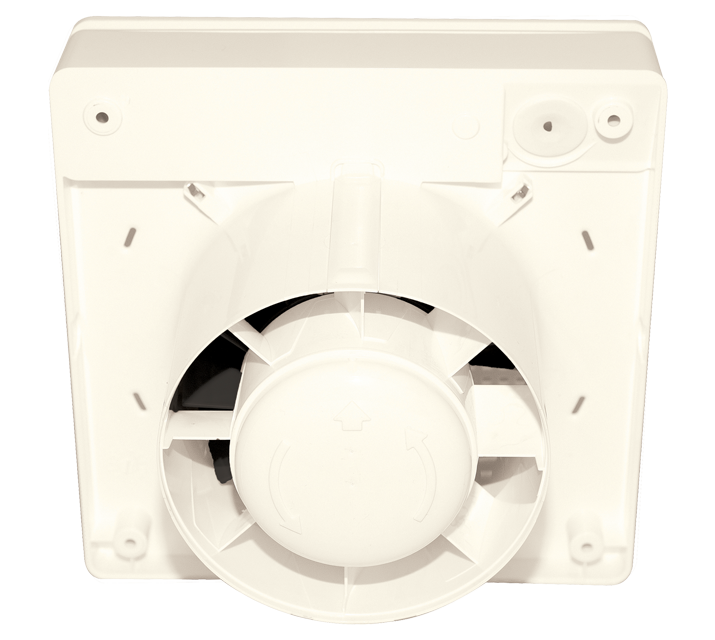

• Equipped with non-return damper preventing unwanted backdraught when the fan is off.
Read full descriptionClose description

Certifications

  • CE CE
    Download
  • CCC CCC
  • VDE VDE
  • EAC EAC
  • UKCA UKCA
  • CB TEST CERTIFICATE CB TEST CERTIFICATE
punto_evo_ambiente01
punto_evo_ambiente02

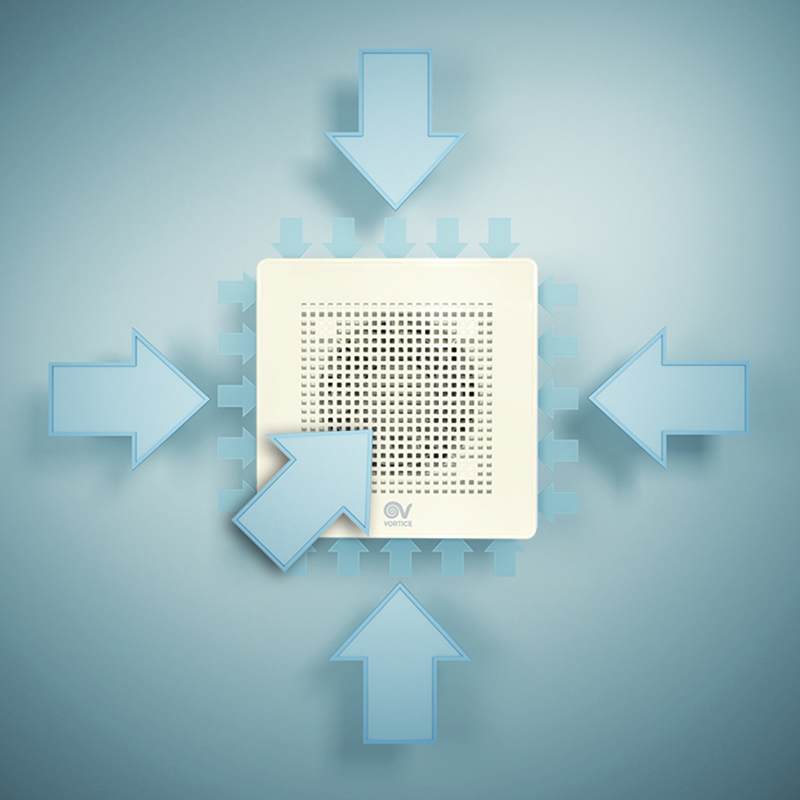

punto_evo_ambiente03

Technical Data Sheet

  • Frequency (Hz)
    50
  • Insulation class
    II°
  • IP
    45
  • Max absorbed current at Max speed (A)
    0,052
  • Max absorbed current at Min speed (A)
    0,039
  • Max absorbed power at Max speed (W)
    9
  • Max ambient temperature for continuous operation (°C)
    50
  • Nominal diameter (mm)
    100
  • Power absorbed at 1st speed (W)
    5
  • Voltage (V)
    220-240
  • Weight (Kg)
    0,6
  • Airflow at 1st speed (l/s)
    18,1
  • Airflow at 1st speed (m³/h)
    65
  • Max airflow at Max speed (l/s)
    26,4
  • Max airflow at Max speed (m³/h)
    95
  • Max pressure at Max speed (mmH20)
    4,7
  • Max pressure at Max speed (Pa)
    46,09
  • Max RPM
    2240
  • Min RPM
    1700
  • Pressure at 1st speed (mmH20)
    2,5
  • Pressure at 1st speed (Pa)
    24,52
  • Sound power at Min speed LWA [dB(A)]
    41,3
  • Sound power at Min speed LWA [dB(A)]
    47,4
  • Sound pressure at 3m at Max speed calculated in free field Lp [dB(A)]
    26,9
  • Sound pressure at 3m at Min speed calculated in free field Lp [dB(A)]
    20,8
  • Supplier's name or trade mark
    Vortice
  • Specific Energy Consumption (SEC) class in temperate climate zone
    NA
  • Specific Energy Consumption (SEC) class in temperate climate zone [kWh/m2y]
    -9,9
  • Specific Energy Consumption class SEC in cold climate zone [kWh/m2y]
    -23,2
  • Specific Energy Consumption class SEC in warm climate zone [kWh/m2y]
    -2,2
  • Declared type
    UVR-U: unidirezionale
  • Type of drive
    NA
  • Type of heat recovery system HRS
    assente
  • Thermal efficiency of heat recovery at reference airflow [%]
    NA
  • Max airflow [m3/h]
    93
  • Fan drive electric power input, including any motor control equipment, at maximum flow rate [W]
    8,1
  • Sound power LWA [dB(A)]
    68
  • Reference airflow [m3/s]
    0,0181
  • Reference ? pressure [Pa]
    22
  • SPI [W/(m3/h)]
    0,11828
  • Control factor CTRL
    1
  • Control type
    manuale
  • Max internal leakage rate [%]
    NA
  • Max external leakage rate [%]
    NA
  • Mixing rate
    NA
  • Position and description of visual filter warning
    NA
  • Airflow sensitivity to pressure variations at + 20 Pa and – 20 Pa
    NA
  • Indoor/outdoor air tightness [m3/h]
    NA
  • Annual electricity consumption (AEC) [kWh electricity/y]
    163
  • AHS temperate annual energy saved [kWh primary energy/y]
    1397
  • AHS cold annual energy saved [kWh primary energy/y]
    2732
  • AHS warm annual energy saved [kWh primary energy/y]
    632

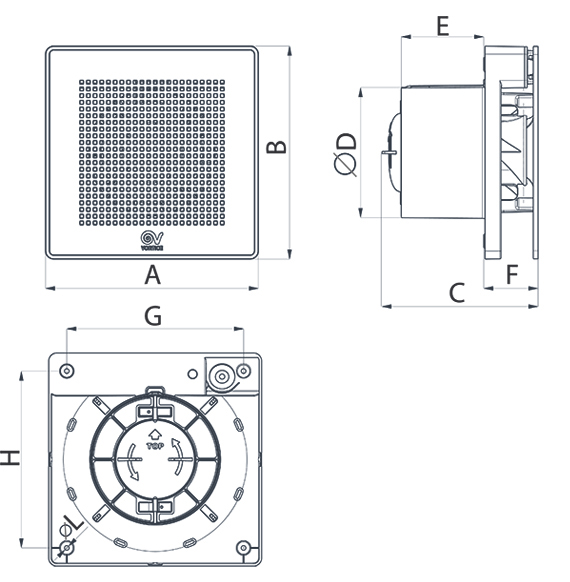

  • Size A (mm)
    159
  • Size B (mm)
    159
  • Size C (mm)
    116,5
  • Size D (mm)
    ø 98
  • Size E (mm)
    61,5
  • Size F (mm)
    40,5
  • Size G (mm)
    132
  • Size H (mm)
    132
  • Size L (mm)
    ø 3,5
quota

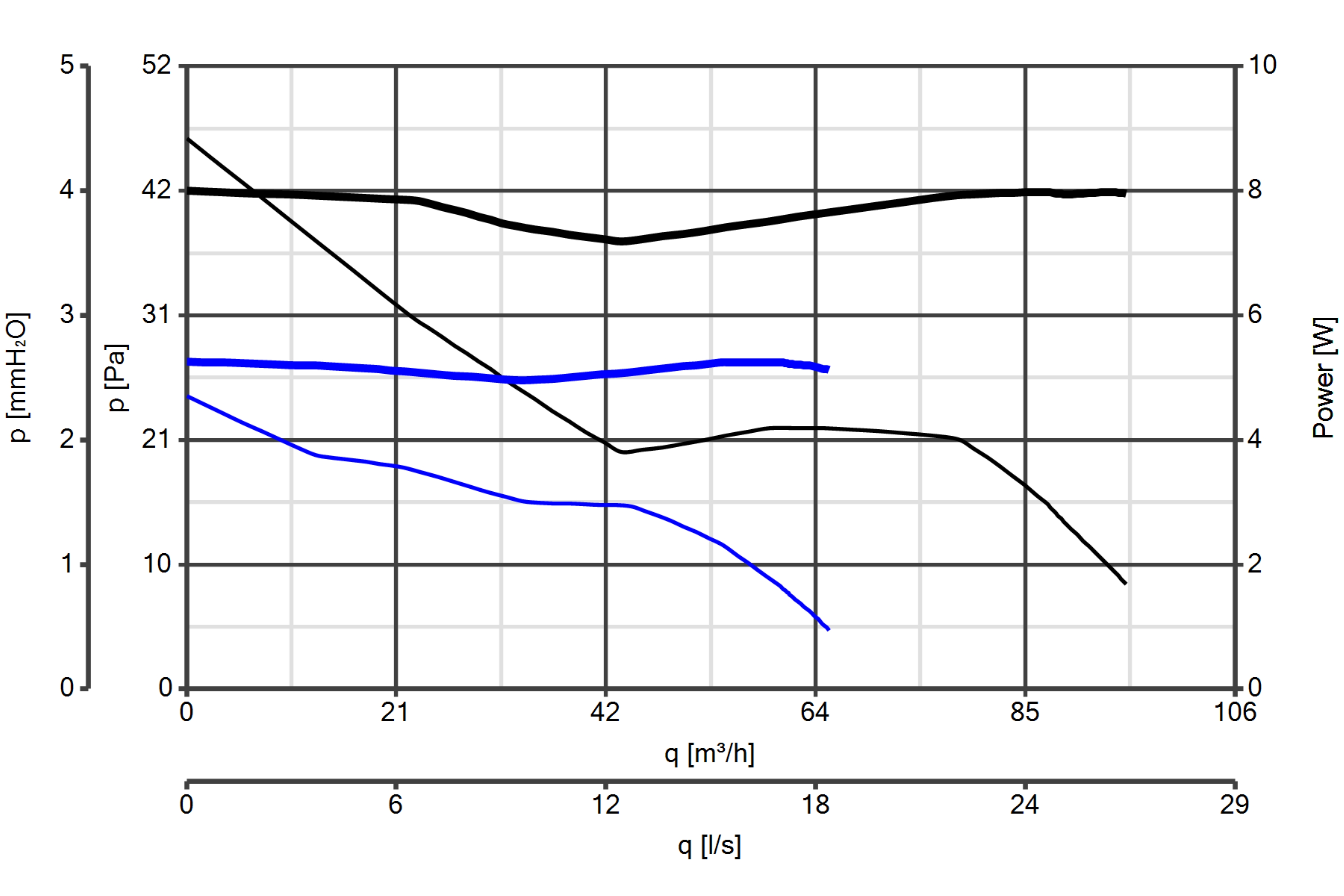

Curva_JPG_11262-Curve_per_Catalogo
