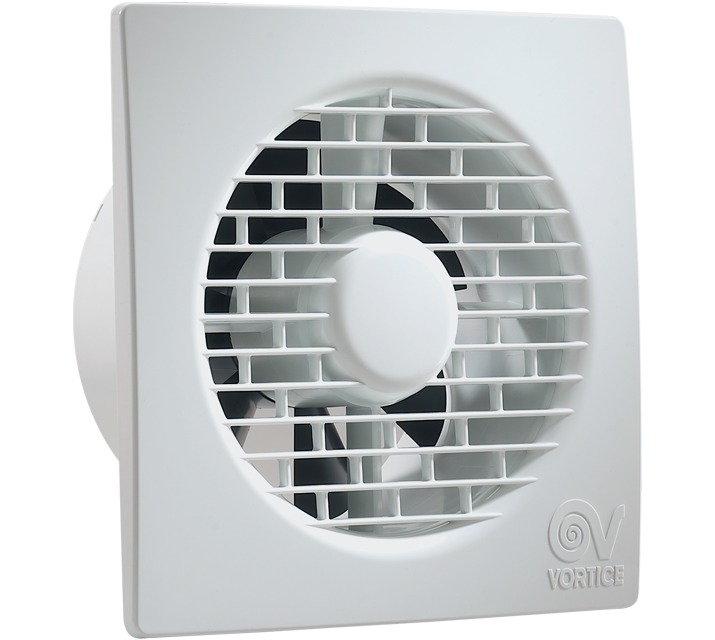

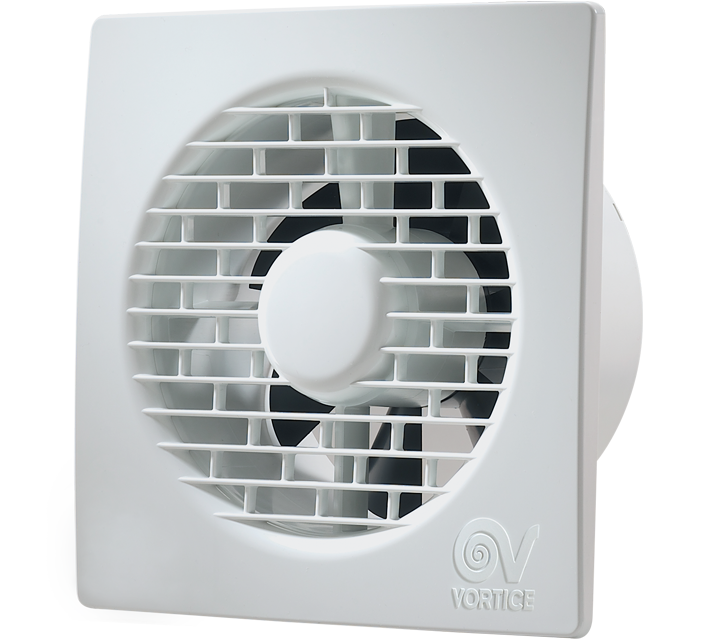

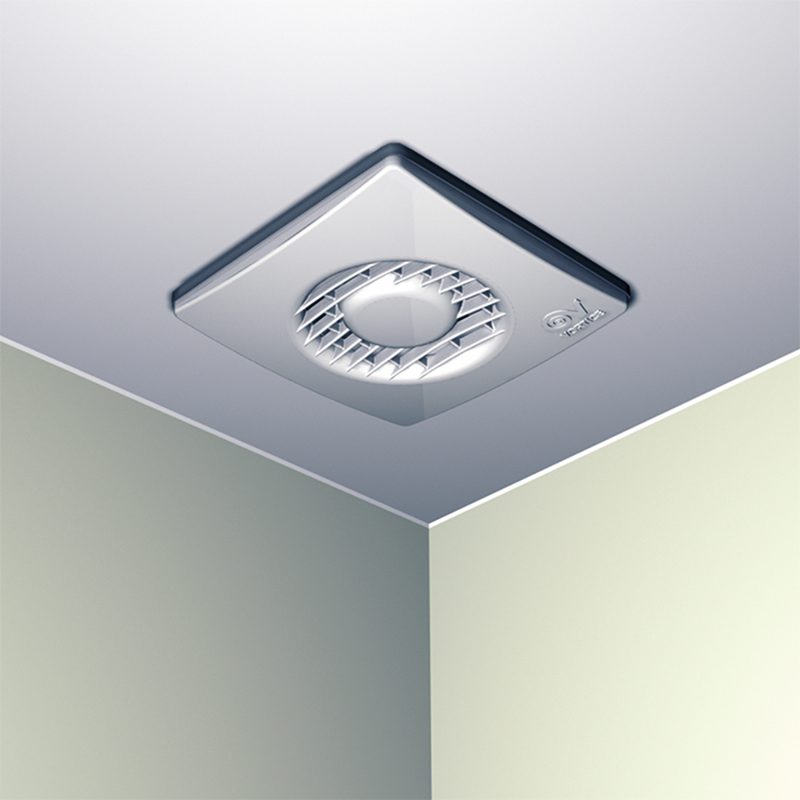

Description
• Material: UV resistant plastic (prevents ageing caused by exposure to sunlight).
• Nominal diameter 150 mm.
• Motor protected against thermal overload, with shaft turning in ball bearings, coupled to screw type thermoplastic impeller with wing profile blades.
• Maximum air flow: 335 m3/h.
• Incorporates electronic presence detector with infrared sensor, and electronic timer designed to shut off the motor automatically after a set interval, selectable during installation in the range 3’-20’ (default setting 3’), after the room has been vacated.

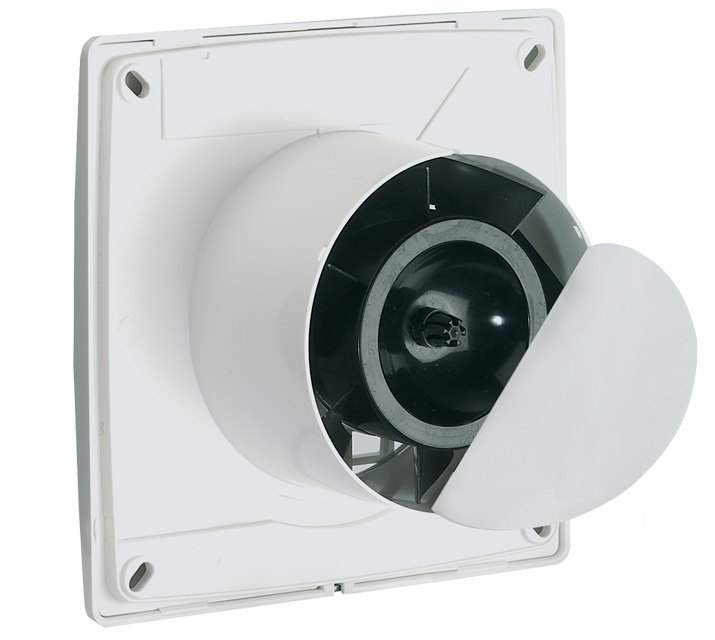

• Non-return damper fitted to outlet port.
• Vortice speed controller.
• Nominal diameter 150 mm.
• Motor protected against thermal overload, with shaft turning in ball bearings, coupled to screw type thermoplastic impeller with wing profile blades.
• Maximum air flow: 335 m3/h.
• Incorporates electronic presence detector with infrared sensor, and electronic timer designed to shut off the motor automatically after a set interval, selectable during installation in the range 3’-20’ (default setting 3’), after the room has been vacated.
• Non-return damper fitted to outlet port.
• Vortice speed controller.
Certifications
-
Download
CE
-
EAC
-
G-Mark
-
UKCA
-
CB TEST CERTIFICATE
Technical Data Sheet
-
Frequency (Hz)50
-
Insulation classII°
-
IPX4
-
Max absorbed current (A)0,15
-
Max absorbed power (W)28
-
Max absorbed power at Max speed (W)28
-
Max ambient temperature for continuous operation (°C)50
-
Nominal diameter (mm)150
-
Ø Discharge hole (mm)156
-
Voltage (V)220-240
-
Weight (Kg)0,97
-
Max airflow (l/s)93
-
Max airflow (m³/h)335
-
Max pressure (mmH2O)6
-
Max pressure (Pa)59
-
RPM2100
-
Sound pressure Lp [dB (A)] at 3 m40,1
-
Supplier's name or trade markVortice
-
Specific Energy Consumption (SEC) class in temperate climate zoneNA
-
Specific Energy Consumption (SEC) class in temperate climate zone [kWh/m2y]-9,9
-
Specific Energy Consumption class SEC in cold climate zone [kWh/m2y]-23,2
-
Specific Energy Consumption class SEC in warm climate zone [kWh/m2y]-2,2
-
Declared typeUVR-U: unidirezionale
-
Type of driveNA
-
Type of heat recovery system HRSassente
-
Thermal efficiency of heat recovery at reference airflow [%]NA
-
Max airflow [m3/h]332
-
Fan drive electric power input, including any motor control equipment, at maximum flow rate [W]26,7
-
Sound power LWA [dB(A)]61
-
Reference airflow [m3/s]0,0646
-
Reference ? pressure [Pa]32
-
SPI [W/(m3/h)]0,11833
-
Control factor CTRL1
-
Control typemanuale
-
Max internal leakage rate [%]NA
-
Max external leakage rate [%]NA
-
Mixing rateNA
-
Position and description of visual filter warningNA
-
Airflow sensitivity to pressure variations at + 20 Pa and – 20 PaNA
-
Indoor/outdoor air tightness [m3/h]NA
-
Annual electricity consumption (AEC) [kWh electricity/y]163
-
AHS temperate annual energy saved [kWh primary energy/y]1397
-
AHS cold annual energy saved [kWh primary energy/y]2732
-
AHS warm annual energy saved [kWh primary energy/y]632
-

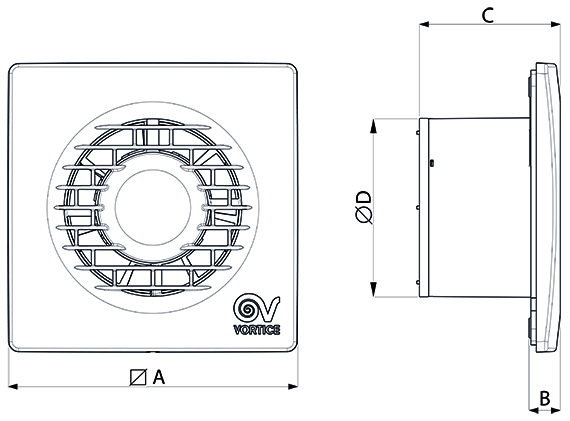

Size A (mm)214
-
Size B (mm)17
-
Size C (mm)96
-
Size D (mm)156
