Description

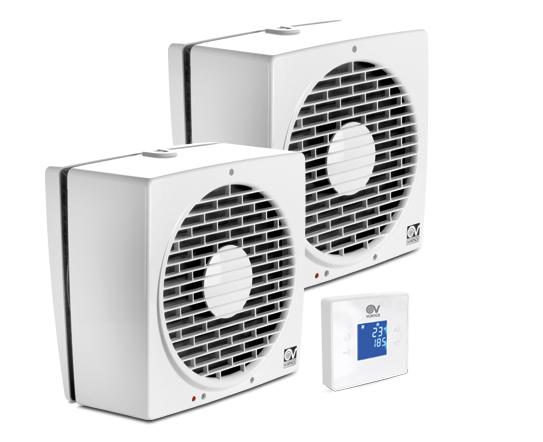

Kit consisting of two VARIO extractor fans and a wired control panel equipped with a CO2 sensor, able to automatically manage the speed of the fans based on the concentration of carbon dioxide detected.
The combined operation of the two fans, which respectively extract the stale air potentially full of viruses and bacteria, reintegrating it with external fresh air, rich in oxygen and devoid of viral load. The system is able to ensure adequate indoor ventilation, avoiding the at the same time the risk of potentially infected air entering due to depression from near rooms, caused by the presence of just one extractor fan.

VARIO extractor fans features:
• Models for window / wall installation.
• Reversibility function (extraction or supply).
• Automatic damper: prevents the entry of cold air and bad smells when the appliance is off.
• "UV resistant" ABS plastic resin.
• Nominal diameter: 150 mm.
• Thermally protected motor, with shaft mounted on supports with self-lubricating bushings, combined with a plastic made impeller with wing profile blades.
• Protection: IPX4.

Display features:
• CO2 sensor with adjustable threshold and safety values in the range 0 - 5,000 ppm (exceeding the threshold value causes the two slave fans to switch on, the carbon dioxide concentration falls below the value safety leads to shutdown).
• Relative humidity sensor (allows the display of the ambient temperature and RH values).
• Weekly program to switch on/off the fans (ideal, for example, in the case of use in classrooms, gyms, canteens, offices).
• Possibility of integration into a building management system (BMS - Building Management System), Modbus protocol, integrated RS485 port.
• Graphic display able to show the system status and environmental parameters.
Read full descriptionClose description

Technical Data Sheet

  • Frequency (Hz)
    50/60
  • Insulation class
    II°
  • IP
    X4
  • Max absorbed current (A)
    0,11
  • Max absorbed power (W)
    25
  • Max absorbed Power at 60 Hz (W)
    25
  • Max ambient temperature for continuous operation (°C)
    50
  • Max room temperature for continuous operation at 60 Hz (°C)
    50
  • Ø Discharge hole (mm)
    150
  • Voltage (V)
    220-240
  • Weight (Kg)
    2,07
  • Max airflow - extract (l/s)
    65,3
  • Max airflow - extract (m3/h)
    235
  • Max airflow - intake (l/s)
    41,7
  • Max airflow - intake (m3/h)
    150
  • Max airflow (m³/h)
    235
  • RPM
    1340
  • Rpm - exhaust
    1340
  • Rpm - supply
    2040
  • Sound pressure Lp [dB (A)] at 3 m
    37,5


* Technical datas above refer to the product powered at 50 Hz.
For values for 60 Hz power supply, please contact the VORTICE Presales Service at prevendita@vortice-italy.com.

  • Ø hole thorugh the glass
    185/190
  • Ø hole through the wall
    185/190

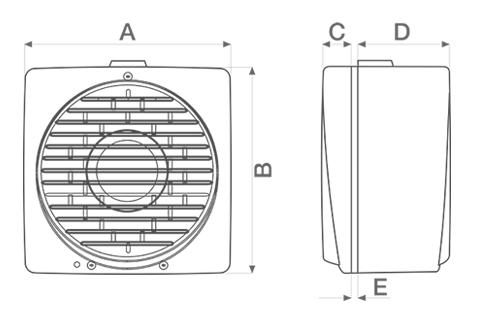

  • Size A (mm)
    215
  • Size B (mm)
    218
  • Size C (mm)
    31
  • Size D (mm)
    97,5
  • Size E (mm)
    2/38
quota
Curva_JPG_90016-Curve_per_Catalogo

Accessories

Discover accessories related to the product

SCO2IAQ
SCO2IAQ
Device for CO2 environmental concentration monitoring; adjustable threshold in the range 0 - 5,000 ppm. Exceeding the threshold value causes the switch on of the two VORTICE VARIO...

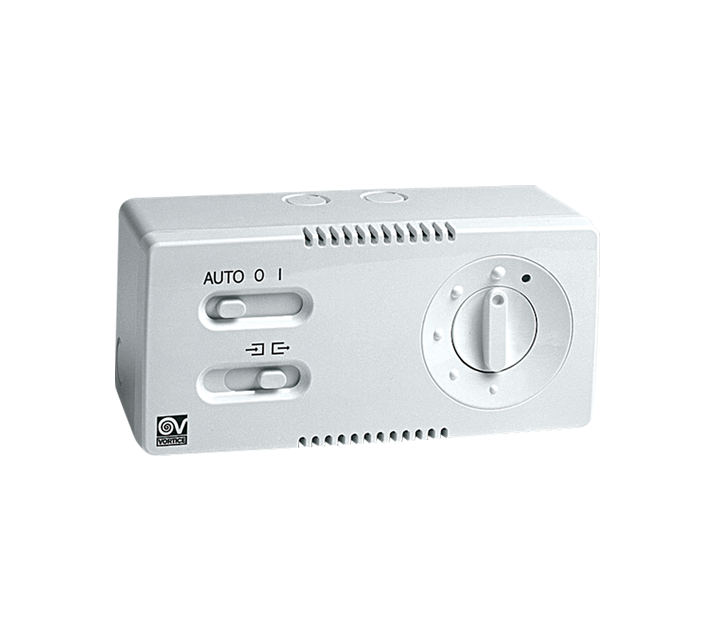

CR5N
CR5N
• Reversibile 5 speed controller.
• Natural Ventilation.
• Maximum load 100 W.
CREN
CREN
• Variable electronic speed controller.
• Reversible.
• Natural Ventilation.
• Maximum load 1,2 A.
C TEMP
C TEMP
Environmental sensor for temperature control.
C SMOKE
C SMOKE
Environmental sensor for air quality.
C HCS
C HCS
Environmental sensor for relative humidity control.
C PIR
C PIR
• Passive infrared sensor.
C TIMER
C TIMER
• Adjustable over-run timer.

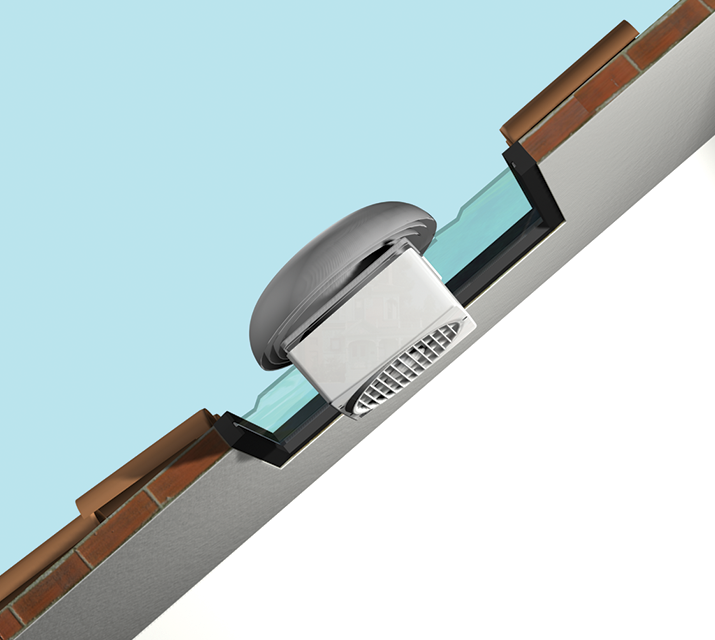

KIT TE 150/6"                 (TORRETTA)
KIT TE 150/6" (TORRETTA)
• Roof cowl/wind baffle kit.

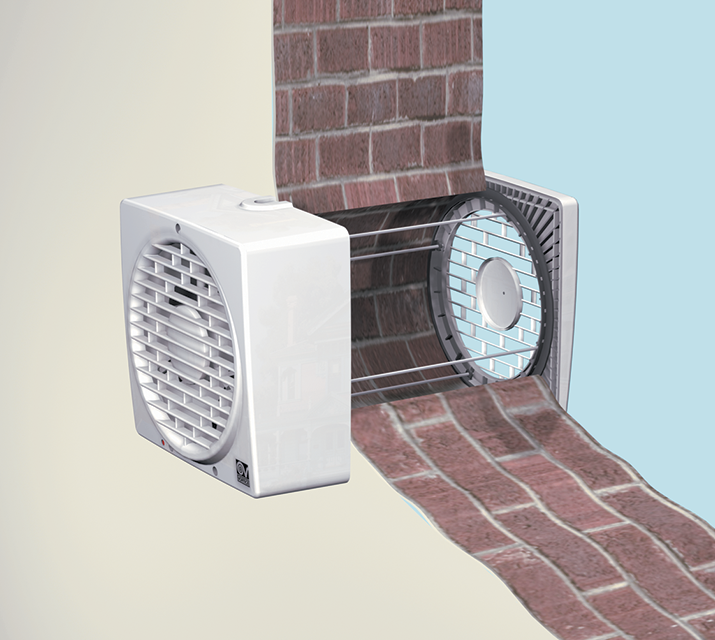

KIT MU                            (MURO)
KIT MU (MURO)
• Wall mounting kit with rods.

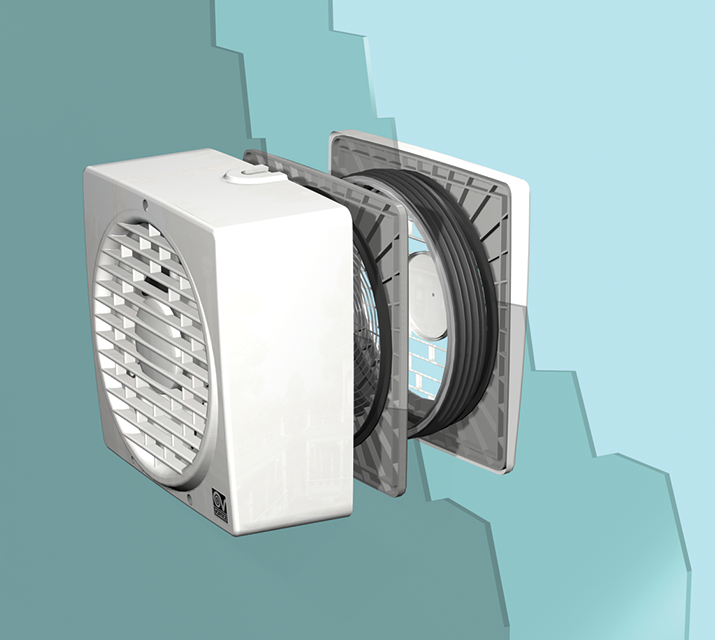

KIT VV 150/6"              (DOPPI VETRI)
KIT VV 150/6" (DOPPI VETRI)
• Double opening window, secondary-glazed kit.

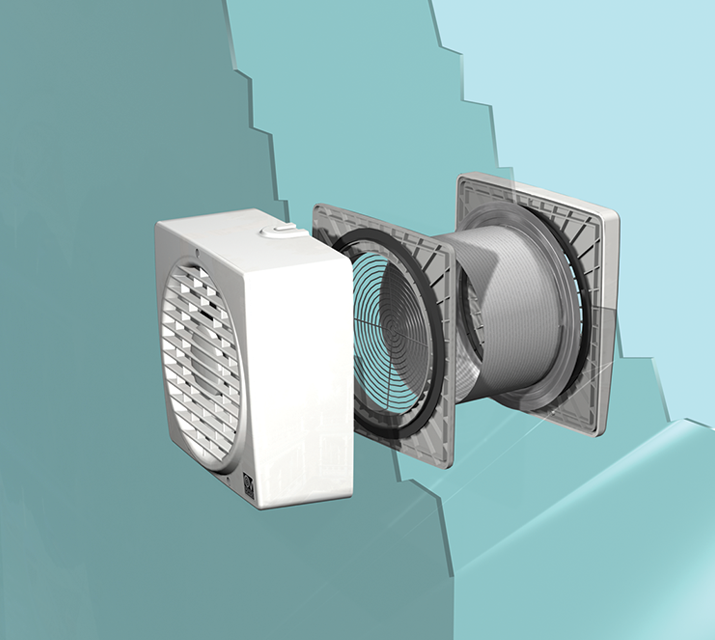

KIT FF 150/6"          (DOPPIA FINESTRA)
KIT FF 150/6" (DOPPIA FINESTRA)
• Double opening window kit.
KIT TC 150/6"       (TETTO CON CONDOTTO)
KIT TC 150/6" (TETTO CON CONDOTTO)
• Spigot plate for remote application.
