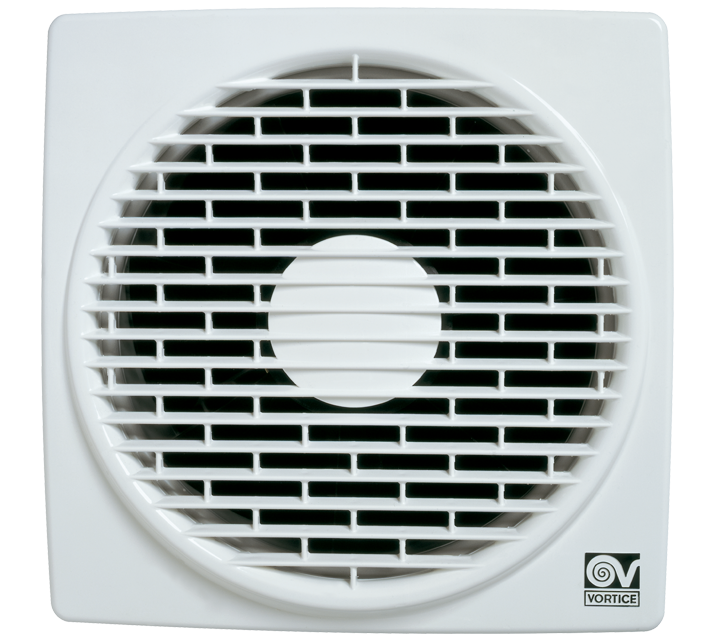

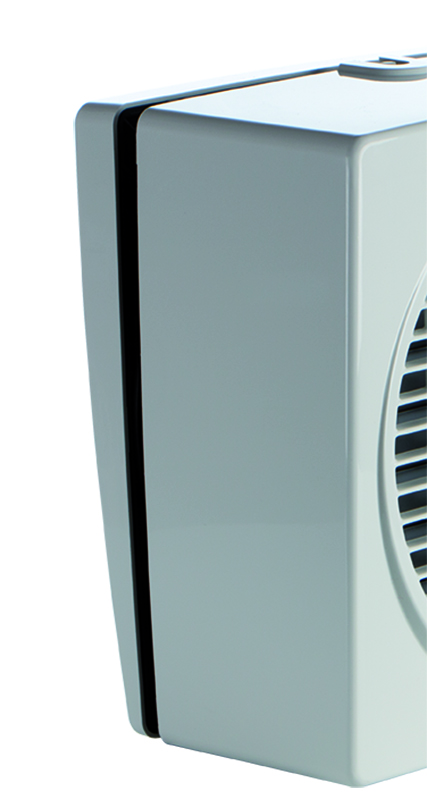

Description

• Model designed for window/wall mounted installation.
• Reversibility function (intake or extraction).
• Automatic shutter: prevents the entry of cold air and bad smells when the appliance is switched off.
• Material: UV resistant ABS plastic (prevents ageing caused by exposure to sunlight).
• Nominal diameter 150 mm.

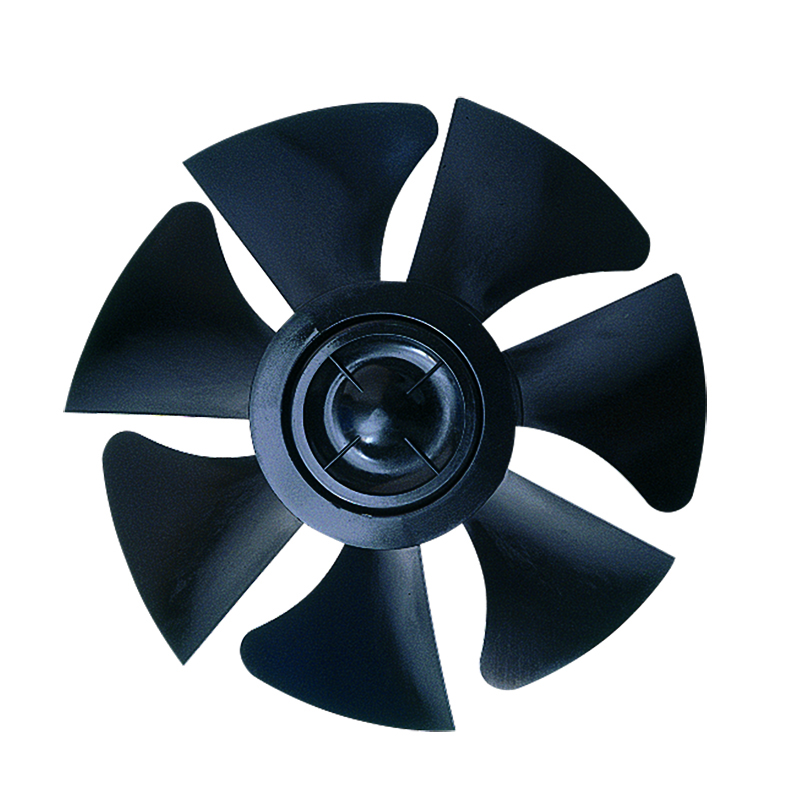

• Motor protected against thermal overload, with shaft turning in ball bearings, coupled to screw type thermoplastic impeller with wing profile blades.
Read full descriptionClose description

Certifications

  • CE CE
    Download
  • C Tick Mark C Tick Mark
  • EAC EAC
  • G-Mark G-Mark
  • UKCA UKCA
  • CB TEST CERTIFICATE CB TEST CERTIFICATE

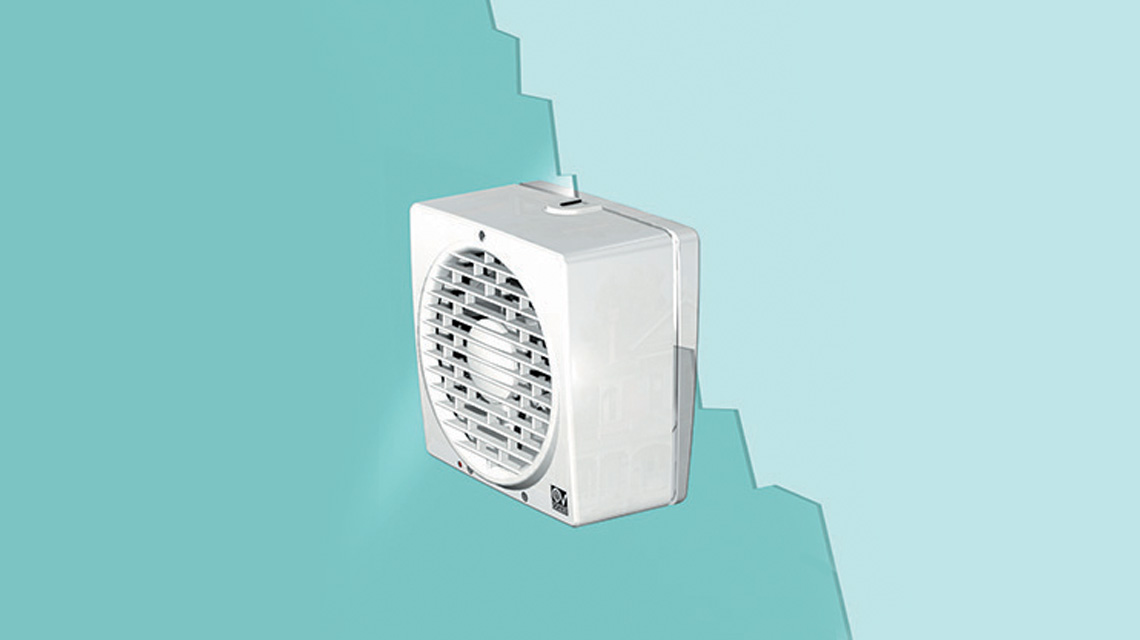

vortice_vario_ambiente01

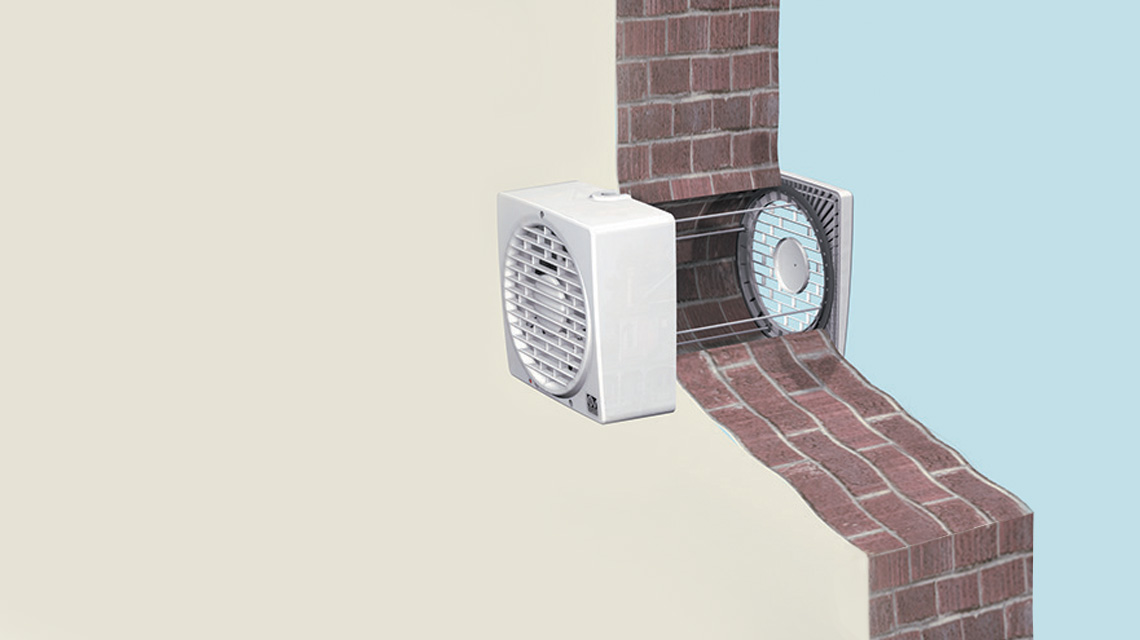

vortice_vario_ambiente02
vortice_vario_ambiente03

Technical Data Sheet

  • Frequency (Hz)
    50-60
  • Inlet
    Automatico
  • Insulation class
    II°
  • IP
    X4
  • Max absorbed current (A)
    0,17
  • Max absorbed power (W)
    35
  • Max absorbed Power at 60 Hz (W)
    35
  • Max ambient temperature for continuous operation (°C)
    50
  • Max room temperature for continuous operation at 60 Hz (°C)
    50
  • Ø Discharge hole (mm)
    150
  • Voltage (V)
    220-240
  • Weight (Kg)
    2,07
  • Max airflow - extract (l/s)
    105,6
  • Max airflow - extract (m3/h)
    380
  • Max airflow - intake (l/s)
    59,7
  • Max airflow - intake (m3/h)
    215
  • Max airflow (m³/h)
    380
  • RPM
    2110
  • Rpm - exhaust
    2110
  • Rpm - supply
    2520
  • Sound pressure Lp [dB (A)] at 3 m
    49,6


* Technical datas above refer to the product powered at 50 Hz.
For values for 60 Hz power supply, please contact the VORTICE Presales Service at prevendita@vortice-italy.com.

  • Ø hole thorugh the glass
    185/190
  • Ø hole through the wall
    185/190

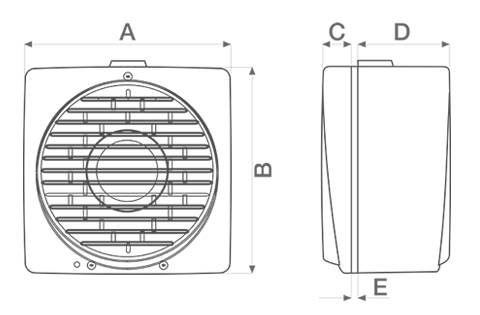

  • Size A (mm)
    215
  • Size B (mm)
    218
  • Size C (mm)
    31
  • Size D (mm)
    97,5
  • Size E (mm)
    2/38
quota
Curva_JPG_12615-Curve_per_Catalogo
Curva_JPG_12615-Curve_per_Catalogo

Accessories

Discover accessories related to the product

KIT TE 150/6"                 (TORRETTA)
KIT TE 150/6" (TORRETTA)
• Roof cowl/wind baffle kit.
KIT MU                            (MURO)
KIT MU (MURO)
• Wall mounting kit with rods.
KIT VV 150/6"              (DOPPI VETRI)
KIT VV 150/6" (DOPPI VETRI)
• Double opening window, secondary-glazed kit.
KIT FF 150/6"          (DOPPIA FINESTRA)
KIT FF 150/6" (DOPPIA FINESTRA)
• Double opening window kit.

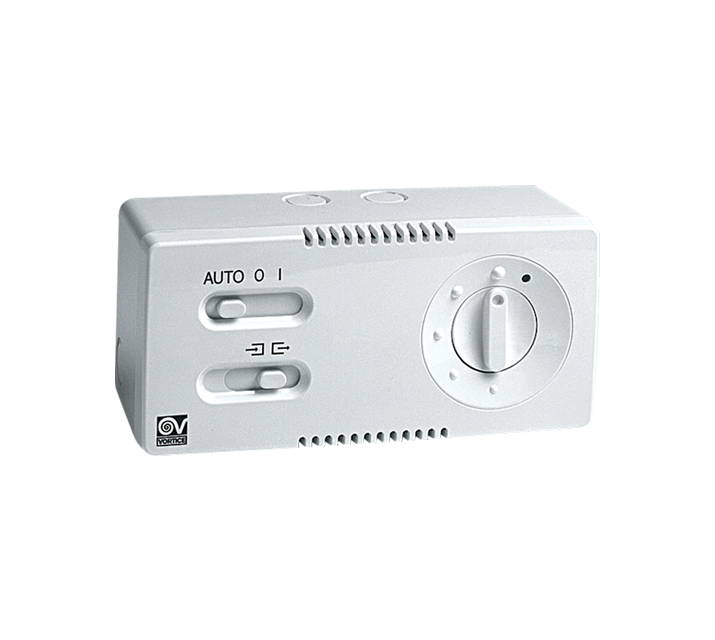

CR5N
CR5N
• Reversibile 5 speed controller.
• Natural Ventilation.
• Maximum load 100 W.
CR5
CR5
• Reversibile 5 speed controller.
• Maximum load 100 W.
CREN
CREN
• Variable electronic speed controller.
• Reversible.
• Natural Ventilation.
• Maximum load 1,2 A.
C PIR
C PIR
• Passive infrared sensor.
C TIMER
C TIMER
• Adjustable over-run timer.
