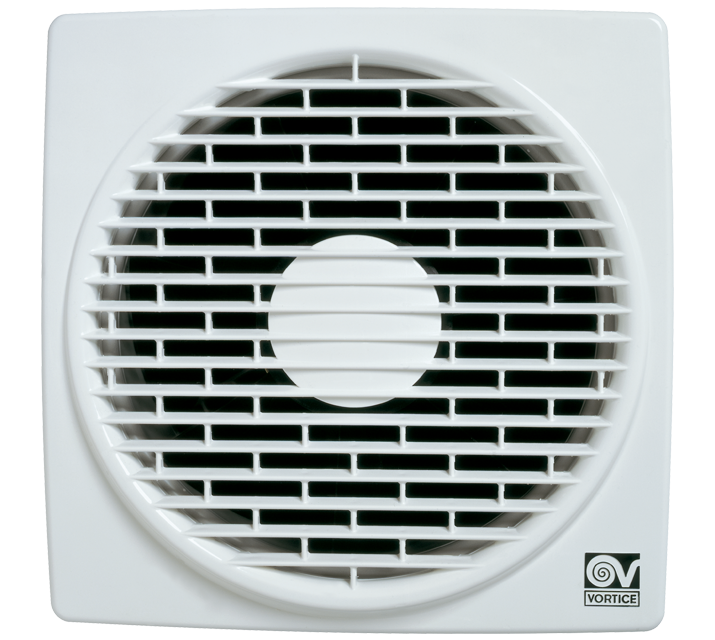

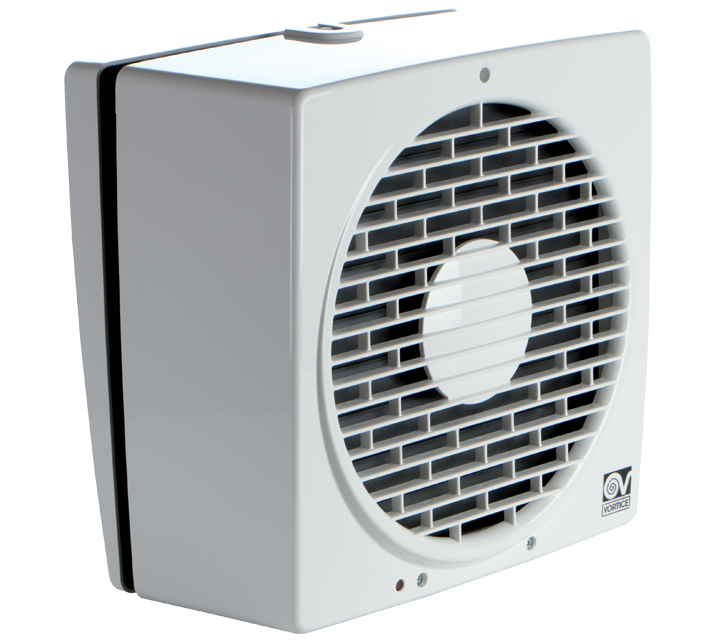

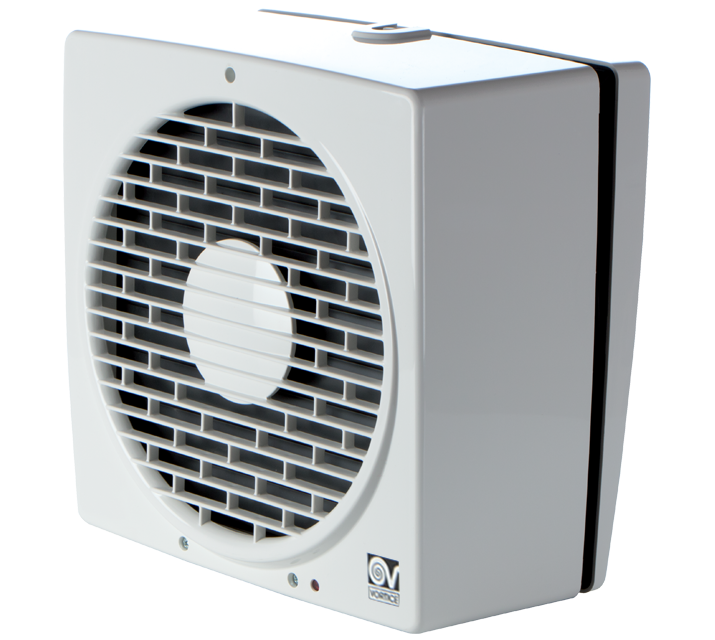

Description

• Model designed for window/wall mounted installation.
• Version with built-in switch operated by pullcord mounted to edge of grille.
• Material: UV resistant ABS plastic (prevents ageing caused by exposure to sunlight).
• Nominal diameter 150 mm.

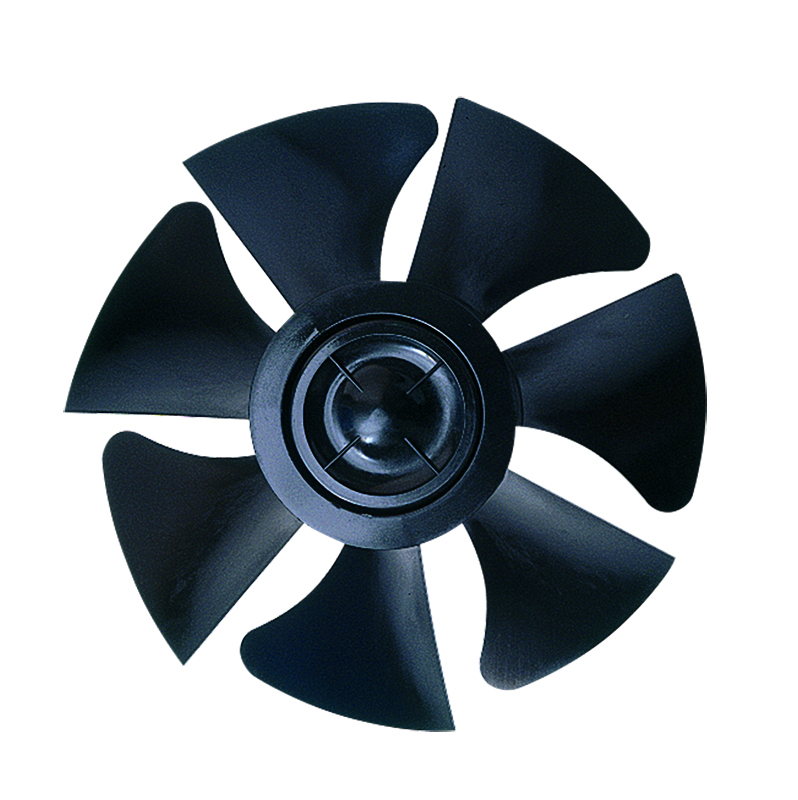

• Motor protected against thermal overload, with shaft turning in ball bearings, coupled to screw type thermoplastic impeller with wing profile blades.
Read full descriptionClose description

Certifications

  • CE CE
    Download
  • EAC EAC
  • G-Mark G-Mark
  • UKCA UKCA
  • CB TEST CERTIFICATE CB TEST CERTIFICATE

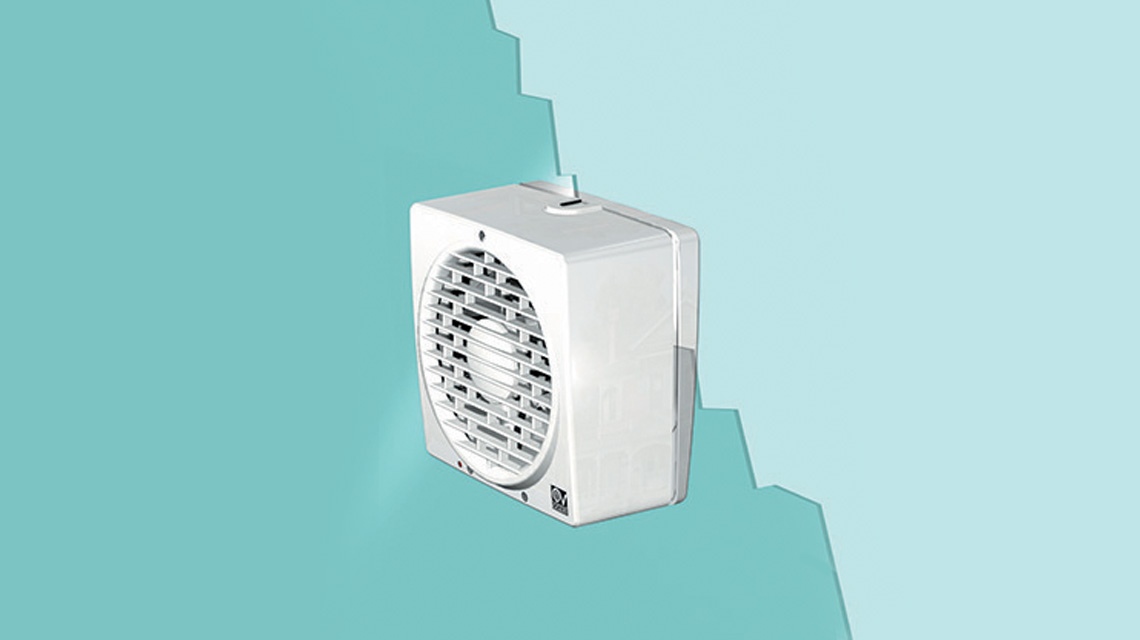

vortice_vario_ambiente01

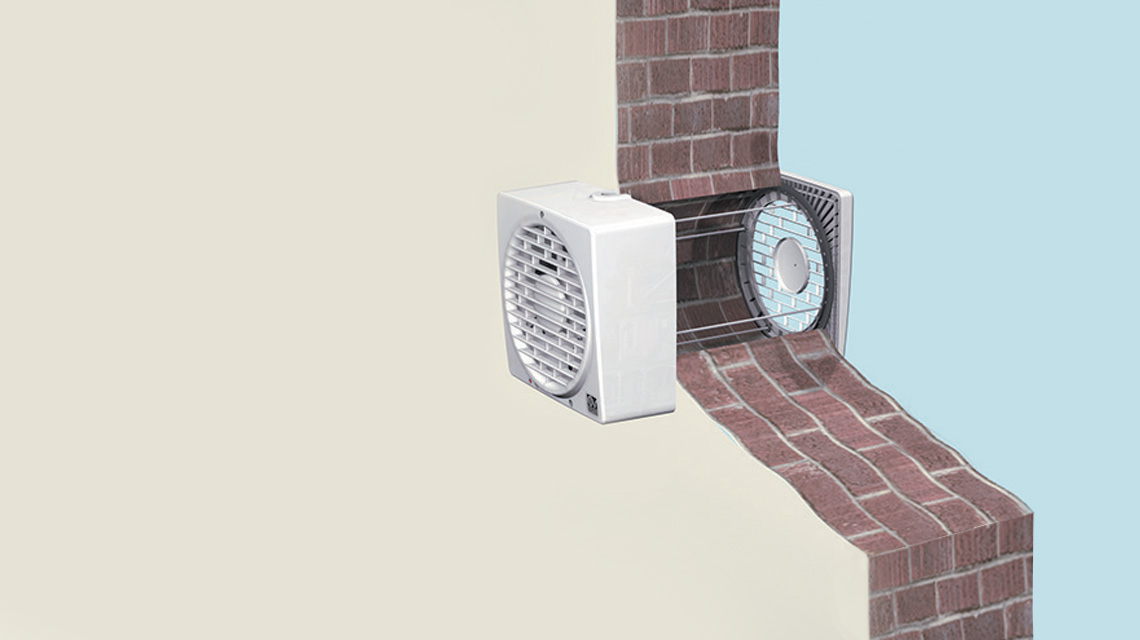

vortice_vario_ambiente02

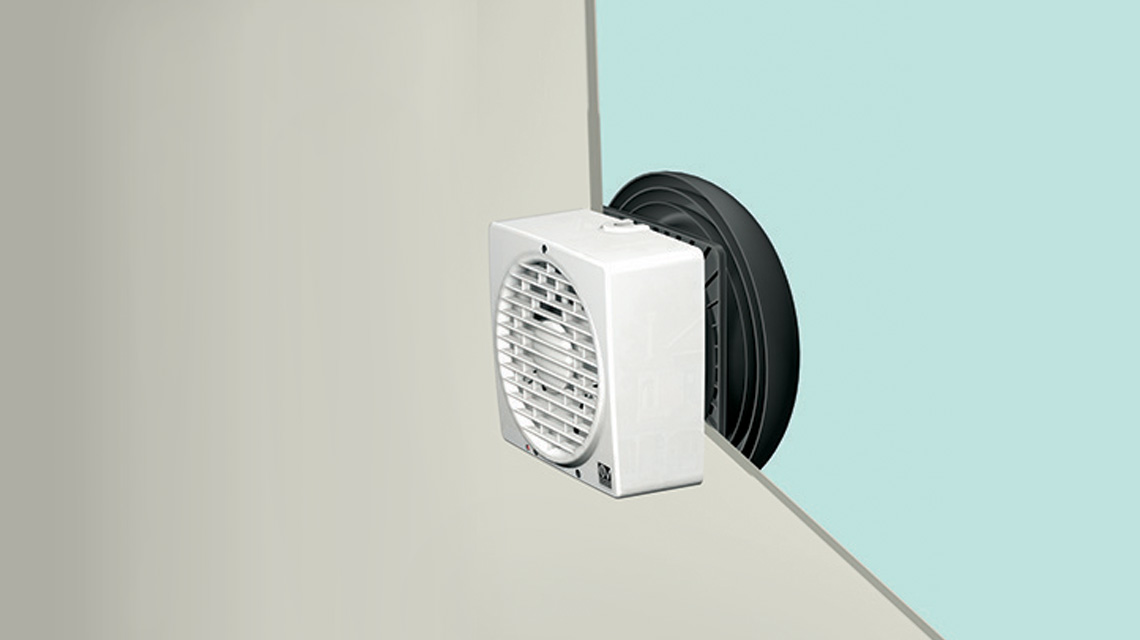

vortice_vario_ambiente03

Technical Data Sheet

  • Frequency (Hz)
    50-60
  • Insulation class
    II°
  • IP
    X4
  • Max absorbed current (A)
    0,16
  • Max absorbed power (W)
    32
  • Max absorbed Power at 60 Hz (W)
    32
  • Max ambient temperature for continuous operation (°C)
    50
  • Max room temperature for continuous operation at 60 Hz (°C)
    50
  • Ø Discharge hole (mm)
    150
  • Voltage (V)
    220-240
  • Weight (Kg)
    2,07
  • Max airflow (l/s)
    105,6
  • Max airflow (m³/h)
    380
  • RPM
    2210
  • Sound pressure Lp [dB (A)] at 3 m
    46,9


* Technical datas above refer to the product powered at 50 Hz.
For values for 60 Hz power supply, please contact the VORTICE Presales Service at prevendita@vortice-italy.com.

  • Supplier's name or trade mark
    NA
  • Ø hole thorugh the glass
    185/190
  • Ø hole through the wall
    185/190

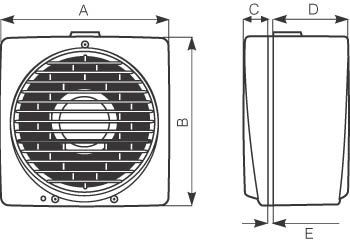

  • Size A (mm)
    215
  • Size B (mm)
    218
  • Size C (mm)
    31
  • Size D (mm)
    97,5
  • Size E (mm)
    2/38
quota
Curva_JPG_12614-Curve_per_Catalogo
Curva_JPG_12614-Curve_per_Catalogo

Accessories

Discover accessories related to the product

KIT TE 150/6"                 (TORRETTA)
KIT TE 150/6" (TORRETTA)
• Roof cowl/wind baffle kit.
KIT MU                            (MURO)
KIT MU (MURO)
• Wall mounting kit with rods.
KIT VV 150/6"              (DOPPI VETRI)
KIT VV 150/6" (DOPPI VETRI)
• Double opening window, secondary-glazed kit.
KIT FF 150/6"          (DOPPIA FINESTRA)
KIT FF 150/6" (DOPPIA FINESTRA)
• Double opening window kit.
CR5N
CR5N
• Reversibile 5 speed controller.
• Natural Ventilation.
• Maximum load 100 W.
CR5
CR5
• Reversibile 5 speed controller.
• Maximum load 100 W.
CREN
CREN
• Variable electronic speed controller.
• Reversible.
• Natural Ventilation.
• Maximum load 1,2 A.
