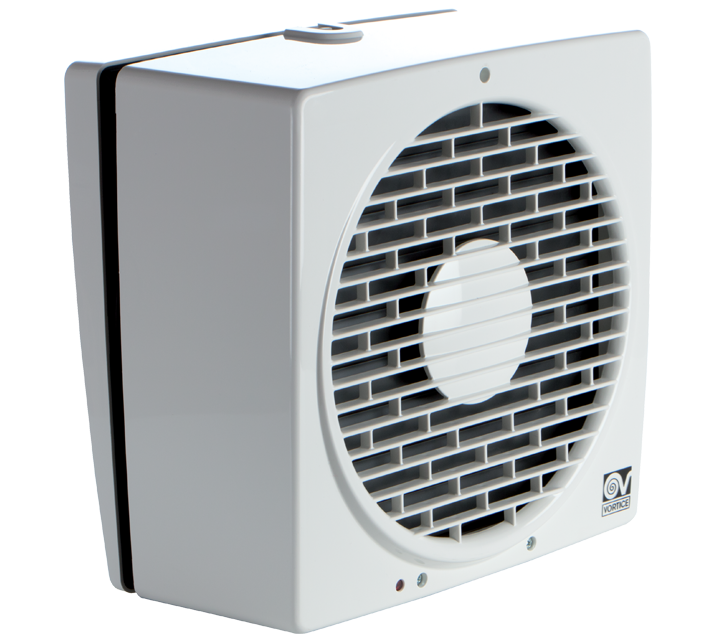

Description

• Model designed for window/wall mounted installation.
• Reversibility function (intake or extraction).
• Automatic shutter: prevents the entry of cold air and bad smells when the appliance is switched off.
• Material: UV resistant ABS plastic (prevents ageing caused by exposure to sunlight).
• Nominal diameter 230 mm.

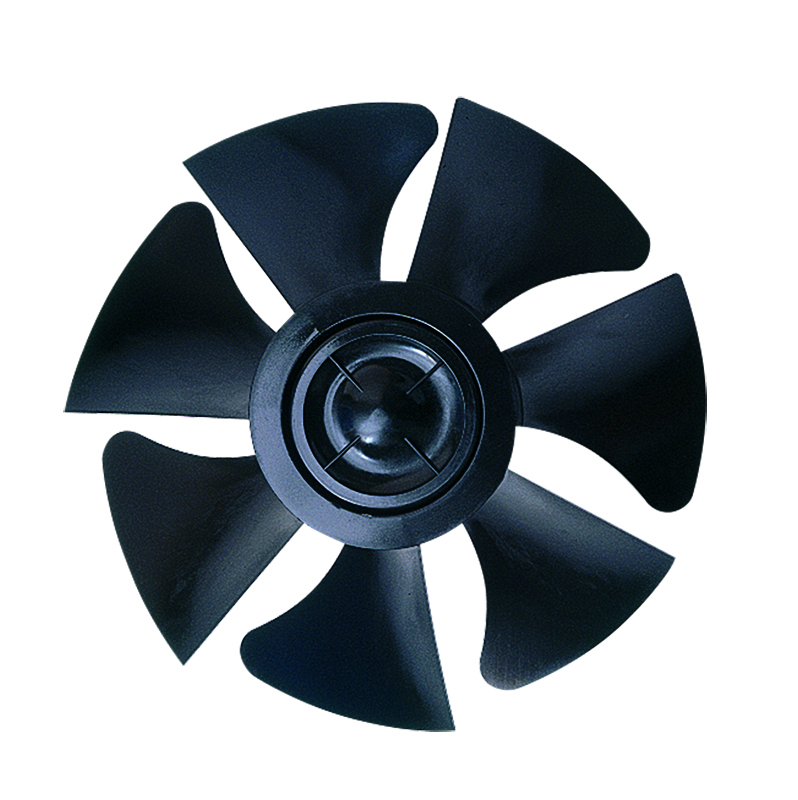

• Motor protected against thermal overload, with shaft turning in ball bearings, coupled to screw type thermoplastic impeller with wing profile blades.
Read full descriptionClose description

Certifications

  • CE CE
    Download
  • C Tick Mark C Tick Mark
  • EAC EAC
  • G-Mark G-Mark
  • UKCA UKCA
  • CB TEST CERTIFICATE CB TEST CERTIFICATE

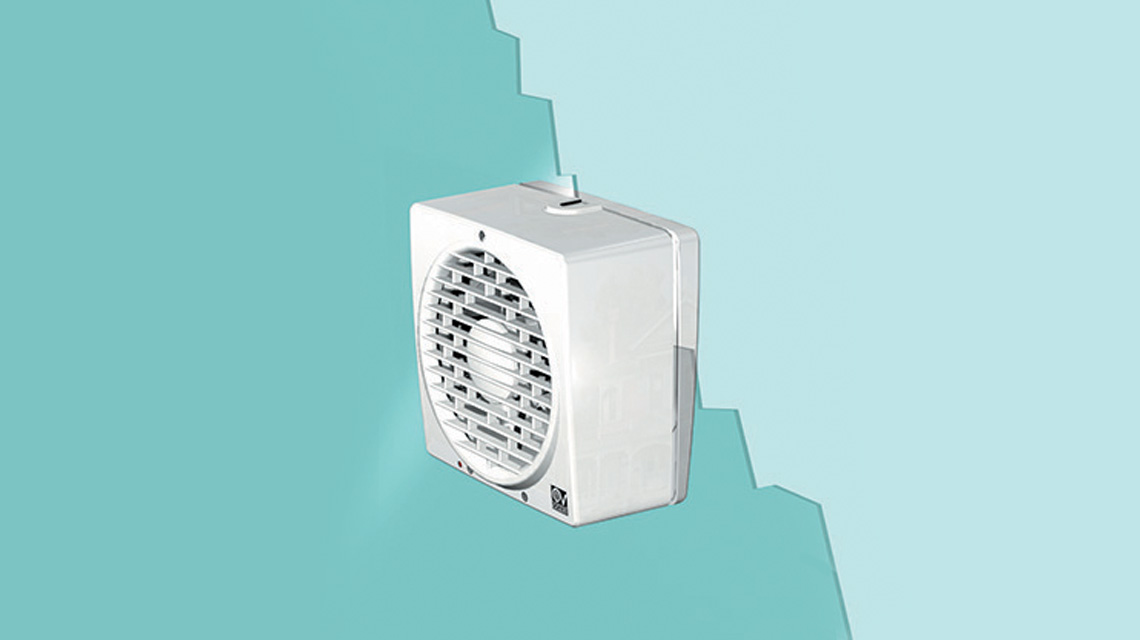

vortice_vario_ambiente01

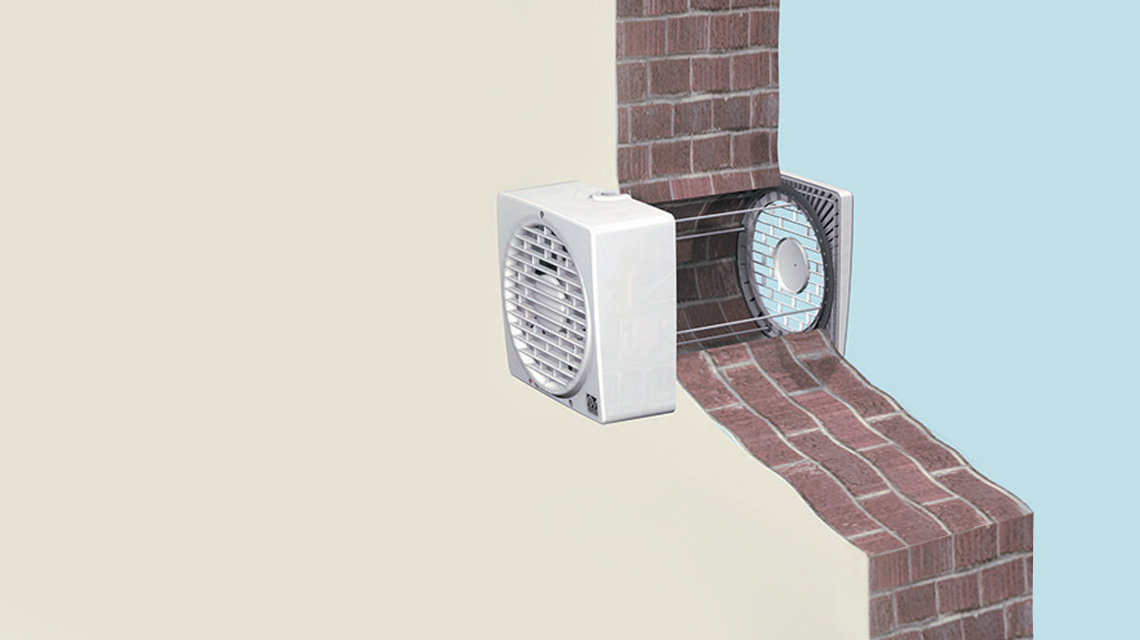

vortice_vario_ambiente02

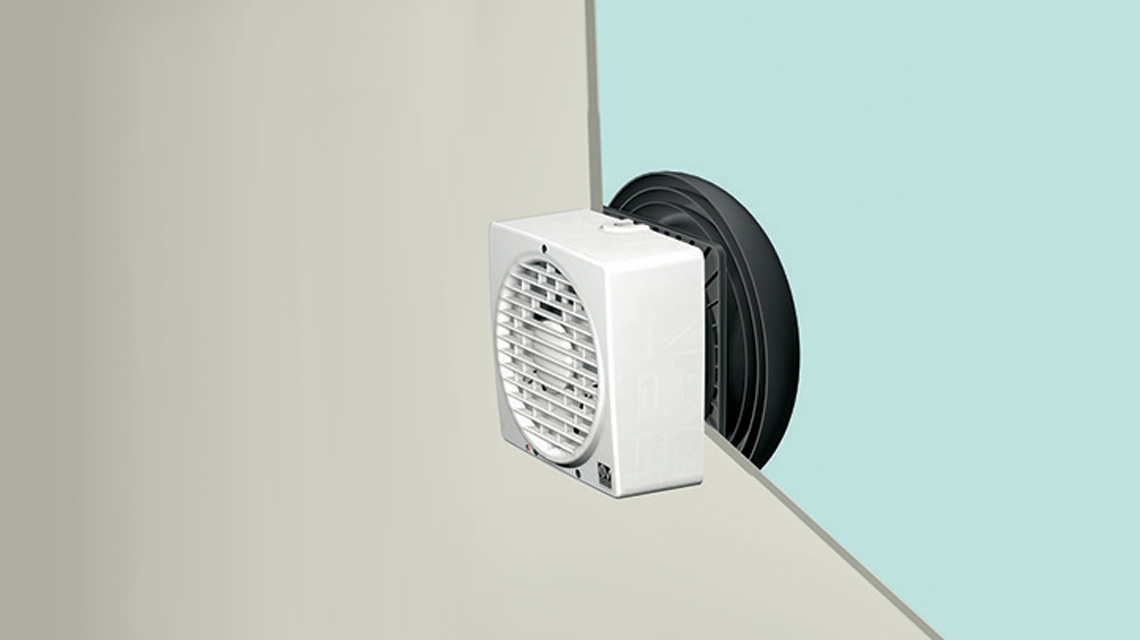

vortice_vario_ambiente03

Technical Data Sheet

  • Frequency (Hz)
    50-60
  • Inlet
    Automatico
  • Insulation class
    II°
  • IP
    X4
  • Max absorbed current (A)
    0,19
  • Max absorbed power (W)
    35
  • Max absorbed Power at 60 Hz (W)
    40
  • Max ambient temperature for continuous operation (°C)
    50
  • Max room temperature for continuous operation at 60 Hz (°C)
    50
  • Ø Discharge hole (mm)
    230
  • Voltage (V)
    220-240
  • Weight (Kg)
    3,45
  • Max airflow - extract (l/s)
    194,4
  • Max airflow - extract (m3/h)
    700
  • Max airflow - intake (l/s)
    102,8
  • Max airflow - intake (m3/h)
    370
  • Max airflow (m³/h)
    700
  • RPM
    1200
  • Rpm - exhaust
    1200
  • Rpm - supply
    1300
  • Sound pressure Lp [dB (A)] at 3 m
    43,6


* Technical datas above refer to the product powered at 50 Hz.
For values for 60 Hz power supply, please contact the VORTICE Presales Service at prevendita@vortice-italy.com.

  • Ø hole thorugh the glass
    257/262
  • Ø hole through the wall
    257/262
  • Size A (mm)
    294
  • Size B (mm)
    297
  • Size C (mm)
    31
  • Size D (mm)
    130
  • Size E (mm)
    2/38
quota

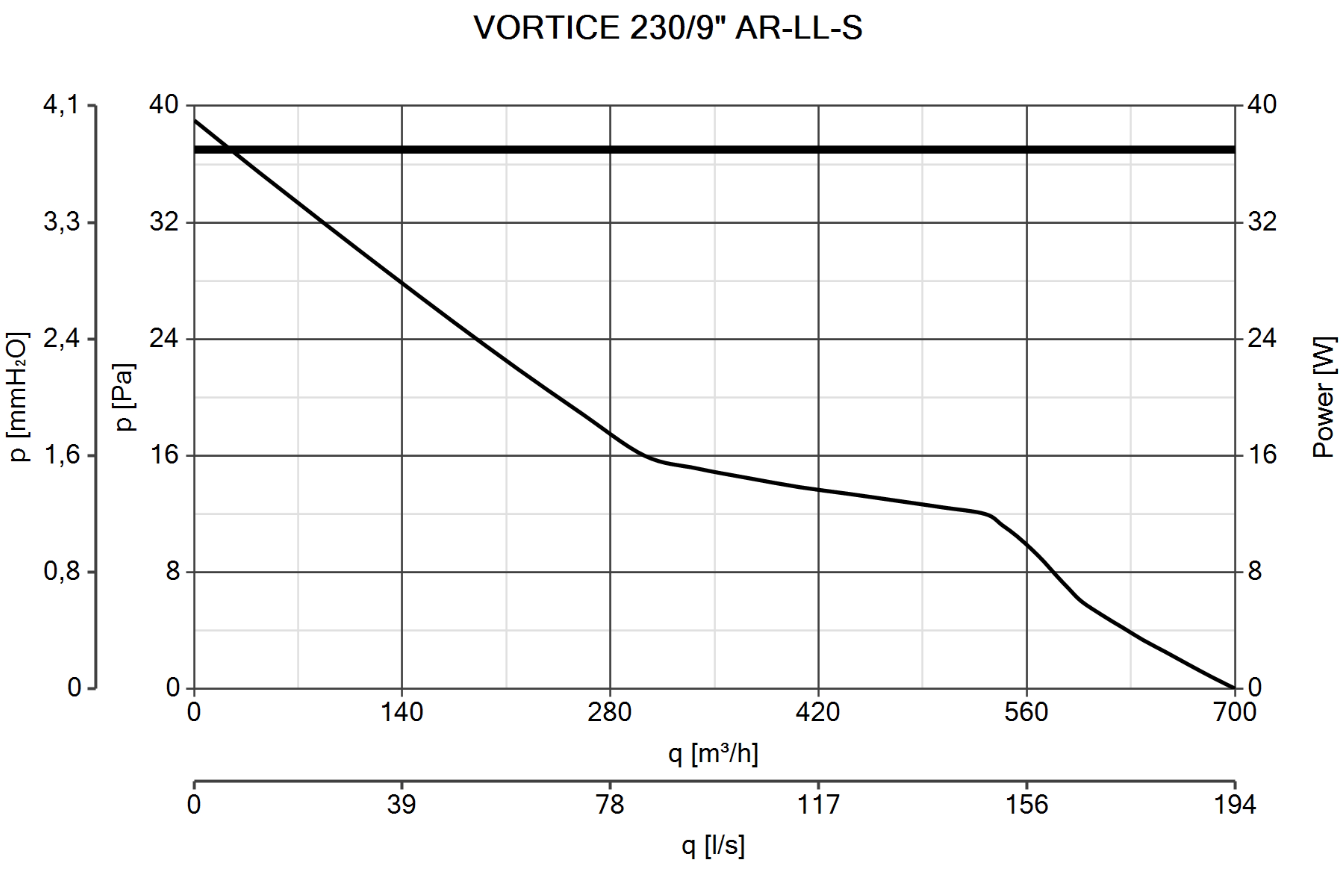

Curva_JPG_12455-Curve_per_Catalogo

Accessories

Discover accessories related to the product

KIT TE 230/9"                 (TORRETTA)
KIT TE 230/9" (TORRETTA)
• Roof cowl/wind baffle kit.
KIT SA 230/9"         (SCHERMO ANTILUCE)
KIT SA 230/9" (SCHERMO ANTILUCE)
• Darkroom cowl kit.
KIT MU                            (MURO)
KIT MU (MURO)
• Wall mounting kit with rods.
KIT VV 230/9"              (DOPPI VETRI)
KIT VV 230/9" (DOPPI VETRI)
• Double opening window, secondary-glazed kit.
KIT FF 230/9"          (DOPPIA FINESTRA)
KIT FF 230/9" (DOPPIA FINESTRA)
• Double opening window kit.
CR5N
CR5N
• Reversibile 5 speed controller.
• Natural Ventilation.
• Maximum load 100 W.
CREN
CREN
• Variable electronic speed controller.
• Reversible.
• Natural Ventilation.
• Maximum load 1,2 A.
C PIR
C PIR
• Passive infrared sensor.
C TIMER
C TIMER
• Adjustable over-run timer.
C TEMP
C TEMP
Environmental sensor for temperature control.
C SMOKE
C SMOKE
Environmental sensor for air quality.
C HCS
C HCS
Environmental sensor for relative humidity control.
KIT TC 230/9"       (TETTO CON CONDOTTO)
KIT TC 230/9" (TETTO CON CONDOTTO)
• Spigot plate for remote application.
