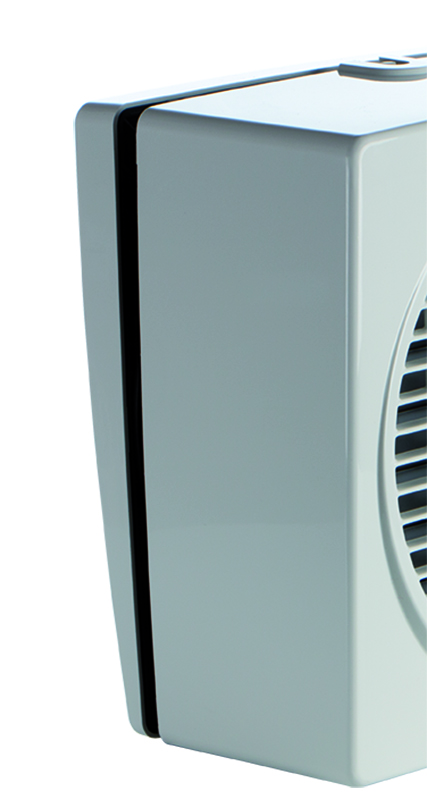

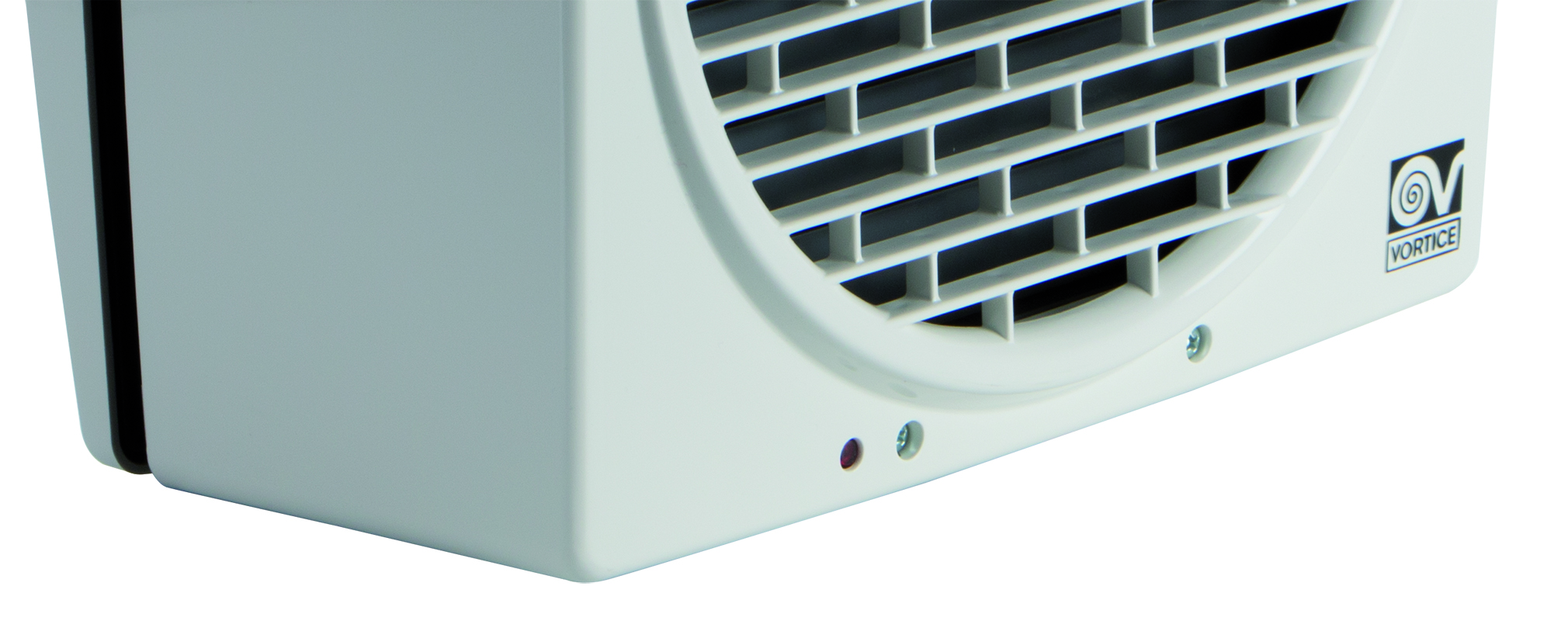

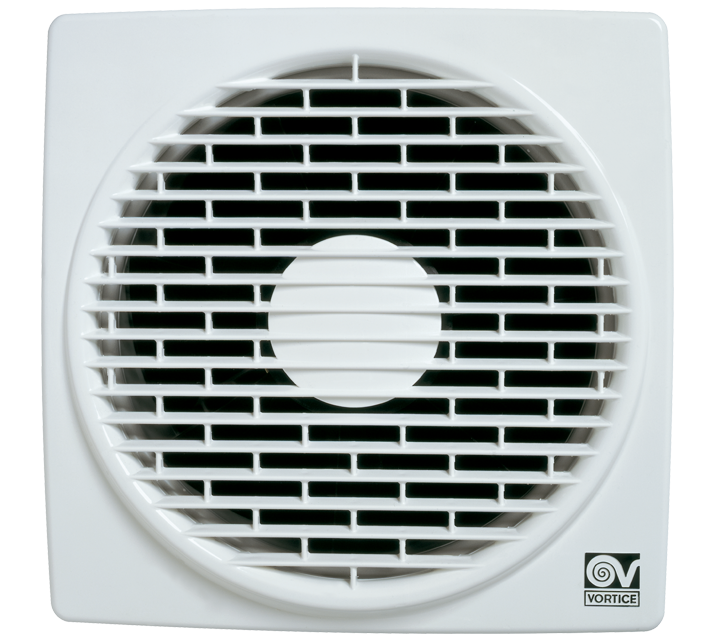

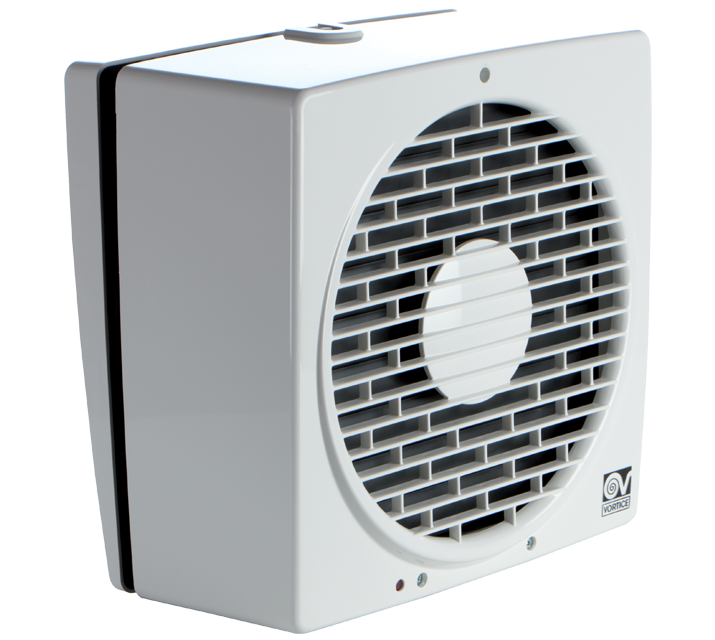

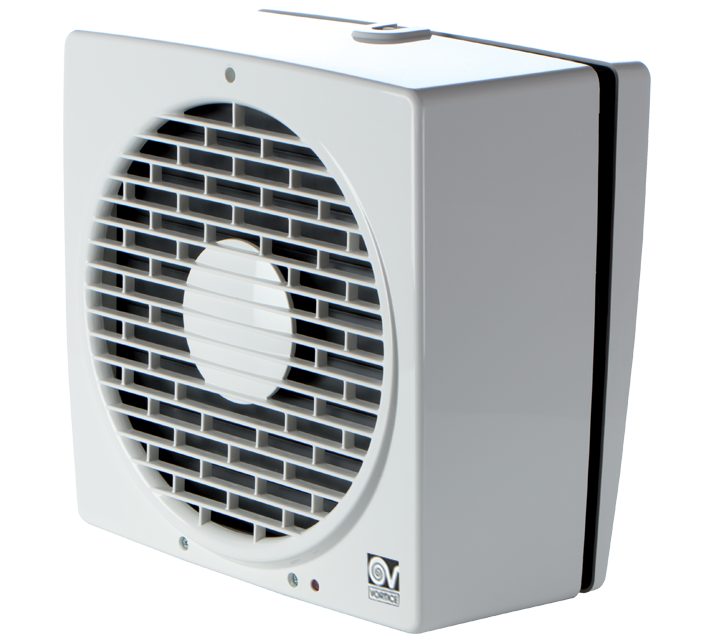

VORTICE 300/12" AR-LL-S

Description

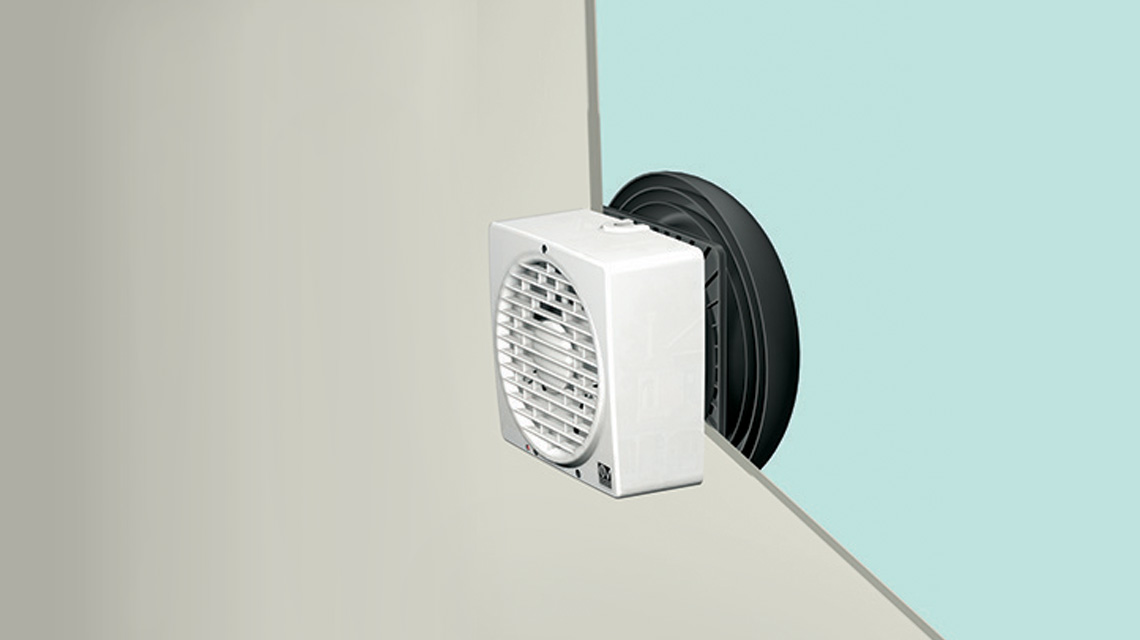

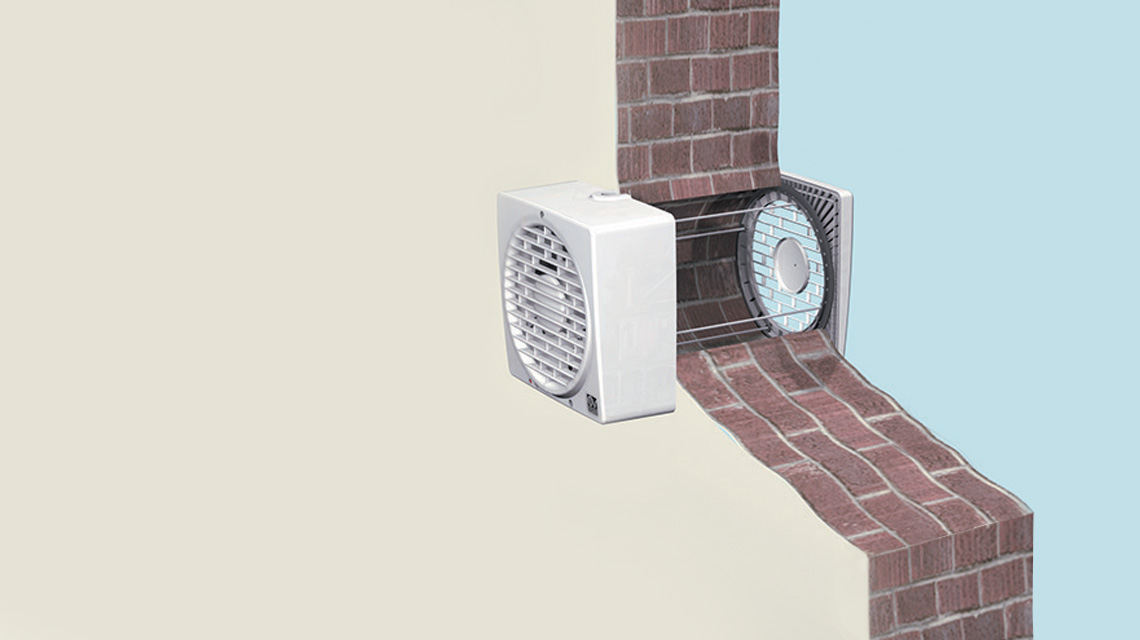

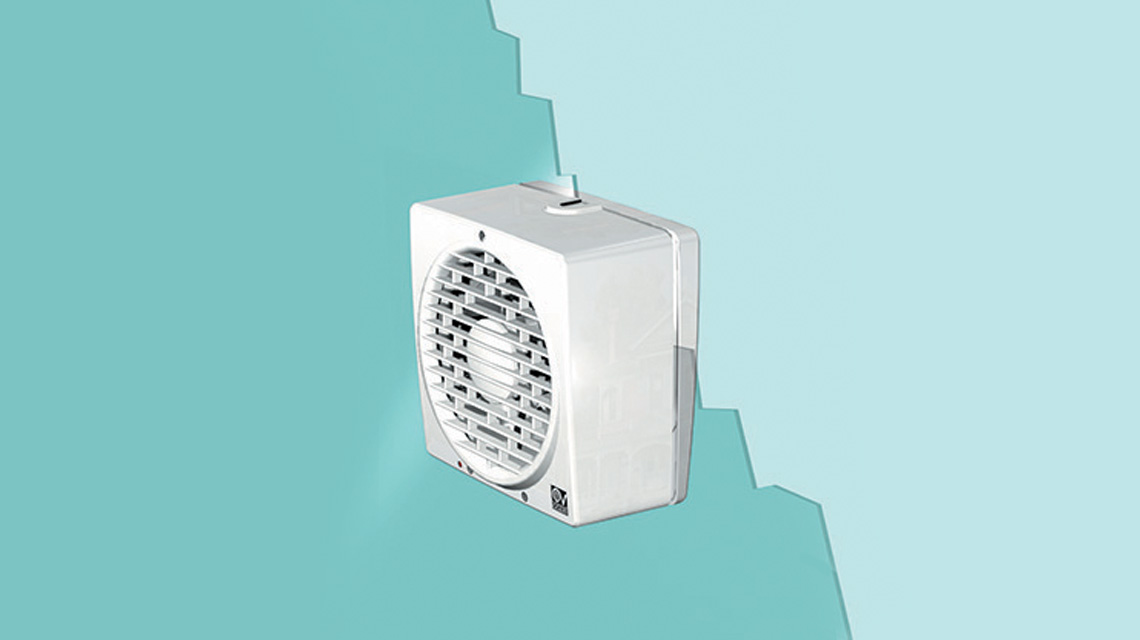

• Model designed for window/wall mounted installation.
• Reversibility function (intake or extraction).
• Automatic shutter: prevents the entry of cold air and bad smells when the appliance is switched off.
• Material: UV resistant ABS plastic (prevents ageing caused by exposure to sunlight).
• Nominal diameter 300 mm.

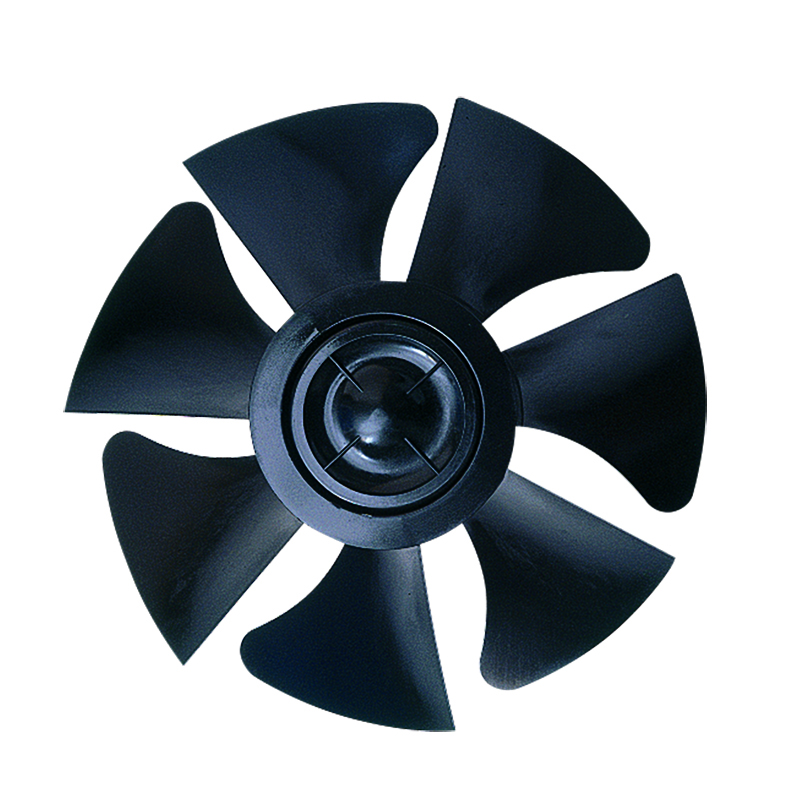

• Motor protected against thermal overload, with shaft turning in ball bearings, coupled to screw type thermoplastic impeller with wing profile blades.

Read full descriptionClose description

Certifications

CE
Download
C Tick Mark
EAC
UKCA
CB TEST CERTIFICATE

Technical Data Sheet

Frequency (Hz)

50-60
Insulation class

II°
IP

X4
Max absorbed current (A)

0,41
Max absorbed power (W)

75
Max absorbed Power at 60 Hz (W)

90
Max ambient temperature for continuous operation (°C)

50
Max room temperature for continuous operation at 60 Hz (°C)

40
Ø Discharge hole (mm)

300
Voltage (V)

220-240

Weight (Kg)

6,13
Max airflow - extract (l/s)

458,3
Max airflow - extract (m3/h)

1650
Max airflow - intake (l/s)

255,6
Max airflow - intake (m3/h)

920
Max airflow (m³/h)

1650
RPM

1215
Rpm - exhaust

1215
Rpm - supply

1280
Sound pressure Lp [dB (A)] at 3 m

53,6

* Technical datas above refer to the product powered at 50 Hz.
For values for 60 Hz power supply, please contact the VORTICE Presales Service at prevendita@vortice-italy.com.
