Description

• Material: UV resistant plastic (prevents ageing caused by exposure to sunlight).
• Nominal diameter 150 mm.
• Motor protected against thermal overload, with shaft turning in ball bearings (LL),coupled to screw type thermoplastic impeller with wing profile blades.
• Maximum air flow: 335 m3/h.
• Electronic pcb with humidostat function piloted by RH sensor (4 preset thresholds: 60%, 70%, 80%, 90%, selectable during installation), designed to switch on the fan automatically. The pcb incorporates an electronic timer that shuts off the motor automatically when relative humidity returns below the threshold value. The timer setting is selectable during installation in the range 3’-20’ (default setting 3’).
• Equipped with system by which the louvres of the grille are opened and closed automatically.
Read full descriptionClose description

Certifications

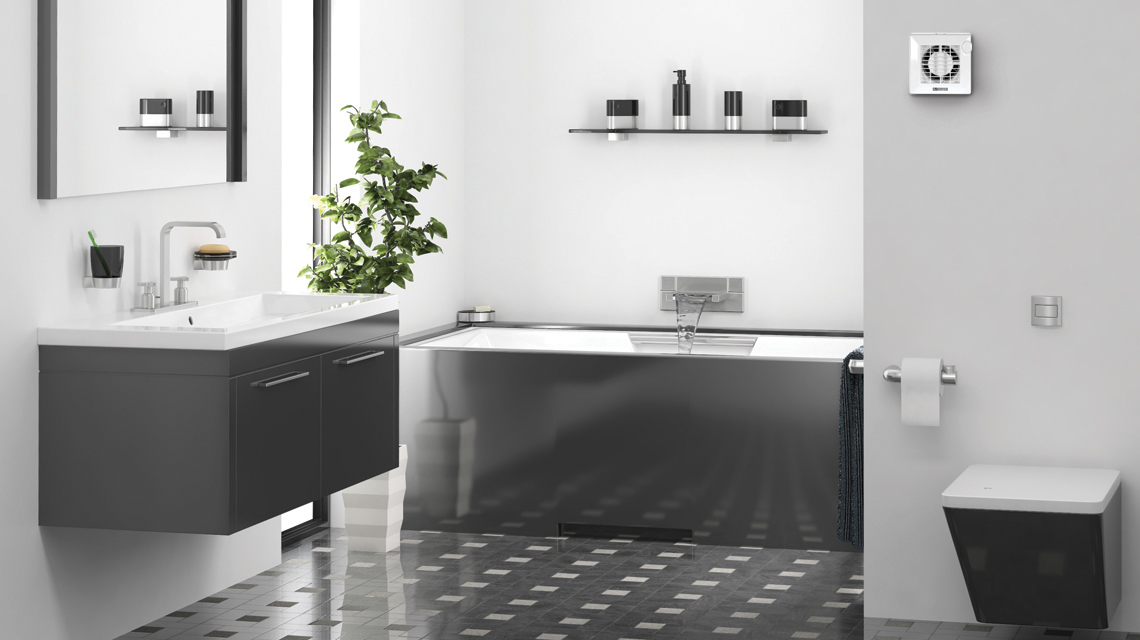

punto_ambiente01

Technical Data Sheet

  • Frequency (Hz)
    50
  • Insulation class
    II°
  • IP
    X4
  • Max absorbed current (A)
    0,15
  • Max absorbed power (W)
    29
  • Max ambient temperature for continuous operation (°C)
    50
  • Nominal diameter (mm)
    160
  • Ø Discharge hole (mm)
    156
  • Voltage (V)
    220-240
  • Weight (Kg)
    1,1
  • Max airflow (l/s)
    93,1
  • Max airflow (m³/h)
    335
  • Max pressure (mmH2O)
    6
  • Max pressure (Pa)
    59
  • RPM
    2100
  • Sound pressure Lp [dB (A)] at 3 m
    46
  • Supplier's name or trade mark
    Vortice
  • Specific Energy Consumption (SEC) class in temperate climate zone
    NA
  • Specific Energy Consumption (SEC) class in temperate climate zone [kWh/m2y]
    -9,7
  • Specific Energy Consumption class SEC in cold climate zone [kWh/m2y]
    -23,0
  • Specific Energy Consumption class SEC in warm climate zone [kWh/m2y]
    -2,0
  • Declared type
    UVR-U: unidirezionale
  • Type of drive
    NA
  • Type of heat recovery system HRS
    assente
  • Thermal efficiency of heat recovery at reference airflow [%]
    NA
  • Max airflow [m3/h]
    324
  • Fan drive electric power input, including any motor control equipment, at maximum flow rate [W]
    27,8
  • Sound power LWA [dB(A)]
    67
  • Reference airflow [m3/s]
    0,0630
  • Reference ? pressure [Pa]
    28
  • SPI [W/(m3/h)]
    0,12434
  • Control factor CTRL
    1
  • Control type
    manuale
  • Max internal leakage rate [%]
    NA
  • Max external leakage rate [%]
    NA
  • Mixing rate
    NA
  • Position and description of visual filter warning
    NA
  • Airflow sensitivity to pressure variations at + 20 Pa and – 20 Pa
    NA
  • Indoor/outdoor air tightness [m3/h]
    NA
  • Annual electricity consumption (AEC) [kWh electricity/y]
    171
  • AHS temperate annual energy saved [kWh primary energy/y]
    1397
  • AHS cold annual energy saved [kWh primary energy/y]
    2732
  • AHS warm annual energy saved [kWh primary energy/y]
    632
  • Size A (mm)
    214
  • Size B (mm)
    215
  • Size C (mm)
    117
  • Size D (mm)
    47
  • Size E (mm)
    Ø 156
quota

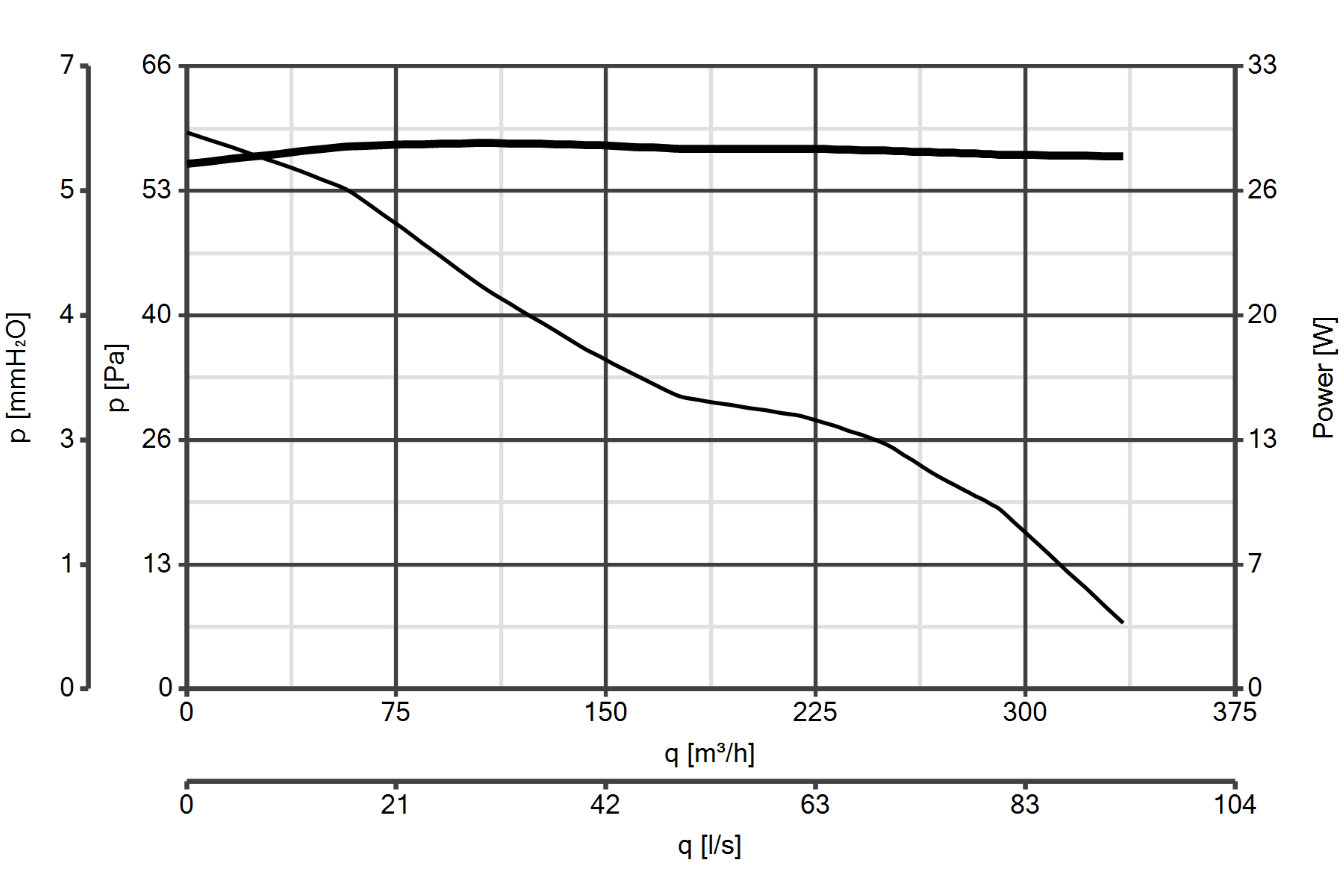

Curva_JPG_11698-Curve_per_Catalogo

Accessories

Discover accessories related to the product

F 150/6"
F 150/6"
• Window mounting kit.
S 150/6
S 150/6
• Ceiling kit made of soft rubber to prevent water infiltration and to maintain IPX4 protection on all surfaces.
