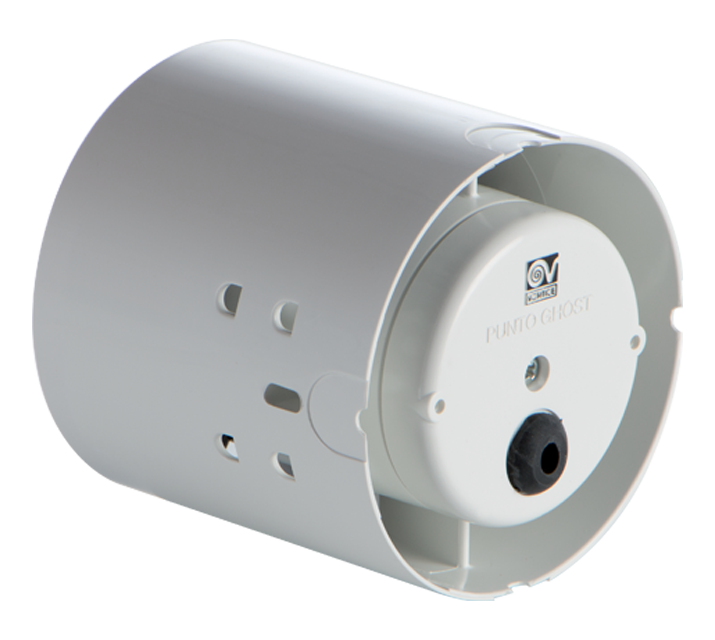

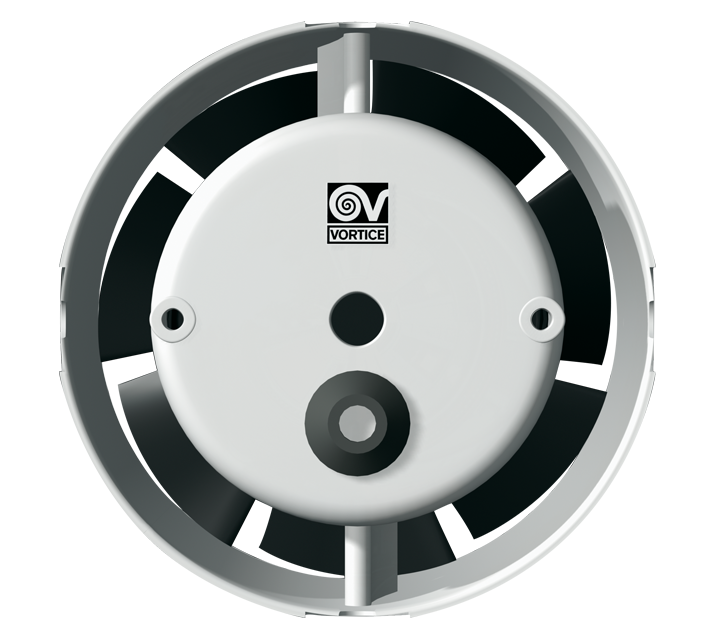

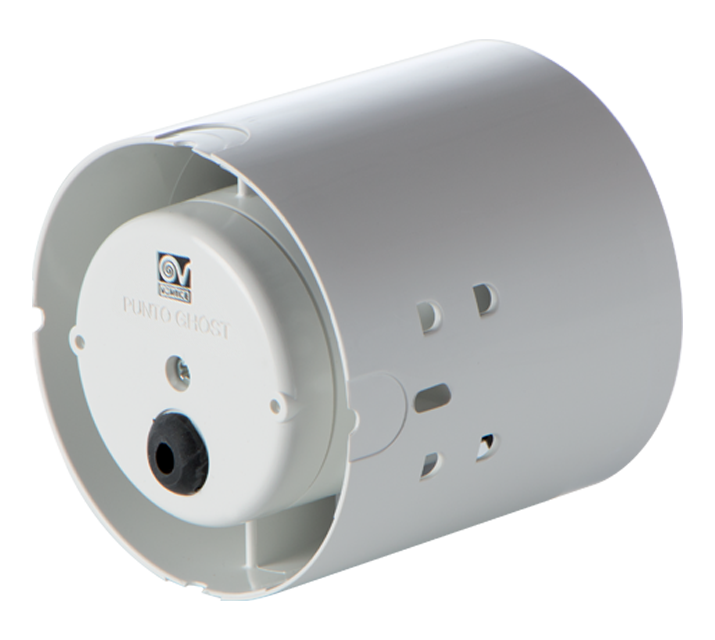

Description
• Material: UV resistant plastic (prevents ageing caused by exposure to sunlight).
• Nominal diameter 150 mm.
• Motor protected against thermal overload, with shaft turning in self-lubricating bushings, coupled to screw type thermoplastic impeller with wing profile blades.
• Maximum air flow: 320 m3/h.
• Vortice speed controllers.
• Nominal diameter 150 mm.
• Motor protected against thermal overload, with shaft turning in self-lubricating bushings, coupled to screw type thermoplastic impeller with wing profile blades.
• Maximum air flow: 320 m3/h.
• Vortice speed controllers.
Certifications
-
Download
CE
-
CCC
-
EAC
-
G-Mark
-
CB TEST CERTIFICATE
Technical Data Sheet
-
Frequency (Hz)50
-
Insulation classII°
-
IPX4
-
Max absorbed current (A)0,18
-
Max absorbed power (W)29
-
Max ambient temperature for continuous operation (°C)50
-
Nominal diameter (mm)160
-
Voltage (V)220-240
-
Weight (Kg)0,80
-

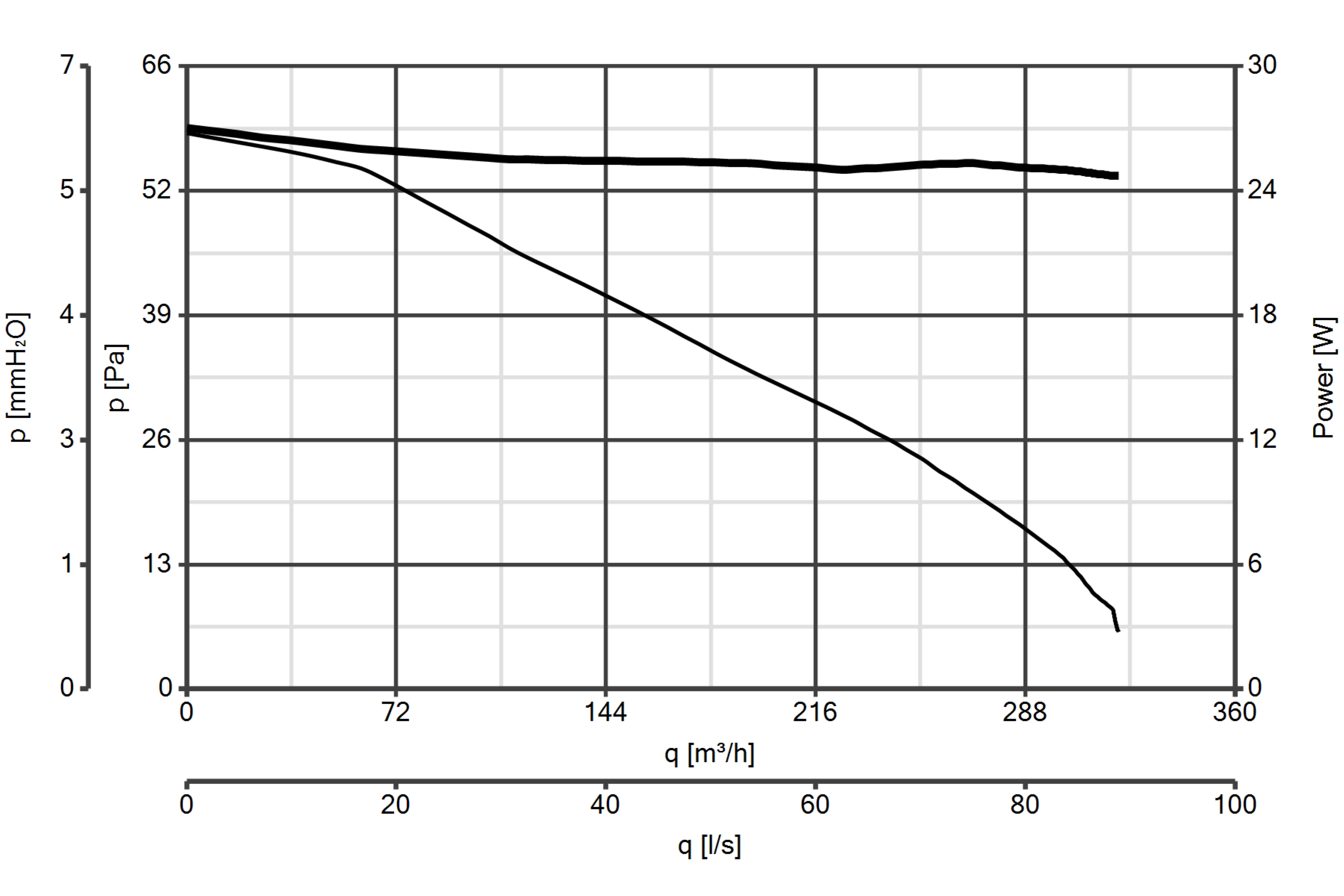

Max airflow (l/s)89
-
Max airflow (m³/h)320
-
Max pressure (mmH2O)7
-
Max pressure (Pa)69
-
RPM2200
-
Sound power Lw [dB(A)]48
-
Supplier's name or trade markVortice
-
Specific Energy Consumption (SEC) class in temperate climate zoneNA
-
Specific Energy Consumption (SEC) class in temperate climate zone [kWh/m2y]-10,0
-
Specific Energy Consumption class SEC in cold climate zone [kWh/m2y]-23,4
-
Specific Energy Consumption class SEC in warm climate zone [kWh/m2y]-2,4
-
Declared typeUVR-U: unidirezionale
-
Type of driveNA
-
Type of heat recovery system HRSassente
-
Thermal efficiency of heat recovery at reference airflow [%]NA
-
Max airflow [m3/h]311
-
Fan drive electric power input, including any motor control equipment, at maximum flow rate [W]25,0
-
Sound power LWA [dB(A)]69
-
Reference airflow [m3/s]0,0605
-
Reference ? pressure [Pa]30
-
SPI [W/(m3/h)]0,11484
-
Control factor CTRL1
-
Control typemanuale
-
Max internal leakage rate [%]NA
-
Max external leakage rate [%]NA
-
Mixing rateNA
-
Position and description of visual filter warningNA
-
Airflow sensitivity to pressure variations at + 20 Pa and – 20 PaNA
-
Indoor/outdoor air tightness [m3/h]NA
-
Annual electricity consumption (AEC) [kWh electricity/y]158
-
AHS temperate annual energy saved [kWh primary energy/y]1397
-
AHS cold annual energy saved [kWh primary energy/y]2732
-
AHS warm annual energy saved [kWh primary energy/y]632
-

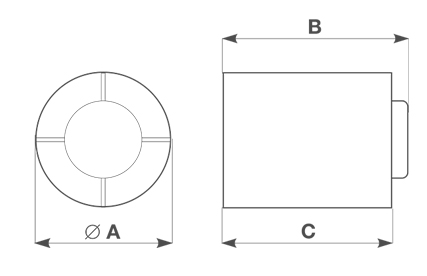

Size A (mm)Ø 155
-
Size B (mm)110
-
Size C (mm)107
