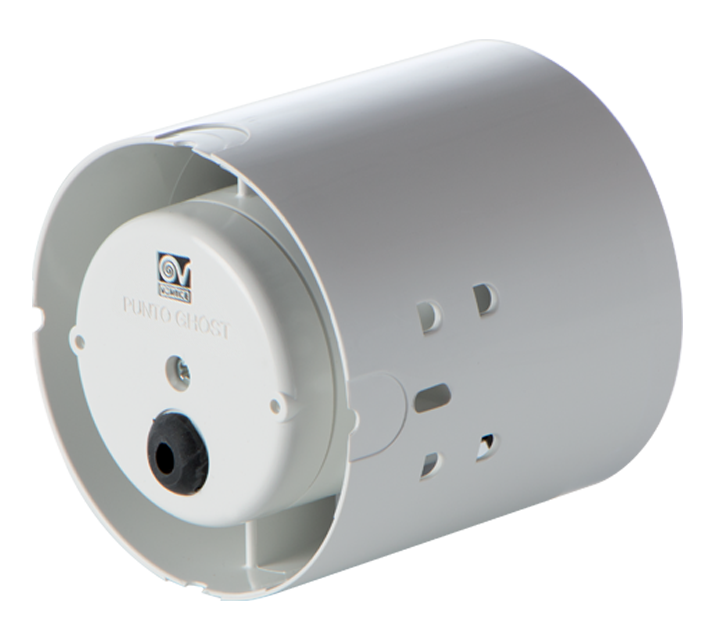

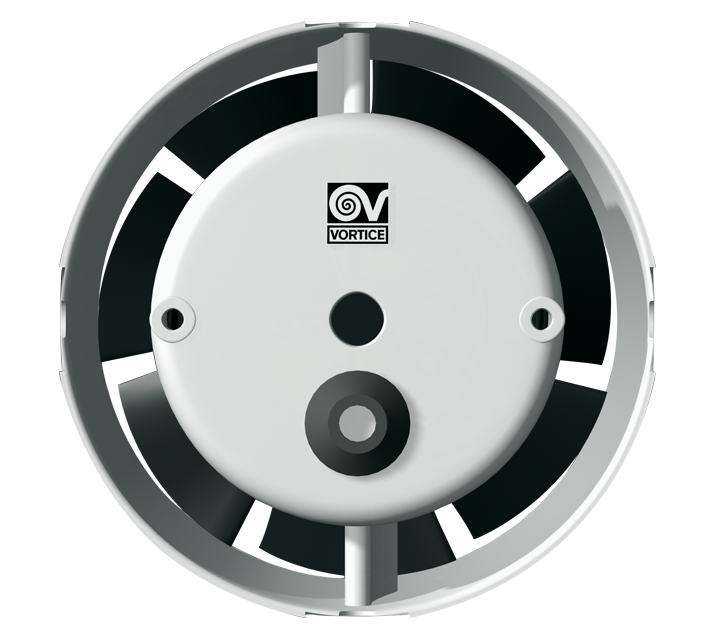

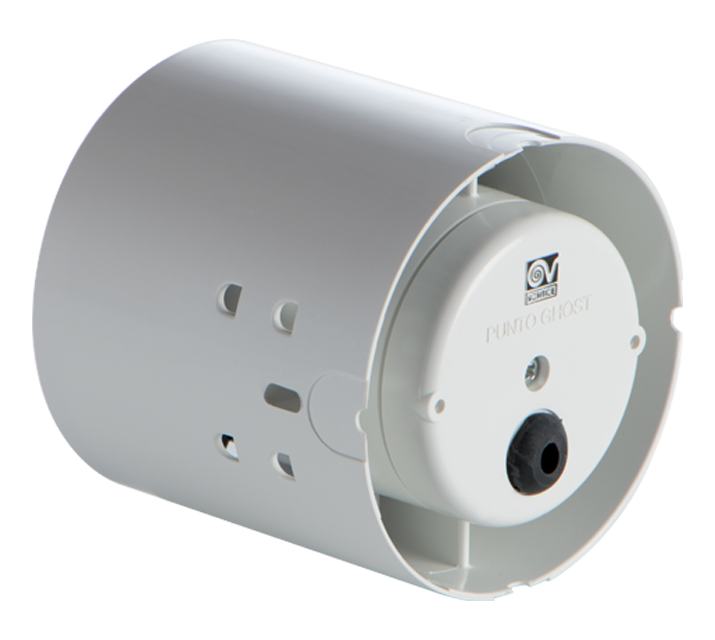

Description
• Material: UV resistant plastic (prevents ageing caused by exposure to sunlight).
• Nominal diameter 100 mm.
• Motor protected against thermal overload, with shaft turning in ball bearings (LL),coupled to screw type thermoplastic impeller with wing profile blades.
• Maximum air flow: 80 m3/h.
• IMQ SAFETY and IMQ PERFORMANCE certifications
• Vortice speed controllers.
• Nominal diameter 100 mm.
• Motor protected against thermal overload, with shaft turning in ball bearings (LL),coupled to screw type thermoplastic impeller with wing profile blades.
• Maximum air flow: 80 m3/h.
• IMQ SAFETY and IMQ PERFORMANCE certifications
• Vortice speed controllers.
Certifications
-
IMQ
-
Download
CE
-
IMQ Performance
-
CCC
-
EAC
-
G-Mark
-
UKCA
Technical Data Sheet
-
Frequency (Hz)50
-
Insulation classII°
-
IPX4
-
Max absorbed current (A)0,10
-
Max absorbed power (W)18
-
Max ambient temperature for continuous operation (°C)40
-
Voltage (V)220-240
-
Weight (Kg)0,43
-
Max airflow (l/s)22,2
-
Max airflow (m³/h)80
-
Max pressure (mmH2O)2,6
-
Max pressure (Pa)25
-
RPM2415
-
Sound pressure Lp [dB (A)] at 3 m39
-
Supplier's name or trade markVortice
-
Specific Energy Consumption (SEC) class in temperate climate zoneNA
-
Specific Energy Consumption (SEC) class in temperate climate zone [kWh/m2y]-5,4
-
Specific Energy Consumption class SEC in cold climate zone [kWh/m2y]-18,8
-
Specific Energy Consumption class SEC in warm climate zone [kWh/m2y]2,2
-
Declared typeUVR-U: unidirezionale
-
Type of driveNA
-
Type of heat recovery system HRSassente
-
Thermal efficiency of heat recovery at reference airflow [%]NA
-
Max airflow [m3/h]77
-
Fan drive electric power input, including any motor control equipment, at maximum flow rate [W]13,7
-
Sound power LWA [dB(A)]60
-
Reference airflow [m3/s]0,0150
-
Reference ? pressure [Pa]14
-
SPI [W/(m3/h)]0,24861
-
Control factor CTRL1
-
Control typemanuale
-
Max internal leakage rate [%]NA
-
Max external leakage rate [%]NA
-
Mixing rateNA
-
Position and description of visual filter warningNA
-
Airflow sensitivity to pressure variations at + 20 Pa and – 20 PaNA
-
Indoor/outdoor air tightness [m3/h]NA
-
Annual electricity consumption (AEC) [kWh electricity/y]343
-
AHS temperate annual energy saved [kWh primary energy/y]1397
-
AHS cold annual energy saved [kWh primary energy/y]2732
-
AHS warm annual energy saved [kWh primary energy/y]632
-
Size A (mm)Ø 99
-
Size B (mm)92
-
Size C (mm)89
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.
Accessories
Discover accessories related to the product

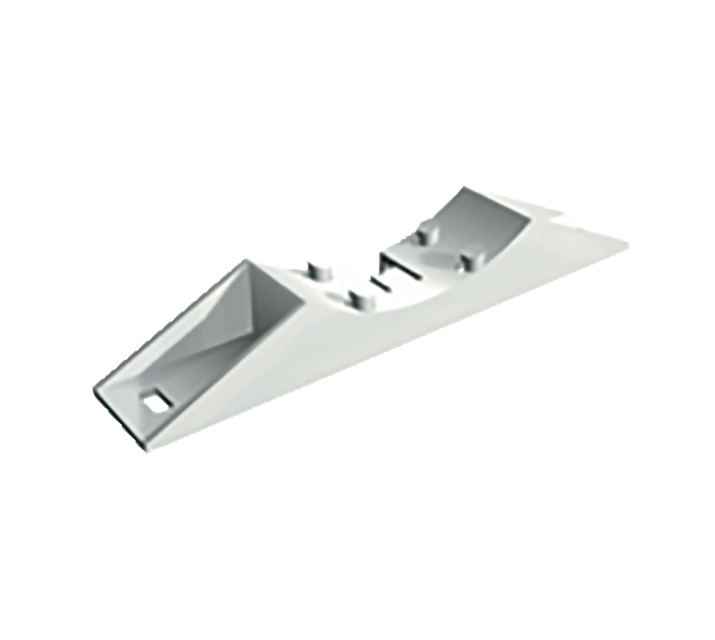

STAFFA PER SOTTOTETTO/SOFFITTO D.90/100
