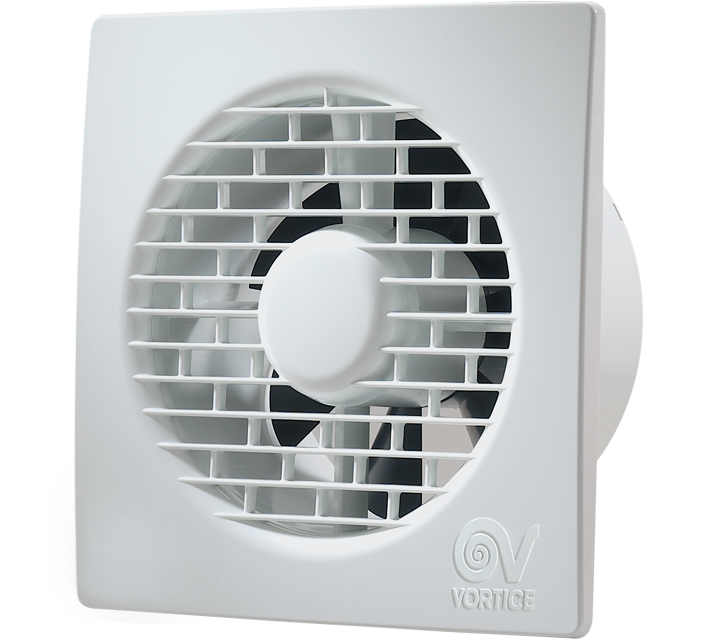

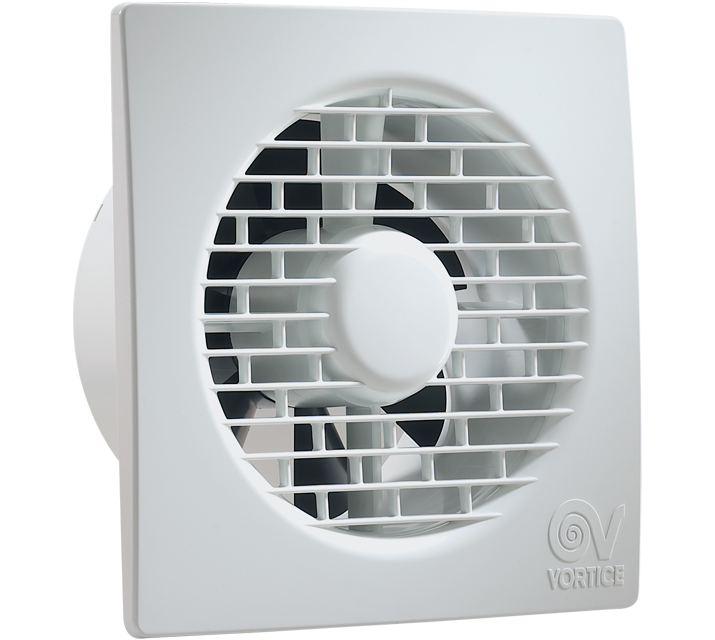

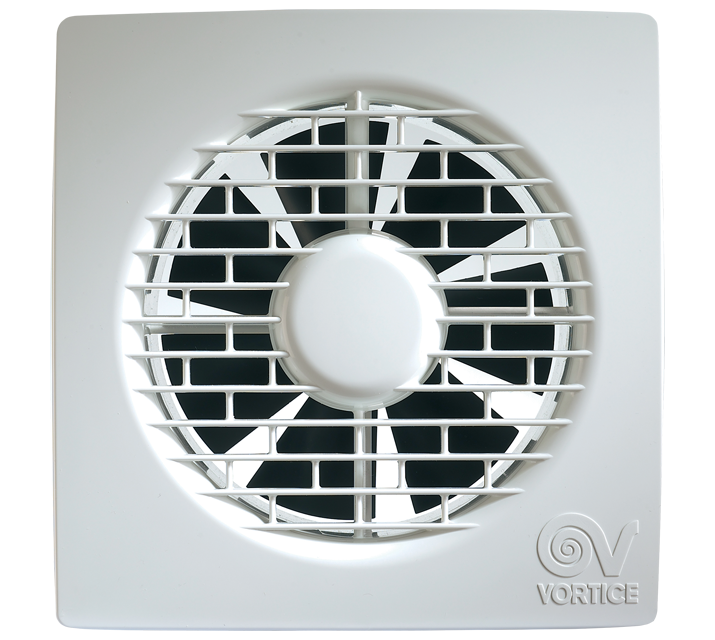

Description
• Material: UV resistant plastic (prevents ageing caused by exposure to sunlight).
• Nominal diameter 100 mm.
• Motor protected against thermal overload, with shaft turning in self-lubricating bushings, coupled to screw type thermoplastic impeller with wing profile blades.
• Maximum air flow: 85 m3/h.
• Equipped with electronic timer designed to shut off the motor automatically after a set interval, selectable during installation in the range 3’-20’ (default setting 3’).
• Non-return damper fitted to outlet port.
• Vortice speed controller.
• Protection: IPX5.
• Nominal diameter 100 mm.
• Motor protected against thermal overload, with shaft turning in self-lubricating bushings, coupled to screw type thermoplastic impeller with wing profile blades.
• Maximum air flow: 85 m3/h.
• Equipped with electronic timer designed to shut off the motor automatically after a set interval, selectable during installation in the range 3’-20’ (default setting 3’).
• Non-return damper fitted to outlet port.
• Vortice speed controller.
• Protection: IPX5.
Certifications
-
CE
-
UKCA
Technical Data Sheet
-
Frequency (Hz)50
-
Insulation classII°
-
IPX5
-
Max absorbed current (A)0,09
-
Max absorbed power (W)15
-
Max ambient temperature for continuous operation (°C)50
-
Nominal diameter (mm)100
-
Voltage (V)230
-
Weight (Kg)0,5
-

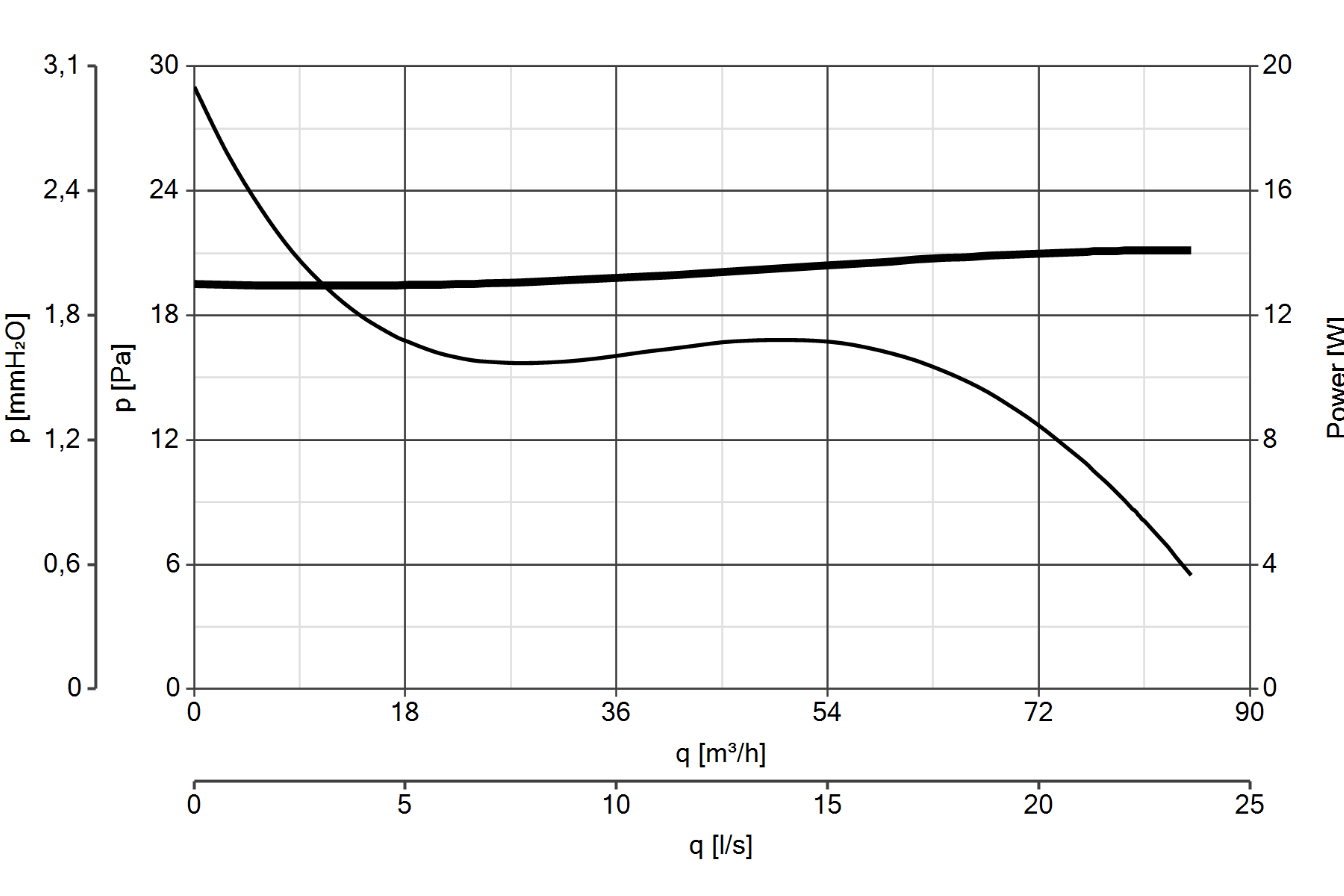

Max airflow (l/s)24
-
Max airflow (m³/h)85
-
Max pressure (mmH2O)3
-
Max pressure (Pa)29
-
RPM2400
-
Sound pressure Lp [dB (A)] at 3 m31
-
Size A (mm)159
-
Size B (mm)17
-
Size C (mm)77
-
Size D (mm)98
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.
