Description

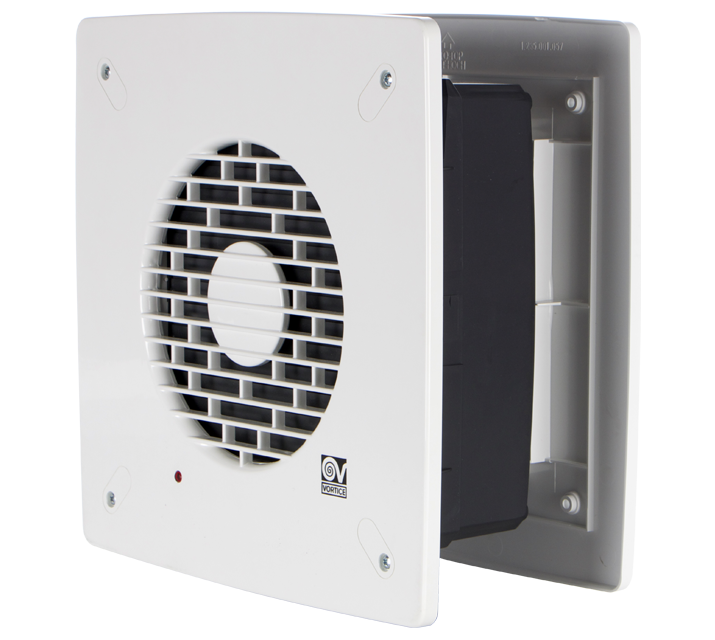

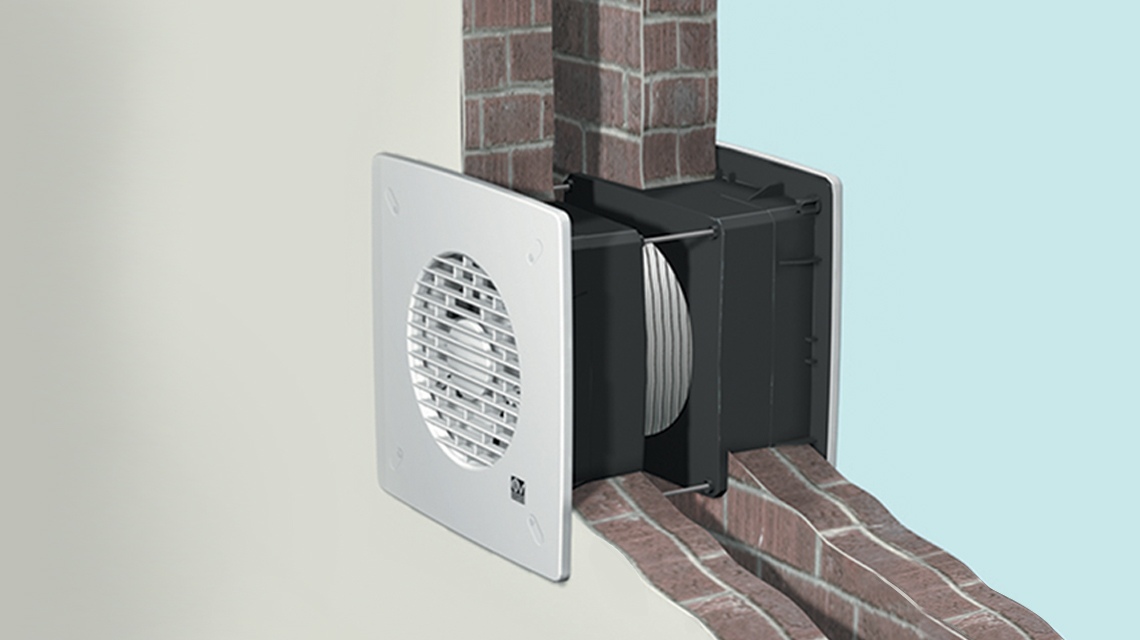

• Model designed for installation recessed into wall.
• Reversibility function (intake or extraction).
• Automatic shutter: prevents the entry of cold air and bad smells when the appliance is switched off.
• Material: UV resistant ABS plastic (prevents ageing caused by exposure to sunlight)
• Nominal diameter 150 mm.
• Motor protected against thermal overload, with shaft turning in self-lubricating bushings, coupled to screw type thermoplastic impeller with wing profile blades.
• IMQ SAFETY and IMQ PERFORMANCE certifications.
Read full descriptionClose description

Certifications

  • IMQ IMQ
  • CE CE
    Download
  • IMQ Performance IMQ Performance
  • C Tick Mark C Tick Mark
  • EAC EAC
  • G-Mark G-Mark

Technical Data Sheet

  • Frequency (Hz)
    50-60
  • Inlet
    Automatico
  • Insulation class
    II°
  • IP
    X4
  • Max absorbed current (A)
    0,11
  • Max absorbed power (W)
    25
  • Max absorbed Power at 60 Hz (W)
    25
  • Max ambient temperature for continuous operation (°C)
    50
  • Max room temperature for continuous operation at 60 Hz (°C)
    50
  • Ø Discharge hole (mm)
    150
  • Voltage (V)
    220-240
  • Weight (Kg)
    2,52
  • Max airflow - extract (l/s)
    61,1
  • Max airflow - extract (m3/h)
    220
  • Max airflow - intake (l/s)
    36,1
  • Max airflow - intake (m3/h)
    130
  • Max airflow (m³/h)
    220
  • RPM
    1330
  • Rpm - exhaust
    1330
  • Rpm - supply
    2520
  • Sound pressure Lp [dB (A)] at 3 m
    38,2


* Technical datas above refer to the product powered at 50 Hz.
For values for 60 Hz power supply, please contact the VORTICE Presales Service at prevendita@vortice-italy.com.

  • Ø hole thorugh the glass
    185/190
  • Ø hole through the wall
    260/265
  • Size A (mm)
    300
  • Size B (mm)
    9,5
  • Size C (mm)
    10,5
  • Size D (mm)
    135
  • Size E (mm)
    2/38
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.

Accessories

Discover accessories related to the product

KIT TE 150/6"                 (TORRETTA)
KIT TE 150/6" (TORRETTA)
• Roof cowl/wind baffle kit.
KIT SO                        (SOFFITTO)
KIT SO (SOFFITTO)

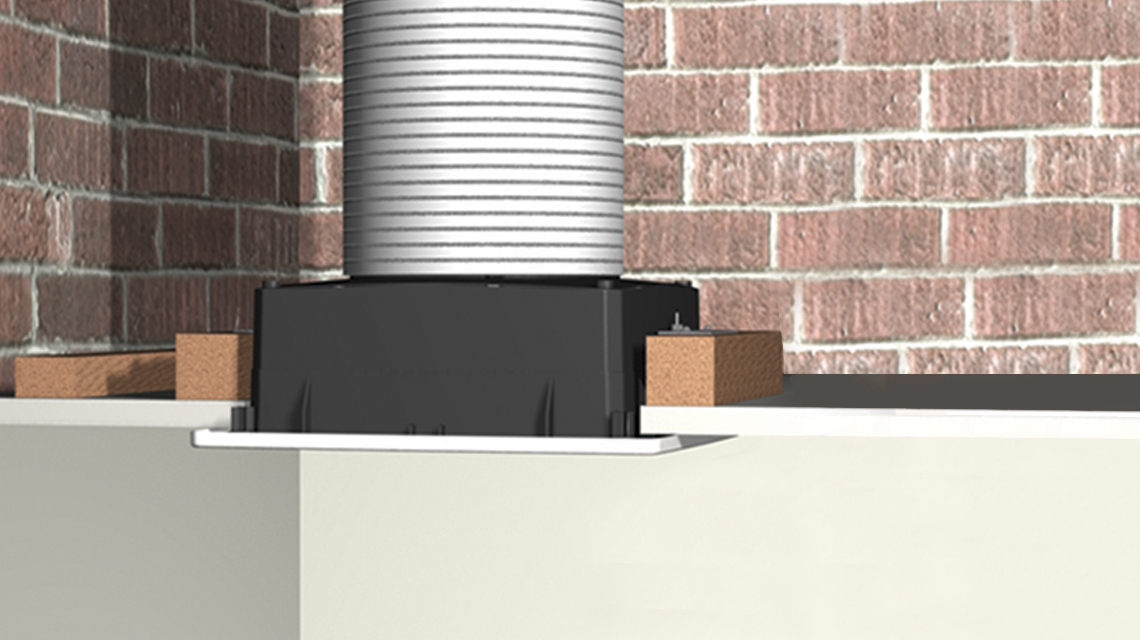

• Ceiling, false ceiling and panel kit.
KIT ML 150/6"               (MURO LARGO)
KIT ML 150/6" (MURO LARGO)
• Deep wall installation kit.
KIT TC 150/6"       (TETTO CON CONDOTTO)
KIT TC 150/6" (TETTO CON CONDOTTO)
• Spigot plate for remote application.
CR5N
CR5N
• Reversibile 5 speed controller.
• Natural Ventilation.
• Maximum load 100 W.
CR5
CR5
• Reversibile 5 speed controller.
• Maximum load 100 W.
CREN
CREN
• Variable electronic speed controller.
• Reversible.
• Natural Ventilation.
• Maximum load 1,2 A.
C PIR
C PIR
• Passive infrared sensor.
C TIMER
C TIMER
• Adjustable over-run timer.
