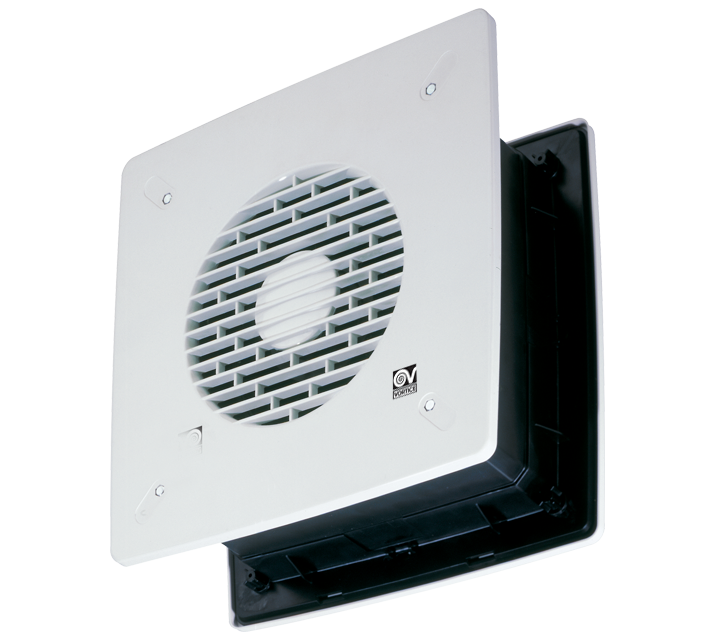

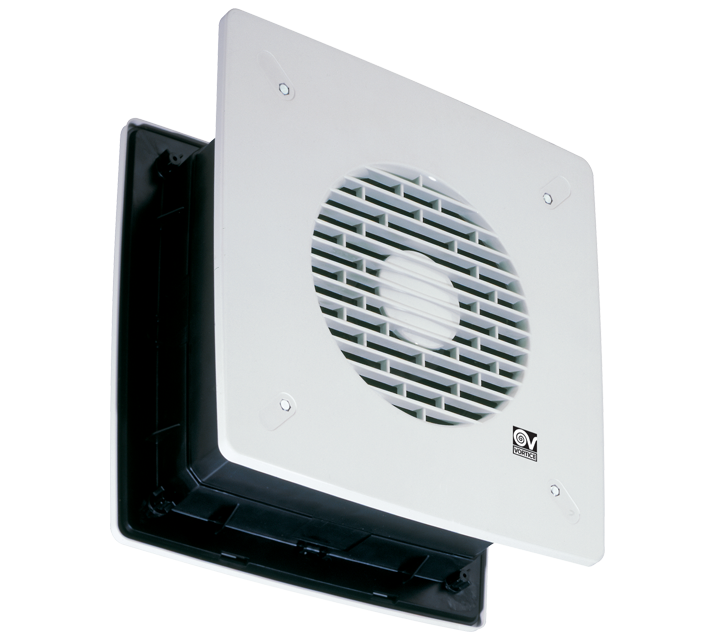

Description

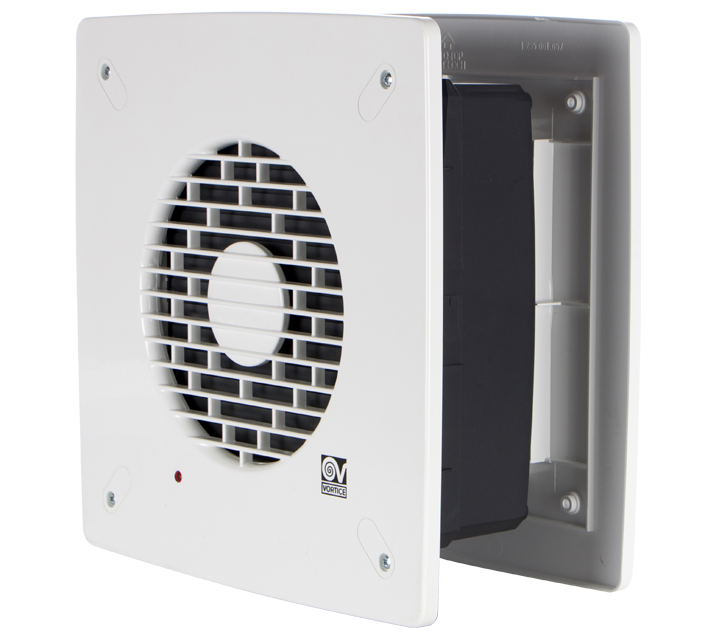

• Model designed for installation recessed into wall.
• Reversibility function (intake or extraction).
• Automatic shutter: prevents the entry of cold air and bad smells when the appliance is switched off.
• Material: UV resistant ABS plastic (prevents ageing caused by exposure to sunlight)
• Nominal diameter 230 mm.
• Motor protected against thermal overload, with shaft turning in ball bearings, coupled to screw type thermoplastic impeller with wing profile blades.
Read full descriptionClose description

Certifications

  • CE CE
    Download
  • C Tick Mark C Tick Mark
  • EAC EAC
  • G-Mark G-Mark
  • UKCA UKCA
  • CB TEST CERTIFICATE CB TEST CERTIFICATE

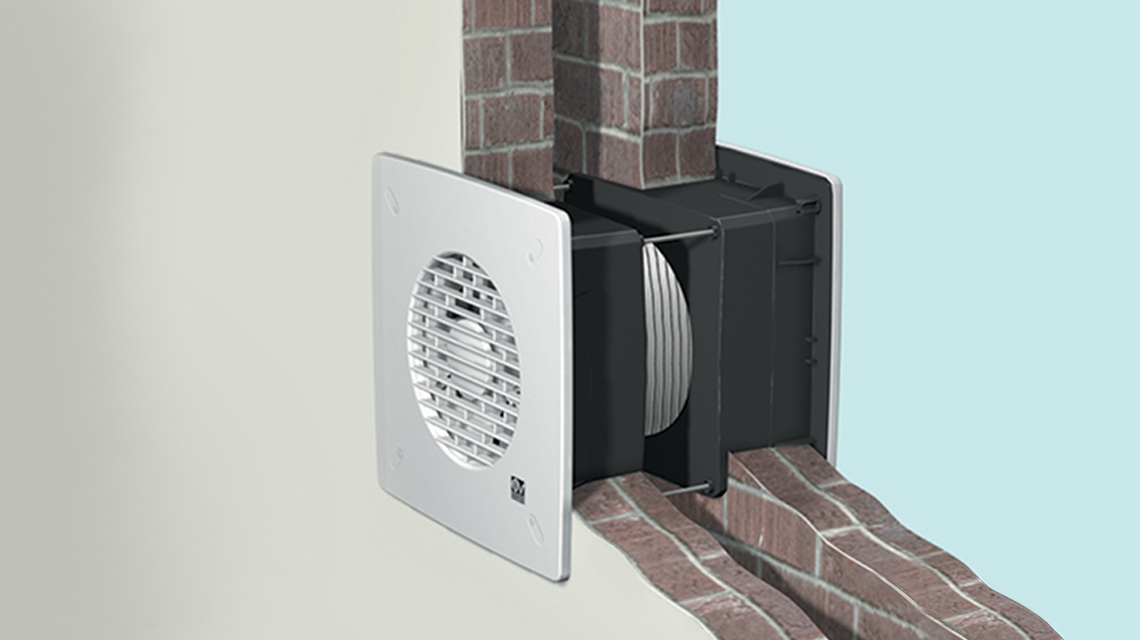

vortice_vario_i_ambiente01

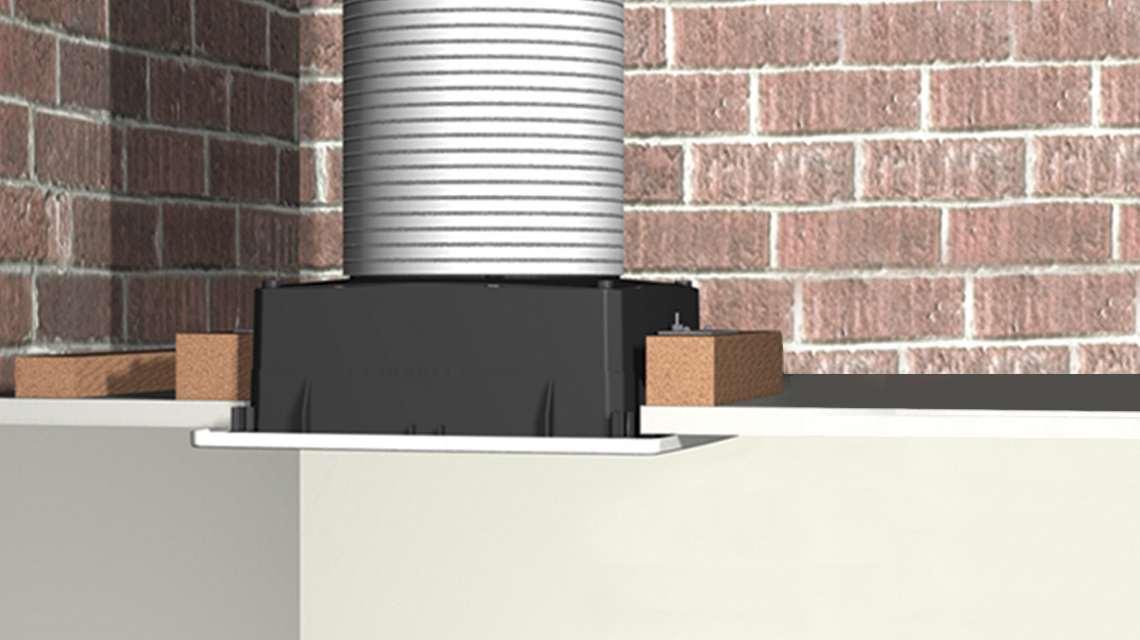

vortice_vario_i_ambiente02

Technical Data Sheet

  • Frequency (Hz)
    50-60
  • Inlet
    Automatico
  • Insulation class
    II°
  • IP
    X4
  • Max absorbed current (A)
    0,19
  • Max absorbed power (W)
    35
  • Max absorbed Power at 60 Hz (W)
    40
  • Max ambient temperature for continuous operation (°C)
    50
  • Max room temperature for continuous operation at 60 Hz (°C)
    50
  • Ø Discharge hole (mm)
    335 ÷ 340
  • Voltage (V)
    220-240
  • Weight (Kg)
    3,88
  • Max airflow - extract (l/s)
    188,9
  • Max airflow - extract (m3/h)
    680
  • Max airflow - intake (l/s)
    97,2
  • Max airflow - intake (m3/h)
    350
  • Max airflow (m³/h)
    680
  • RPM
    1160
  • Rpm - exhaust
    1160
  • Rpm - supply
    1260
  • Sound pressure Lp [dB (A)] at 3 m
    45,3


* Technical datas above refer to the product powered at 50 Hz.
For values for 60 Hz power supply, please contact the VORTICE Presales Service at prevendita@vortice-italy.com.

  • Ø hole through the wall
    335/340
  • Size A (mm)
    400
  • Size B (mm)
    400
  • Size C (mm)
    11
  • Size D (mm)
    180
quota
Curva_JPG_12456-Curve_per_Catalogo
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.

Accessories

Discover accessories related to the product

KIT TE 230/9"                 (TORRETTA)
KIT TE 230/9" (TORRETTA)
• Roof cowl/wind baffle kit.

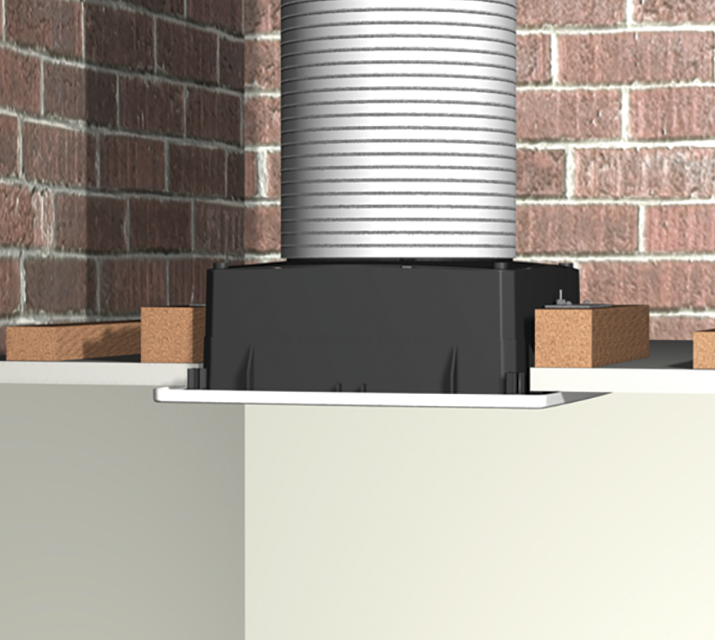

KIT SO                        (SOFFITTO)
KIT SO (SOFFITTO)
• Ceiling, false ceiling and panel kit.
KIT ML 230/9"               (MURO-LARGO)
KIT ML 230/9" (MURO-LARGO)

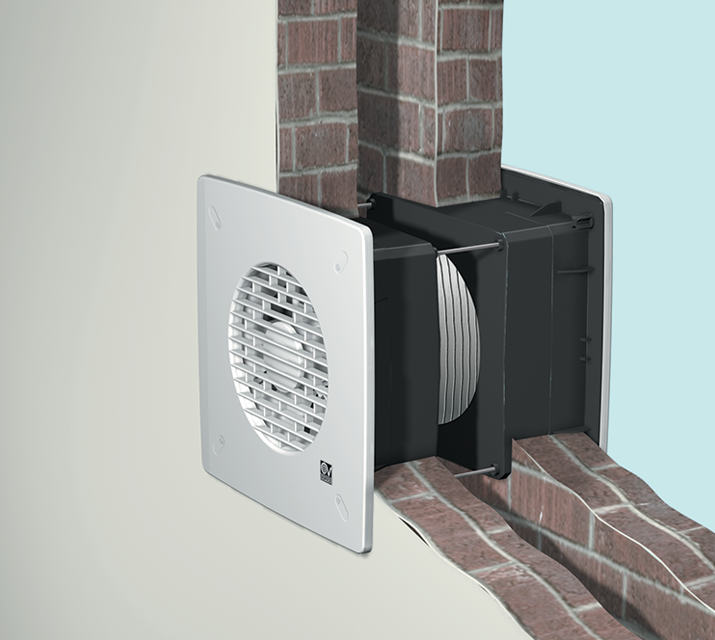

• Deep wall installation kit.
KIT TC 230/9"       (TETTO CON CONDOTTO)
KIT TC 230/9" (TETTO CON CONDOTTO)
• Spigot plate for remote application.
CR5N
CR5N
• Reversibile 5 speed controller.
• Natural Ventilation.
• Maximum load 100 W.
CREN
CREN
• Variable electronic speed controller.
• Reversible.
• Natural Ventilation.
• Maximum load 1,2 A.
C PIR
C PIR
• Passive infrared sensor.
C TIMER
C TIMER
• Adjustable over-run timer.
C TEMP
C TEMP
Environmental sensor for temperature control.
C SMOKE
C SMOKE
Environmental sensor for air quality.
C HCS
C HCS
Environmental sensor for relative humidity control.
