Description

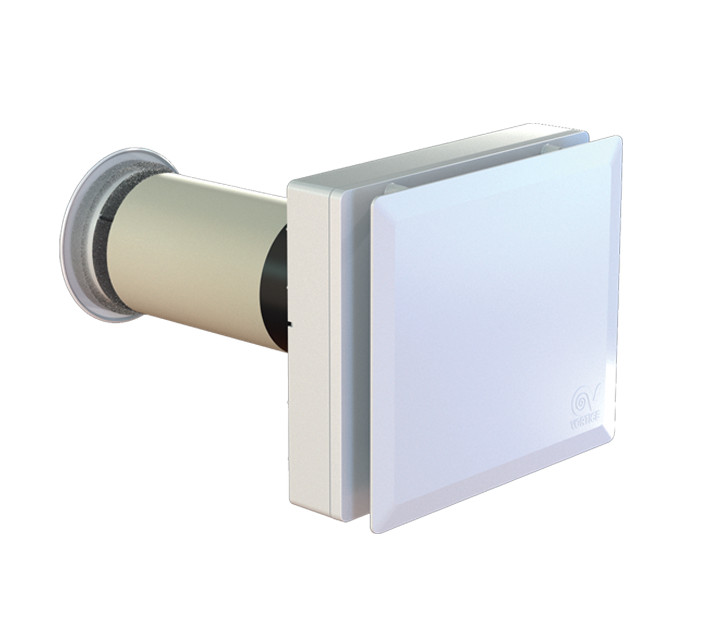

Decentralized heat recovery unit, equipped with a Wi-Fi module able to put in communication all the installed machines. Particularly suitable for installation in residential and commercial premises of new buildings or those subject to renovation for energy efficiency. Ideal, as well as to ensure proper air exchange, also to prevent excess humidity in the room and mold growth on the walls.

• Shockproof and anti-UV plastic resin structure.
• Nominal diameter: 100 mm.
• Ceramic exchanger with hexagonal cells. High heat exchange efficiency (up to 90% at minimum airflow).
• Wi-Fi module capable of establishing the communication between products through a local “mesh” network, allowing a coordinated functioning and a correct indoor ventilation.
• High efficiency EC motor fan; five operating speeds, to maximize performance when needed, or to minimize noise and consumption.
• On board controls to switch on/off the machine, to adjust the operating mode and for the fan speed selection.
• Three different operating modes:
• Continuous ventilation with heat recovery: the product cyclically extracts and introduces air to and from the room, recovering the energy stored in the exchanger;
• Ventilation with air extraction only: stale air is extracted from the environment;
• Ventilation with air intake only: the product introduces fresh air into the environment.
• Two air filters, a 65% IsoCoarse and a pre-filter for dust, both easily removable for washing.
• LED light for filters status placed in the lower part of the chassis, immediately behind the front cover.
• Mechanical quick closing system of the air delivery integrated into the product chassis.
• External rubber grille, which can be installed from the outside using plugs or from the inside, through the hole in the wall.
• Insect mesh, which can be installed into the duct from inside.
• Possibility of connection to remote sensors C-TEMP and C-HCS for the automatic management of the product.
Read full descriptionClose description

Technical Data Sheet

  • Frequency (Hz)
    50-60
  • Insulation class
    II°
  • Max absorbed current (A)
    0,04
  • Max absorbed power (W)
    5
  • Max ambient temperature for continuous operation (°C)
    50
  • Nominal diameter (mm)
    100
  • Voltage (V)
    220-240
  • Weight (Kg)
    3,10
  • Airflow (m3/h) - Boost mode
    38
  • Airflow (m3/h) - High Performance mode
    21
  • Airflow (m3/h) - Night mode
    6
  • Airflow (m3/h) - Performance mode
    16
  • Airflow (m3/h) - Quiet mode
    10
  • Max thermal efficiency (%)
    90
  • Pressure (mmH2O) – Boost mode
    13,7
  • Pressure (mmH2O) – High Performance mode
    4,6
  • Pressure (mmH2O) – Night mode
    1,0
  • Pressure (mmH2O) – Performance mode
    4,1
  • Pressure (mmH2O) – Quiet mode
    2,1
  • Pressure (Pa) – Boost mode
    130
  • Pressure (Pa) – High Performance mode
    45
  • Pressure (Pa) – Night mode
    10
  • Pressure (Pa) – Performance mode
    40
  • Pressure (Pa) – Quiet mode
    20
  • Sound power LWA [dB (A)] – Boost mode
    66,8
  • Sound power LWA [dB(A)] – High Performance mode
    53,1
  • Sound power LWA [dB(A)] – Night mode
    36,6
  • Sound power LWA [dB(A)] – Performance mode
    49,5
  • Sound power LWA [dB(A)] – Quiet mode
    41,2
  • Sound pressure at 3m Lp [dB (A)] - Night mode
    19,1
  • Sound pressure at 3m Lp [dB (A)] – Quiet mode
    23,7
  • Sound pressure at 3m Lp [dB (A)] 3m – Boost mode
    49,2
  • Sound pressure at 3m Lp [dB (A)] 3m – High Performance mode
    35,6
  • Sound pressure at 3m Lp [dB (A)] 3m – Performance mode
    32,0

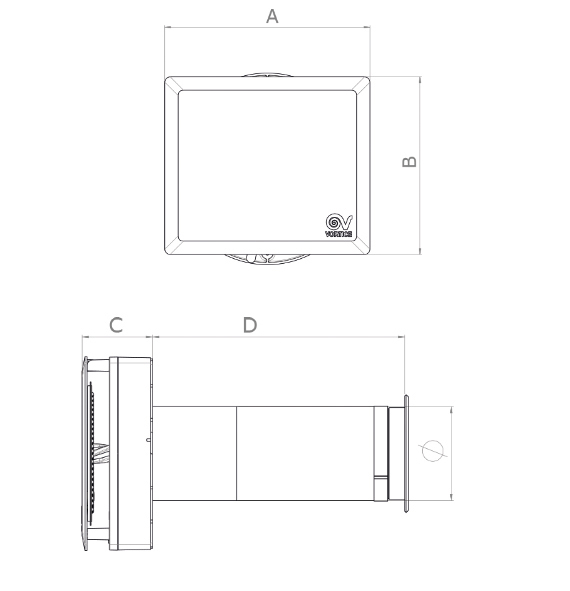

  • Ø (mm)
    97
  • Size A (mm)
    231
  • Size B (mm)
    200
  • Size C (mm)
    73
  • Size D (mm)
    260
