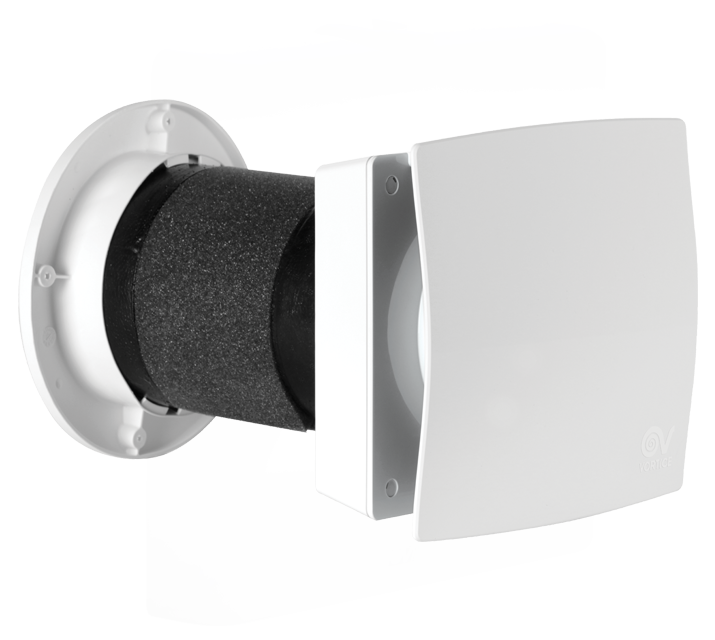

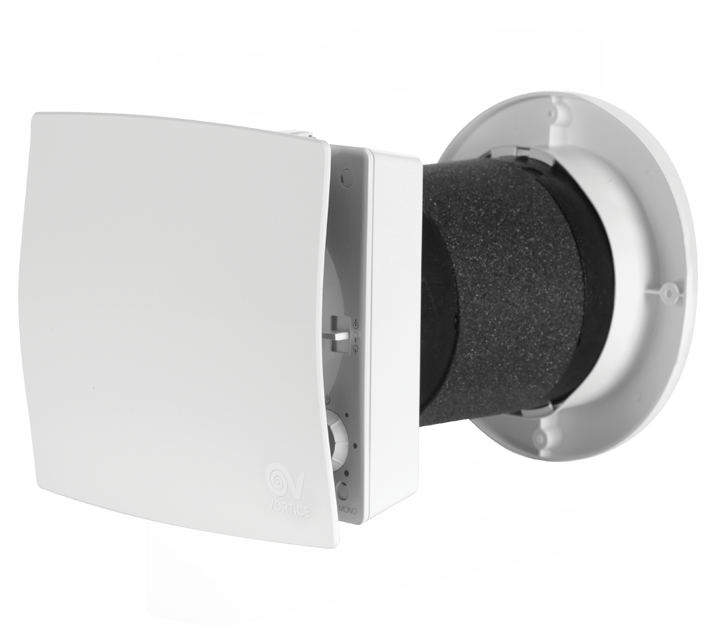

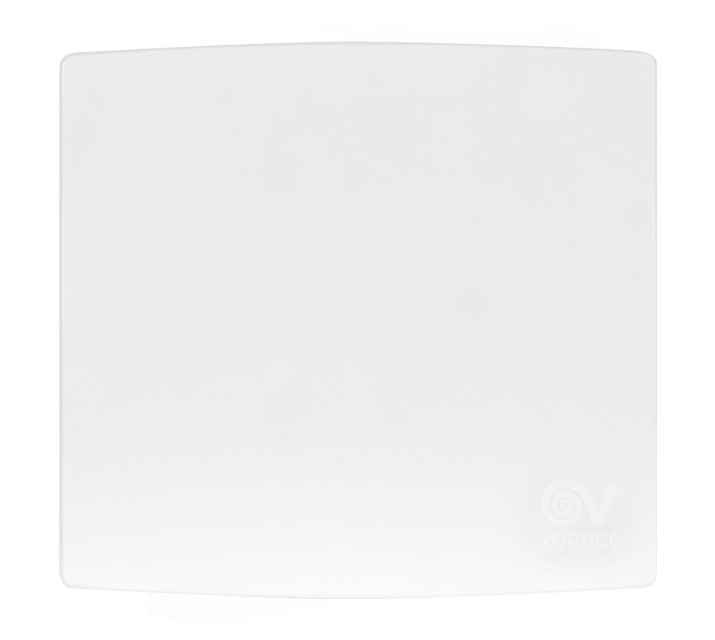

Code 11671

VORT HRW 20 MONO D

Description

• Plastic (PPE) enclosure
• Inner panel in plastic polymer (ABS), lined with insulating material.
• Low voltage ball bearing EC (brushless) motor.
• 5 speeds corresponding to differents airflows levels: 9 m3/h; 16 m3/h; 22 m3/h; 30 m3/h and 42 m3/h.

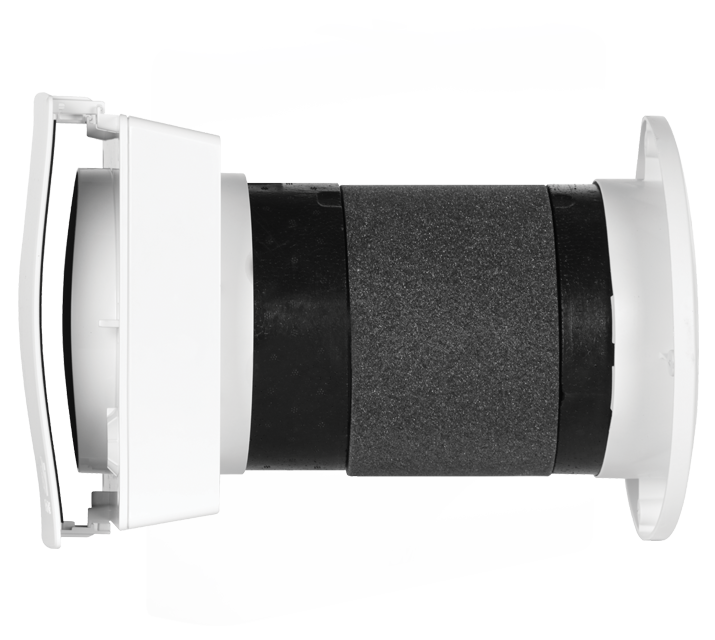

• High efficiency ceramic heat exchanger.

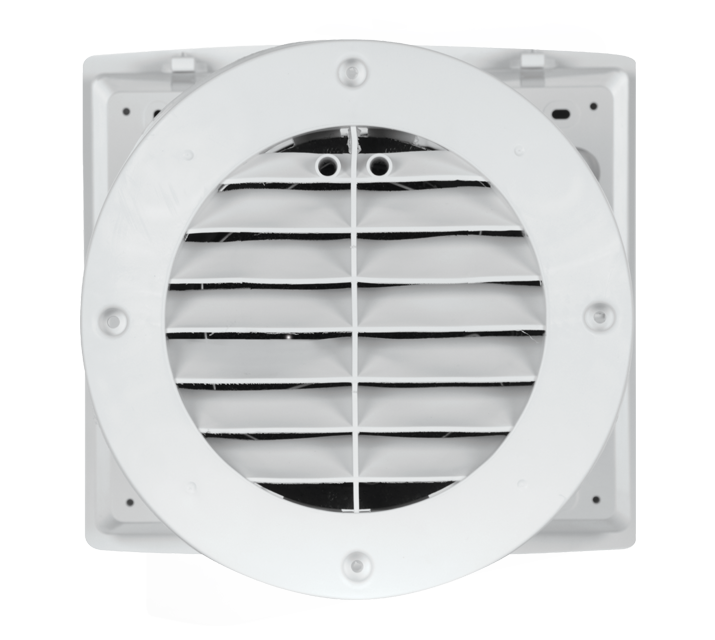

• Plastic resin made external grille, with integrated insect net.
• Nominal hole diameter: 160 mm
• Integrated washable G3 filter, easily accessible for maintenance.
• Predisposition for in-wall wiring.
• Wired remote control for recessed installation (code 21145) to be housed in Standard circular DIN box. The control integrates LED lights showing product operation and filter status.
• Electronic board allowing to pair 3 different power supplies (supplied as optional) for recessed or switchboard (on DIN rails) installation, designed to supply up to 4 or 6 products.
• Prepared to be paired to an infra-red remote control.
• 4 operation modes:
o Natural ventilation (product is switched off)
o Ventilation with heat recovery;
o Extraction;
o Intake.
• Possibility of automatic ventilation controlled by (optional) temperature and RH sensors.
Read full descriptionClose description

Technical Data Sheet

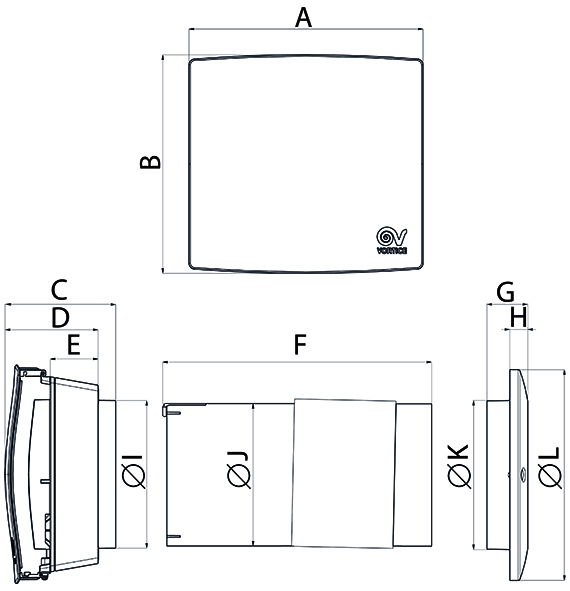

  • Size A (mm)
    240
  • Size B (mm)
    224
  • Size C (mm)
    80
  • Size D (mm)
    64
  • Size E (mm)
    17
  • Size F (mm)
    275
  • Size G (mm)
    42
  • Size H (mm)
    18
  • Size I (mm)
    ø 151
  • Size J (mm)
    ø 146
  • Size K (mm)
    ø 153
  • Size L (mm)
    ø 216
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.
