Code 45048

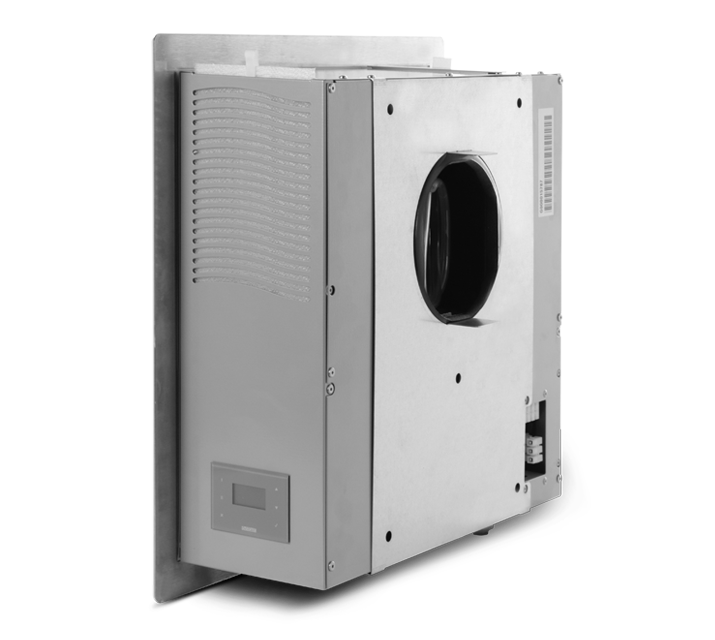

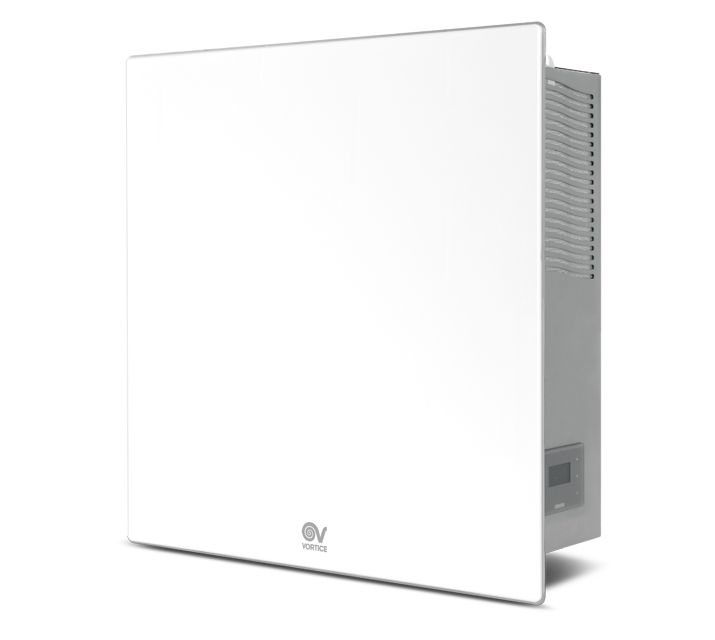

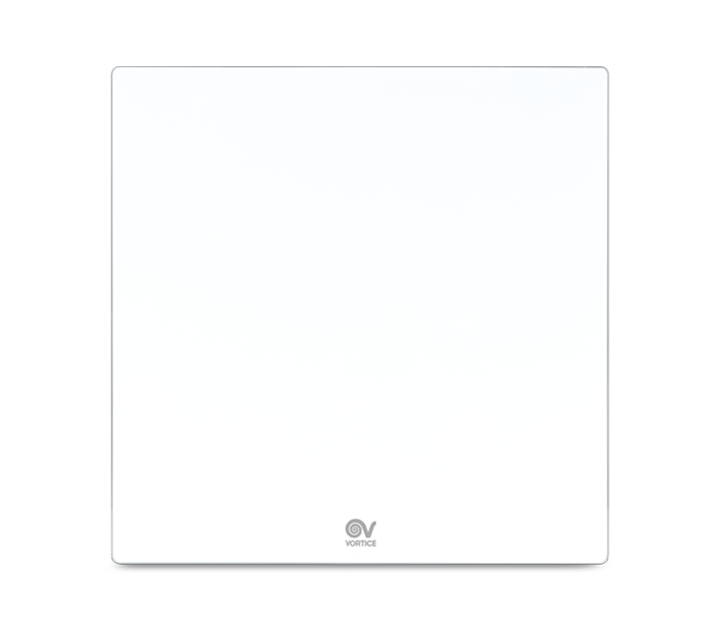

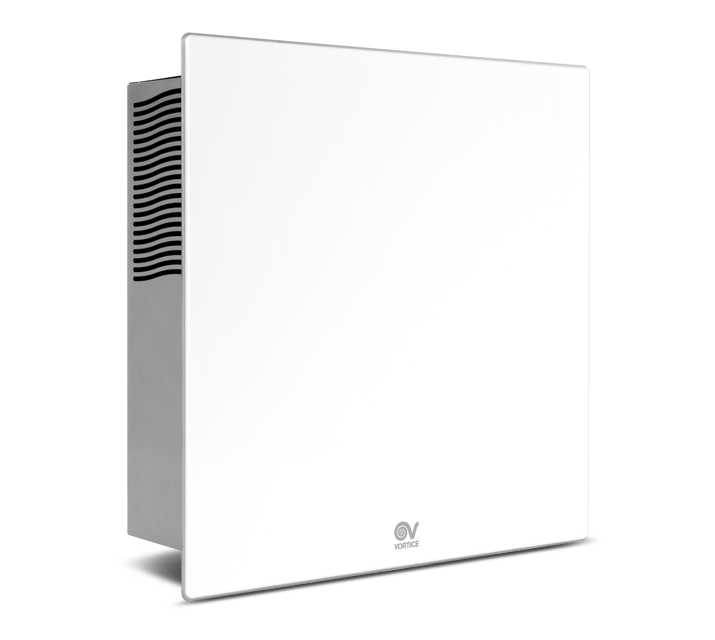

VORT VDH 60 HP MONO W

vdh_60_hp_mono_01
vdh_60_hp_mono_02
vdh_60_hp_mono_03
vdh_60_hp_mono_04

Description

Read full descriptionClose description

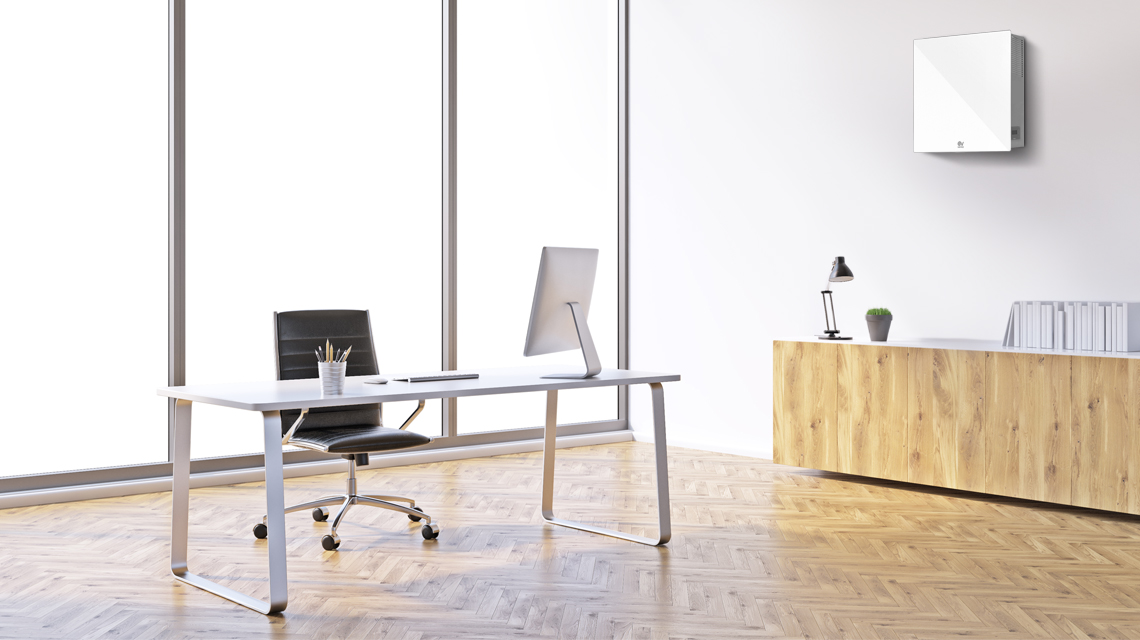

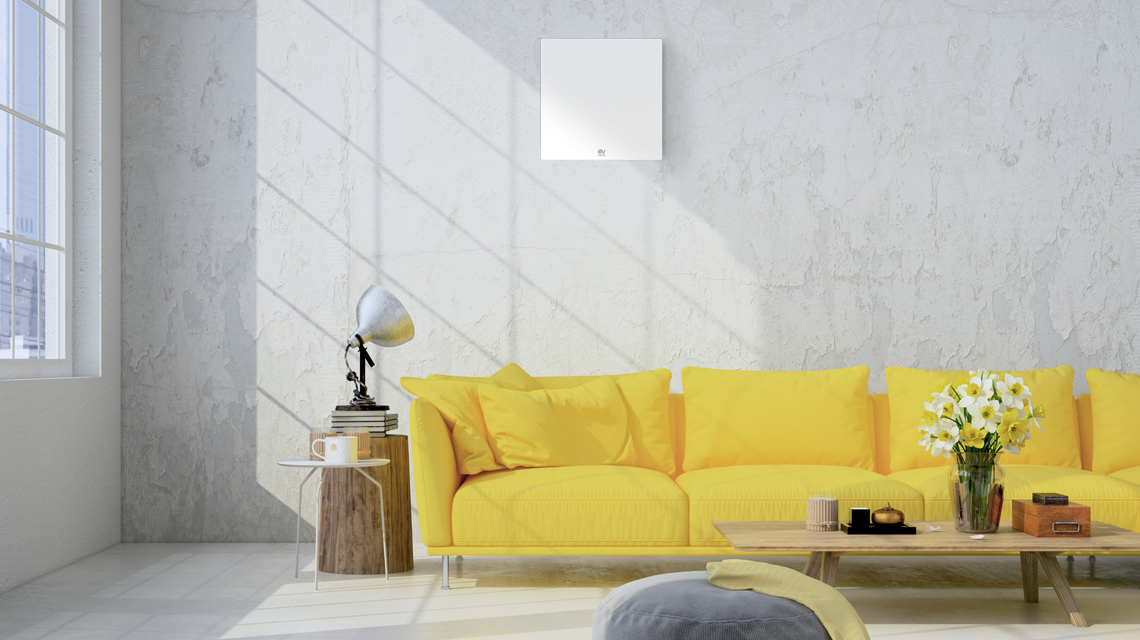

vdh_60_hp_mono_ambiente01
vdh_60_hp_mono_ambiente02

Technical Data Sheet

  • Filter class on extract
    Elettrostatico
  • Filter class on supply
    G4
  • Frequency (Hz)
    50
  • Insulation class
    I°
  • IP
    X2
  • Max absorbed current (A)
    0,78
  • Max absorbed power (W)
    140
  • Nominal diameter (m)
    160
  • Nominal diameter (mm)
    125
  • Number of phases (Ph)
    1
  • Number of speeds
    4
  • Voltage (V)
    220-240
  • Weight (Kg)
    17,5
  • Max airflow (m³/h)
    60
  • Max efficiency HP
    180
  • Sound power at Min speed LWA [dB(A)]
    37
  • Sound power at Min speed LWA [dB(A)]
    61
  • Ø (mm)
    160

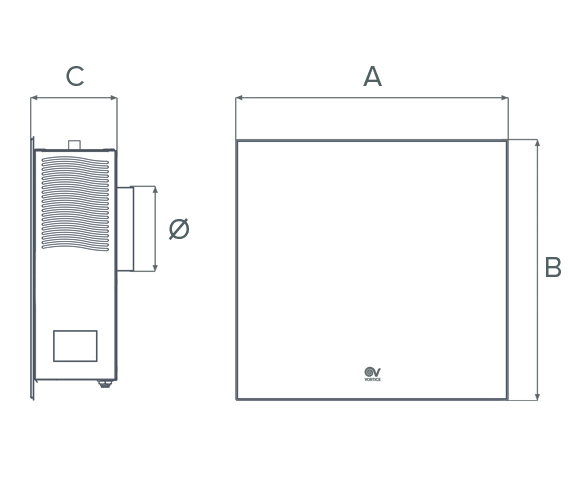

  • Size A (mm)
    460
  • Size B (mm)
    460
  • Size C (mm)
    150
quota
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.
