Code 45047

VORT HRW 60 HP MONO B

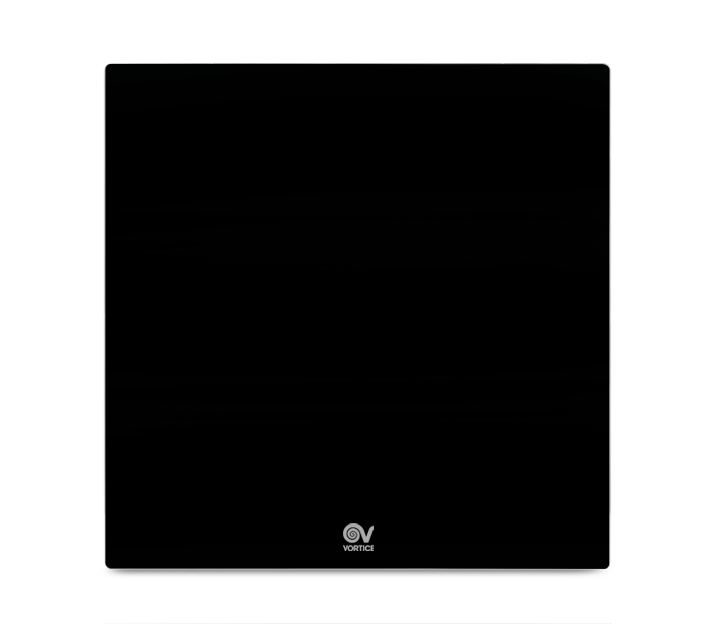

hrw_60_hp_mono_01

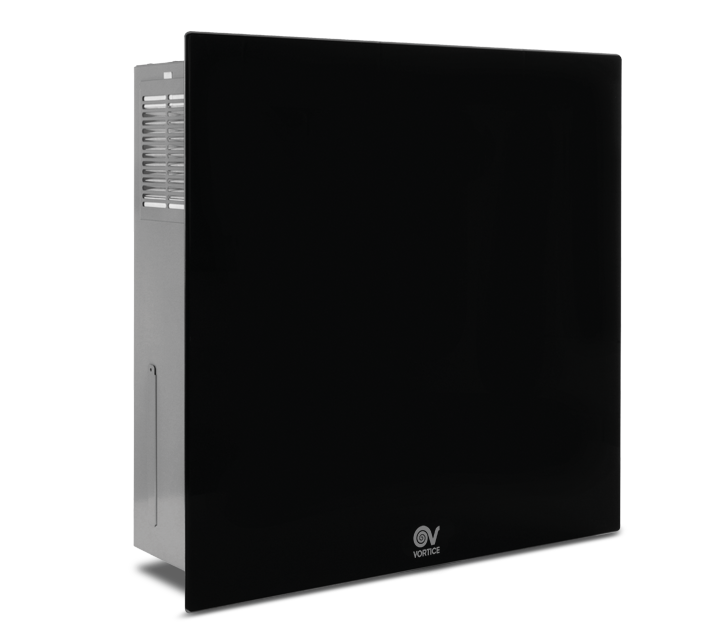

hrw_60_hp_mono_02

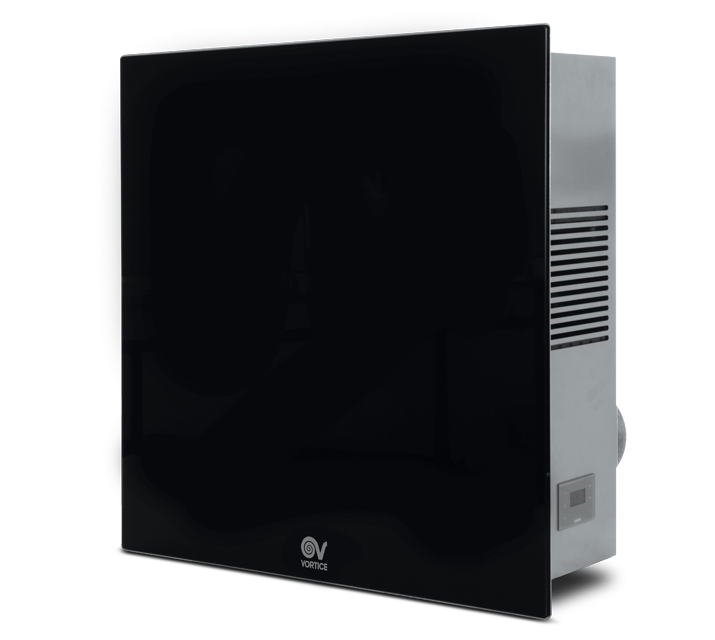

hrw_60_hp_mono_03

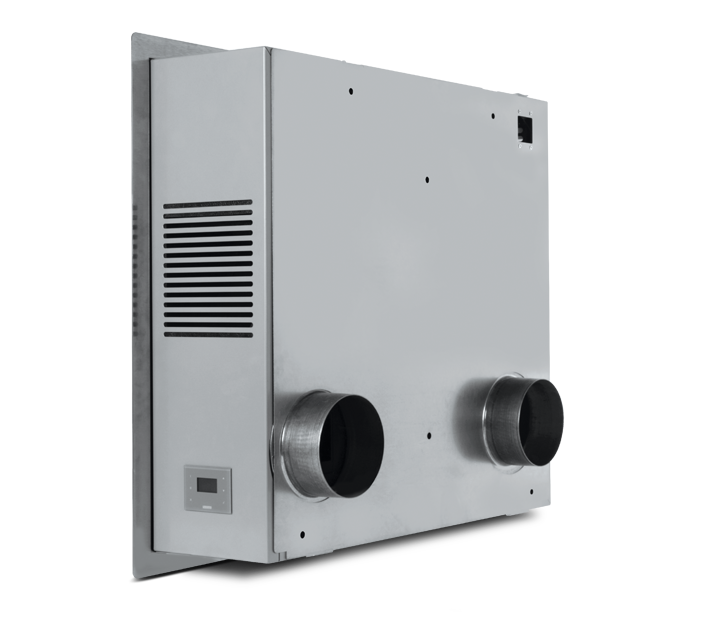

hrw_60_hp_mono_04

Description

Read full descriptionClose description

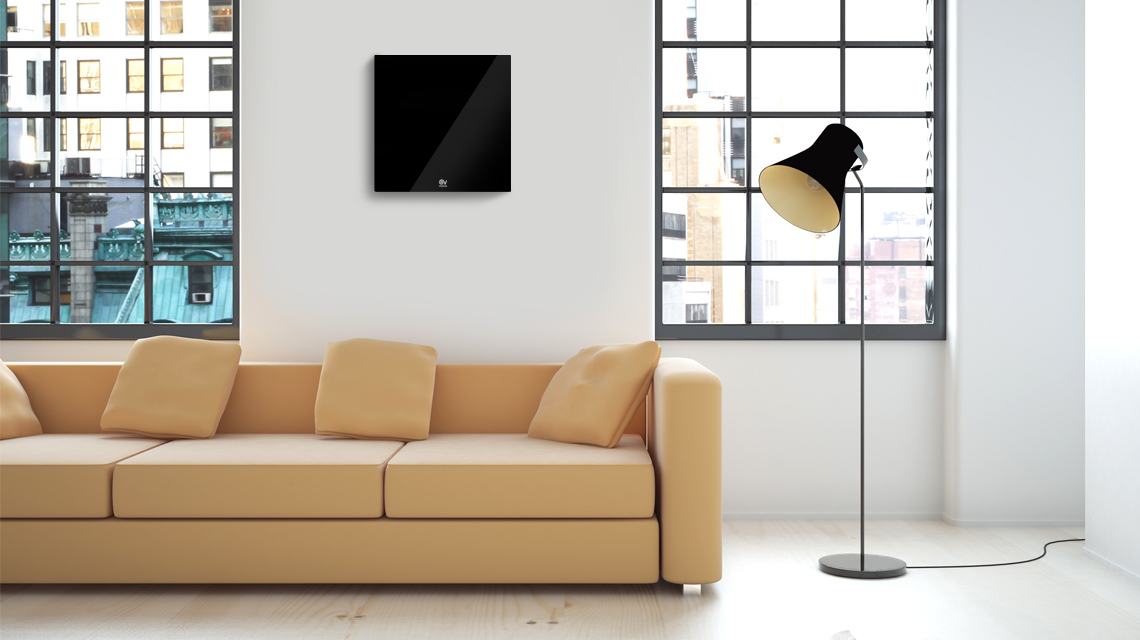

hrw_60_hp_mono_ambiente01

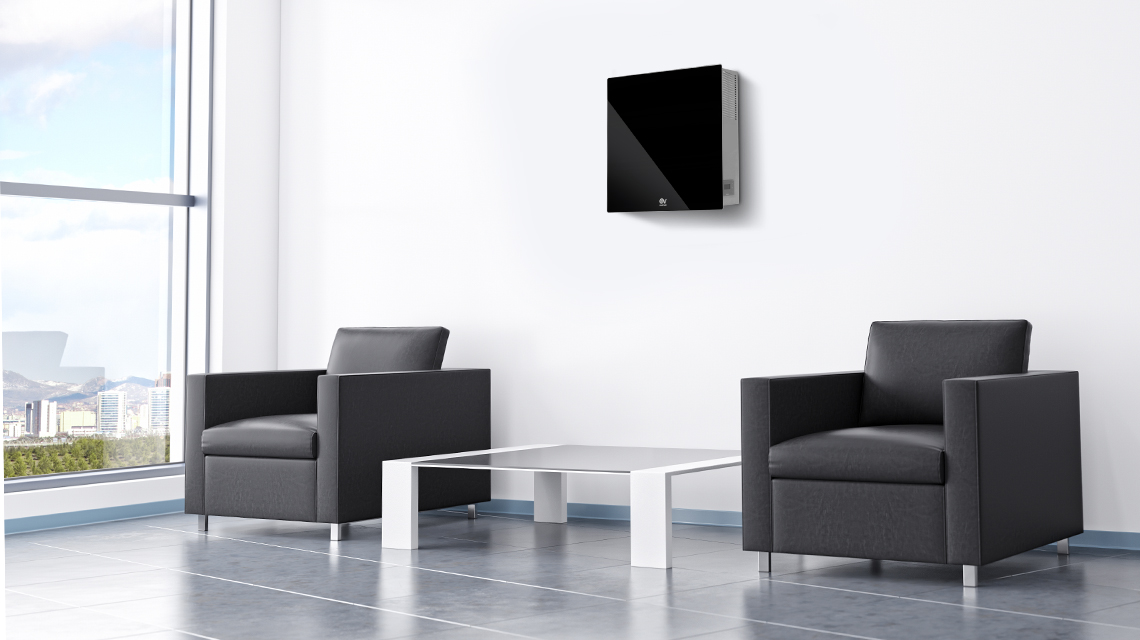

hrw_60_hp_mono_ambiente02

Technical Data Sheet

  • Filter class on extract
    G4
  • Filter class on supply
    M5
  • Frequency (Hz)
    50
  • Insulation class
    I°
  • IP
    X2
  • Max absorbed current (A)
    0,77
  • Max absorbed power (W)
    128
  • Nominal diameter (m)
    125
  • Nominal diameter (mm)
    125
  • Number of phases (Ph)
    1
  • Number of speeds
    3
  • Voltage (V)
    220-240
  • Weight (Kg)
    30
  • Max airflow (m³/h)
    60
  • Max combined efficiency EH+HP
    145
  • Max thermal efficiency (%)
    67
  • Sound power at Min speed LWA [dB(A)]
    39
  • Sound power at Min speed LWA [dB(A)]
    48
  • Ø (mm)
    125

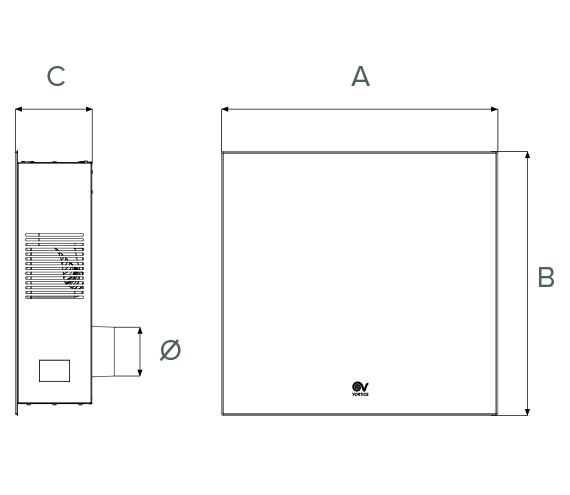

  • Size A (mm)
    660
  • Size B (mm)
    700
  • Size C (mm)
    190
quota
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.
