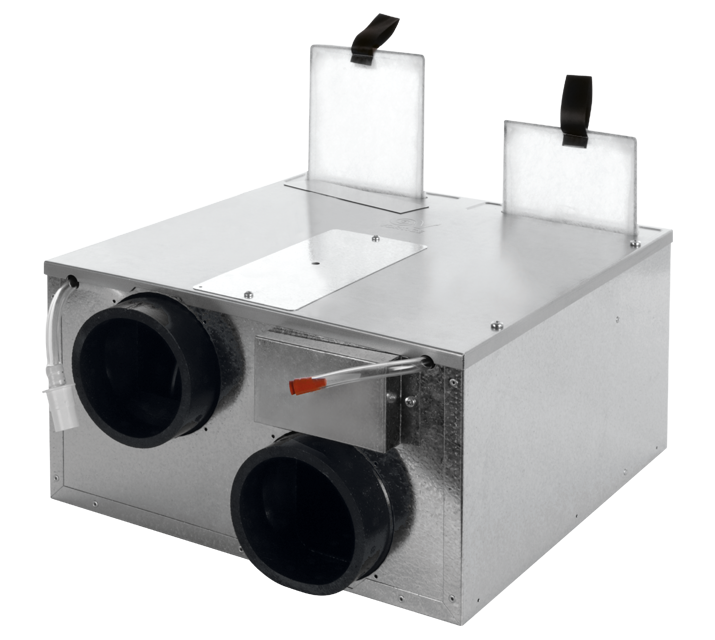

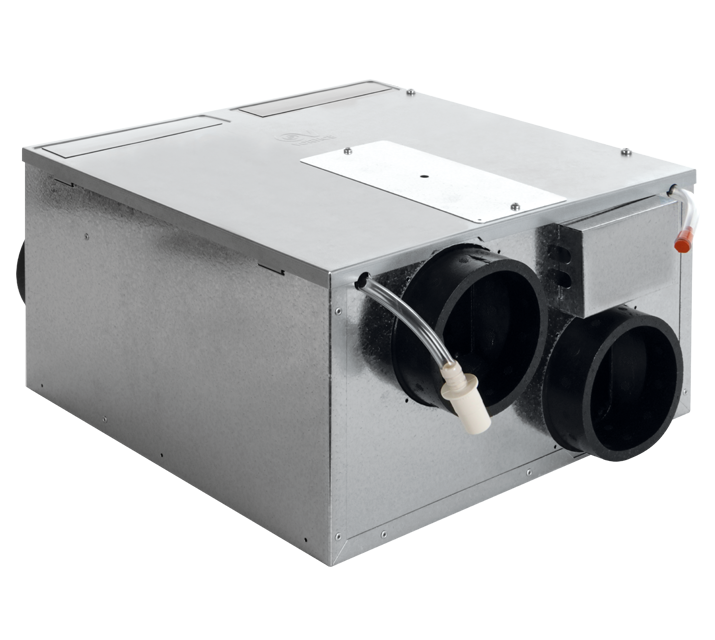

HRI MINI EP

• Zinc-coated pressed steel enclosure; interior lined with sound-absorbent and fire-resistant material.
• Inlet and outlet duct connection ports compatible with nominal diameters of 100 mm and 125 mm.
• 2 x ball bearings EC brushless motors, external rotor, each coupled to a backward curved centrifugal impeller; speeds, selectable independently at the moment of installation and controlled by electronic circuitry capable of monitoring any malfunctions, which are logged by the microchip installed in the unit.
• High-efficiency counter-flow type heat recovery unit fashioned from moulded plastic (PS).

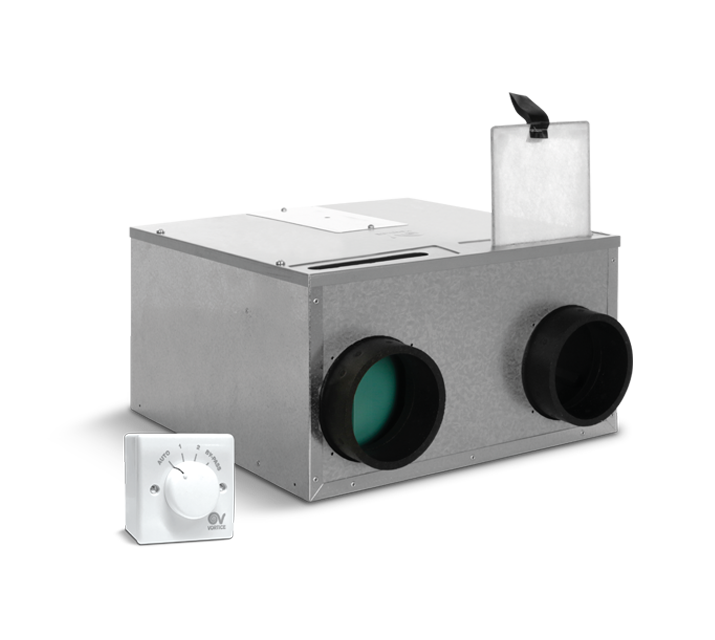

• Remote control that allows:
o To set min or max speed;
o To open/close the thermodynamic by-pass,
o The operation setting (Manual or Automatic) of the product (in Automatic, when light is switched on, the product continues in Auto mode.
• 2 G2 filters, on extracted air (stale) and on (fresh) air supply, both mounted upstream of inner components.
• Condensate drain hose
• Pipette for connection of drain hoses
• Condensate collection vessel with overflow protection.
• Mounting brackets for false ceiling installation.
• Air intake grille complete with mesh filter.
