Description
• Zinc-coated pressed steel enclosure; interior lined with sound-absorbent and fire-resistant material (DIN 13501)
• Nominal diameter for duct connections: 125 mm.
• EC brushless motors with shafts turning in ball bearings, coupled directly to centrifugal impellers; 3 speeds selectable at the moment of installation.
• Air flow settable between 75 m3/h and 200 m3/h.
• Ultra high efficiency cross-flow type heat recovery unit manufactured in plastic (polyethylene).
• Automatically activated system designed to prevent icing of the heat exchanger.
• 2 x ePM10 50% (M5) filters. ePM1 70% (F7) filter available as optional for supply.
• Electronic control system.
• Tie-bolts for suspended installation supplied as standard.
• Nominal diameter for duct connections: 125 mm.
• EC brushless motors with shafts turning in ball bearings, coupled directly to centrifugal impellers; 3 speeds selectable at the moment of installation.
• Air flow settable between 75 m3/h and 200 m3/h.
• Ultra high efficiency cross-flow type heat recovery unit manufactured in plastic (polyethylene).
• Automatically activated system designed to prevent icing of the heat exchanger.
• 2 x ePM10 50% (M5) filters. ePM1 70% (F7) filter available as optional for supply.
• Electronic control system.
• Tie-bolts for suspended installation supplied as standard.
Technical Data Sheet
-
Frequency (Hz)50
-
Max absorbed current (A)1,0
-
Max absorbed power (W)102
-
Nominal diameter (mm)125
-
Voltage (V)230
-
Weight (Kg)24
-
Breakout sound power LWA [dB(A)]43,1
-
Breakout sound pressure at 3m at Max speed calculated in free field Lp [dB(A)]22,6
-
Max airflow (l/s)57,2
-
Max airflow (m³/h)206
-
Max pressure (mmH2O)43,5
-
Max pressure (Pa)426
-
Sound power at exhaust inlet LWA [dB(A)]36,5
-
Sound power at supply outlet LWA [dB(A)]43,3
-
Sound pressure at 3m at extraction at Max speed calculated in free field Lp [dB(A)]16,0
-
Sound pressure at 3m at supply at Max speed calculated in free field Lp [dB(A)]22,8
-
Ø (mm)125
-

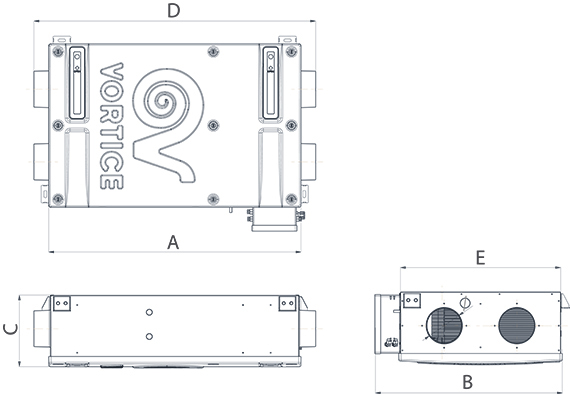

Size A (mm)868
-
Size B (mm)643
-
Size C (mm)248
-
Size D (mm)963,5
-
Size E (mm)551
