Code 10954

VORT INVISIBLE 200 IoT

fakeImg

Description

Read full descriptionClose description

Technical Data Sheet

  • Filter class on extract
    M5
  • Filter class on supply
    M5
  • Frequency (Hz)
    50/60
  • Insulation class
    I°
  • IP
    X2
  • Max absorbed current (A)
    1,0
  • Max absorbed power (W)
    105
  • Nominal diameter (mm)
    125
  • Voltage (V)
    220-240
  • Weight (Kg)
    27
  • Breakout sound power LWA [dB(A)]
    52,6
  • Breakout sound pressure at 3m at Max speed calculated in free field Lp [dB(A)]
    32,1
  • Max airflow (l/s)
    58
  • Max airflow (m³/h)
    210
  • Max pressure (mmH2O)
    37,7
  • Max pressure (Pa)
    370
  • Sound power at exhaust inlet LWA [dB(A)]
    50,2
  • Sound power at supply outlet LWA [dB(A)]
    52,3
  • Sound pressure at 3m at extraction at Max speed calculated in free field Lp [dB(A)]
    29,6
  • Sound pressure at 3m at supply at Max speed calculated in free field Lp [dB(A)]
    31,8

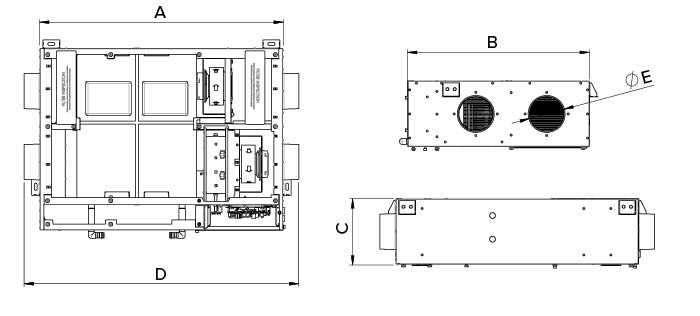

  • Size A (mm)
    860
  • Size B (mm)
    643
  • Size C (mm)
    235
  • Size D (mm)
    965
  • Size E (mm)
    125
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.
