Description

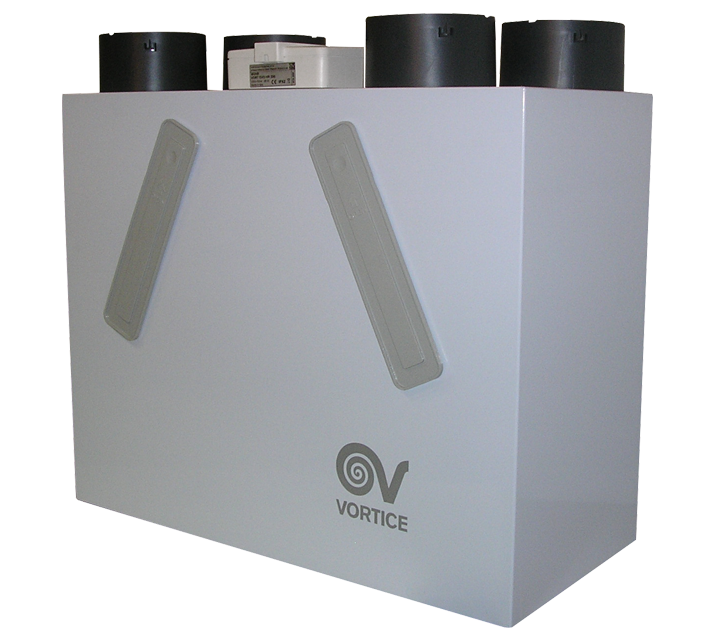

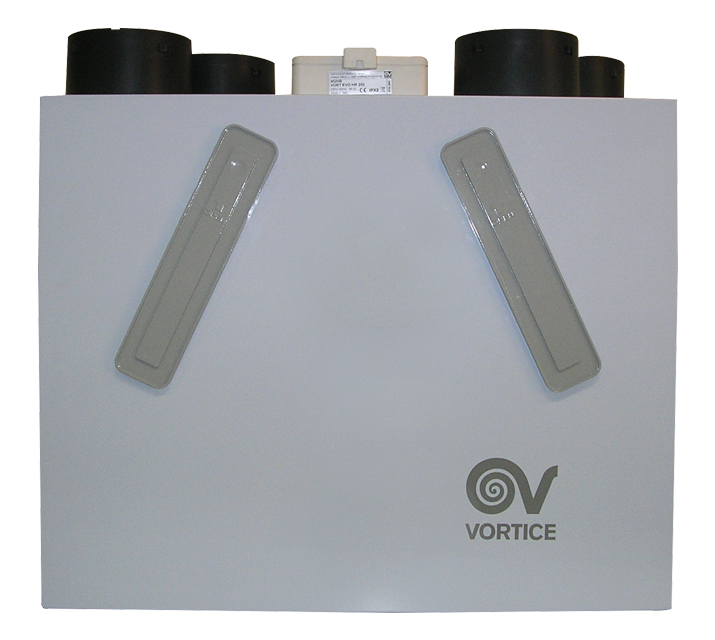

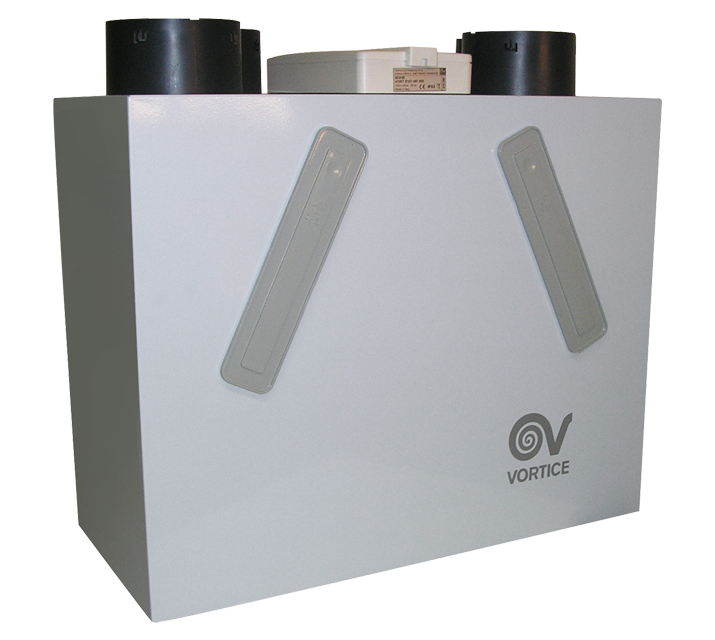

• Pressed steel enclosure with polyester powder coated finish, colour white; rear panel zinc-coated steel, internal parts made of expanded polypropylene (PPE).
• Electronics housing and filter caps moulded from polypropylene (PP).
• Duct connection ports of nominal diameter 125 mm
• 2 x EC brushless motor of external rotor design with shafts turning in ball bearings, installed on antivibration mounts;
• 2 operating speeds, selectable independently at the moment of installation, directly at the unit or using a radio remote control (available as optional accessory).
• Low noise, forward bladed centrifugal impellers.
• Air flow settable between 50 m3/h and 225 m3/h
• Ultra high-efficiency counter-flow type heat exchanger fashioned from moulded plastic (PS).
• Automatically activated system designed to prevent icing of the heat exchanger.
• 2 x G3 filter (alternatively, option of F5 filters)
• The VORT EVO HR 200 can be fitted with a silencer 0.5 m in length, available as an optional accessory, applied to the outlet duct.
• Horizontal installation kit (optional)
