Technical Data Sheet

  • Cooling capacity provided by the compressor (kW)
    0,93
  • Cooling capacity provided by the water coil (kW)
    0,53
  • IP
    20
  • Max absorbed current (A)
    2,6
  • Nominal absorbed power of recirculation fan (kW)
    0,1
  • Number of phases (Ph)
    1
  • Thermal power at pump side (W)
    620
  • Voltage (V)
    230
  • Weight (Kg)
    36
  • Dehumidification capacity (l/24 hr)
    22
  • Max airflow (m³/h)
    300
  • Nominal pressure drop of hydraulic circuit (kPa)
    4,5
  • Pressure loss on VMC side (Pa) :
    31
  • Sound pressure Lp [dB (A)] at 3 m
    37
  • Water flow rate (m³/h) :
    0,15

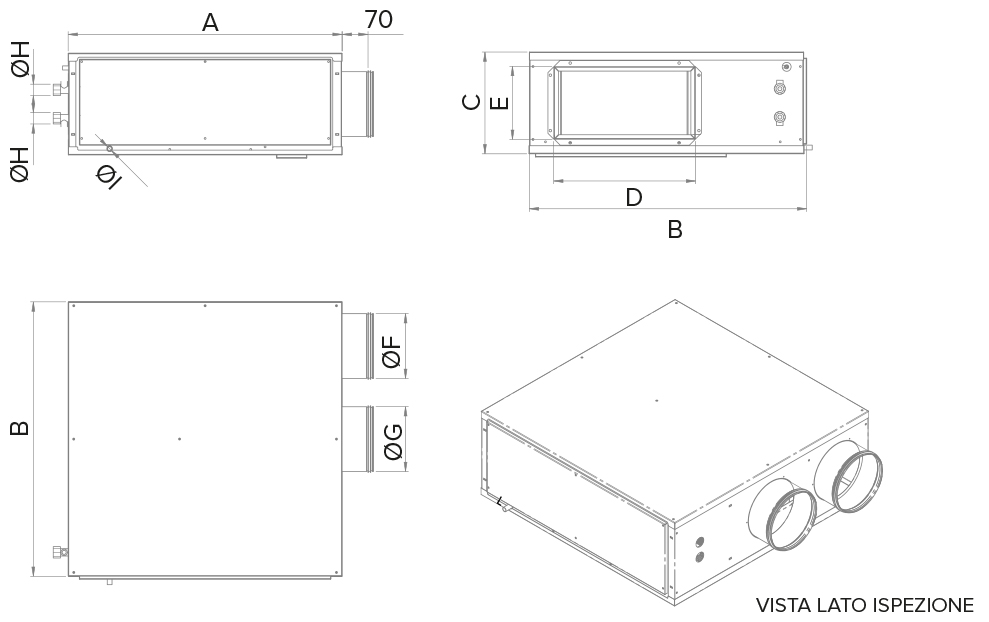

  • Size A (mm)
    690
  • Size B (mm)
    690
  • Size C (mm)
    270
  • Size D (mm)
    350
  • Size E (mm)
    180
  • Size F (mm)
    Ø 160
  • Size H (mm)
    Ø 12,7
  • Size I (mm)
    Ø 12
