Description

• Cylindrical steel structure enclosed at the ends by air inlet and outlet grilles.
• Steel grilles with vertical ribs.
• Fan unit with single speed single-phase motor and 5-blade aluminium rotor keyed directly onto the motor shaft.
• Tubular heating element rated 3000 W.
• Control panel located on top of the main cylindrical casing, made of self-extinguishing ABS plastic rated V0, with painted finish and built-in carrying/positioning handle.
• Mechanical timer, 180 minutes max, allowing delayed shutdown.
• Rotary heat output selector with three settings: off, half-power, full power and fan only.
• Auto-reset safety device, operating as thermal overload protective cutout mounted to the heating element.
• Bent and painted steel feet, with antivibration mounts.
• Power cord complete with moulded Schuko euro plug, length 1800 mm.
• Bulb type room thermostat, able to guarantee greater reading accuracy.
• IMQ safety certification.
Read full descriptionClose description
Accessorio_5
Accessorio_6

Technical Data Sheet

  • Frequency (Hz)
    50
  • Insulation class
  • IP
    X4
  • Max absorbed current (A)
    13
  • Max absorbed power (W)
    3000
  • Voltage (V)
    230
  • Weight (Kg)
    5,4

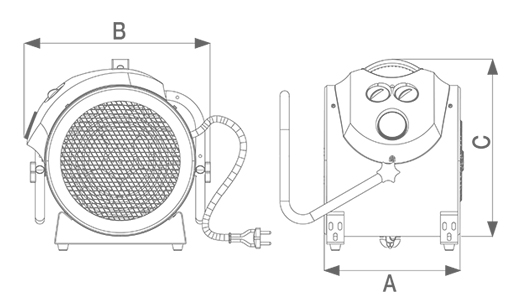

  • Size A (mm)
    250
  • Size B (mm)
    330
  • Size C (mm)
    340
Accessorio_7
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.
