Description

• Inner and outer cabinet components moulded from ABS thermoplastic resin.
• 4 operating modes: automatic, cooling, dehumidifying, ventilation.
• Class A appliance capable of two operating modes: air-air and water-air (adiabatic), the second of which guarantees superior cooling capacity and significantly greater energy efficiency of the product.
• No installation procedures necessary: the only requirement is to ensure that hot air can be ducted away from the climate-controlled room via the exhaust hose.
• Equipped with electronic controls and LCD display at the cabinet, and with a modern infrared remote control.
• Continuous internal drainage system automatically converts water of condensation into vapour, which is then exhausted outdoors.
• Programmable timer: allows selection of ON/OFF cycles at intervals of 1 hour over a period of 12 hours.
• “SLEEP”: optimizes energy consumption at night; the set temperature is increased by 1 °C every two hours.
• Washable dust filter
• Activated carbon filter serving to remove unpleasant smells.
• It contains fluorinated greenhouse gases.
• Hermetically sealed equipment.
• Accessories supplied:
o Round adapter;
o Hot air exhaust hose
o Foam board
o Foam board with round hole
o Round plug
o Condensate tank
o Infrared remote control
Read full descriptionClose description

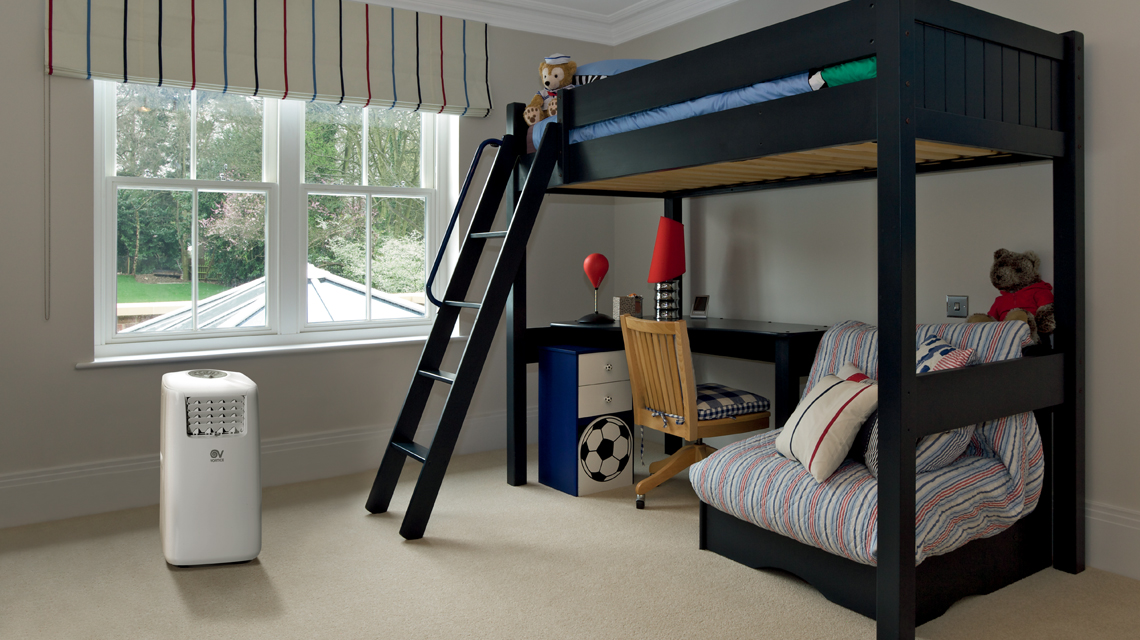

vort_kyro_polar_10_ambiente01

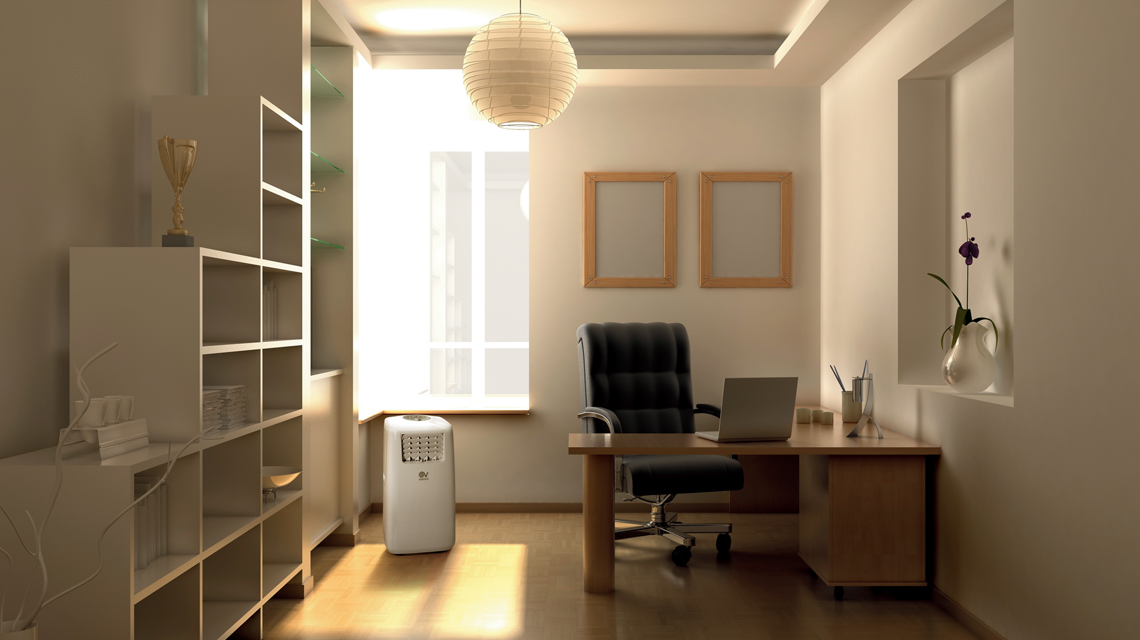

vort_kyro_polar_10_ambiente02

Technical Data Sheet

  • Compressor type
    Rotativo
  • Frequency (Hz)
    50
  • Max absorbed current (A)
    6,3
  • Max absorbed power (W)
    1326
  • Max ambient temperature for continuous operation (°C)
    35
  • Min continuous operation room temperature (°C)
    18
  • Number of phases (Ph)
    1
  • Refrigerant type
    R-410A
  • Standard refrigerant charge (g)
    570
  • Voltage (V)
    220-240
  • Weight (Kg)
    29,5
  • Cooling capacity (BTU/h)
    11812
  • Cooling capacity (W)
    3462
  • EER (Energy Efficiency Ratio)
    2,61
  • Max airflow (m³/h)
    460
  • Sound power Lw [dB(A)]
    65
  • Sound pressure at 1m calculated in free field Lp [dB(A)]
    57
  • Sound pressure at 3m calculated in free field Lp [dB(A)]
    42.5 / 44 / 46
  • Size A (mm)
    788
  • Size B (mm)
    420
  • Size C (mm)
    323
  • Size D (mm)
    Ø 142
  • Size E (mm)
    399
  • Size F (mm)
    155
quota
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.
