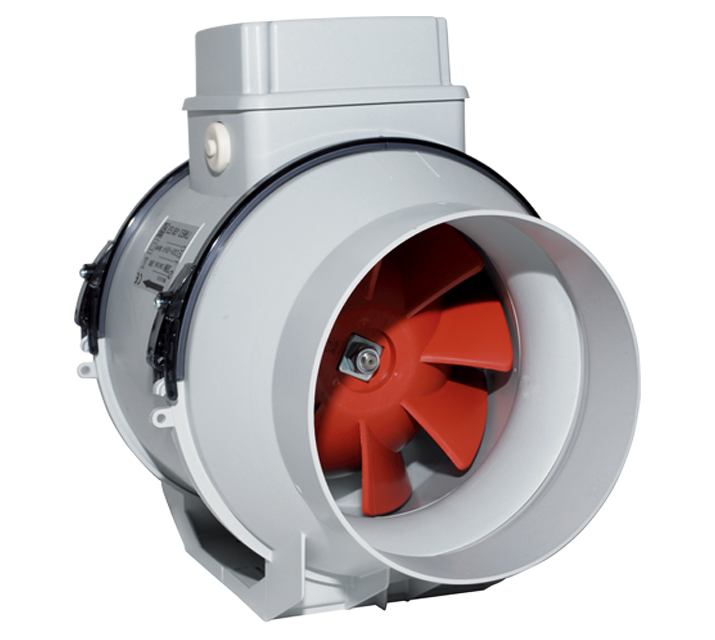

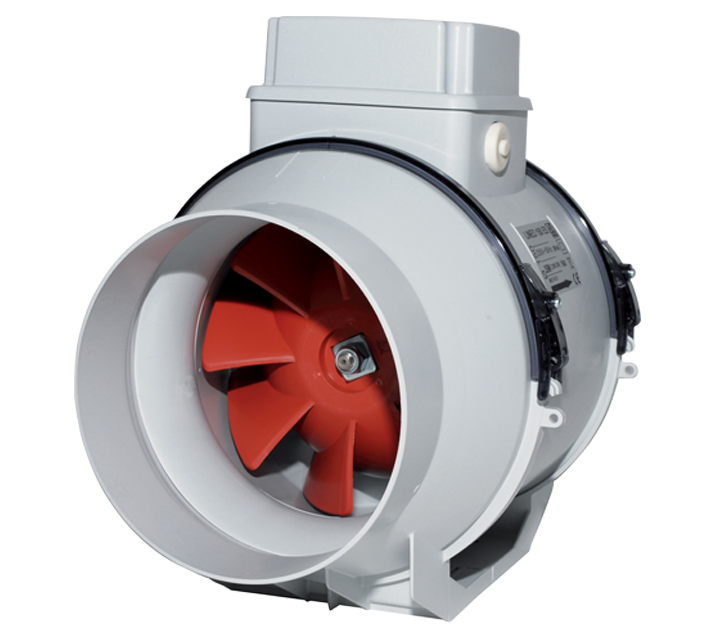

LINEO 315 ES - Vortice

Description

• Material: self-extinguishing plastic resin (self-extinguishing capability V0)
• Nominal diameter 315 mm.
• 2 speed EC brushless with thermal overload cutout and shaft turning in ball bearings, coupled to mixed flow axial-centrifugal impeller.
• Minimum air flow 1400 m3/h
Maximum air flow: 1900 m3/h
• The electronic motor control circuitry incorporates an electronic timer function designed to shut off the motor automatically after a set interval, selectable during installation in the range 3’-20’ (default setting 3’).
• Speed controller devices operating with 0-10 V signal.

Read full descriptionClose description

Frequency (Hz)

50
Insulation class

I°
IP

44
Max absorbed current at Max speed (A)

2,0
Max absorbed current at Min speed (A)

0,1
Max absorbed power at Max speed (W)

240
Max ambient temperature for continuous operation (°C)

50
Nominal diameter (mm)

315
Power absorbed at 1st speed (W)

5,6
Voltage (V)

230
Weight (Kg)

9,5
Airflow at 1st speed (l/s)

57
Airflow at 1st speed (m³/h)

205

Max airflow at Max speed (l/s)

528
Max airflow at Max speed (m³/h)

1900
Max pressure at Max speed (mmH20)

70
Max pressure at Max speed (Pa)

686
Max RPM

2350
Min RPM

300
Pressure at 1st speed (mmH20)

1,1
Pressure at 1st speed (Pa)

10,8
Sound power at Min speed LWA [dB(A)]

38,4
Sound power at Min speed LWA [dB(A)]

85,5
Sound pressure at 3m at Max speed calculated in free field Lp [dB(A)]

64,9
Sound pressure at 3m at Min speed calculated in free field Lp [dB(A)]

20,8

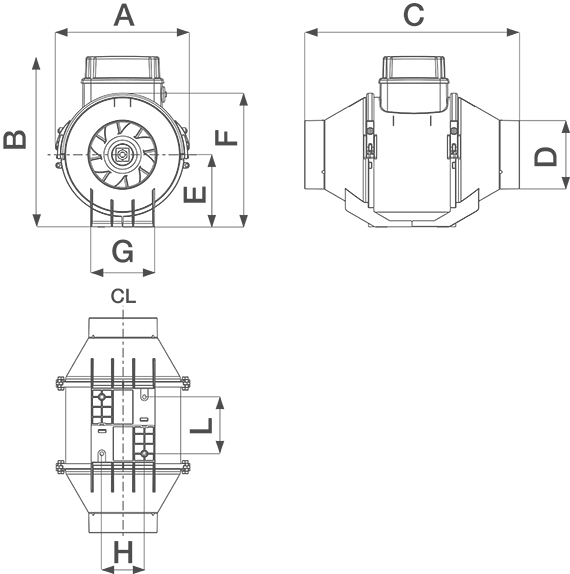

Size A (mm)

361,5
Size B (mm)

460
Size C (mm)

448
Size D (mm)

312
Size E (mm)

188,5
Size F (mm)

359
Size G (mm)

220,5
Size H (mm)

178
Size L (mm)

182
Size M (mm)

8
