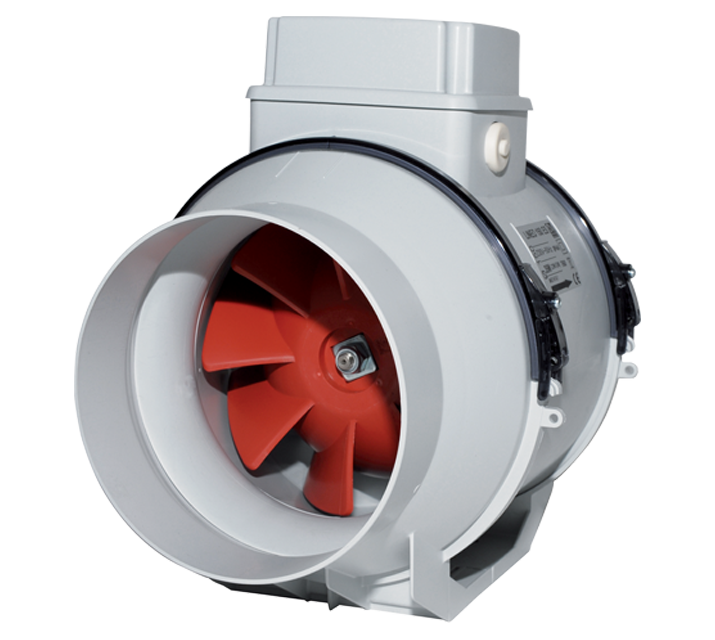

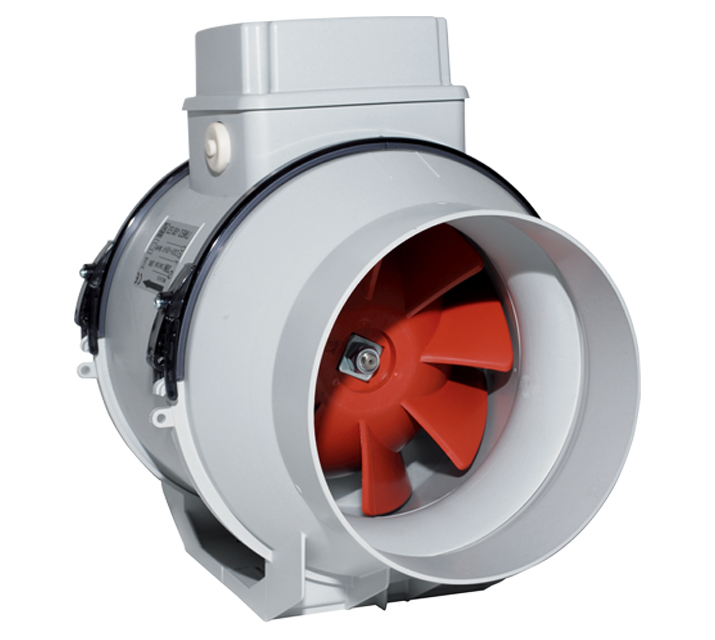

Description
• Material: self-extinguishing plastic resin (self-extinguishing capability V0)
• Nominal diameter 150 mm.
• 2 speed EC brushless with thermal overload cutout and shaft turning in ball bearings, coupled to mixed flow axial-centrifugal impeller.
• Minimum air flow 325 m3/h
Maximum air flow: 620 m3/h
• The electronic motor control circuitry incorporates an electronic timer function designed to shut off the motor automatically after a set interval, selectable during installation in the range 3’-20’ (default setting 3’).
• Nominal diameter 150 mm.
• 2 speed EC brushless with thermal overload cutout and shaft turning in ball bearings, coupled to mixed flow axial-centrifugal impeller.
• Minimum air flow 325 m3/h
Maximum air flow: 620 m3/h
• The electronic motor control circuitry incorporates an electronic timer function designed to shut off the motor automatically after a set interval, selectable during installation in the range 3’-20’ (default setting 3’).
Technical Data Sheet
-
Absorbed current at Max speed (reg. Min /Nominal/Max) (A)0,20/0,31/0,44/
-
Absorbed current at Min speed (reg. Min /Nominal/Max) (A)0,10/0,15/0,20/
-
Absorbed power at Max speed (reg. Min / Nomin / Max) (W)22/35/52/
-
Absorbed power at Min speed (reg. Min / Nomin / Max) (W)10/15/22/
-
Frequency (Hz)50
-
Insulation classII°
-
IP44
-
Max ambient temperature for continuous operation (°C)60
-
Nominal diameter (mm)150
-
Voltage (V)230
-
Weight (Kg)2,2
-
Airflow at Max speed (reg. Min /Nominal/Max) (l/s)122/153/172/
-
Airflow at Max speed (reg. Min /Nominal/Max) (m³/h)440/550/620/
-
Airflow at Min speed (reg. Min /Nominal/Max) (m³/h)325/385/465/
-
Airflow at Min speed (reg. Min /Nominal/Max) (l/s)90/107/129/
-
Pressure at Max speed (reg. Min /Nominal/Max) (mmH2O)28/43/53/
-
Pressure at Max speed (reg. Min /Nominal/Max) (Pa)275/422/520/
-
Pressure at Min speed (reg. Min /Nominal/Max) (mmH2O)15/22/31/
-
Pressure at Min speed (reg. Min /Nominal/Max) (Pa)147/216/304/
-
RPM at Max speed (reg. Min /Nominal/Max)1875/2230/2560/
-
RPM at Min speed (reg. Min /Nominal/Max)1340/1630/1870/
-
Sound pressure at 3m at Max speed (reg. Min /Nominal/Max) [dB(A)]44,1/47,1/53,2/
-
Sound pressure at 3m at Min speed (reg. Min /Nominal/Max) [dB(A)]35/41,6/46/
-

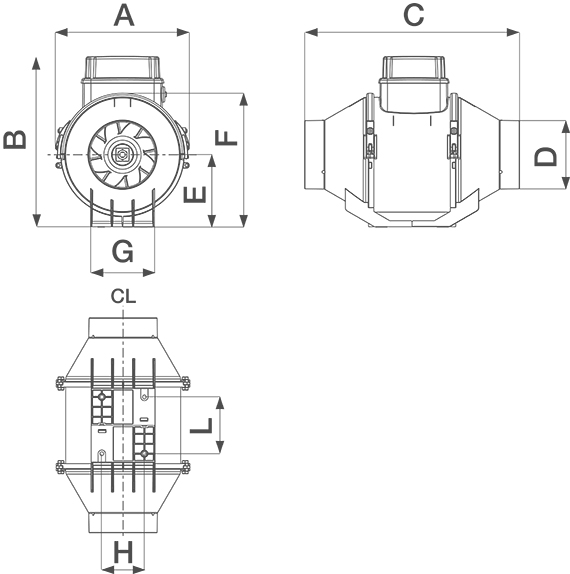

Size A (mm)214,5
-
Size B (mm)265
-
Size C (mm)294
-
Size D (mm)146
-
Size E (mm)112,5
-
Size F (mm)212
-
Size G (mm)110
-
Size H (mm)60
-
Size L (mm)80
-
Size M (mm)6
