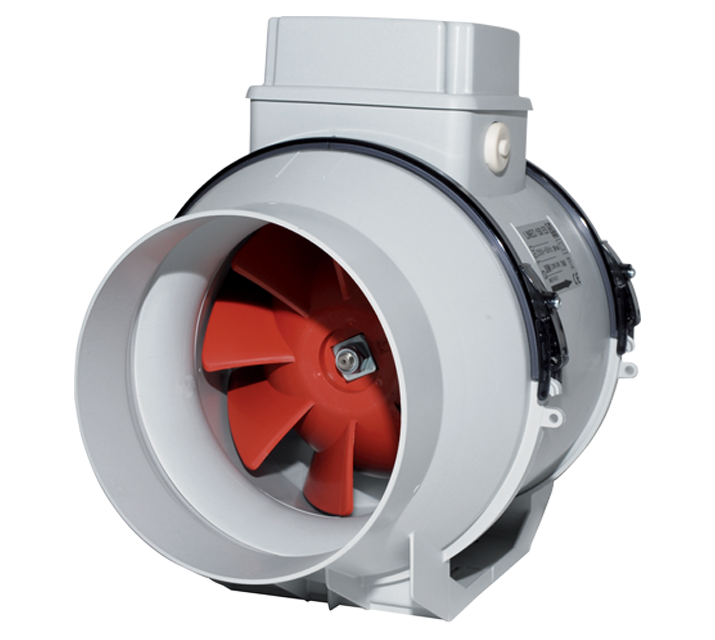

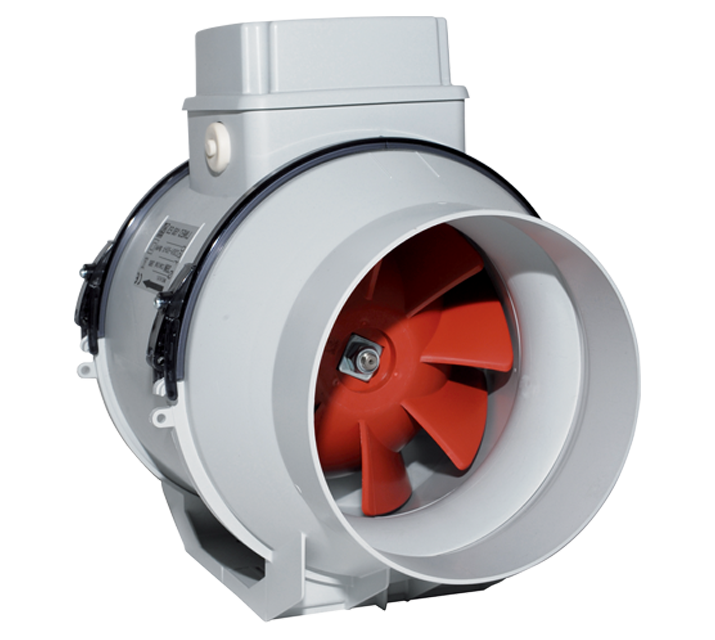

Description
• Material: self-extinguishing plastic resin (self-extinguishing capability V0)
• Nominal diameter 125 mm.
• 2 speed EC brushless with thermal overload cutout and shaft turning in ball bearings, coupled to mixed flow axial-centrifugal impeller.
• Minimum air flow 190 m3/h
Maximum air flow: 380 m3/h
• The electronic motor control circuitry incorporates an electronic timer function designed to shut off the motor automatically after a set interval, selectable during installation in the range 3’-20’ (default setting 3’).
• Nominal diameter 125 mm.
• 2 speed EC brushless with thermal overload cutout and shaft turning in ball bearings, coupled to mixed flow axial-centrifugal impeller.
• Minimum air flow 190 m3/h
Maximum air flow: 380 m3/h
• The electronic motor control circuitry incorporates an electronic timer function designed to shut off the motor automatically after a set interval, selectable during installation in the range 3’-20’ (default setting 3’).
Technical Data Sheet
-
Absorbed current at Max speed (reg. Min /Nominal/Max) (A)0,11/0,17/0,22/
-
Absorbed current at Min speed (reg. Min /Nominal/Max) (A)0,07/0,10/0,13/
-
Absorbed power at Max speed (reg. Min / Nomin / Max) (W)10,5/17/24/
-
Absorbed power at Min speed (reg. Min / Nomin / Max) (W)6,5/10/13,5/
-
Frequency (Hz)50
-
Insulation classII°
-
IP44
-
Max ambient temperature for continuous operation (°C)60
-
Nominal diameter (mm)120
-
Voltage (V)230
-
Weight (Kg)1,8
-
Airflow at Max speed (reg. Min /Nominal/Max) (l/s)75/101/105/
-
Airflow at Max speed (reg. Min /Nominal/Max) (m³/h)270/365/380/
-
Airflow at Min speed (reg. Min /Nominal/Max) (m³/h)190/250/300/
-
Airflow at Min speed (reg. Min /Nominal/Max) (l/s)53/69/83/
-
Pressure at Max speed (reg. Min /Nominal/Max) (mmH2O)16/29/33/
-
Pressure at Max speed (reg. Min /Nominal/Max) (Pa)157/284/324/
-
Pressure at Min speed (reg. Min /Nominal/Max) (mmH2O)9/15/20/
-
Pressure at Min speed (reg. Min /Nominal/Max) (Pa)88/147/196/
-
RPM at Max speed (reg. Min /Nominal/Max)1660/2040/2370/
-
RPM at Min speed (reg. Min /Nominal/Max)1285/1600/1870/
-
Sound pressure at 3m at Max speed (reg. Min /Nominal/Max) [dB(A)]35,1/40,3/44,4/
-
Sound pressure at 3m at Min speed (reg. Min /Nominal/Max) [dB(A)]28,9/34,8/39,3/
-

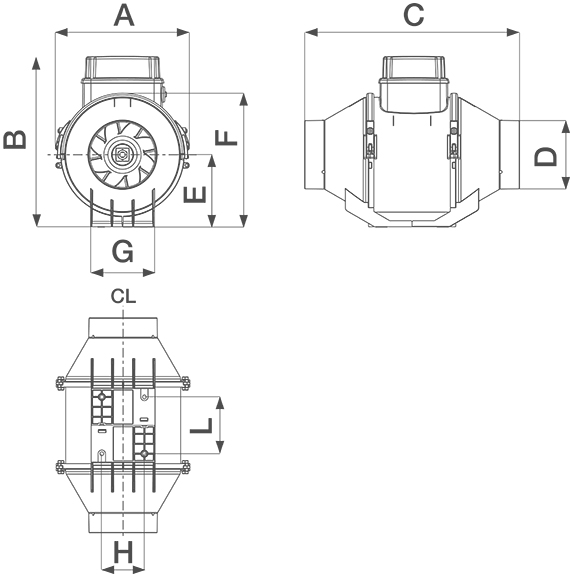

Size A (mm)188,5
-
Size B (mm)240
-
Size C (mm)258
-
Size D (mm)122
-
Size E (mm)101,5
-
Size F (mm)189
-
Size G (mm)90
-
Size H (mm)60
-
Size L (mm)80
-
Size M (mm)6
