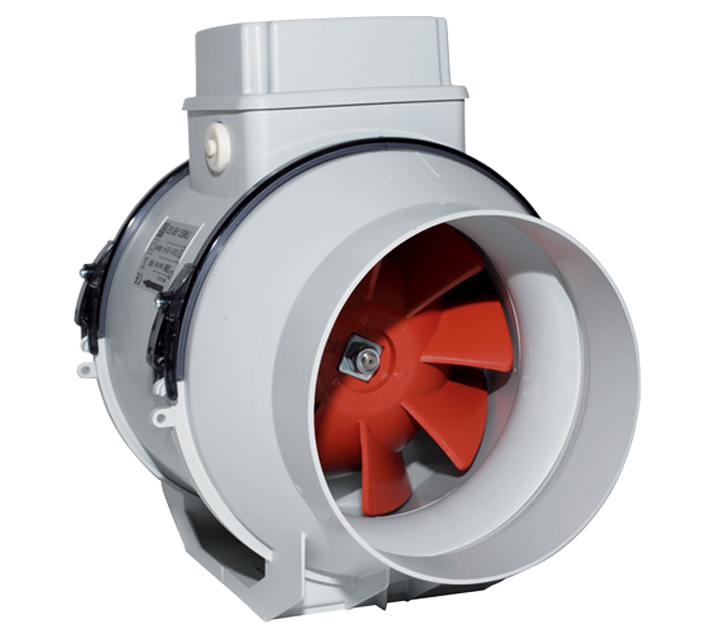

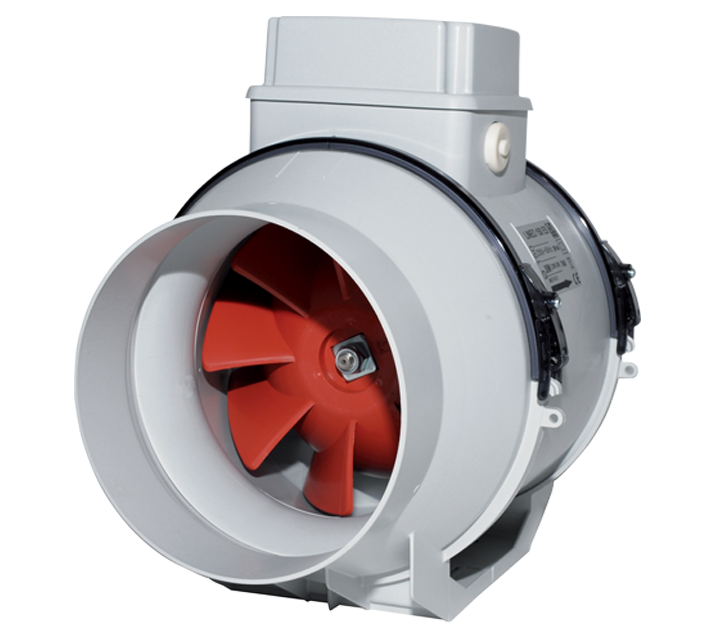

Description

• Material: self-extinguishing plastic resin (self-extinguishing capability V0)
• Nominal diameter 315 mm.
• 2 speed AC motor with thermal overload cutout and shaft turning in ball bearings, coupled to mixed flow axial-centrifugal impeller.
• Minimum air flow 1740 m3/h
Maximum air flow: 2300 m3/h
• IMQ SAFETY and IMQ PERFORMANCE certifications
• Vortice speed controllers.
Read full descriptionClose description

Technical Data Sheet

  • Frequency (Hz)
    50
  • Insulation class
    II°
  • IP
    44
  • Max absorbed current at Max speed (A)
    1,45
  • Max absorbed current at Min speed (A)
    0,95
  • Max absorbed power at Max speed (W)
    330
  • Max ambient temperature for continuous operation (°C)
    50
  • Power absorbed at 1st speed (W)
    220
  • Voltage (V)
    220-240
  • Weight (Kg)
    11,3
  • Airflow at 1st speed (l/s)
    397,2
  • Airflow at 1st speed (m³/h)
    1430
  • Breakout sound power LWA at Max speed [dB (A)]
    71,5
  • Breakout sound power LWA at Min speed [dB (A)]
    63,6
  • Breakout sound pressure at 3m at Max speed Lp [dB (A)]
    51
  • Breakout sound pressure at 3m at Min speed Lp [dB (A)]
    43,1
  • Max airflow at Max speed (l/s)
    533,3
  • Max airflow at Max speed (m³/h)
    1920
  • Max pressure at Max speed (mmH20)
    74
  • Max pressure at Max speed (Pa)
    725,7
  • Max RPM
    2410
  • Min RPM
    1830
  • Potenza sonora at supply side at Min speed LWA [dB (A)]
    88
  • Pressure at 1st speed (mmH20)
    42
  • Pressure at 1st speed (Pa)
    411,9
  • Sound power at extract side at Max speed LWA [dB (A)]
    93,9
  • Sound power at extract side at Min speed LWA [dB (A)]
    87,1
  • Sound power at supply side at Max speed LWA [dB (A)]
    95,1
  • Sound pressure at extract side at 3m at Max speed Lp [dB (A)]
    76,3
  • Sound pressure at extract side at 3m at Min speed Lp [dB (A)]
    69,6
  • Sound pressure at suply side at 3m at Max speed Lp [dB (A)]
    77,6
  • Sound pressure at suply side at 3m at Min speed Lp [dB (A)]
    70,5
  • Size A (mm)
    361,5
  • Size B (mm)
    392,5
  • Size C (mm)
    448
  • Size D (mm)
    312
  • Size E (mm)
    188,5
  • Size F (mm)
    359
  • Size G (mm)
    220,5
  • Size H (mm)
    178
  • Size L (mm)
    182
  • Size M (mm)
    8
