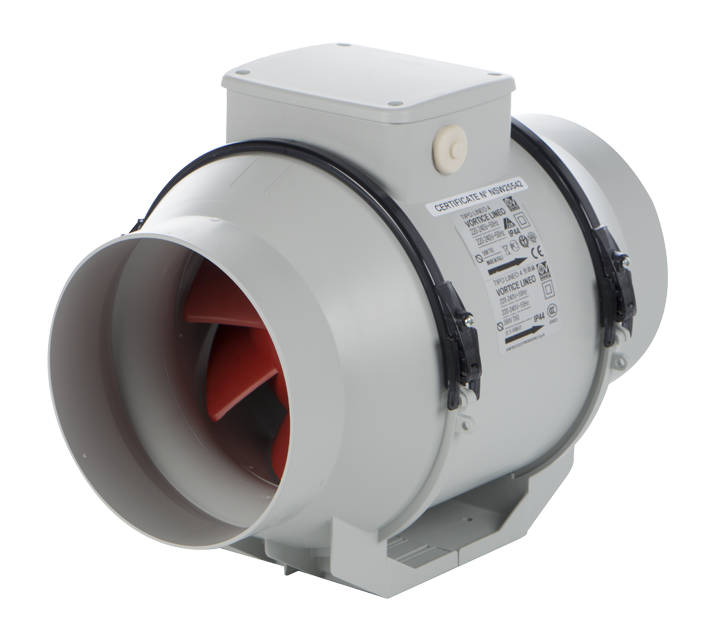

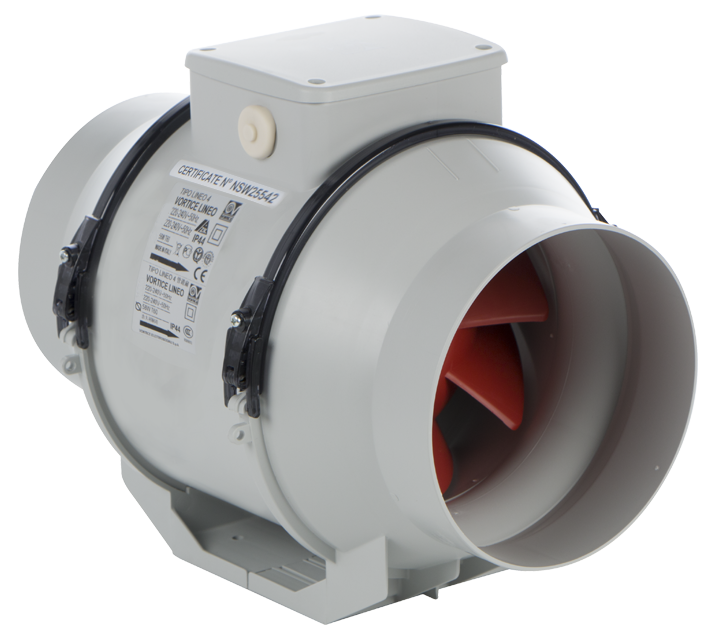

Description

• Material: self-extinguishing plastic resin (self-extinguishing capability V0)
• Nominal diameter 100 mm.

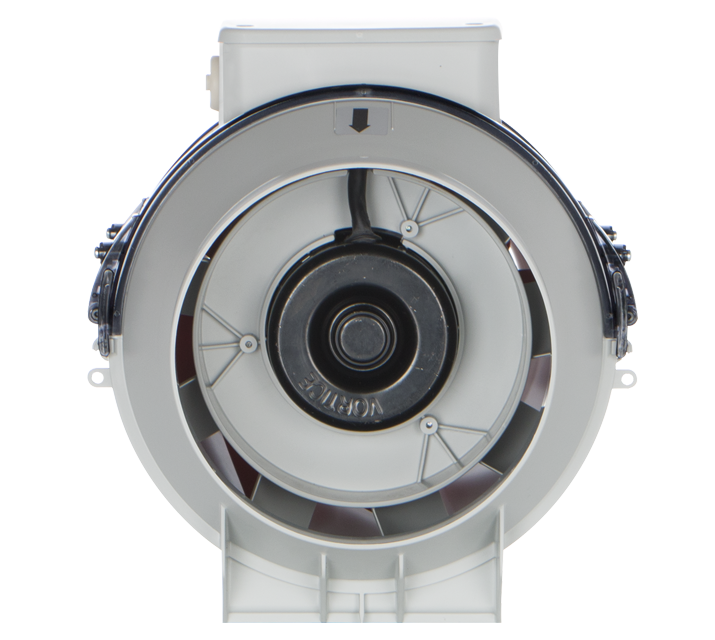

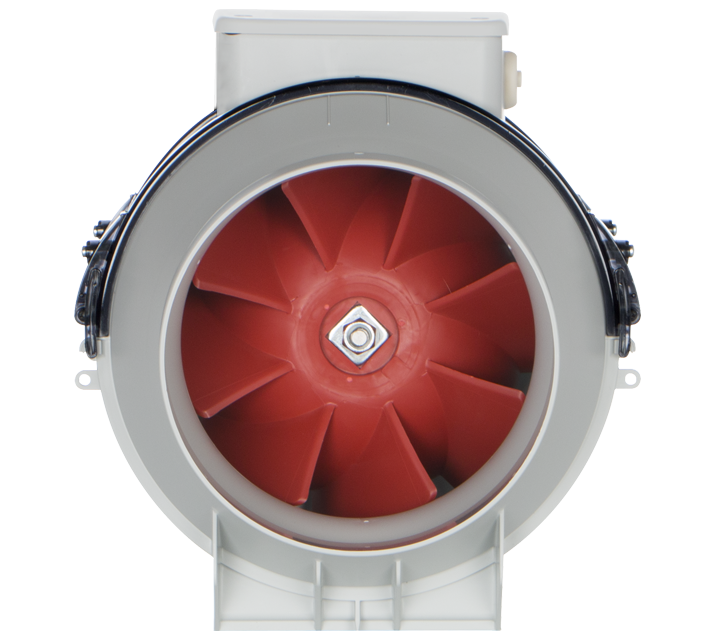

• 2 speed AC motor with thermal overload cutout and shaft turning in ball bearings, coupled to mixed flow axial-centrifugal impeller.
• Minimum air flow 155 m3/h
Maximum air flow: 200 m3/h
• IMQ SAFETY and IMQ PERFORMANCE certifications
• Vortice speed controllers.
Read full descriptionClose description
Accessorio_5

Technical Data Sheet

  • Frequency (Hz)
    50
  • Insulation class
    II°
  • IP
    44
  • Max absorbed current at Max speed (A)
    0,07
  • Max absorbed current at Min speed (A)
    0,05
  • Max absorbed power at Max speed (W)
    15
  • Max ambient temperature for continuous operation (°C)
    60
  • Nominal diameter (mm)
    100
  • Power absorbed at 1st speed (W)
    12
  • Voltage (V)
    220-240
  • Weight (Kg)
    1,25
  • Airflow at 1st speed (l/s)
    43,1
  • Airflow at 1st speed (m³/h)
    155
  • Max airflow at Max speed (l/s)
    55,6
  • Max airflow at Max speed (m³/h)
    200
  • Max pressure at Max speed (mmH20)
    7,5
  • Max pressure at Max speed (Pa)
    73,6
  • Max RPM
    2450
  • Min RPM
    1860
  • Pressure at 1st speed (mmH20)
    6,5
  • Pressure at 1st speed (Pa)
    63,8
  • Sound pressure at 3 m - min speed Lp [dB (A)] 3m - min speed
    29,4
  • Sound pressure at 3m at Max speed Lp [dB (A)]
    37,9

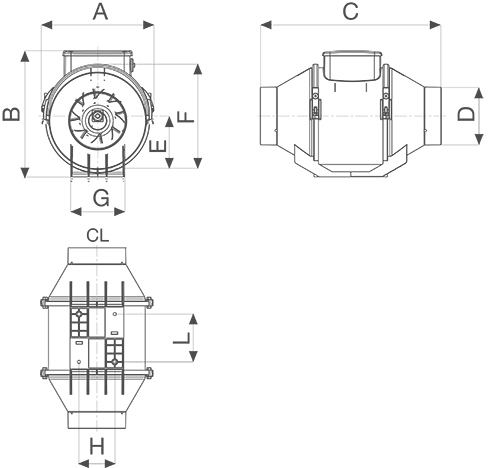

  • Size A (mm)
    156
  • Size B (mm)
    174
  • Size C (mm)
    231
  • Size D (mm)
    96
  • Size E (mm)
    82
  • Size F (mm)
    152
  • Size G (mm)
    95
  • Size H (mm)
    51,5
  • Size L (mm)
    47,5
  • Size M (mm)
    6
Accessorio_6
