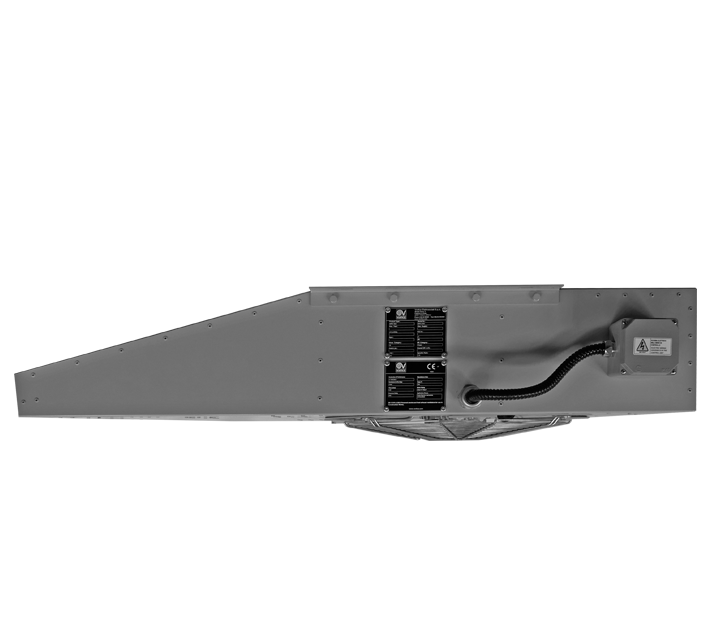

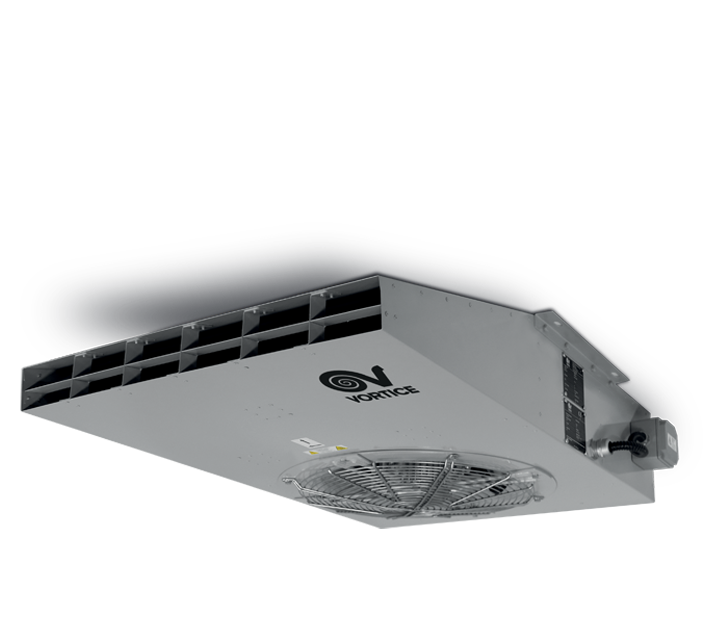

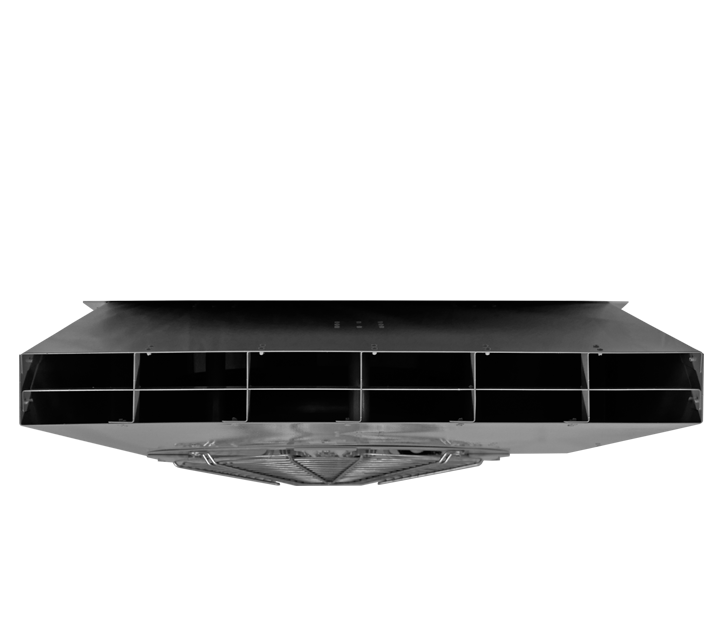

VORT JET-R 560/2

Description

• Nominal diameter of the impeller: 500 mm.
• Galvanized steel sheet construction.
• Reduced thickness: 335 mm.
• Radial fan consisting of backward curved centrifugal impeller.
• Three-phase induction motor, with shaft mounted on ball bearings, double speed (Dahlander system).
• Electrical connection box externally mounted to the product, easily accessible to facilitate the correct wiring of the product to the mains.
• Galvanized steel sheet brackets for ceiling installation supplied as standard.
• VORT JET CP electronic control unit (optional), able to manage the operation of the slave devices in full autonomy.

Read full descriptionClose description

Frequency (Hz)

50
Max absorbed current at Max speed (A)

3,5
Max absorbed current at Min speed (A)

1,55
Max absorbed power at Max speed (W)

1440
Number of poles

2 / 4
Power absorbed at 1st speed (W)

360
Voltage (V)

400
Weight (Kg)

83
Airflow at 1st speed (m³/h)

2858

Fire resistance rating

F300-120
Max airflow at Max speed (m³/h)

5087
Max flow speed (m/s)

25,6
Min flow speed (m/s)

12,6
Reversibility

NO
Sound pressure at 1m at Max speed Lp [dB (A)]

73
Sound pressure at 1m at Min speed Lp [dB (A)]

58
Thrust (N)

50 / 12

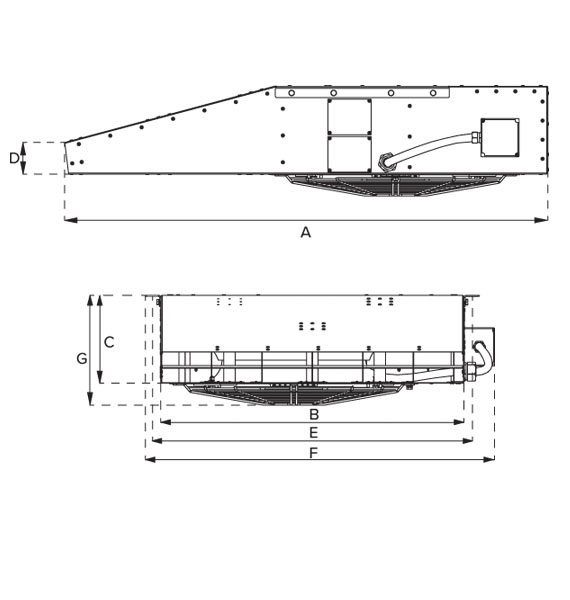

Size A (mm)

1265
Size B (mm)

795
Size C (mm)

230
Size D (mm)

80
Size E (mm)

837
Size F (mm)

920
Size G (mm)

295
