Description
Technical Data Sheet
-
Frequency (Hz)50/60
-
Insulation classI°
-
IP54
-
Max absorbed current (A)1,65
-
Max absorbed power (W)950
-
Motor classF
-
Temperatura esterna max funzionamento (°C)+60
-
Temperatura esterna min funzionamento (°C)-20
-
Voltage (V)380-480
-
Weight (Kg)14
-

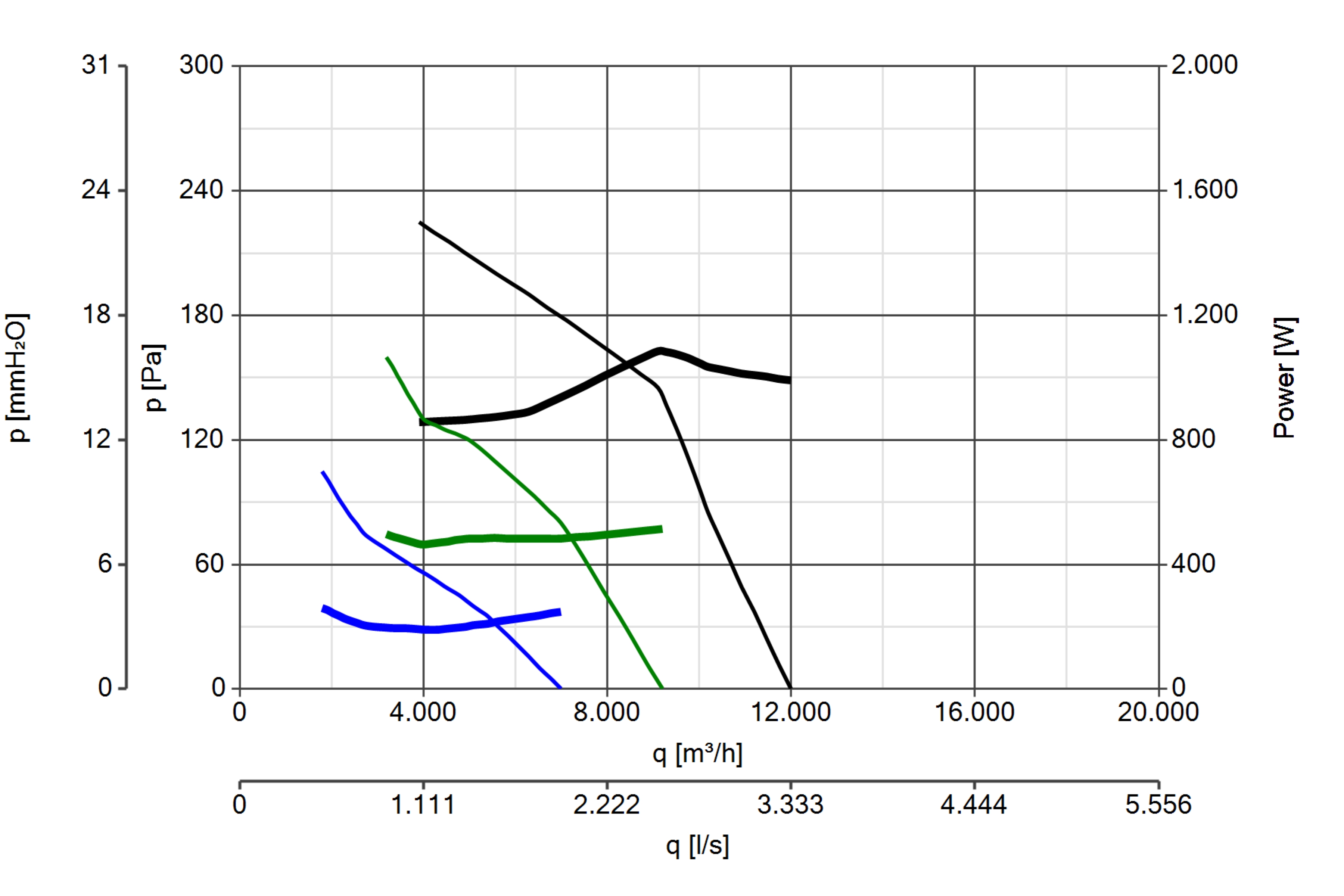

Max airflow (m³/h)12000
-
Max pressure (Pa)270
-
RPM1690
-
Sound pressure level at 1m Lp [dB (A)]78
* Technical datas above refer to the product powered at 50 Hz.
For values for 60 Hz power supply, please contact the VORTICE Presales Service at prevendita@vortice-italy.com.
-

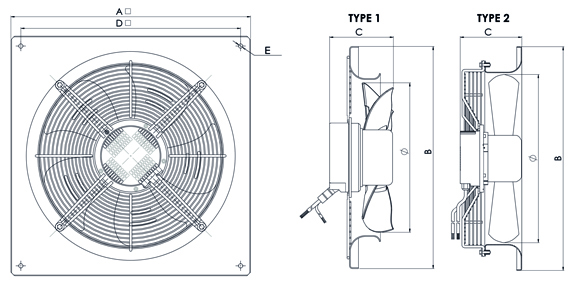

Ø (mm)550
-
Size A (mm)725
-
Size B (mm)725
-
Size C (mm)183
-
Size D (mm)670
-
Size E (mm)Ø 12
