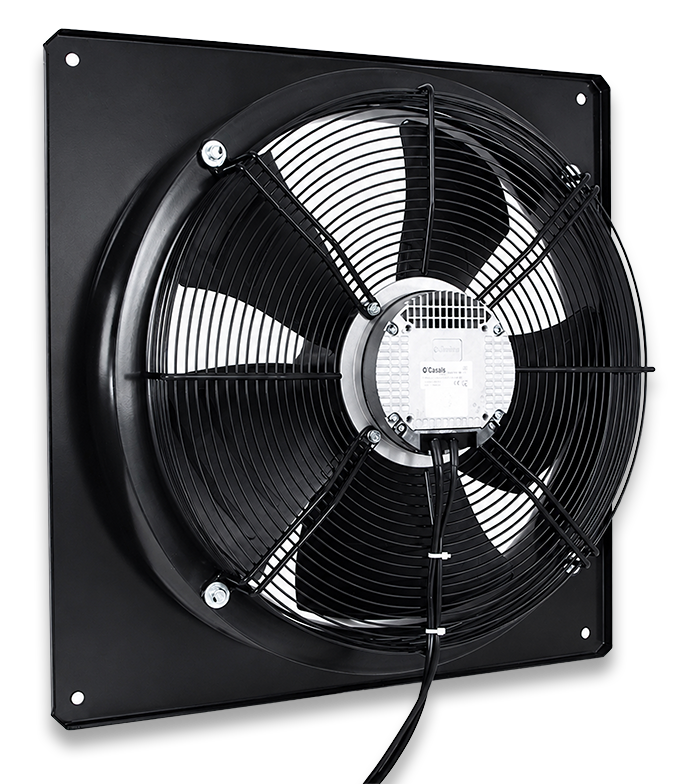

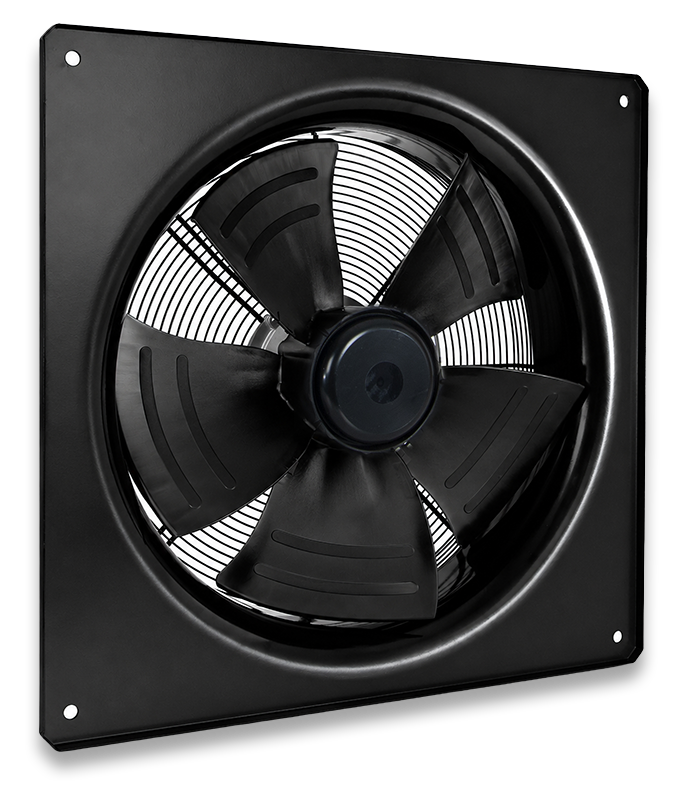

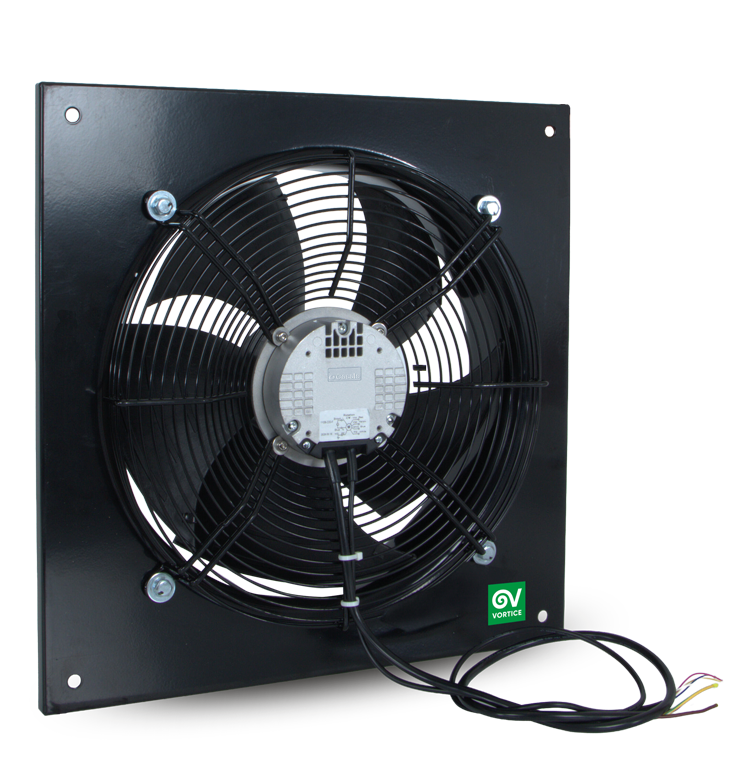

Description
• Panel, pressed from black powder-coated sheet steel.
• Outlet port calibrated to optimize airflow, with an optimized profile for better performance and to facilitate the connection to the duct if necessary.
• Nominal diameter: 550 mm.
• Protective grille (compliant with UNI ISO 13857), made of electro-welded steel rings painted black.
• Single-phase EC motor (220-240V / 50-60Hz) complete with driver, external rotor type to minimize axial dimensions, with shaft mounted on ball bearing supports, thermally protected and speed adjustable via a 0-10V signal.
• Dynamically balanced impeller (UNI ISO 1940, Point 1 – Class 6.3); blades, pressed from black powder-coated sheet steel, with an optimised shape to combine high performance, great efficiency and reduced noise emissions.
• Outlet port calibrated to optimize airflow, with an optimized profile for better performance and to facilitate the connection to the duct if necessary.
• Nominal diameter: 550 mm.
• Protective grille (compliant with UNI ISO 13857), made of electro-welded steel rings painted black.
• Single-phase EC motor (220-240V / 50-60Hz) complete with driver, external rotor type to minimize axial dimensions, with shaft mounted on ball bearing supports, thermally protected and speed adjustable via a 0-10V signal.
• Dynamically balanced impeller (UNI ISO 1940, Point 1 – Class 6.3); blades, pressed from black powder-coated sheet steel, with an optimised shape to combine high performance, great efficiency and reduced noise emissions.
Technical Data Sheet
-
Frequency (Hz)50/60
-
Insulation classI°
-
IP44
-
Max absorbed current (A)2,6
-
Max absorbed power (W)550
-
Motor classF
-
Temperatura esterna max funzionamento (°C)+60
-
Temperatura esterna min funzionamento (°C)-20
-
Voltage (V)220-240
-
Weight (Kg)6,5
-

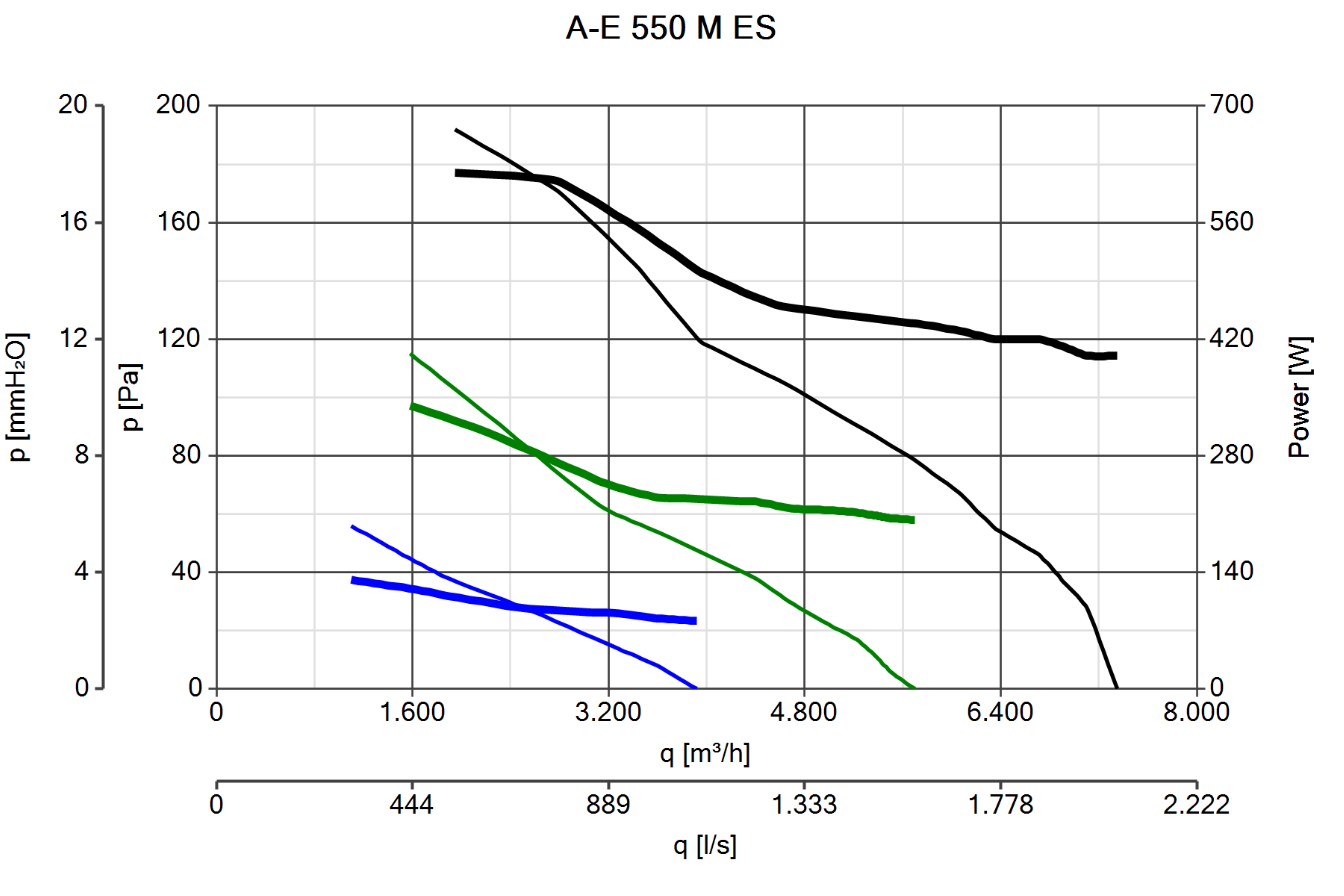

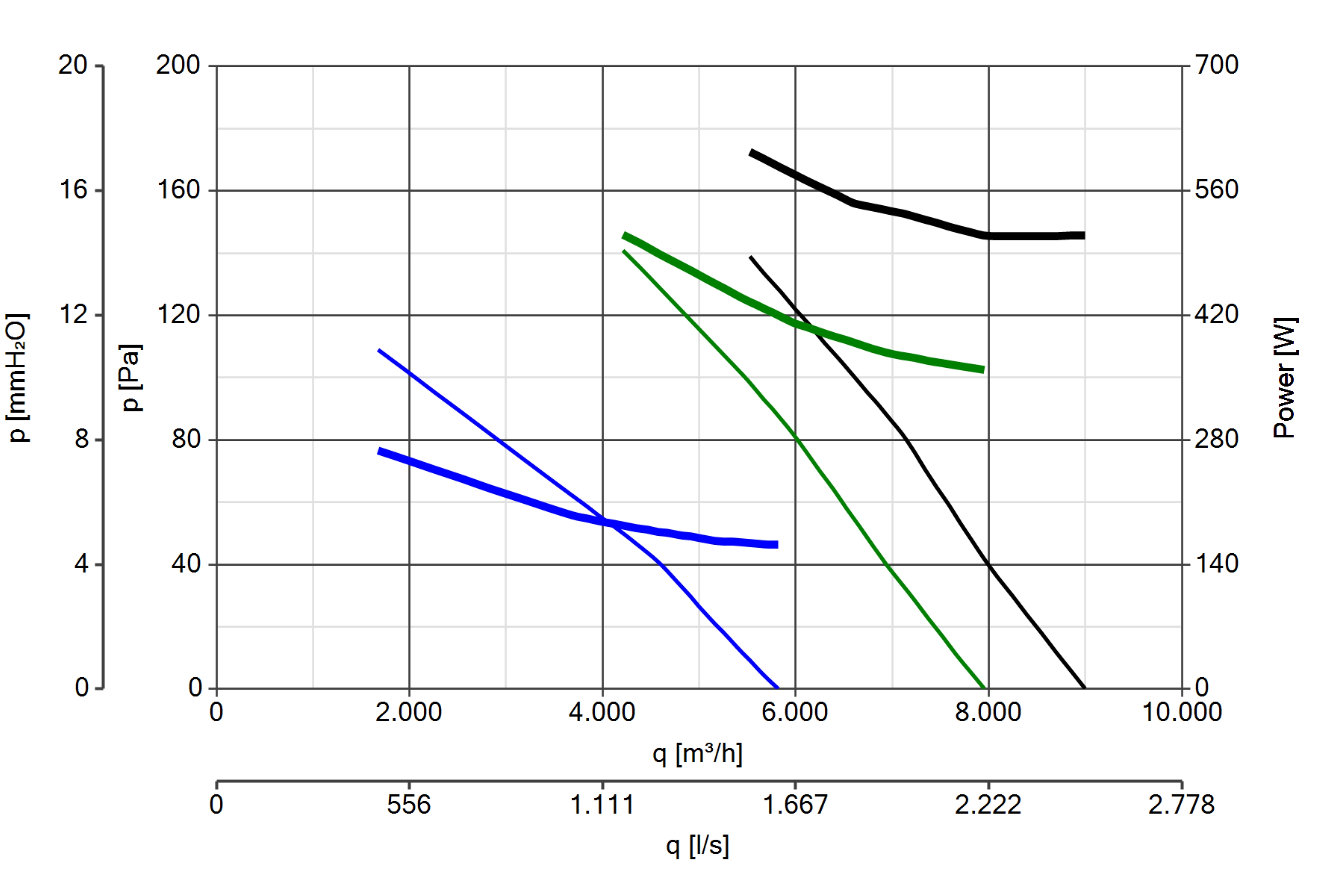

Max airflow (m³/h)9000
-
Max pressure (Pa)140
-
RPM1250
-
Sound pressure level at 1m Lp [dB (A)]71
* Technical datas above refer to the product powered at 50 Hz.
For values for 60 Hz power supply, please contact the VORTICE Presales Service at prevendita@vortice-italy.com.
-

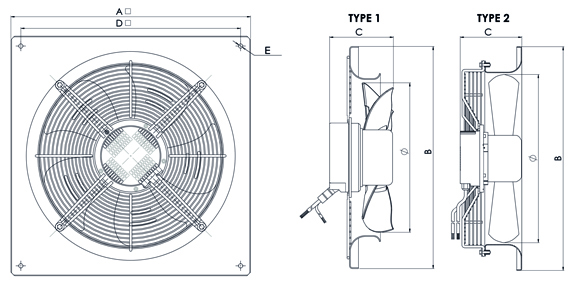

Ø (mm)550
-
Size A (mm)725
-
Size B (mm)725
-
Size C (mm)193
-
Size D (mm)670
-
Size E (mm)Ø 12
