Description

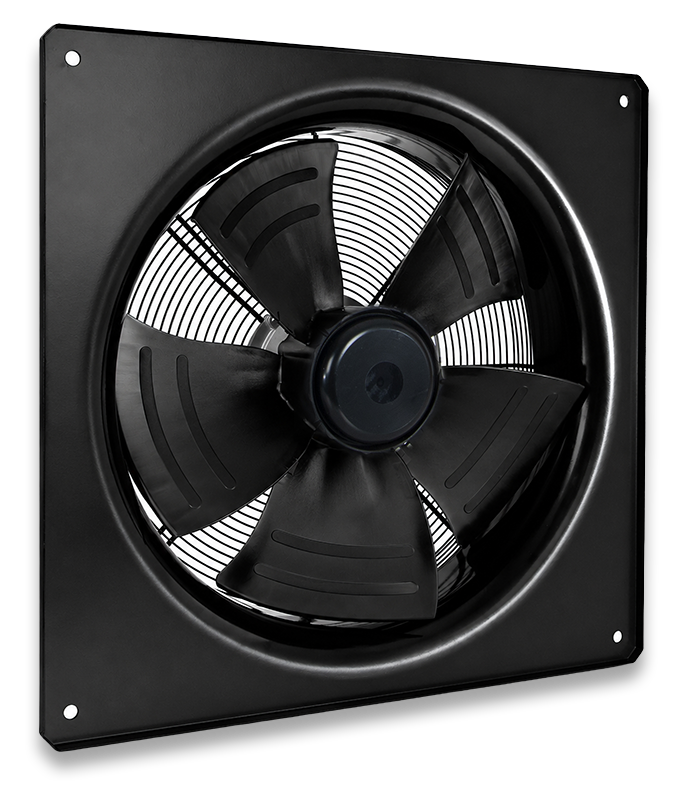

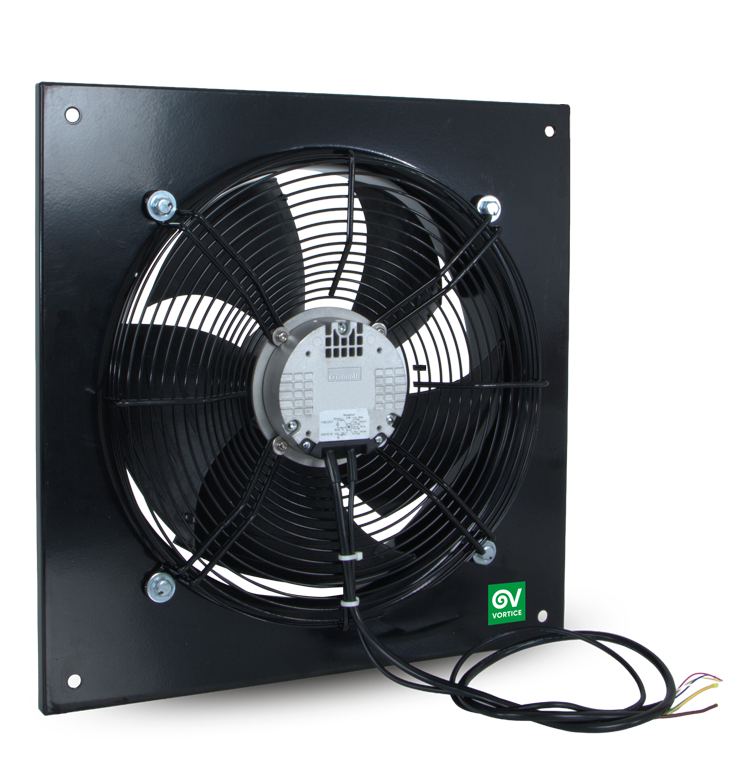

• Panel, pressed from black powder-coated sheet steel.
• Outlet port calibrated to optimize airflow, with an optimized profile for better performance and to facilitate the connection to the duct if necessary.
• Nominal diameter: 500 mm.
• Protective grille (compliant with UNI ISO 13857), made of electro-welded steel rings painted black.

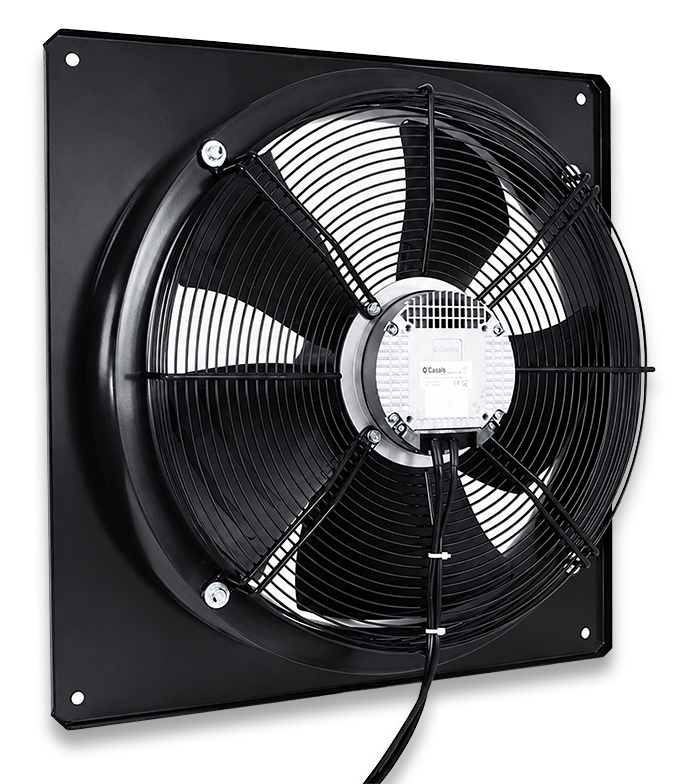

• Single-phase EC motor (220-240V / 50-60Hz) complete with driver, external rotor type to minimize axial dimensions, with shaft mounted on ball bearing supports, thermally protected and speed adjustable via a 0-10V signal.
• Dynamically balanced impeller (UNI ISO 1940, Point 1 – Class 6.3); blades, pressed from black powder-coated sheet steel, with an optimised shape to combine high performance, great efficiency and reduced noise emissions.
• Outlet port calibrated to optimize airflow, with an optimized profile for better performance and to facilitate the connection to the duct if necessary.
• Nominal diameter: 500 mm.
• Protective grille (compliant with UNI ISO 13857), made of electro-welded steel rings painted black.
• Single-phase EC motor (220-240V / 50-60Hz) complete with driver, external rotor type to minimize axial dimensions, with shaft mounted on ball bearing supports, thermally protected and speed adjustable via a 0-10V signal.
• Dynamically balanced impeller (UNI ISO 1940, Point 1 – Class 6.3); blades, pressed from black powder-coated sheet steel, with an optimised shape to combine high performance, great efficiency and reduced noise emissions.
Technical Data Sheet
-
Frequency (Hz)50/60
-
Insulation classI°
-
IP55
-
Max absorbed current (A)2,45
-
Max absorbed power (W)500
-
Motor classF
-
Temperatura esterna max funzionamento (°C)+60
-
Temperatura esterna min funzionamento (°C)-20
-
Voltage (V)220-240
-
Weight (Kg)18
-

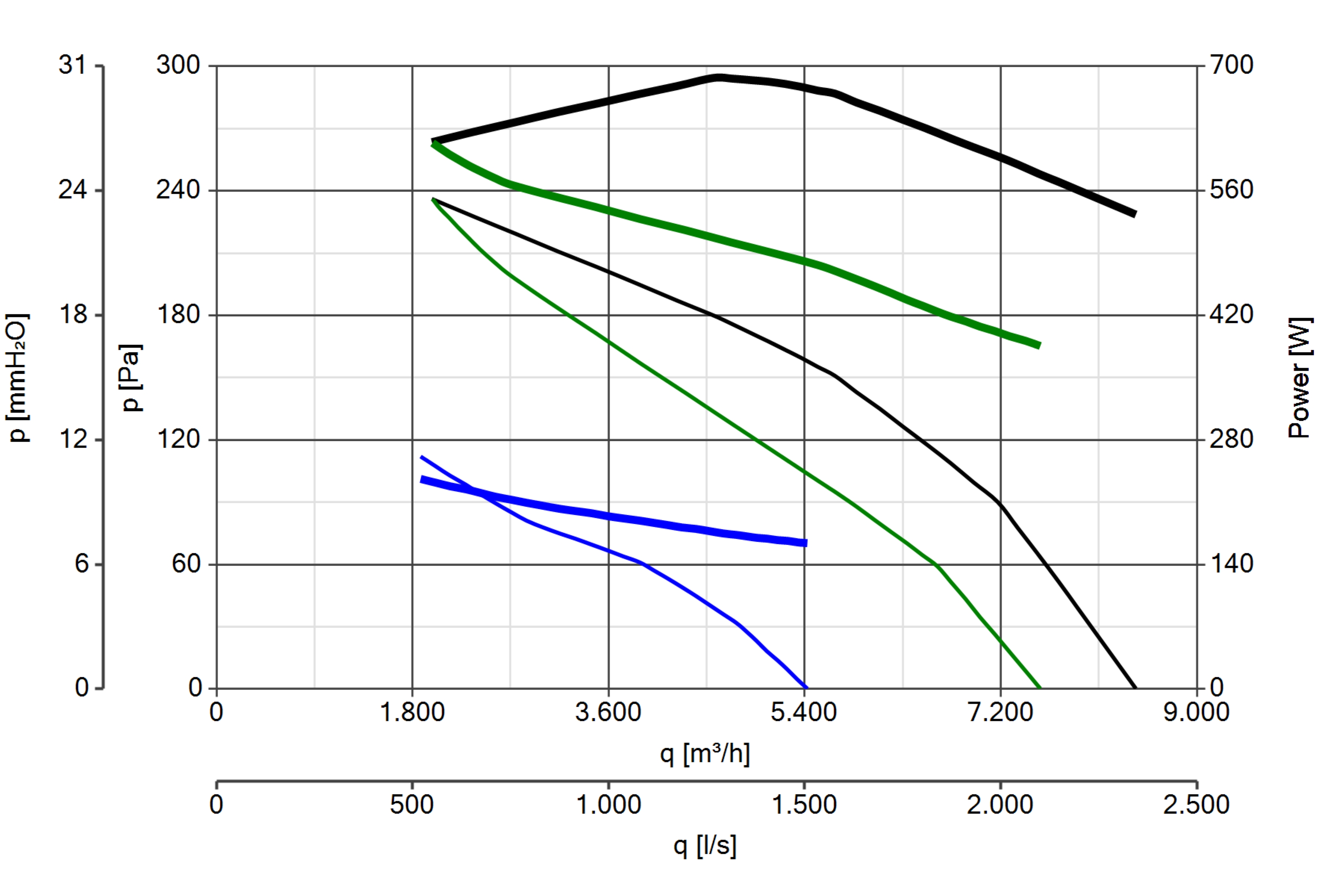

Max airflow (m³/h)8440
-
Max pressure (Pa)260
-
RPM1450
-
Sound pressure level at 1m Lp [dB (A)]71
* Technical datas above refer to the product powered at 50 Hz.
For values for 60 Hz power supply, please contact the VORTICE Presales Service at prevendita@vortice-italy.com.
-

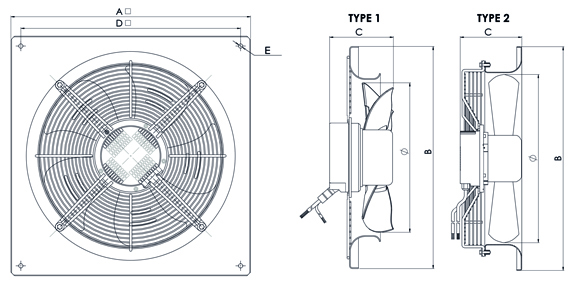

Ø (mm)500
-
Size A (mm)665
-
Size B (mm)665
-
Size C (mm)190,5
-
Size D (mm)610
-
Size E (mm)Ø 12
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.
Accessories
Discover accessories related to the product
PGR 450/500 (PERSIANA GRAVITA')
• Gravity type shutter for preventing air backdraught or rain penetration when the unit is turned off.
TRA 450/500 (TELAIO CON RETE ANTINF.)
• Outlet port protection grille for use when the unit is mounted within reach.
POT
Potentiometer for installation in Standard DIN box. White colour. Resistance 10 kO. Switch rating: 4 A / 250 Vac - 10 A / 12 Vdc. Protection: IP44 (recessed installation), IP54 (wa...
